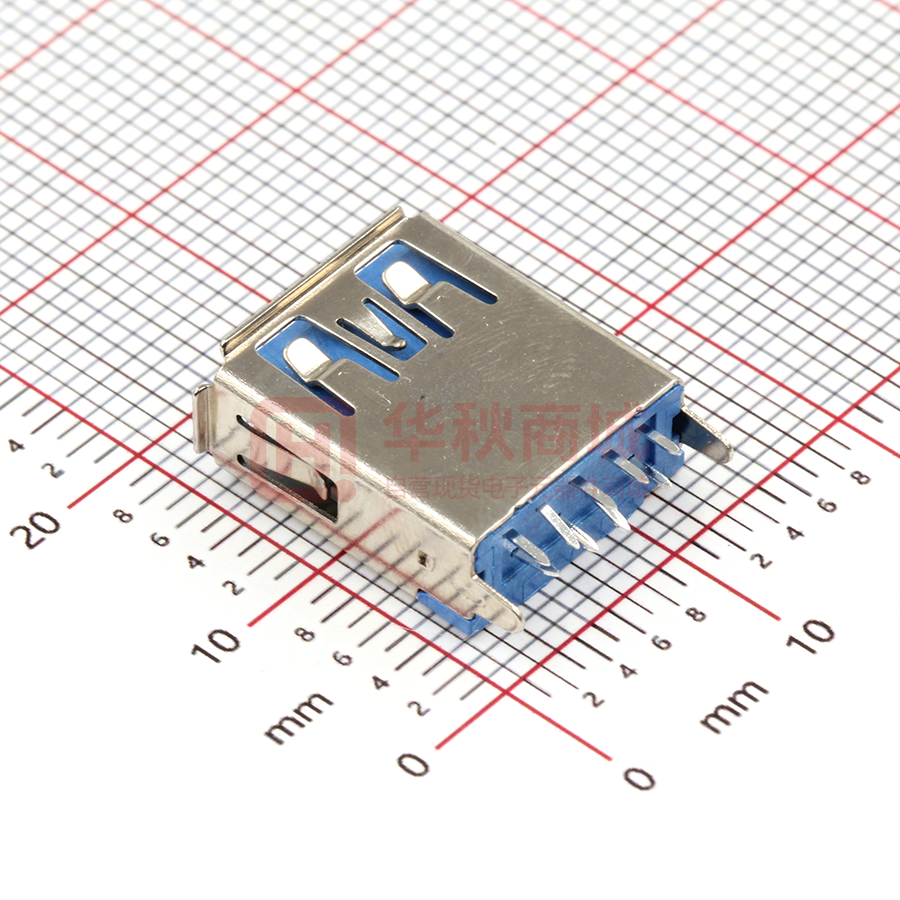

U233-091N-1BLPC15-S1

12.80 [0.504] 9-0.45 [0.018] 12.80 [0.504] 9*0.45 [0.018] Flat（F） 13.10 [0.516] 3D VIEW Scrolls（S） 13.10 [0.516] 14.50 [0.571] 1.45 [0.057] 4.00 [0.157] 15.00 [0.591] Pin # 2.00 [0.079] 1 8 6 7 2 3 5 4 17.90 [0.705] 1.00 [0.040] 3.50 [0.138] 8.00 [0.315] 9-Ø0.70 [Ø0.028] 4.00 [0.158] 1.45 [0.057] 1.55 [0.061] 9 8 1 6 7 2 3 5 2.30 [0.091] 4 0.70 [0.028] 2.00 [0.079] 7.00 [0.276] SIGNAL NAME DESCRIPTION MATING SEQUENCE 1 VBUS POWER 2 D- USB 2.0 DIFFERENTIAL PAIR THIRD GND GROUND FOR POWER RETURN SECOND StdA_SSRX- SUPERSPEED RECEIVER DIFFERENTIAL PAIR LAST Material 3 Housing Material: LCP, UL94V-0, blue 4 Contact Terminal: Brass 5 Metallic Shell:Spcc 6 Plating 7 Underplating: Nickel 8 Contact Plating: 1µ" Gold 9 Solder Tail: 100µ" Min. Tin Shell Metallic Shell: Nickel Electrical Voltage Rating: 100 V AC Current Rating: 0.25A (Signal pins 2,3,5,6,7,8,9) 1.5A (Power Pins 1,4) Contact Resistance: 30mΩ Max. Insulation resistance: 1000MΩ Min. Dielectric withstanding voltage: 100V AC/Minute Mechanical Durability: 1500 cycles Mating Force: 35N (3.57Kgf) Max Unmating Force: 10N (1.02Kgf) Min. initial, 8N min after test Environmental and Processing Operating Temperature: -40°C to +85°C 5.70 [0.224] 9 7.10 [0.280] 1.55 [0.061] SECOND D+ StdA_SSRX+ GND_DRAIN GROUND FOR SIGNAL RETURN StdA_SSTX- SUPERSPEED TRANSMITTER DIFFERENTIAL PAIR StdA_SSTX+ Shield CONNECTOR METAL SHELL FRIST U233-09XN-1BLPC15-X1 1:Au 1U" 5:Au 15U" 6:Au 30U" S:Scrolls F:Flat 12.80 [0.504] RECOMMENDER P.C.B. LAYOUT TOP VIEW (COMPONENT SIDE TOLERANCE±0.05) X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
