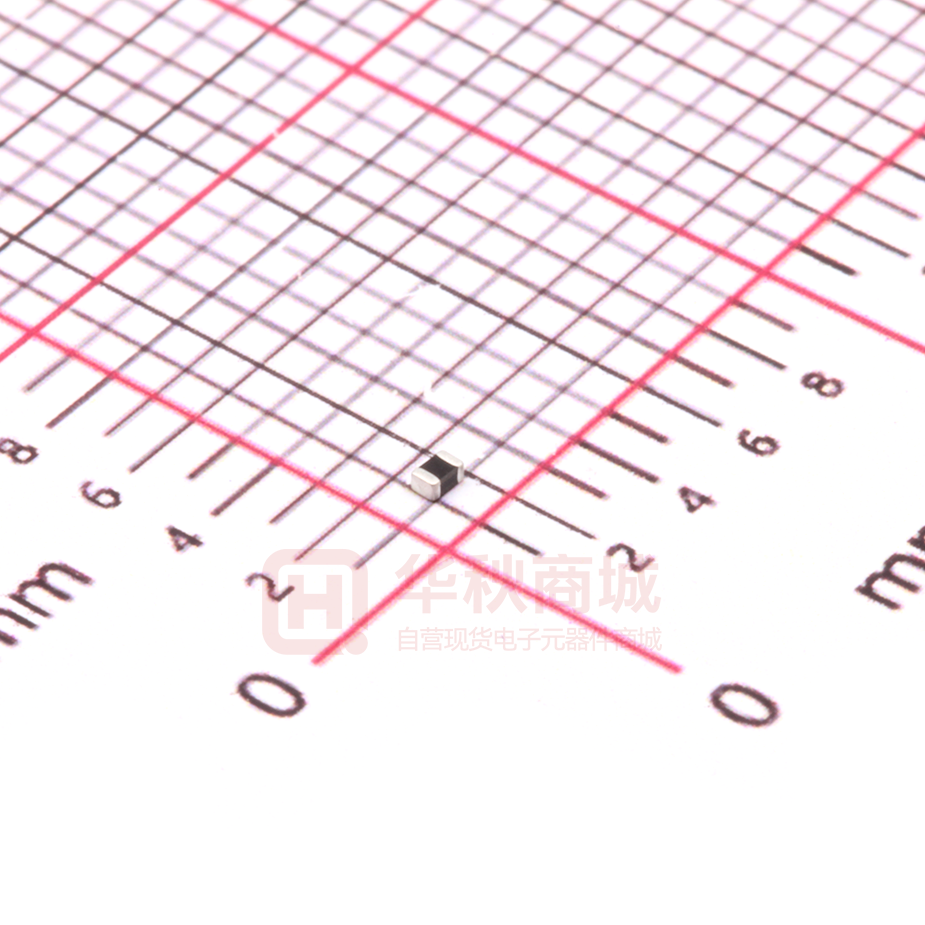

ESD5451R-2/TR

ESD5451R ESD5451R 1-Line, Bi-directional, Transient Voltage Suppressors http//:www.sh-willsemi.com Descriptions The ESD5451R is a bi-directional TVS (Transient Voltage Suppressor). It is specifically designed to protect sensitive electronic components which are connected to low speed data lines and control lines from over-stress caused by ESD (Electrostatic Discharge), EFT (Electrical Fast Transients) DFP1006-2L and Lightning. The ESD5451R may be used to provide ESD protection up to ±30kV (contact and air discharge) according to IEC61000-4-2, and withstand peak pulse current up to 8A (8/20μs) according to IEC61000-4-5. Pin1 Pin2 The ESD5451R is available in DFP1006-2L package. Standard products are Pb-free and Halogen-free. Circuit diagram Features  Reverse stand-off voltage: ±5V Max  Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact and air discharge) Pin1 IEC61000-4-4 (EFT): 40A (5/50ns) Pin2 IEC61000-4-5 (surge): 8A (8/20μs)  Capacitance: CJ = 17.5pF typ.  Low leakage current: IR < 1nA typ.  Low clamping voltage: VCL = 11V typ. @ IPP = 16A (TLP)  Solid-state silicon technology Top View Applications  Cellular handsets  Tablets  Laptops  Other portable devices  Network communication devices Will Semiconductor Ltd. Order information Device Package Shipping ESD5451R-2/TR DFP1006-2L 10000/Tape&Reel 1 Revision 1.4, 2018/04/23 ESD5451R Absolute maximum ratings Parameter Symbol Rating Unit Peak pulse power (tp = 8/20μs) Ppk 80 W Peak pulse current (tp = 8/20μs) IPP 8 A ESD according to IEC61000-4-2 air discharge VESD ESD according to IEC61000-4-2 contact discharge Junction temperature TJ Operation temperature TOP Lead soldering temperature - SMT TL - SMT TL – manual Lead soldering temperature - manual Storage temperature TSTG ±30 kV ±30 125 o -40~85 o 260 o
