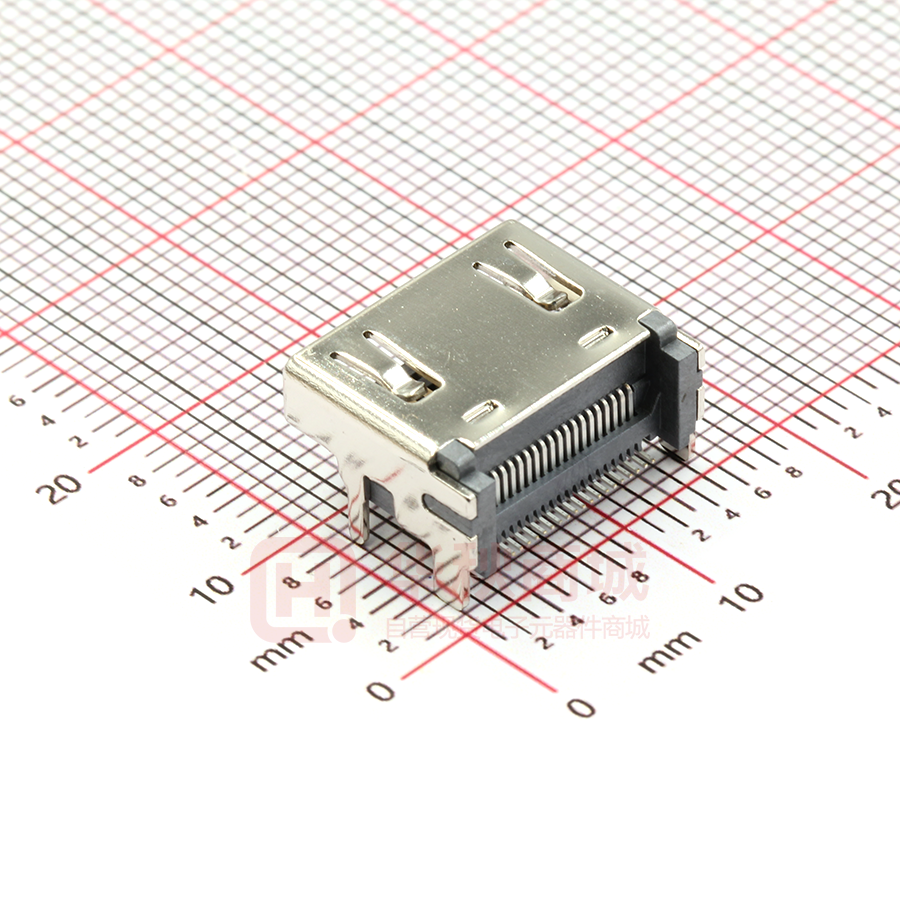

A71-05H5-111N1

14.50 [0.571] 0.28 [0.011] 0.50 [0.020]PITCH 2.60 [0.102] (THROUGH HOLE) 2.10 [0.083] 0.90 [0.035](X4) (THROUGH HOLE) 1.50 [0.059](X4) (LAND) PICK UP AREA Ø6.00 [0.236] 14.50 [0.571] PCB EDGE RECOMMENDED P.C.B. LAYOUT (T:1.20~1.60mm) TOLERANCE UNSPECIFIED ±0.05mm 14.00 [0.551] 10.80 [0.425] SPECIFICATIONS 1.OPERATINGCURRENT:0.5A MAX. 2.OPERATION TEMPERATURE:-25℃ TO +85℃ 3.DIELECTRICWITHSTANDING VOLTAGE: 500Volts AC BETWEEN ADIACENT TERMINAL(UNMATE) 300Volts AC BETWEEN ADIACENT TERMINAL(MATE) 4.INSULATION RESISTANCE: 100Mohm MIN(UNMATED);10Mohm MIN.(MATED) 5.HDMI SPECIFICATION COMPLIANCE 2.05 [0.081] 5.98 [0.235] (LAND) 2.70 [0.106](X2) 12.15 [0.478] (THROUGH HOLE) 2.70 [0.106](X2) (LAND) 3.30 [0.130](X2) 11.06 [0.435] 3 1 PIN 1 9*1=9.00 [0.354] PIN 19 A71-05H5-1X1N1 2 6.20 [0.244] 4.55 [0.179] 0.90 [0.035] 1:Au 1U" 5:Au 15U" 6:Au 30U" 3.40 [0.134] PIN 2 8*1=8.00 [0.315] 0.50 [0.020] 2.20 [0.087] 2.00 [0.079] 0.64 [0.025] 14.50 [0.571] 1.00 [0.039] 3.20 [0.126] 4.60 [0.181] 1.00 [0.039] 0.10 PIN 18 5.96 [0.235] 0.10 [0.004] 0.20 [0.008] 0.50 [0.020] COPPER ALLOY,GOLD PLATED OVER NICKEL ON CONTACT AREA AND 100u" MIN.TIN PLATED OVER NICKEL ON SOLDER TAILS 3 CONTACTS 19 2 HOUSING 1 THERMOPLASTIC UL94V-0 1 SHELL 1 COPPER ALLOY, NICKEL PLATED ROHS COMPLIANCE X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
