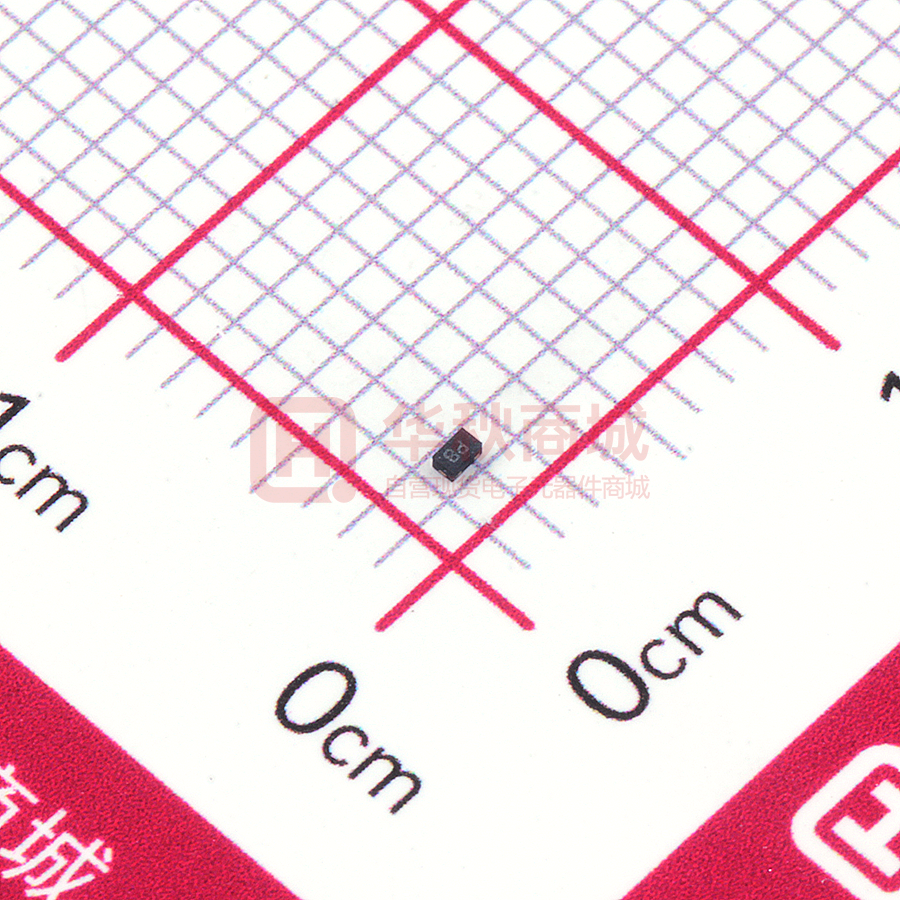

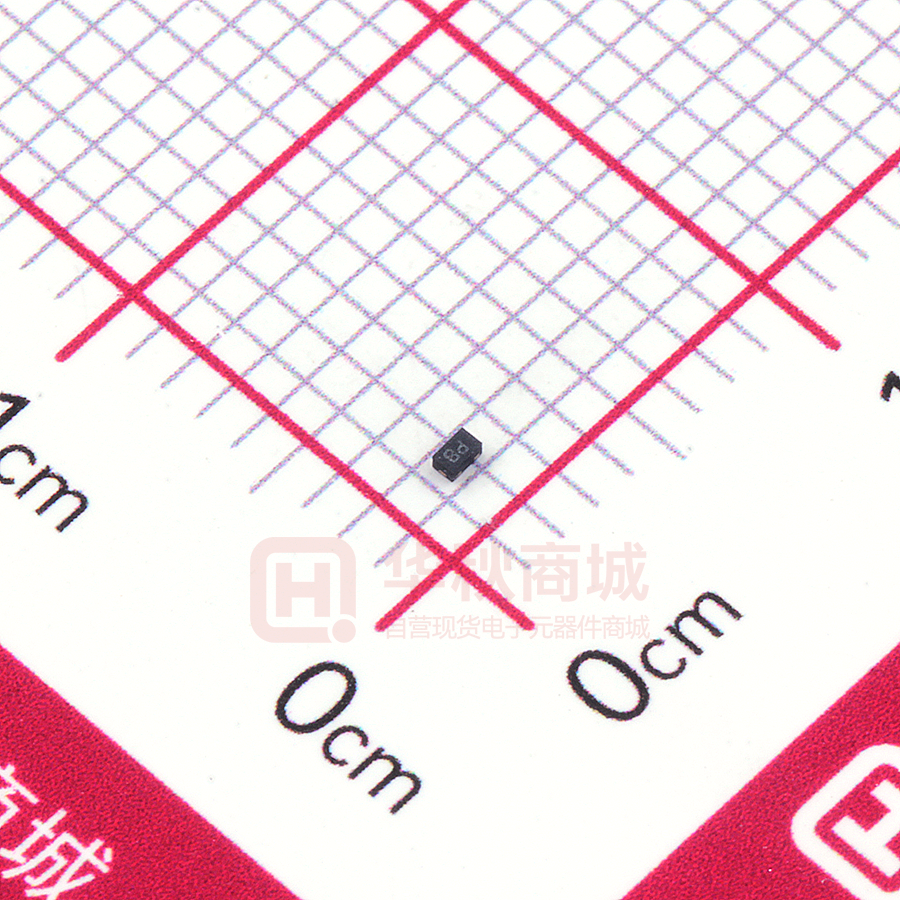

TEB05DFA

东莞市通科电子有限公司 DongGuan Tongke Electronic Co.,LTD TEB05DFA Bi-directional TVS Diode for ESD Protection FEATURES      Protects one bi-directional I/O line Low clamping voltage Low operating voltage: 5.0V RoHS compliant MAIN APPLICATIONS          Cell phone handsets and accessories Personal digital assistants (PDA’s) Notebooks, desktops, and servers Portable instrumentation Pagers Microprocessor based equipment   DFN1006-2L(Bottom view) 1 PROTECTION SOLUTION TO MEET   IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns)  IEC61000-4-5 (Lightning) 8A (8/20µs) 2 Pin Configuration(Top view) MECHANICAL CHARACTERISTICS     DFN1006-2L package Molding compound flammability rating: UL 94V-0 Quantity per reel: 10,000pcs Lead finish: lead free MARKING CODE  PB   ORDERING INFORMATION  PART No. PACKAGE TYPE QUANTITY(PCS) REEL DESCIPTION TEB05DFA DFN1006-2L 10,000 7 inch reel pack www.ctk-elec.com 1 400-6922-883 TEB05DFA ABSOLUTE MAXIMUM RATINGS (TA=25℃, RH=45%-75%, unless otherwise noted)  Parameter Symbol Value Unit PPP 60 W VESD +/- 30 +/- 30 kV Lead soldering temperature TL 260 (10 sec.) ℃ Operating junction temperature range TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Peak pulse power dissipation on 8/20μs waveform ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Storage temperature range ELECTRICAL CHARACTERISTICS (TA=25℃) Parameter Reverse working voltage Reverse breakdown voltage Symbol Conditions Min Typ VRWM VBR IT=1mA 5.6 7 Max Unit 5.0 V 8.5 V Reverse leakage current IR VRWM=5V 0.1 μA Peak pulse current IPP tP=8/20μs 8 A Clamping voltage VC IPP=8A, tP=8/20μs 7.2 12 V Junction capacitance CJ VR=0V, f=1MHz 15 18 pF   www.ctk-elec.com 2 400-6922-883 TEB05DFA RATINGS AND V‐I CHARACTERISTICS CURVES (TA=25℃, unless otherwise noted)    FIG.1:V- I curve characteristics (Bi-directional) I IPP V C V BR V R IT IR IR IT (8/20μs) Percent of I PPM front time: T1 = 1.25×T = 8×(1±20%)μs time to half value: T2 = 20×(1±20%)μs Peak value 100 90 Half value V 50 V R V BR V C     IPP     FIG.3: Pulse derating curve   PPP derating in percentage(%)   100    80  60    40    20   T A (℃ ) 0 0 25 50 75 100                 www.ctk-elec.com FIG.2: Pulse waveform T2 10 0 0 t(μs) T T1 10 20 FIG.4: ESD clamping 30 40 (20kV contact) Percent of I PPM 100 90 30ns 60ns 125 150 10 0 0 175 3 t(ns) tr 0.7 to 1ns 30 60       400-6922-883 PACKAGE MECHANICAL DATA  D e b E L1 2 L 1 L1 2 1 Top view A Bottom view Side view 0,6 0,6 1.0 0,3 0,35 0,35 Recommended soldering footprint(mm)                                       www.ctk-elec.com Millimeters   Inches Symbol Min. Max. Min. Max. A 0.32 0.42 0.013 0.017 b 0.45 0.55 0.018 0.022 D 0.95 1.05 0.037 0.041 e 0.55 0.65 0.022 0.026 E 0.55 0.65 0.022 0.026 L 0.28 0.38 0.011 0.015 L1 0.00 0.10 0.000 0.004   4 400-6922-883
