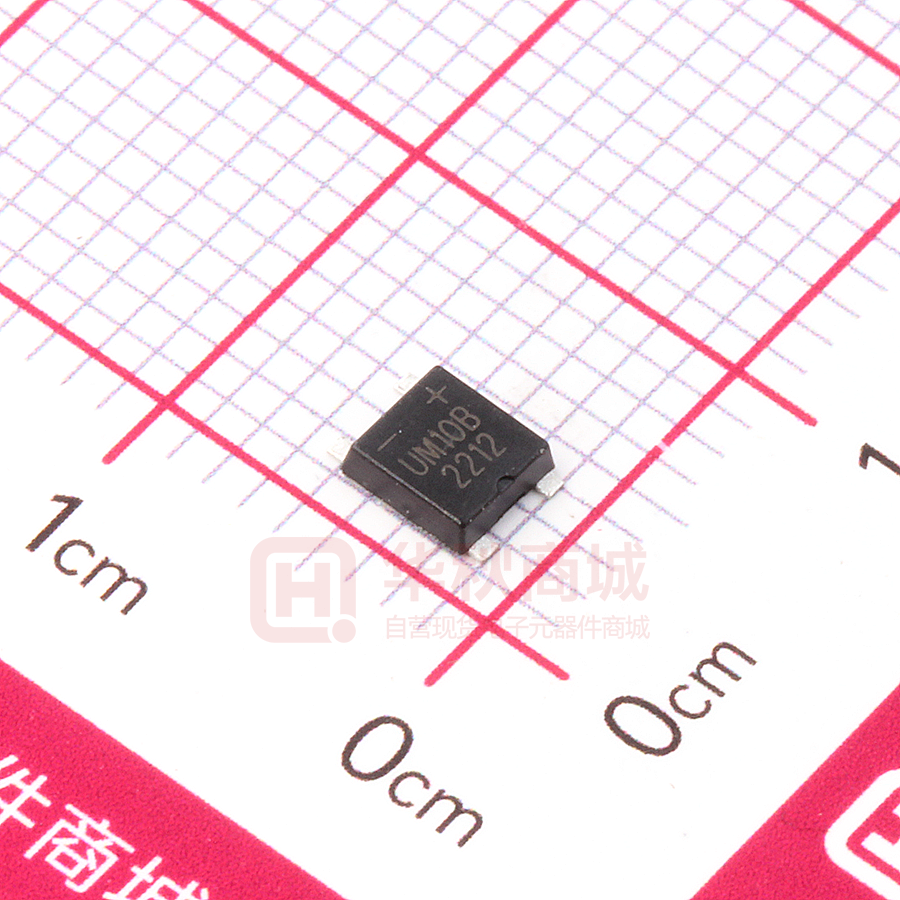

UM10B

UM1B THRU UM10B 0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: PINNING Glass Passivated Chip Junction Reverse Voltage - 100 to 1000 V PIN DESCRIPTION 1 Input Pin（~） 2 Input Pin（~） Average Rectified Output Current - 0.8 A High Surge Current Capability 3 Output Anode（+） Designed for Surface Mount Application 4 Output Cathode（-） MECHANICAL DATA • Case: UMB • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 45mg/0.0016oz 3 4 2 1 UMB Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols UM1B UM2B UM4B UM6B UM8B UM10B Units Maximum Repetitive Peak Reverse Voltage V RRM 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 100 200 400 600 800 1000 V Parameter Average Rectified Output Current at T c = 115 °C Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) Forward Voltage per element Maximum DC Reverse Current at Rated DC Blocking Voltage @I F= 0.4A @I F =0.8A @ T a =25 °C @ T a =125 °C Typical Junction Capacitance（Note1） Typical Thermal Resistance（Note2） Operating and Storage Temperature Range IO 0.8 A I FSM 25 A VF 1.0 1.1 V IR 3 30 μA Cj 13 pF RθJA 110 °C/W T j , T stg -55 ~ +150 °C Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. P.C.B. mounted with 4×1.5"×1.5"（3.81×3.81 cm）copper pad areas. 2016.01 UMB-A-UM1B~UM10B-0.8A1KV Page 1 of 3 UM1B THRU UM10B Fig.2 Typical Reverse Characteristics 1.0 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 100 T J =25°C 10 1 0.5 1.0 1.5 2.0 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2016.01 www.sdjingdao.com Page 2 of 3 UM1B THRU UM10B PACKAGE OUTLINE Plastic surface mounted package; 4 leads UMB C A ∠ALL ROUND HE VM d A E g e D e g UMB mechanical data A C D E HE g d e max 1.2 0.20 3.8 4.0 5.1 0.82 2.7 0.70 min 1.0 0.12 3.4 3.6 4.6 0.51 2.3 0.51 max 47 7.9 150 157 201 32 106 28 min 39 4.7 134 142 181 20 91 20 UNIT ∠ mm 7° mil Marking The recommended mounting pad size 2.5 100 1.0×1.4 39×55 4.3 170 2016.01 Unit： mm (mil) JD601094B2 Type number Marking code UM1B UM1B UM2B UM2B UM4B UM4B UM6B UM6B UM8B UM8B UM10B UM10B Page 3 of 3
