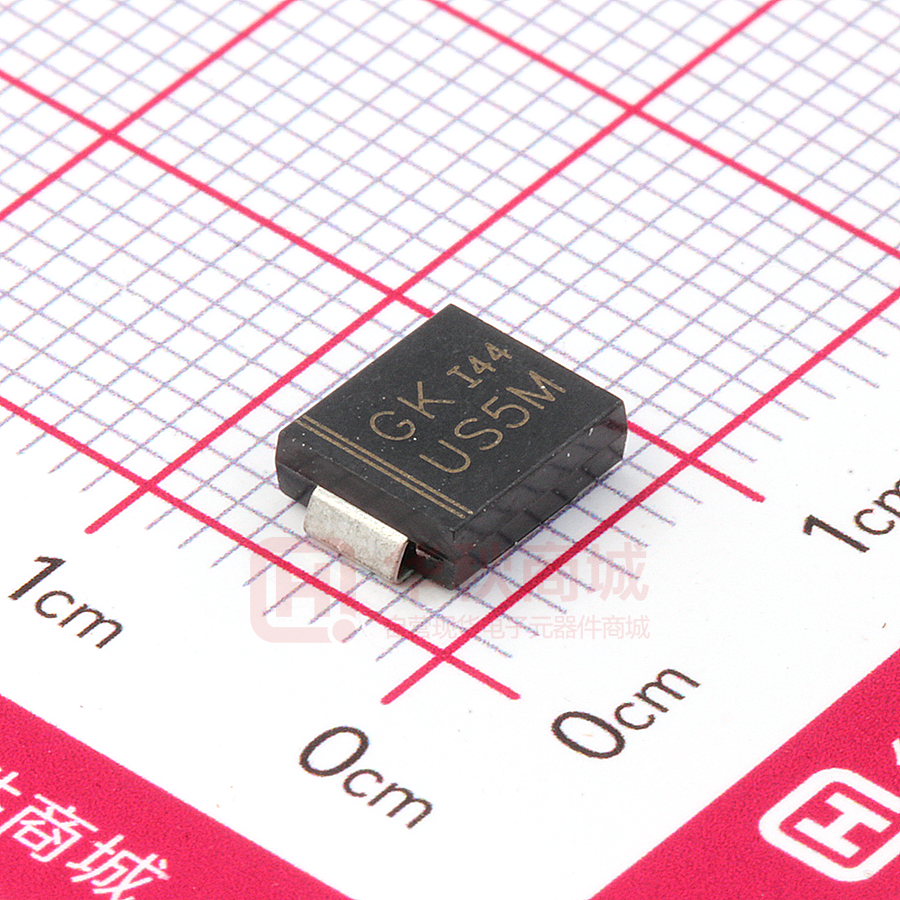

US5M

US5A US5M THRU 5.0 AMP SURF ACE MOUNT HIGH EFFICIENCY RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 5.0 Ampere FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Fast switching speed DO-214AA(SMB) .155(3.94) .130(3.30) .083(2.11) .075(1.91) MECHANICAL DATA .185(4.70) .160(4.06) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.21 grams .012(0.31) .006(0.15) .096(2.44) .083(2.13) .008 MAX. (.203) .220(5.59) .200(5.08) .050(1.27) .030(0.76) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current US5A 50 35 50 US5B US5D US5E US5G US5J US5K US5M UNITS 100 200 300 400 600 800 1000 V 70 140 210 280 420 560 700 V 100 200 300 400 600 800 1000 V at Ta=55 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 5.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100 C Maximum Reverse Recovery Time (Note 1) Typical Junction Capacitance (Note 2) Operating and Storage Temperature Range TJ, TSTG A 5.0 120 1.3 10 1.0 1.7 200 50 75 15 -65 +150 A V A A nS pF C NOTES: 1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (US5A THRU US5M) FIG.1 -- TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC trr 10 N 1. 50 N 1. | | | | | | | | +0.5A D.U.T. PULSE GENERATOR (NOTE2) (+) 25VDC (approx) (-) 0 OSCILLOSCOPE (NOTE 1) 1 NONINDUCTIVE -0.25A NOTES:1.RISE TIME = 7ns MAX.INPUT IMPEDANCE = 1M .22pF. JJJJJ2.RISE TIME =10ns MAX.SOURCE IMPEDANCE=50 . -1.0A 1cm 100 FIG.3 -- FORWARD DERATING CURVE AMPERES 1.0 600\800\1000V 50\100\200V 0.1 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 5 AVERAGE FORWARD CURRENT AMPERES TJ=25 Pulse Width=300µS 0.01 z 400V 10 1.8 2 4 3 1 0 0 10 6 4 　　　　 TJ=25 US5J -US5M 1 0.4 1 2 4 10 20 REVERSE VOLTAGE,VOLTS 40 75 100 125 150 175 100 8.3ms Single Half Sine-Wave 100 AMPERES US5A -US5G PEAK FORWARD SURGE CURRENT 60 40 0.1 0.2 50 FIG.5 -- PEAK FORWARD SURGE CURRENT 200 100 2 25 LEAD TEMPERATURE, FIG.4 -- TYPICAL JUNCTION CAPACITANCE 20 Single Phase Half Wave 60HZ Resistive or Inductive Load 2 INSTANTANEOUS FORWARD VOLTAGE, VOLTS JUNCTION CAPACITANCE,pF INSTANTANEOUS FORWARD CURRENT FIG.2 -- TYPICAL FORWARD CHARACTERISTIC 50 0 1 5 10 50 100 NUMBER OF CYCLES AT 60Hz REV 1.0 2015 JAN PAGE:2/2
