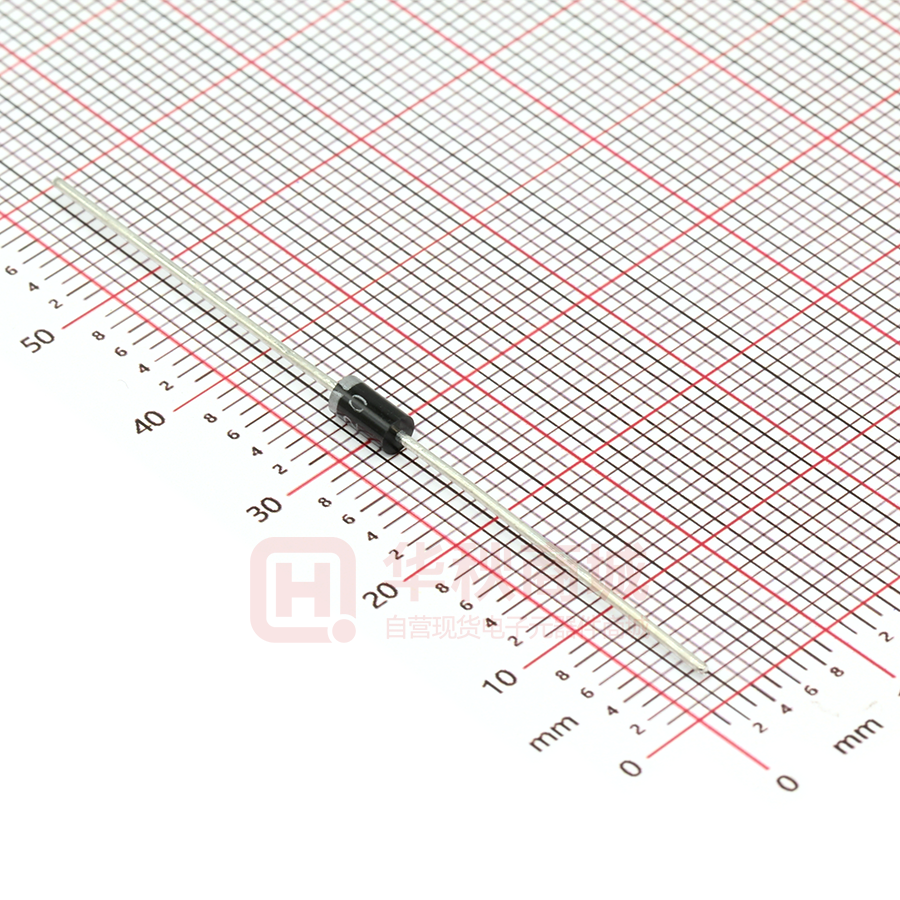

EM520

EM520 AXIAL LEADED RECTIFIER DIODES VOLTAGE RANGE: 2000V CURRENT: 1.0 A Features ! ! ! ! ! Diffused Junction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability B A A C D Mechanical Data ! ! ! ! ! ! Case:DO-41 Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Weight: 0.35 grams (approx.) Mounting Position: Any Marking: Type Number DO-41 Dim Min A 25.40 Max ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics TA = 25C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbol EM520 Unit VRRM VRWM VR 2000 V VR(RMS) 1400 V IO 1.0 A Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) IFSM 30 A Forward Voltage @IF = 1.0A VFM 1.1 V @TA = 25°C @TA = 100°C IRM 5.0 500 µA Cj 15 pF R
JA 50 K/W Tj -65 to +125 °C TSTG -65 to +150 °C Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current (Note 1) Peak Reverse Current At Rated DC Blocking Voltage @TA = 75°C Typical Junction Capacitance (Note 2) Typical Thermal Resistance Junction to Ambient (Note 1) Operating Temperature Range Storage Temperature Range Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case 2. Measured at 1.0 MHz and Applied Reverse Voltage of 4.0V D.C. 1 of 2 www.sunmate.tw 2 of 2 www.sunmate.tw
