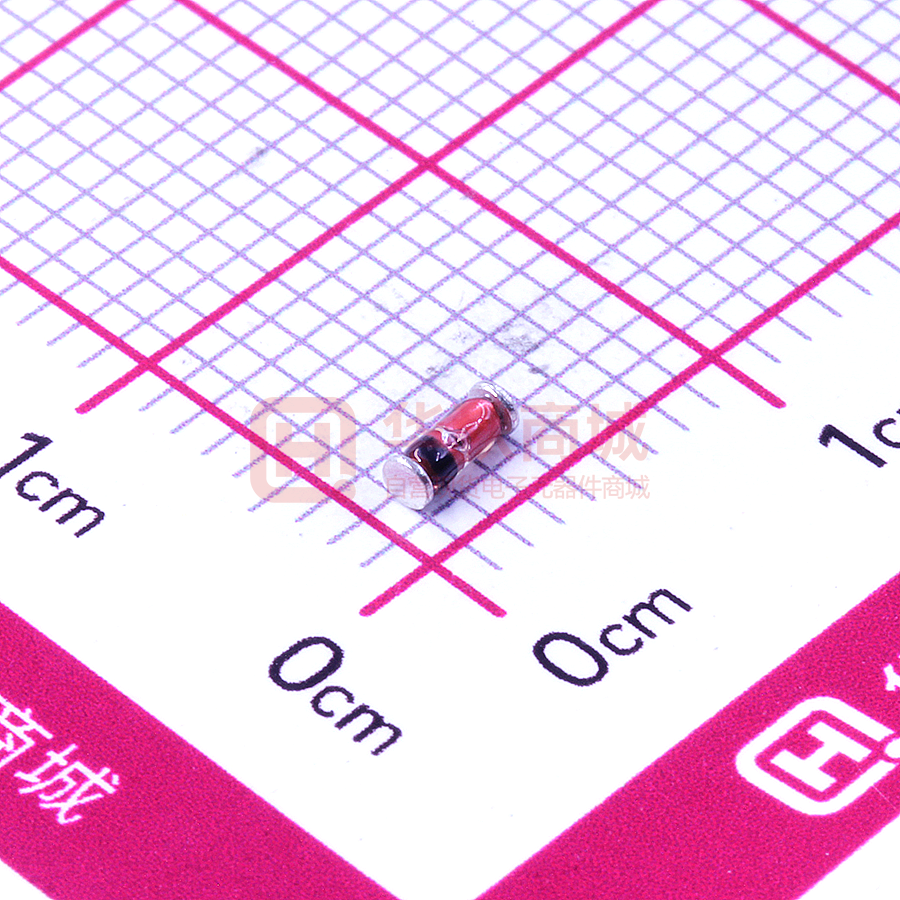

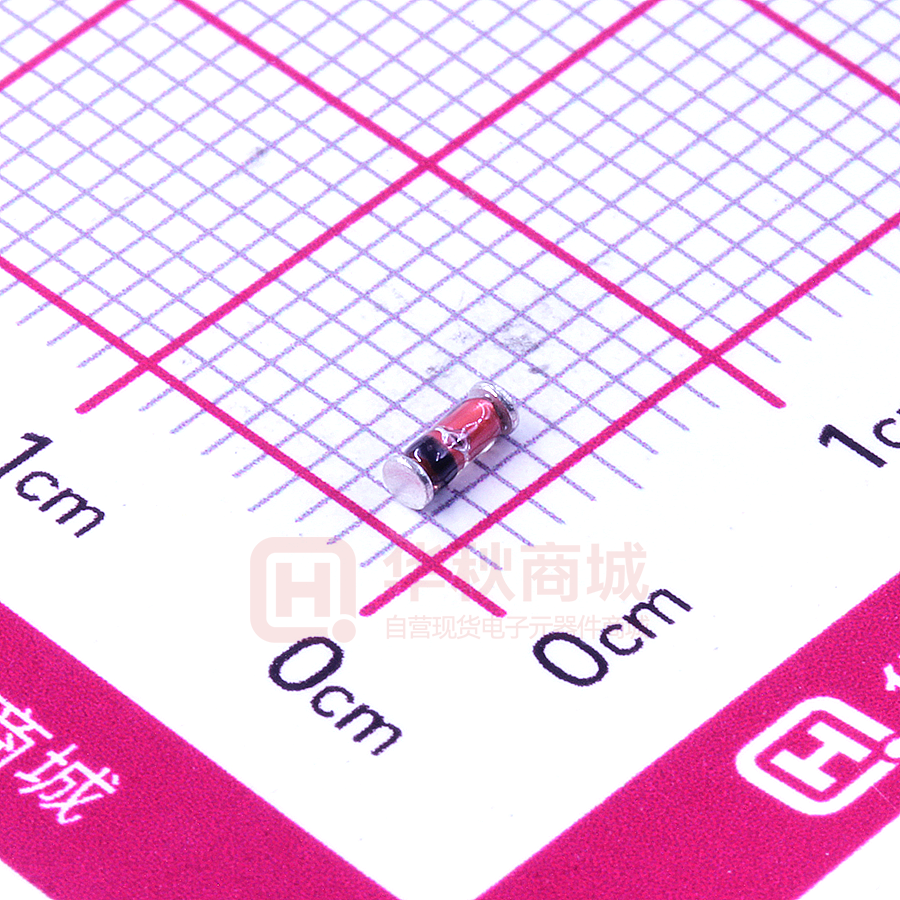

LL4148-MS

www.msksemi.com LL4148-MS Semiconductor Compiance Features 5K Vo ~ 2nF 60 IF:200mA VR:75V PKG:LL34 glass case VRF =2V power dissipation Rectification Efficiency Measurement Circuit LL-34 REEL SPECIFICATION P/N PKG QTY LL4148-MS LL34 2500 Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit Peak Reverse Voltage VRM 100 V Reverse Voltage VR 75 V IF(AV) 200 mA Average Rectified Forward Current Non-repetitive Peak Forward Surge Current at t = 1 s at t = 1 ms at t = 1 μs Power Dissipation Ptot 0.5 1 4 500 1) Tj 175 O C Tstg - 65 to + 175 O C IFSM Junction Temperature Storage Temperature Range 1) A mW Valid provided that electrodes are kept at ambient temperature. Characteristics at Ta = 25 OC Parameter Symbol Min. Max. Unit VF - 1 V IR IR IR - 25 5 50 nA µA µA V(BR)R 100 - V Capacitance at VR = 0, f = 1 MHz Ctot - 4 pF Voltage Rise when Switching ON tested with 50 mA Forward Pulses tp = 0.1 s, Rise Time < 30 ns, fp = 5 to 100 KHz Vfr - 2.5 V Reverse Recovery Time at IF = 10 mA to IR = 1 mA, VR = 6 V, RL = 100 Ω trr - 4 ns RthA - 0.35 ηV 0.45 Forward Voltage at IF = 10 mA Leakage Current at VR = 20 V at VR = 75 V at VR = 20 V, Tj = 150 C O Reverse Breakdown Voltage tested with 100 µA Pulses Thermal Resistance Junction to Ambient Air Rectification Efficiency at f = 100 MHz, VRF = 2 V 1) - 1) K/mW - Valid provided that electrodes are kept at ambient temperature. www.msksemi.com LL4148-MS Semiconductor Dynamic forward resistance versus forward current Forward characteristics 10 Compiance 3 10 4 Tj=25oC f=1KHz 5 2 10 2 o Tj=100 C iF 10 3 o Tj=25 C rf 10 5 2 10 2 5 1 2 10 10 -1 5 2 10 -2 0 1 1 2V 10 -1 10 -2 1 10 VF IF Admissible power dissipation versus ambient temperature Relative capacitance versus reverse voltage Valid provided that electrodes are kept at ambient temperature mW LL 4148 1000 500 900 Power Dissipation: Ptot (mW) Tj=25oC f=1MHz 1.1 400 800 P tot 10 2 mA Ctot(VR) Ctot(0V) 700 1.0 300 600 500 0.9 200 400 300 100 0.8 200 100 0 0 25 100 150 Ambient Temperature: Ta (OC) 0 0 100 Power Derating Curve Tamb 200 o 200 C 0.7 0 0 2 4 6 8 10 V VR www.msksemi.com LL4148-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
