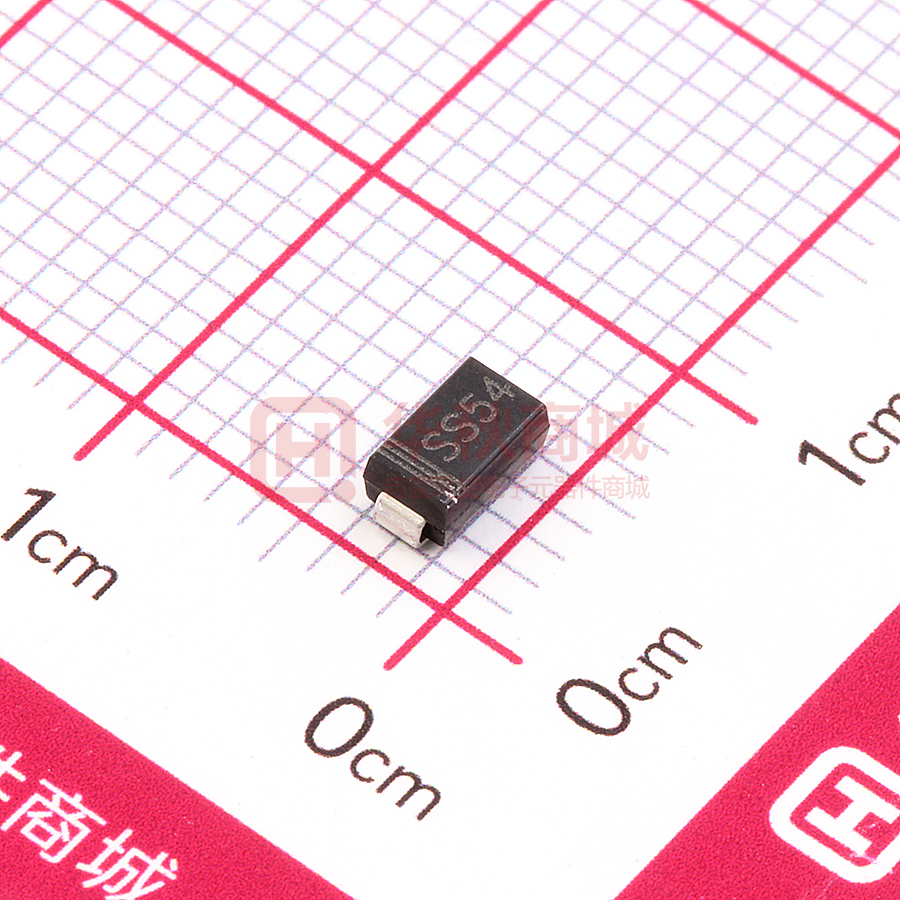

SS54-MS

www.msksemi.com SS52 THRU SS520 Semiconductor Compiance FEATURES The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Metal silicon junction,majority carrier conduction Low power loss,high efficiency Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals MECHANICAL DATA Case: JEDEC DO-214AC molded plastic body Terminals: leads solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.003 ounce, 0.093 grams 0.004 ounce, 0.111 grams SMA(H) SMA MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. CHARACTERISTICS SS520 SYMBOL SS52 SS53 SS54 SS55 SS56 SS58 SS510 SS515 Maximum Recurrent Peak Reverse Voltage VRRM 20 30 40 50 60 80 100 UNIT 150 200 V Maximum RMS Voltage VRMS 14 21 28 35 42 56 70 105 140 V Maximum DC Blocking Voltage VDC 20 30 40 50 60 80 100 150 200 V Maximum Average Forward Rectified Current 0.375″（9.5mm) Lead Lengths I(AV) 5.0 A IFSM 100 A Peak Forward Surage Current 8.3ms Single Half Sine-Wave Super Imposed on Rated Load(JEDEC Method) Maximum Forward Voltage at 5.0A DC Maximum DC Reverse Current at Rated DC Bolcking Voltage VF 0.85 0.95 V 1.0 20 50 CJ 500 350 pF RθJA 15 10 ℃/W IR Typical Junction Capacitance (Note1) mA TJ -55 to +150 ℃ TSTG -55 to +150 ℃ Operating Temperature Range Storage Temperature Range 0.7 0.2 @TJ=25℃ @TJ=100℃ Typical Thermal Resistance (Note2) 0.55 NOTES: 1.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC 2.Thermal resistance junction to ambient, www.msksemi.com SS52 THRU SS520 Semiconductor FIG. 1 – FORWARD CURRENT DERATING CURVE FIG. 2 – MAXIMUM NON-REPETITIVE SURGE CURRENT PEAK FORWARD SURGECURRENT, (AMPERES） AVERAGE FORWARD CURRENT AMPERES 6.0 5.0 4.0 3.0 2.0 SS52- SS510 SS515- SS520 1.0 0 25 75 50 100 125 150 200 150 100 50 0 PULSE WIDTH 8.3ms SINGLE HALF-SINE-WAVE (JEDEC METHOD ) 1 175 2 5 LEAD TEMPERATURE (℃) 10 INSTANTANEOUS FORWARD CURRENT, (A) SS52-SS54 SS55-SS520 TJ = 25°C f = 1 MHz 10 100 SS52 -SS54 10 SS55-SS56 SS58-SS510 SS515 - S S520 1.0 TJ = 25°C 0.1 100 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 INSTANTANEOUS FORWARD VOLTAGE, VOLTS REVERSE VOLTAGE ,VOLTS FIG.2-TYPICAL REVER CHARACTERISTICS 20 INSTANTANEOUS REVERSECURRENT(mA) CAPACITANCE, (pF) 4000 1 50 FIG.4-TYPICAL FORWARD CHARACTERISTICS 100 100 0.1 20 NUMBER OF CYCLES AT 60Hz FIG.3 – TYPICAL JUNCTION CAPACITANCE 1000 Compiance 10 TJ=100 ℃ 1.0 TJ=75℃ 0.1 TJ= 25℃ 0.01 0.001 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) www.msksemi.com SS52 THRU SS520 Semiconductor PACKAGE MECHANICAL DATA A Dimensions B Ref. Min. Max. A 4.25 B Inches Min. Max. 4.65 0.167 0.183 2.50 2.90 0.098 0.114 C 1.35 1.65 0.053 0.065 D 0.76 1.52 0.030 0.060 E E 4.93 5.28 0.194 0.208 F 0.051 0.203 0.002 0.008 J K G 0.15 0.31 0.006 0.012 H 1.98 2.41 0.078 0.095 J 6.50 H F G L D Millimeters 2.30 K DO-214AC (SMA) L 0.256 1.70 0.090 0.067 REEL SPECIFICATION P/N SS52 THRU SS520 PKG QTY SMA 2000 Compiance SS52 THRU SS520 Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
