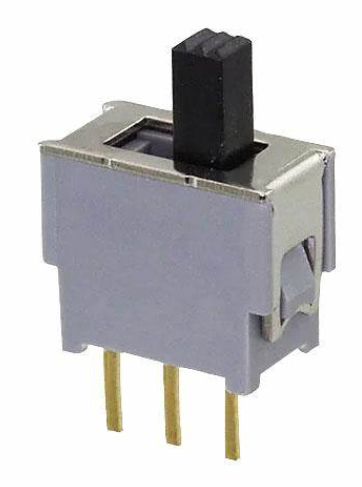

8SS Sub-miniature Slide Switche RoHS Compliant ■ Specifications Contact specs. Rating Silver contacts Max. 125VAC 6A 30VDC 4A Min. 5VAC/DC 100mA Initial contact resistance 10mΩ max.（2∼4VDC 1A） Initial dielectric strength 1,000VAC 1 minute Initial insulation resistance （500VDC） 1,000MΩ min. ON   −   ON 30,000 cycles Electrical life ON − OFF − ON 20,000 cycles Mechanical life Operating temperature range Storage temperature range 100,000 cycles −30∼＋85℃ −40∼＋85℃ ■Part Numbering 8　　 SS　　 1　 01　　 1 　－ Z Series Code Code Type Fig. Numberof poles Fig. Switching function Fig. Terminal style SS Slide type 1 1 pole 01 ON　 ー　 ON 1 Solder 2 2 poles 02 ONーOFFーON 2 PC Straight ■Terminal Styles Solder （Style：1） ■Panel Cut−Out Dimensions PC Straight （Style：2） ■PC Hole Layouts ■Packaging Specifications Plastic Bag 50 pcs./pack 1 pole 2 poles ●For soldering specifications and flux cleaning, please refer to the Handling Precautions of the 8 series on P. 410. 8SS ■SPDT Switching function Solder terminals Part No.  8SS1011−Z ▲8SS1021−Z Connecting terminals S/D Switching function Solder terminals Part No.  8SS2011−Z ★8SS2021−Z Connecting terminals Switching function PC Straight Part No.  8SS1012−Z ★8SS1022−Z Connecting terminals Switching function PC Straight Part No.  8SS2012−Z ★8SS2022−Z Connecting terminals ★：Made to order products. ▲：Inquiry products. ON ON 2−1 − 2−3 Viewed from rating marking side ON ON 2−1 5−4 − OFF − ON ON 2−3 5−6 Viewed from rating marking side ON ON − OFF ON ON 2−1 − 2−3 The terminal numbers are not shown on the switch. ■DPDT P/C − OFF The terminal numbers are not shown on the switch. ■SPDT P/C ON ON The terminal numbers are not shown on the switch. ■DPDT S/D Viewed from rating marking side Viewed from rating marking side ON ON 2−1 5−4 − OFF − ON ON 2−3 5−6 The terminal numbers are not shown on the switch. Not all products are UL-recognized or CSA-certified. Please contact your local Nidec Copal Electronics sales representative.
