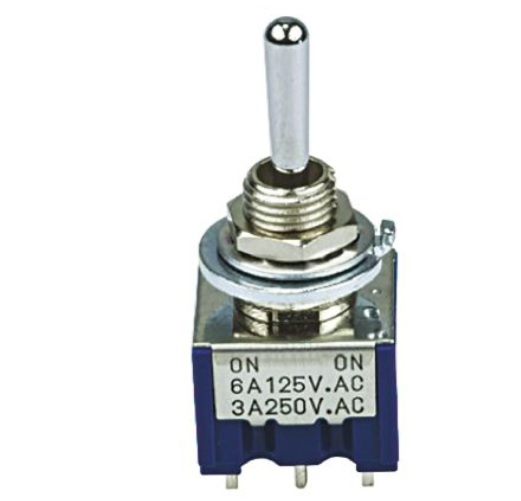

　 8 Series Toggle Switches ■Introduction The 8 Series Toggles is Copal Electronics' high-reliability miniature switch product offering. This product line meets and exceeds all basic international switch standards. With 8 toggle options, PC and solder lug terminals, power and logic level current ratings, 1-4 pole and many circuit offerings these switches can be used in many industries and various applications within these industries. Four of the 8 Series lines are washable. Specifically designed for PC applications with automated solder and cleaning methods. The 8 Series is available with UL Recognition and CSA Certification upon request from the customer. ■Applications ●Communication equipment ●Computer peripheral equipment ●Measuring instruments ●Medical equipment ●Automotive diagnosis The switches can be used in a wide range of fields from industrial to consumer equipment. ■Features of 8 Series Toggles 1. Terminal style : Solder, Straight, Right angle and vertical mount PC terminals. 2. Contacts : Silver or gold. 3. Epoxy resin case : UL94V-0 self-extinguishing epoxy. 4. Actuator styles : Over 30 actuator variations. 5. Insulation between terminal and ground : 4 mm minimum. 6. Prevention of flux entry The epoxy resin seal on bottom of the switch helps prevent the entry of solder and flux. 7. Insulation barrier : Insulation barrier design between poles helps prevent short-circuiting between poles ensuring high reliability. 8. UL Recognized product File No.E43275 9. CSA Certified product File No.LR38341 10. For the UL Recognized and CSA Certified products please see page 409. 8 Series Toggles Selection Table Name 8A Standard toggle Actuator shape Number of poles Switching function Terminals 386 1・2・3・4 Solder Lug 1・2・3・4 Flatted Toggle ON ON − （ON） − ON − ON − OFF OFF OFF − ON − ON − （ON） − （ON） （ON） 1・2・3・4 Long Toggle 〜 389 Solder Lug Straight PC Straight PC − − OFF − ON ON Solder Lug Straight PC 〜 ON 1・2・3・4 Splash Proof Toggle − ON − ON Solder Lug 1・2 Washable Standard Toggle 1・2 Washable 〜 Straight PC 400 403 ON ON − （ON） − ON − OFF OFF − ON − ON Straight PC − （ON） （ON） 〜 Washable 8GA Short Toggle 398 399 Solder Lug 8G Straight PC 1・2・3・4 Short Toggle 396 397 8A Type 4 Poles only Solder Lug 8J Straight PC 〜 8F 394 395 1・2・3・4 Lever Lock Toggle 392 393 ON ON 3/4 Poles 8E 390 391 Solder Lug 1/2 Poles 8D 388 〜 8C 1・2・3・4 Mustang Toggle Straight PC 〜 8B Page 〜 Part No. Right Angle Vertical 404 405 Straight PC Right Angle Vertica ( ) indicates momentary actuation ■Terminals Solder Terminal （Style:1） t=0.8 PC Straight （Style:2） t=0.8 Right Angle （Style:4） PC t=0.8 Vertical Mount （Style:6） R/A t=0.8 w=1.2 V/M 8 Series Toggles ■Part Numbering A 8 Series code Actuator shape 1 Number of poles 01 Switching function 1 Terminals C − Z Contact material and plating （※1） Code Type Fig. Number of poles A Standard Toggle 1 1 pole B Mustang Toggle 2 2 poles C Flatted Toggle 3 3 poles D Long Toggle 4 4 poles E Lever−lock Toggle F Splash Proof Toggle J Short Toggle G Washable Code Switching function 01 ON  ー  ON 02 ON ー OFF ー ON 04 （ON）ー OFFー（ON） 05 ON ー OFF ー（ON） 06 ON  ー （ON） ※10 ON ー ON ー ON Fig. Terminals Code Contact material Plating 1 Solder Terminal None Bs＋Ag or Cu＋Ag Ag 2 PC Straight C Bs＋Ag or Cu＋Ag Ni＋Au 4 Right Angle 6 Vertical Mounting ※8A Type only. Bs=Brass Cu=Copper Ag=Silver Ni=Nickel Au=Gold （※1） ：Switches with gold-plated contacts ("C") are made-to order products. MOQ is 25 pcs. Note : Some combinations may not be available. Please check the "Table of Part Numbers" for each series. ■8 Series Toggles Common Specifications Contact specs. Rating Max. Initial contact resistance Initial dielectric strength Initial insulation resistance Electrical life Alternate type Momentary type Operating temperature range Storage temperature range （ON） ：Momentary. Silver AC125V 6A AC250V 3A DC30V 4A 10mΩ Max. （DC2〜4V 1A） Gold AC125V 6A AC250V 3A DC20V 25mA 20mΩ Max. （AC200μV 1.5mA） AC1500V 1 minute 1000MΩ Min.　　　　　　　　　　　 （DC500V） 50,000 cycles 25,000 cycles −30〜＋85℃ −40〜＋85℃ 8A Standard Bat Toggle Switch RoHS Compliant ■Features The 8A series has a 10.5mm bat toggle. ■Table of Part Numbers Terminal Style 1 pole ☆ 8A3011−Z − ☆ 8A4011−Z ★ 8A4011C−Z ON − OFF − ON   8A1021−Z ☆ 8A2021−Z    − ★ 8A4021−Z （ON）− OFF −（ON） ☆ 8A1041−Z ☆ 8A2041−Z    − − ON − OFF −（ON） ☆ 8A1051−Z ☆ 8A2051−Z    −    − ☆ 8A1061−Z ☆ 8A2061−Z    −    −    −    −    − ★ 8A4101−Z   8A1012−Z ☆ 8A1012C−Z ☆ 8A1022−Z ☆ 8A1022C−Z   8A2012−Z − ☆ 8A2022−Z −   8A3012−Z ★ 8A3012C−Z ★ 8A3022−Z − ★ 8A4012−Z − ★ 8A4022−Z − ☆ 8A1042−Z    −    −    − ★ 8A1062−Z ☆ 8A1062C−Z    −    −    −    −    −    − − ON − （ON） ON − ON − ON ON − ON ON − OFF − ON （ON）− OFF −（ON） ON − （ON） ■ Optional Accessories ………………………………… Page 412. Color Cap Dimensions 4 poles   8A2011−Z ☆ 8A2011C−Z ON Straight PC 3 poles   8A1011−Z ☆ 8A1011C−Z ON Solder Lug 2 poles Color Part. No. Color Part. No. White Red 140000470030 White 140000470038 140000470098 Red 140000470100 Black 140000470031 Black 140000470039 Gray 140000470037 Gray 140000470077 Dimensions ：Optional Accessories. （ON） ：Momentary. ☆：Semi-standard products. ■ PC Hole Layouts …… Page 411. ■ Panel Cut-Out Dimensions … Page 411. ■ Terminal Styles ……… Page 384. ■ Standard accessories …… Page 411. ●For soldering and flux cleaning specifications, please refer to P.413. ★：Made to order products. 8A SPDT Switching function Part No. ±1 10.5 13.8 ±1 9 1 SR3 1/4"-40THD 0.8 ±1 4.5 (1) (2) 4.5 24ﾟ ±1 13   8A101■−Z   8A102■−Z   8A104■−Z   8A105■−Z   8A106■−Z ±1 ±0.5 ±6ﾟ 8 8 (3) Connecting terminals KEY WAY A 8A2011∼2061 9±1 8A2001∼2121 11.9±1 ±1 Part No.   8A201■−Z   8A202■−Z   8A204■−Z   8A205■−Z   8A206■−Z B A 0.8 1/4"-40THD ±6ﾟ ±1 24ﾟ ±1 ±0.5 1 SR3 13 13 13.8±1 16.2±1 8 10.5 ±1 13 Switching function B (1) 4.5 4.5 寸法 Dimensions 形名 Part No. Key way Key way ON ON （ON） ON ON − OFF OFF OFF − ON ON （ON） （ON） （ON） 2−3 − 2−1 ■：Please refer to "Table of Part Numbers" on P.386 for a list of full part numbers. Terminal numbers are not shown on the switch. DPDT Key way (4) (2) Connecting terminals (5) (3) (6) Key way Key way Key way ON ON （ON） ON ON 2−3 5−6 − OFF OFF OFF − ON ON （ON） （ON） （ON） 2−1 5−4 − ■：Please refer to "Table of Part Numbers" on P.386 for a list of full part numbers. 4.8 KEY WAY Terminal numbers are not shown on the switch. Switching function 3PDT ±1 10.5 16.2 ±1 11.3 4.5 4.5 0.8 1/4"-40THD 24ﾟ 13 ±6ﾟ ±1 ±1 Part No.   8A301■−Z   8A302■−Z ±1 ±0.5 1 SR3 17.8±1 8 Key way (1) (4)) (2) (5) (3) KEY WAY (7) (8) (9) (6) 4.8 4.8 ON ON 2−3 5−6 Connecting terminals 8−9 Key way Key way − OFF ON ON 2−1 5−4 8−7 − ■：Please refer to "Table of Part Numbers" on P.386 for a list of full part numbers. Terminal numbers are not shown on the switch. 4PDT Switching function Part No. 1 16.2 ±1 11.3 1/4"-40THD 24ﾟ 13 ±6ﾟ ±1 8 ±1 4.5 4.5 10.5 SR3 ±1 22.6 ±0.5 (4) (7) ) (5) ) (8) ) (3) 4.8 KEY WAY Terminal numbers are not shown on the switch. Please refer to the next page for products marked with ※. （ON） は、 モーメンタリーです。 （ON） ：Momentary. (1) ) (2) (6) ) 4.8 (10) (11) (1 ) (9) 4.8 (12) 2) Key way ON − ON OFF 2−3 5−6 Connecting terminals − 8−9 11−12   8A410■−Z ON ON 2−3 5−6 2−3 5−4 Connecting terminals 8−9 11−12 8−9 11−10   8A401■−Z   8A402■−Z 0.8 ±1 Key way Key way ON ON 2−1 5−4 8−7 11−10 ON 2−1 5−4 8−7 11−10 ■：Please refer to "Table of Part Numbers" on P.386 for a list of full part numbers. Three ON Switches These switches are designed so that the Switching Function will be ON in all three positions. Extra wiring is required by the customer to get the three ON options. Please see below. 8A4101-Z ■2 Circuit 3 Contacts ●Function Key way Key way Key way Switching function ON ON ON Connecting terms. 2−6 8−12 2−4 8−10 2−1 8−7 Actuator position Circuit diagram External wiring (to be wired by the customer) UL and CSA Listed Table of 8 Series Toggles UL and CSA Listed （Toggle Switches） ■8 Series Toggles Poles 1 pole 2 poles 3 poles 4 poles      （※1.） Switching Function − 101□ ON 102□ ON − OFF −       （※2.） 8A 8B 8C 8D 8E 8F 8J 8A 8B 8C 8D 8E 8F 8J ON ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ON ○ ○ ○ ○ ○ 104□ （ON）− OFF −（ON） ○ 105□ ON − OFF −（ON） ○ 106□ ON − 201□ ON − 202□ ON − OFF − ○ ○ ○ ○ ○ （ON） ○ ○ ON ○ ○ ○ ON ○ ○ ○ 204□ （ON）− OFF −（ON） ○ 205□ ON − OFF −（ON） ○ 206□ ON − 301□ ON − 302□ ON − OFF − 401□ ON 402□ 410□ ON ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ （ON） ○ ○ ○ ○ ON ○ ON ○ ON − OFF − ON ○ ○ − ON − ON ○ ○ ○ ○ ○ ON − ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ （1）Terminal types: 1 Solder terminal; 2 Straight terminal （2）UL-recognized switches: Solder terminals and straight terminals available for Single/Double/ Three/Four Pole （3）CSA-certified switches: Solder terminals and straight terminals available for Single Pole. Straight terminals available for Double/Three/Four Pole. （4） UL, CSA marked switches available with additional charge. （5） （※1.）UL File No.E43275 （※2.）CSA File No.JR38341 （6） As shown in the above chart, not all products are ULrecognized or CSA-certified. Please check with your local sales representative if you have any questions. （ON） ：Momentary. 8 series ■8 Series Toggles Poles 1 pole 2 poles （※1.） Switching function − （※2.） 8G 8GA 8G 8GA ○ ○ ○ 101□ ON ON ○ 102□ ON − OFF − ON ○ ○ ○ ○ ○ 104□ （ON）− OFF −（ON） 106□ ON − （ON） ○ 201□ ON − ON ○ ○ ○ ○ （※1.）UL File No.E43275 FUJISOKU （※2.）CSA File No.LR38341 FUJISOKU UL, CSA marked switches are available upon request. ■Precautions（8A・8B・8C・8D・8E・8F・8J・8SS） 1. Soldering Specifications ⑴Manual soldering Device ： Solder iron ①420℃ Max. 3 sec. Max. ⑵Auto soldering ②275℃ Max. 6 sec. Max. The above-stated soldering conditions shall apply only to switches with straight terminals. Auto soldering is not possible with right-angle terminals. Switches with right-angle terminals should be soldered manually according to the conditions specified in (1) above. ⑶When soldering two or more terminals to the common land, use the solder resist to isolate the terminals. 2.Flux Cleaning ⑴Solvent : Fluorine or Alcohol type. ⑵8A/B/C/D/E/F/J series are not washable. To wash the PC board, clean the soldering surface of the PC board with a brush so that the switch is not exposed to the cleaning solution. ⑶Cleaning after soldering should be done after the terminal temperature falls to 90℃ or below, or after leaving the switch for five minutes or longer at room temperature. 3. Mounting ●Do not bend the terminals before mounting the switch on the PC board. ●After mounting the switch, do not place the device in such a way that the device weight will be applied on to the actuator of the switch. ●For switches with straight terminals, solder the switch on the PC board after fixing the switch on the panel with a nut. ■Packaging Specification Perforated Plastic Bags 25 pcs./pack （ON） ：Momentary. ◆  8 Series Toggles  ◆ ■Panel Cut-Out Dimensions 8A・8D・8J Series 8C 8A・8D・8J 8E 8C 8E 8F 2.5 mm Max. 2.4 mm Max. 1.5 mm Max. 3.5 mm Max. 3.4 mm Max. 2.5 mm Max. Panel thickness 5 mm Max. Dimensions With Locking Ring Without Locking Ring 8B Series 5.9 mm Max. Panel thickness 6.9 mm Max. Dimensions With Locking Ring ■PC Hole Layouts Series 8A・8B・8C・8D・8E・8F・8J 4. 8 4. 8 4. 8 4. 5 4. 5 4. 5 4. 5 4. 8 Dimensions Without Locking Ring φ1.9 φ1.6 3-poles 4-poles 1-pole 2-poles ■Standard Accessories Part Name Part No. Dress Nut 《Q'ty／switch》 Hex Nut Lockwasher Locking Ring O−Ring Hex Nut Lockwasher Locking Ring 140008010253 140008010241 140008030051 140008020062 140000610076 140008010243 140008030055 140008020065 Dimensions Finish 8A 8B 8C 8D 8E 8F 8J Nickel plated 1 Nitrile rubber（Black） Nickel plated Zinc plated 2 1 1 1 2 2 1 2 1 1 1 1 1 1 1 1 1 2 1 ● Numbers in the above chart show the quantities of each accessories enclosed with the switch. Zinc plated 1 1 ■Optional Accessories Type 《Sold separately》 8A・8F・8GA BT 8A・8F・8GA BT 8B 8E Color Cap Part Name Gloss finish Gloss finish Gloss finish Alumite finish Vinyl chloride resin　 Vinyl chloride resin　 Vinyl chloride resin　 Aluminum alloy　 Dimensions Silver − − − White 140000470030 140000470038 140000470063 140000470031 140000470039 140000470064 Gray Type Part Name Part No. Dimensions 140000470098 140000470037 140000470100 140000470077 8A Boot 140000470108 140000470060 140000470102 − Plate 140000470422 − 140008040021 8B 140000470059 Plate 140008040025 14.8 Red Black 140000470058 ：Optional Accessories.
