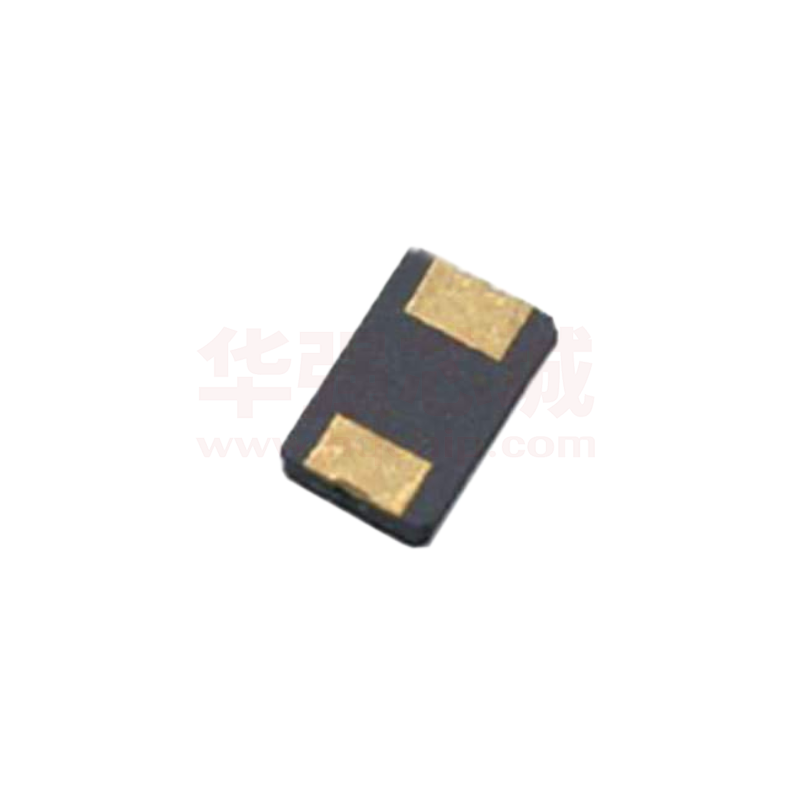

XDLCZLNDDD-0.032768MHz

32.768kHz Series Tuning Fork Crystal Units The 32.768kHz turning fork crystal unit is the most widely used frequency control product. TAITIEN’s tuning-fork-type crystals have low power consumption ideal for portable application. Their different package sizes provide the customers more choices for time management. TAITIEN’s tuning-fork-type crystals are cost effective real time clock products. Type XA XB XD XN Size (mm) 3x8 1x4 2x6 2.0 x 1.2 3.2 x 1.5 6.9 x 1.4 8.0 x 3.8 Package DIP DIP DIP SMD SMD SMD SMD RoHS Yes Yes Yes Yes Yes Yes* Yes* Outline * Pb in high temperature solder (exempt per RoHS 2002/95/EC Annex (7)) and suitable for RoHS compliant reflow ELECTRICAL SPECIFICATION Nominal Frequency Mode of Vibration Storage Temp. Range (TSTR) Turnover Temperature (TM) Temperature Coefficient (β) Frequency vs. Temperature (△f / fM) Series Resistance (R1) Level of Drive (DL) Aging (first year) (△f / f0) Quality Factor (Q) Shunt Capacitance (C0) Load Capacitance (CL) Frequency Tolerance(f_tol) Insulation Resistance 32.768000 kHz Fundamental -55°C ~+125 °C 25±5 °C -(0.03±0.01) ppm/°C 2 βx (T-TM)2 ppm 65~90 KΩ Max. 0.1±0.01 uW Typ, 0.5 uW Max. ±3 ppm Max. 30000~60000 Typ. 3~7 pF Max. 6, 7, 9, 12.5 pF (Please contact us) ±20 ppm @ 25±5 °C 500 MΩ Min. @ DC 100±15 V Specifications subject to change without notice FREQ. vs. CAPACITANCE RATIO (C0/C1) FREQ. vs. LOAD CAPACITANCE (TYP.) Specifications subject to change without notice FREQ. vs. TEMPERATURE (TYP.) Rev(5) 06/2021 Page 1of 2 DIMENSION (mm) – XA / XB Type DIMENSION (mm) – XD Type SOLDER PAD LAYOUT (mm) DIMENSION (mm) – XN Type SOLDER PAD LAYOUT (mm) DIMENSION (mm) – XN Type SOLDER PAD LAYOUT (mm) Specifications subject to change without notice Rev(5) 06/2021 Page 2of 2 Model Numbering Guide – Crystal Units Available options Type package (mm) X: X’tal 3: 1.6x1.2 (MHz Z: 2.0x1.6 series) Y: 2.5x2.0 X: 3.2x2.5 V: 5.0x3.2 (4Pads) R: 6.0x3.5 2: 3.2x2.5 S: 5.0x3.2 (2Pads) Q: 8.0x4.5 I : 11.1x4.68 (U4) J:13.0x4.85 (U4B) A: 3.0x8.0 (Dip) X: X’tal B: 1.0x4.0 (Dip) (32.768 /2.0x6.0 (Dip) kHz D: 2.0x1.2 (2Pads) 3.2x1.5 (2Pads) series) /4.1x1.5 (2Pads) N: 6.9x1.4 (4Pads) /8.0x3.8 (4Pads) X Y Load Freq. Tol. Capacitance @25°C (pF) (ppm) Freq. Stability (ppm) Temp. Range(°C) Special Requirement A:For L:6 O: 7 A: 8 B: 9 C: 10 D: 12 E : 15 F : 16 G: 18 H: 20 P :22 Q:25 I : 30 J : 32 K :50 N:No Standard S :Series A:±5 B:±10 P: ±15 C:±20 D:±25 E:±30 F:±40 G:±50 H:±100 I:±150 A: ±5 B: ±10 P: ±15 C: ±20 D: ±25 E: ±30 F: ±40 G: ±50 H: ±100 I: ±150 Z: ±150 above A:+10~+40 B:+0~-55 E:+0~+85 I :-10~+60 C:-20~+70 D:-30~+85 L:-40~+85 M:-40~+95 J :-40~+105 H:-40~+125 G:-40~+150 F:-55~+125 L: 6 O: 7 B: 9 M: 12.5 C: ±20 H: ±100 I : ±150 Z: ±150 above C: -20~+70 L: -40~+85 C D D L Automotive B:Spurious D: DLD N: No Special P: Pullability S: Several Oscillator Mode A: AT Fundamental T: AT 3rd Overtone O:Laser Seal N :Normal Lead Free Dash F: RoHs Compliant Freq. (MHz) XX.XXXXXX - N: No Special D: Tuning Fork N Appearance A N: Normal (XA 3.0x8.0 size XB 2.0x6.0 size) J : XB 1.0x4.0 size C: XD 4.1x1.5 size D: XD 3.2x1.5 size M:XD 2.0x1.2 size E: XN 8.0x3.8 size H: XN 6.9x1.4 size N D: RoHS Compliant B: Non-RoHS Compliant F 0.032768 - 40.000000 *Not all combinations of options are available. Example: XYCDDLNANF-40.000000 Type Package Load Capacitance Freq. Tol. Freq. Stability Temp Range Special Requirement Oscillator Mode Appearance Lead Free Frequency X’tal 2.5 x 2.0 mm 10 pF ±25ppm ±25ppm -40~+85 °C No Special AT Fundamental Normal Appearance RoHs Compliant 40.000000 MHz 6SHFL¿FDWLRQVVXEMHFWWRFKDQJHZLWKRXWQRWLFH www.taitien.com sales@taitien.com.tw 5HY 121
