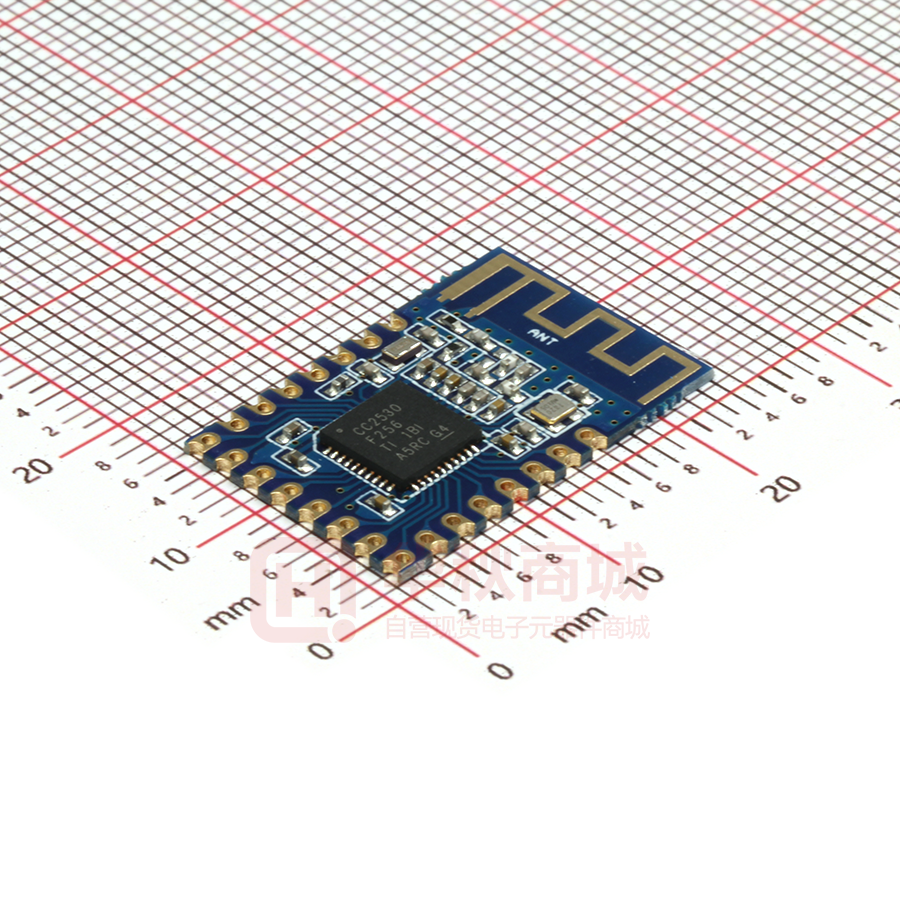

CC2530TR2.4Z-M

深圳市硅传科技有限公司 Tel:086-0755-29359633 Fax:086-0755-83655058 Web:www.Silicontra.com CC2530TR2.4Z-M 带 8051 内核的 ZigBee无线收发数传模块 General Description  The CC2530PATR2.4Z-M RF Module is a low-power, highly integrated 2.4-GHz transceiver that suitable for systems targeting compliance with worldwide radio-frequency.  It’s a true system-on-chip solution for 2.4-GHz IEEE802.15.4, ZigBee and RF4CE applications.  2.4-GHz IEEE802.15.4 compliant RF transceiver.  Excellent receiver sensitivity and robustness to Interference, receiver sensitivity reach to -97dBm.  Programmable output power up to 4.5dBm.  Suitable for systems targeting compliance with worldwide radio-frequency  Accurate digital RSSI/LQI support  Data rate: 250kbps  Modulation: O-QPSK 深圳市硅传科技有限公司 8051 MCU  Powerful five-channel DMA  128KB in-system programmable flash, customization 32-,64-,256KB  8KB RAM with retention in all power modes  CSMA/CA hardware support  AES security coprocessor  Battery monitor and temperature sensor  12-Bit ADC with eight channels and configurable resolution  Two powerful USARTs with support for several serial protocols  IEEE 802.15.4 MAC timer, general-purpose timers (One 16-Bit, Two 8-Bit)  32-kHz sleep timer with capture  Watchdog timer  21 general-purpose I/O pins (19×4 mA, 2×20 mA)  Hardware debug support  Low Power  Active-Mode RX (CPU Idle): 24 mA  Active Mode TX at 1 dBm (CPU Idle): 29 mA  Power Mode 1 (4 ms Wake-Up): 0.2 mA  Power Mode 2 (Sleep Timer Running): 1 mA  Power Mode 3 (External Interrupts): 0.4 mA  Wide Supply-Voltage Range (2 V–3.6 V) Tel:086-0755-29359633 Fax:086-0755-83655058 Web:www.Silicontra.com Tel:086-0755-29359633 Fax:086-0755-83655058 深圳市硅传科技有限公司 Web:www.Silicontra.com Applications  2.4-GHz IEEE 802.15.4 systems  RF4CE remote control systems (64-KB flash and higher)  ZigBee systems (256-KB flash)  Home/Building automation  Lighting systems  Industrial control and monitoring  Low-Power wireless sensor networks  Consumer electronics  Health care  Industrial control Electrical Characteristics Ta = 25°C, VCC = 3.0V Typically, equipment utilizing this device requires emissions testing and government approval, which is the responsibility of the equipment manufacture. TEST ITEM TEST CRITERIA &REQUIREMENT REMARKS Voltage supply 2.0－3.6V DC Center frequency 2394－2507MHz Programmable Frequency error Modulation ±40ppm O-QPSK Output power 4.5dBm Receiving sensitivity -97dBm Receiving current 24mA Transmitting current 29mA Sleep consumption 1uA Power Mode 2 Data rate 250kbps typical Transmit distance 100M-200M At open area Antenna 50ohm Store temperature -40－125°C Operating temperature -40－125°C 24.0*15.7mm Package size Programmable 深圳市硅传科技有限公司 Package Description *2-V–3.6-V digital power-supply connection PIN Interface Description 1 P1.3 General I/O 2 GND Ground 3 VCC 2V-3.6V DC power 4 RST Reset function pin 5 P2.2/DC CC Debugger DC or General I/O 6 P2.1/DD CC Debugger DD or General I/O 7 P2.0 General I/O 8 P1.7 General I/O 9 P1.6 General I/O 10 P1.5 General I/O 11 P1.4 General I/O 12 P1.2 General I/O 13 P1.0 General I/O 14 P0.7 General I/O 15 P0.6 General I/O 16 P0.5 General I/O 17 P0.4 General I/O 18 P0.3 General I/O 19 P0.2 General I/O 20 P0.1 General I/O 21 P0.0 General I/O 22 P1.1 General I/O Tel:086-0755-29359633 Fax:086-0755-83655058 Web:www.Silicontra.com 深圳市硅传科技有限公司 · Package Description Debugger and programmer connect Tel:086-0755-29359633 Fax:086-0755-83655058 Web:www.Silicontra.com 深圳市硅传科技有限公司 Development Tools  TI CC2530 Development Kit  TI CC2530 ZigBee Development Kit  TI CC2530 Remo TI™ Development Kit for RF4CE  TI SmartRF™ Software  TI Packet Sniffer  IAR Embedded Workbench™ Available Tools & Software Download Z-Stack: http://focus.ti.com.cn/cn/docs/toolsw/folders/print/z-stack.html SmartRF Flash Programmer: http://focus.ti.com.cn/cn/docs/toolsw/folders/print/flash-programmer.html SmartRF Protocol Packet Sniffer: http://focus.ti.com.cn/cn/docs/toolsw/folders/print/packet-sniffer.html SmartRF Studio: http://focus.ti.com.cn/cn/docs/toolsw/folders/print/smartrftm-studio.html CC2530-Software Examples http://focus.ti.com.cn/cn/lit/sw/swrc135b/swrc135b.zip Tel:086-0755-29359633 Fax:086-0755-83655058 Web:www.Silicontra.com
