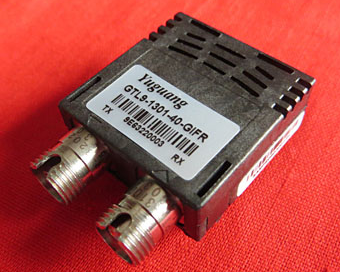

GTL9-1501-B-DIMRH

Yuguang 1X9 Series GTL9-1301-40-DXXH/GTL9-1501-B-DXXH Series Single-Mode 64kbps to 84Mbps Duplex 1 x 9 Transceiver RoHS6 Compliant Features  Duplex SC/FC/ST Single-Mode Transceiver  Industry Standard 1 x 9 Footprint  1310nm FP-LD Transmitter or 1550nm DFB-LD Transmitter  5V single power supply  TTL signal input and output  Analog RSSI(received signal strength   indication) output Applications Wave Solderable and Aqueous  Switch to Switch Interface Washable with process plug inserted  Digital video transmission system Class 1 FDA and IEC60825-1 laser safety compliant  Operating Case Temperature Standard: 0℃~+70℃ Industrial:-40~+85℃ Ordering information Part No. Input Output RSSI Distance Voltage Interface Temp. GTL9-1301-40-DFRH DC DC Analog Up to 40km 5V FC Standard GTL9-1501-B-DFRH DC DC Analog Up to 120km 5V FC Standard GTL9-1501-B-DIMRH DC DC Analog Up to 120km 5v ST Metal Industrial **For other PN, please contact YUGUANG. Chengdu Yuguang Communication Technology co., Ltd. Page 1 of 8 V1.a Yuguang 1X9 Series Regulatory Compliance* Product Certificate Certificate Number EMC CE AE 50285865 0001 FCC FDA ROHS WTF14F0514417E / / Applicable Standard EN 55022:2010 EN 55024:2010 47 CFR PART 15 OCT., 2013 CDRH 1040.10 2011/65/EU *The above certificate number updated to June 2014, because some certificate will be updated every year, such as FDA and ROHS. For the latest certification information, please check with Yuguang. Functional Diagram Product Description The GTL9-1301-40-DXXH and GTL9-1501-B-DXXH Series Single-mode transceivers are low power, high performance modules for duplex optical data communications. The transmitter section uses a multiple quantum well FP or DFB laser and is a class1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A TTL logic interface simplifies interface to the external circuitry. Absolute Maximum Ratings Parameter Symbol Min. Max. Unit Storage Temperature TS -40 +85 °C Chengdu Yuguang Communcation Technology co., Ltd. Page 2 of 8 V1.a Yuguang 1X9 Series Supply Voltage VCC 5V Operating Relative Humidity -0.5 7.0 V 95 % 260/10 °C/s - Soldering Conditions Temp/Time *Exceeding any one of these values may destroy the device immediately. Recommended Operating Conditions Parameter Symbol Min. Operating Case Temperature TA 0 Power Supply Voltage VCC 4.75 Power Supply Current*(note2) Typical Max. Unit +70 ºC 5.25 V 300 mA 84 Mbps 5 ICC Data Rate 0.064 Note2: Maximum current is specified at Vcc equaling to Maximum @ maximum temperature. Optical and Electrical Characteristic (GTL9-1301-40-DXXH Series, FP and PIN) Parameter Symbol Min. Data Rate Typical Max. Unit 100 Mbps 1360 nm 4 nm 0 dBm 1 Transmitter Centre Wavelength λC Spectral Width Δλ Average Output Power*(note3) 1260 1310 Pout -5 Extinction Ratio ER 9 Relative Intensity Noise RIN -117 dB/Hz Total Jitter TJ 1 ns Input High Voltage VH Input Low Voltage VL dB 2.0 V 0.8 V ITU-T G.957 Compliant*(note5) Eye Diagram Receiver Input center wavelength λC 1260 Receiver Sensitivity*(note4) Pmin Receiver Overload Pmax -3 dBm Output High Voltage VH 2.4 V Output Low Voltage VL (GTL9-1501-B-DXXH Series, DFB and PIN) Parameter Symbol Min. Data Rate Typical 0.064 1620 nm -28 dBm 0.4 V Max. Unit 84 Mbps Transmitter Centre Wavelength λC Spectral Width Δλ Average Output Power*(note3) 1480 1550 1580 nm 1 nm 5 dBm Pout 0 Extinction Ratio ER 9 Relative Intensity Noise RIN -117 dB/Hz Total Jitter TJ 1 ns Chengdu Yuguang Communcation Technology co., Ltd. Page 3 of 8 dB V1.a Yuguang 1X9 Series Input High Voltage VH Input Low Voltage VL Eye Diagram 2 mV 0.8 ITU-T G.957 mV Compliant*(note5) Receiver Input center wavelength Receiver Sensitivity*(note4) λC 1260 Pmin 1620 nm -34 dBm Receiver Overload Pmax -3 dBm Output High Voltage VH 2.4 V Output Low Voltage VL 0.4 V Note3: The optical power is launched into 9/125um SMF. Note4: Minimum average optical power measured at BER less than 1E-12, with a 223-1 PRBS and ER=9 dB. Note5: Eye pattern mask RSSI Specification Parameter Symbol RSSI output voltage@-8 to -30dBm optical input Min. Typical 10 RSSI accuracy 5 Max. Unit 2000 mV % Pin Description Pin Name Level Description Receiver Signal Ground, connect to receiver signal ground plane directly 1 VEER 2 RD+ TTL 3 RD- NC 4 RSSI Received signal strength indication 5 VccR Receiver Power Supply, provide +5V DC via the recommended receiver power supply filter circuit. Locate the power filter circuit as close as possible to the VCCR pin 6 VccT Transmitter Power Supply, provide +5V DC via the recommended Receiver Data Out, Terminate this pin with standard TTL techniques Chengdu Yuguang Communcation Technology co., Ltd. Page 4 of 8 V1.a Yuguang 1X9 Series transmitter power supply filter circuit. Locate the power filter circuit as close as possible to the VCCT pin 7 TD- N/C 8 TD+ TTL 9 VEET Transmitter Data in Transmitter Signal Ground, connect to the transmitter signal ground planed directly Note: PIN 4 is analog signal output can be connected to DAC or disconnected. There are internal pull-down resistors to sample the current of receiver, and any external pull-up or pull-down resistor is not required. Pin Definitions Recommended Circuit Chengdu Yuguang Communcation Technology co., Ltd. Page 5 of 8 V1.a Yuguang 1X9 Series Package outline (Unit: mm) SC receptacle FC receptacle Chengdu Yuguang Communcation Technology co., Ltd. Page 6 of 8 V1.a Yuguang 1X9 Series ST receptacle ST Metal receptacle Chengdu Yuguang Communcation Technology co., Ltd. Page 7 of 8 V1.a Yuguang 1X9 Series Laser Emission . Revision History Revision Initiated Reviewed V1.a Alex Kelly Approved Revision History Release Date Released. 2012-6-26 Notice: Yuguang reserves the right to make changes or discontinue any product or service identified in this publication, without notice, in order to improve design and/or performance. Applications that are described herein for any of the products are for illustrative purposes only. Yuguang makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Contact: Chengdu Yuguang communication Technology co., Ltd. Add: No.66 4 St Tianfu ,Hi-Tech district,Chengdu ,China. Tel: 86-28-84435715 84422718 85332102 85332105 Post Code:610041 85332106 Fax: 86-28-84435716 /85332106 www.yuguang-cn.com E-mail:sales@yuguang-cn.com Chengdu Yuguang Communcation Technology co., Ltd. Page 8 of 8 V1.a
