ORH-G35A

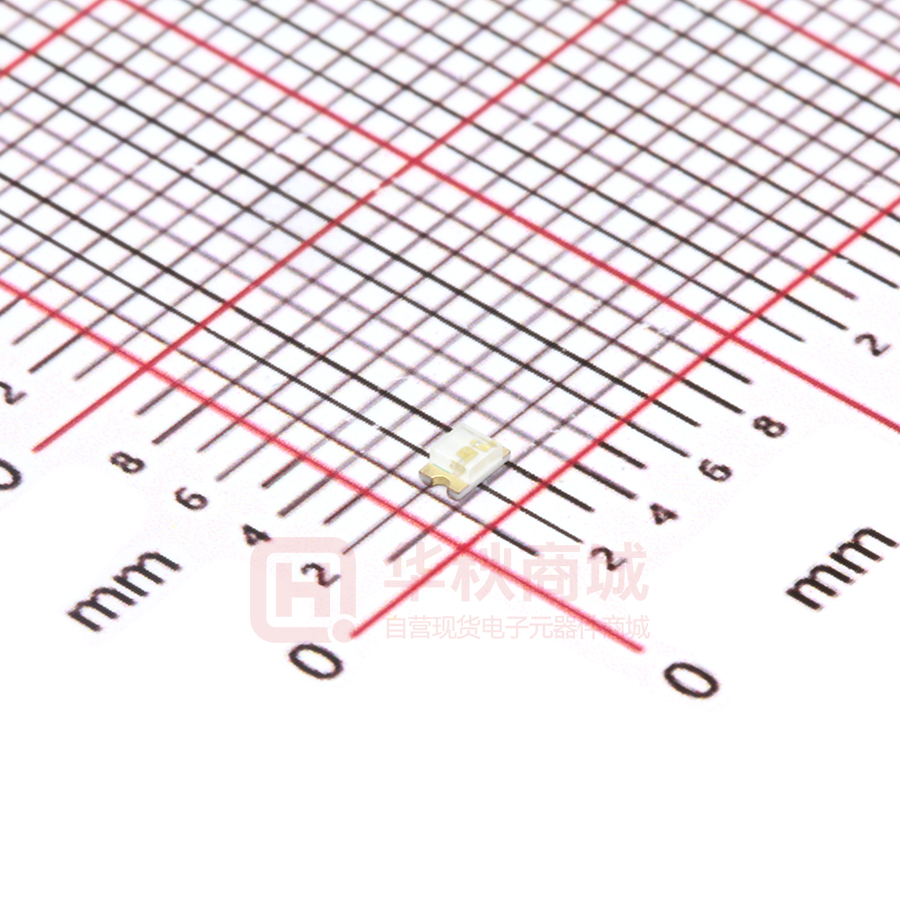

JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A SPECIFICATION Customer Name Customer No. 0805 Top View Green LED Product Description ORH-G35A Product Model Orient Confirm Customer Confirm Approved by Checked by Prepared by Linshixiu Sushiheng Zhaowanbao Judge outcome： OK Approved by Quality Engineering Judge outcome： Add：Building 1,21 Jinhui Road, Jianghai district, Jiangmen TEL：+86-750-3697838 URL：www.orient-opto.com Copyright© 2020 Orient Photoelectric Corporation. 1 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A 1、Features ● Emitted Color : Super Green. ● Lens Appearance : Water Clear. ● Mono-color type. ● 2.0x1.25x0.8mm(0805) standard package. ● Suitable for all SMT assembly methods. ● Compatible with infrared and vapor phase reflow solder process. ● Compatible with automatic placement equipment. ● This product doesn’t contain restriction substance, comply RoHS standard. 2、Applications ● Automotive : Dashboards, stop lamps,turn signals. ● Backlighting : LCDs, Key pads advertising. ● Status indicators : Comsumer & industrial electronics. ● General use. Copyright© 2020 Orient Photoelectric Corporation. 2 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A 3、Package Outline Dimensions Notes: 1).All dimensions are in millimeters (inches). 2).Tolerance is ± 0.10mm (0.004”) unless otherwise specified. 3).Specifications are subject to change without notice. Copyright© 2020 Orient Photoelectric Corporation. 3 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A 4、Absolute maximum ratings at Ta=25℃ Parameter Symbol Rating Unit Power Dissipation PD 120 mW Forward Current IF 30 mA IFP 100 mA Reverse Voltage VR 5 V O p e r a t i n g Te m p e r a t u r e R a n g e Topr -40~+85 ℃ Storage Temperature Range Tstg -40~+100 ℃ Electrostatic Discharge ESD 2000(HBM) V Soldering Temperature Tsld Peak Forward Current Notes: ＊1 ＊1 Reflow Soldering:260℃ for 10 secs Hand Soldering: 350℃ for 3 secs Condition for IFP is pulse of 1/10 duty and 0.1msec width. 5、Electrical-optical characteristics at Ta=25℃ Parameter Condition Symbol Forward Voltage IF=20mA VF 2.8 3.0 3.3 V Luminous Intensity IF=20mA IV 800 1000 1100 mcd VR=5V IR - - 1 uA Peak Wave Length IF=20mA λP - 525 - nm Dominant Wave Length IF=20mA λD 522 525 531 nm Spectral Line Half-width IF=20mA Δλ - 30 - nm Viewing Angle IF=20mA 2θ1/2 - 132 - deg Reverse Current Min. Typ. Max. Unit Notes: 1、Tolerance of luminous flux is ±10%. 2、Tolerance of forward voltage is ±0.1V. Copyright© 2020 Orient Photoelectric Corporation. 4 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A 6、Typical optical characteristics curves Fig.2 Forward current derating curve Fig.1 Relative intensity vs. wavelength vs. ambient temperature 1.0 60 Forward current (mA) Relative radiant intensity 50 0.5 40 30 20 10 0 475 525 0 575 20 Wavelength (nm) 50 100 2.5 Relative Luminous intensity (Normalized @20mA) Forward current (mA) 80 3.0 40 30 20 10 2.0 1.5 1.0 0.5 1 2 3 4 0 -40 5 -20 Forward voltage(V) 0 20 40 60 Ambient temperature Ta( C) Fig.5 Relative luminous intensity vs. forward current Fig.6 Radiation diagram 0 2.0 10 20 30 1.5 Relative radiant intensity Relative luminous intensity (@20mA) 60 Fig.4 Relative luminous intensity vs. ambient temperature Fig.3 Forward current vs. forward voltage 0 40 Ambient temperature Ta( C) 1.0 0.5 1.0 40 0.9 50 0.8 60 70 0.7 80 90 0 10 20 30 40 50 0.5 0.3 0.1 0.2 0.4 0.6 Forward current (mA) Copyright© 2020 Orient Photoelectric Corporation. 5 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A 7、Bin Limits Intensity Bin Limits (At 20mA) BIN CODE Min.(mcd) Max.(mcd) Q 800 900 W 900 1000 E 1000 1100 Notes: Tolerance for each Bin limit is ±10%. Color Bin Limits (At 20mA) BIN CODE Min.(nm) Max.(nm) 1 522 525 2 525 528 3 528 531 Notes: Tolerance for each Bin limit is ±1nm. VF Bin Limits (At 20mA) BIN CODE Min.(V) Max.(V) S 2.8 2.9 D 2.9 3.0 F 3.0 3.1 G 3.1 3.2 H 3.2 3.3 Notes: Tolerance for each Bin limit is ±0.1V. Copyright© 2020 Orient Photoelectric Corporation. 6 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A 8、Packaging Specification ●Dimensions for Reel (Unit: mm) 13.0± 0.5 TRAILER 179± 1 13.0± 0.5 71.0± 1 8.0 ± 0.3 2.26± 0.1 1.0± 0.1 LEADER 0.3 FIXING TAPE OTE: 4000 pcs PER REEL ●Dimensions of Tape (Unit: mm) USER DIRECTION OF FEED 1.0± 0.1 1.5± 0.1 4.0 ± 0.1 2.0± 0.05 2.26± 0.1 8.0 ± 0.3 3.5 ± 0.05 CATHODE 4.0 ± 0.1 71.0± 1 END 5.3 ± 0.05 START 1.75 ± 0.1 ANODE 1.42 ± 0.1 0.3 NOTE: 4000 pcs PER REEL Notes: 1、All dimensions are in mm, tolerance is±0.1mm unless otherwise noted. 2、Specifications are subject to change without notice. 3、Loaded quantity:3000 pcs/reel. Copyright© 2020 Orient Photoelectric Corporation. 7 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A ●Package Method: Vacuum (Unit: mm) 9、Label description ●BIN description: X - X - X Forward voltage BIN CODE Color BIN CODE Intensity BIN CODE Copyright© 2020 Orient Photoelectric Corporation. 8 Ver, A4 JIANGMEN ORIENT OPTOELECTRONICS Co., Ltd ORH-G35A 10、Reliability Test Items and Conditions Test Item Test Test Hours Conditions / Times Units Failed / Tested Ac/ Re Reflow Soldering 260℃(Max.), within 10seconds. (Max.) 3 times 0/20 0/1 Temperature cycle -40℃ 30min ↑↓25℃(5min) 100℃ 30min 10 cycles 0/20 0/1 Thermal Shock -40℃ 20min ↑↓ 5sec 100℃ 20min 10 cycles 0/20 0/1 Operation Life IF=20mA Ta=25℃ 1000 hours 0/20 0/1 High Temperature High Humidity Storage Ta=100℃ RH=90-95% 240 hours 0/20 0/1 High Temperature Storage Ta=100℃ 1000 hours 0/20 0/1 Low Temperature Storage Ta=-40℃ 1000 hours 0/20 0/1 Criteria IV@ 20mA VF@ 20mA
