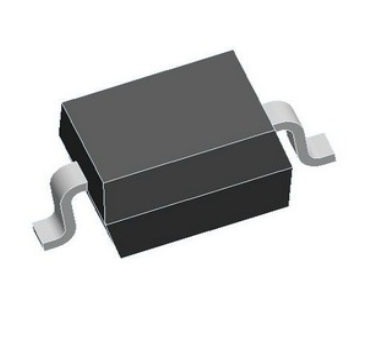

PSD12C-LF-T7

PSD12C-LF-T7 Bi-directional Ultra Low Capacitance TVS Array DESCRIPTION FEATURES  Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±8kV (Contact) ±15kV (Air) IEC 61000-4-4 (EFT) 40A (5/50 ns)  Protects one I/O line (bidirectional)  Low clamping voltage  Low leakage current  Response time is < 1 ns The PSD12C-LF-T7 are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs wave shape. The PSD12C-LF-T7 meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package. MACHANICAL DATA  SOD-323 package  Flammability Rating: UL 94V-0  Packaging: Tape and Reel  High temperature soldering guaranteed: 260℃/10s  Reel size: 7 inch  MSL1 ORDERING INFORMATION APPLICATIONS  Package: SOD-323  Material: Halogen free  Packing: Tape & Reel  Quantity per reel: 3,000pcs  Cell Phone Handsets and Accessories  Microprocessor based equipment  Personal Digital Assistants (PDA’s)  Notebooks, Desktops, and Servers  Portable Instrumentation  Peripherals  USB Interface PIN CONFIGURATION PACKAGE OUTLINE 1/4 PSD12C-LF-T7 Bi-directional Ultra Low Capacitance TVS Array ABSOLUTE MAXIMUM RATING Symbol Parameter Value Units VESD ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) ±15 ±8 kV PPP Peak Pulse Power (8/20μs) 350 W TOPT Operating Temperature -55/+150 C TSTG Storage Temperature -55/+150 C 260 C TL Lead Soldering Temperature ELECTRICAL CHARACTERISTICS (Tamb=25C) PART NUMBER PSD12C-LF-T7 VRWM VB@1mA VC@1A VC@Ipp VC@Ipp IR CT (V) (V) (V) (V) (V) (µA) (pF) Max Min Max Max Ipp (A) Max Ipp (A) Max Typ. 12.0 13.3 19.0 24.0 6 28.6 12 1 0.8 2/4 PSD12C-LF-T7 Bi-directional Ultra Low Capacitance TVS Array ELECTRICAL CHARACTERISTICS CURVE 3/4 PSD12C-LF-T7 Bi-directional Ultra Low Capacitance TVS Array SOD-323 PACKAGE OUTLINE DIMENSIONS 4/4
