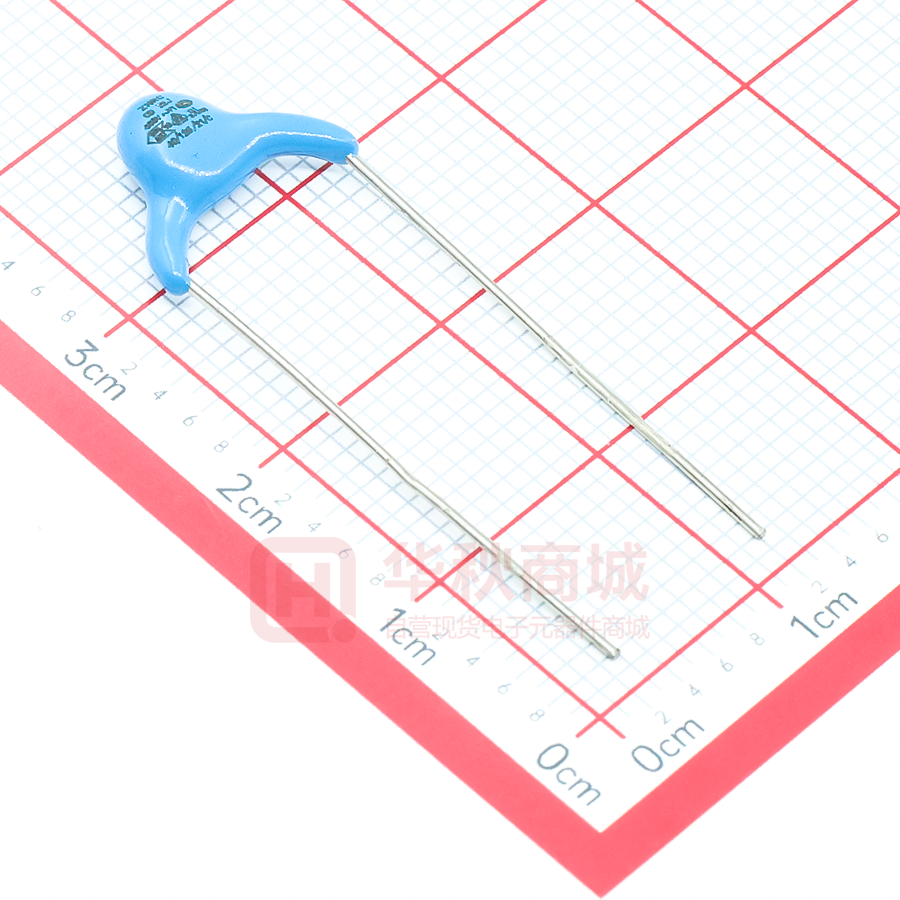

Y1220K-E1I-B4-AC400V

安规陶瓷电容器产品承认书 APPROVAL SPECIFICATIONS FOR SAFETY RECOGNIED CERAMIC CAPACITORS 客户 CUSTOMER 客户料号 CUSTOMER P/N 产品编码 PART NUMBER Y1220K-E1I-B4-AC400V 规格描述 DESCRIPTION Y1/22PF/K/F10/L24/Y5P/ZNRC/400V~ 日期 DATE 文件编号 DOC. NO. 2022-07-05 德尔创承认栏 APPROVED BY DERSONIC DEC-WD-WI001(C) 客户承认栏 APPROVED BY CUSTOMER 批 准 APPROVED BY 审核 CHECK BY 制订 FORMULATE BY 彭少雄 吴成爱 陈冬花 批 准 APPROVED BY 审核 CHECK BY 東莞市德尔创电子有限公司 DONGGUAN CITY DERSONIC ELECTRONICS CO., LTD. 广東省東莞市长安镇锦厦河南工业区锦平路 5 号 NO.5, JINGPING ROAD, JINXIA HENAN INDUSTRIAL ZONE, CHANGAN TOWN DONGGUAN CITY, PRC TEL：86-769-8155 5686 FAX：86-0769-8155 5989 WEBSITE: HTTP://WWW.DERSONIC.COM E-MAIL：SALES@DERSONIC.COM 安规陶瓷电容器 SAFETY RECOGNIED CERAMIC CAPACITORS 目录 CONTENTS 数据表 DATA SHEET 2 特点 FEATURES 3 用途 APPLICATIONS 3 规格清单 SPECIFICATIONS LIST 4 标准与试验方法 SPECIFICATIONS AND TESTING METHODS 5 标志 MARKING 7 包装 PACKAGING 8 编带规格 TAPING SPECIFICATIONS 9 测量和使用注意事项 MEASURING AND APPLICATION NOTICE 10 贮存条件 STORAGE ENVIRONMENT 13 焊锡和安装 SOLDERING AND MOUNTING 14 请确保我们的产品安装到您的产品上前，已根据您的需求进行了评估。 Please make sure that your product has been evaluated in view of your specifications with our product being mounted to your product. 请您在使用我们的产品时，不要偏离此标准。 You are requested not to use our product deviating from this specification. 2 安规陶瓷电容器 SAFETY RECOGNIED CERAMIC CAPACITORS 数据表 DATA SHEET 产品编码 Part number Y1220K-E1I-B4-AC400V 规格描述 Description Y1/22PF/K/F10/L24/Y5P/ZNRC/400V~ 客户料号 Customer P/N 认证型号 Type CD 安规类别 Safety subclass Y1 工作温度范围 Operating temperature range 额定电压 Rated voltage 电容量 Capacitance 损耗角正切 Tangent of loss angle 耐电压 Testing voltage 绝缘电阻 Insulation resistance 温度特性 Temperature characteristics 气候类别 Climatic category 阻燃等级 Passive flammability category 尺寸 DIMENSIONS -40ºC ~ +125ºC 400V~ 22pF ± 10% @ 1MHz(or 100kHz) 1.0V 25ºC 0.025 max @ 1MHz(or 100kHz) 1.0V 25ºC 4000VAC (Charge/discharge 50mA max), 60s, PASS 10 000MΩ min @ 500V 60s Y5P 40/125/21 C D (Diameter) 6mm ± 1.0mm T (Thickness) 3.4mm ± 0.8mm F (Lead spacing) 10mm± 1.0mm L (Lead length) 24mm± 4.0mm ød (Lead diameter) C (Coating rundown on lead) 3 0.60mm± 0.10mm 3mm max 安规陶瓷电容器 SAFETY RECOGNIZED CERAMIC CAPACITORS 特点 FEATURES ■ 符合IEC 60384-14标准要求，通过UL/cUL、VDE、ENEC和CQC安规认证 Complies with IEC 60384-14 standard, through UL/cUL, VDE, ENEC ans CQC certification ■ 操作温度高达125°C Operating temperature guaranteed up to 125 degrees ■ 可承受波形为1.2/50μs、峰值电压为8kV(Y2：5kV)的脉冲电压冲击 Can withstand waveform 1.2/50μs, peak voltage of 8kV (Y2: 5kV) surge impulse ■ 采用UL94 V-0级环氧树脂包封 Coated with flame-retardant epoxy resin conforming to UL94 V-0 standard ■ 可适用于自动化生产线 Cost-saving automatic insertion available ■ 符合RoHS 2.0标准，无卤 Comply with RoHS 2.0, Halogen-free available ■ 基本电性能 General electric performance 类别 Subclass Y1 (CD) Y2 (CS) 10pF ~ 0.0047µF 10pF ~ 0.01µF 容量 Capacitance 在25°C环境下使用1kHz 1.0Vrms(100pF以下使用1MHz)的条件进行测量，容量 (CR) 在允许误差范围内。 Within the specified tolerance, measured at 1kHz (3 000MΩ WV 如第6项 Per Item 6 针焰试验 Flame Test 电容离开火焰后自动熄灭。 The capacitor flame discontinues as follows. 电容保持在温度为40±2°C、相对湿度为90-95%条件下施加额定电压500±12小时。 Apply the rated voltage for 500±12 hrs. at 40±2°C in 90 to 95% relative humidity. 试验后处理： Post-treatment: 电容必须贮存在室温条件下一至二小时。 Capacitor should be stored for 1 to 2 hrs. at room condition. T2 首先，每个供试验电容必须承受5kV（Y1 Voltage (%) T1 为8kV）脉冲电压冲击三次，然后再进行 100 寿命试验。 Front time (T1)=1.2µs=1.67T 90 Time to half-value (T2)=50µs Frist, Each individual capacitor should be subjected to a 5kV (8kV for Y1) impulses for three times. 50 图3 After the capacitors are applied to life test. T 30 Fig. 3 t 然后在125+2/-0°C和相对湿度不超过50%的 0 条件下使用表2所要求的电压进行1000小时。 Then, apply a voltage of table 2 for 1000 hrs. at 125+2/-0°C, and relative humidity of 50% max. 表2. 应用电压 Table 2. Applied Voltage 施加1.7倍额定电压，另在每小时将电压增加AC1000V，时间0.1秒。 170% of rated voltag except that once each hour the voltage is increased to AC1000V(r.m.s.) for 0.1 sec. 试验后处理 Post-treatment: 电容必须贮存在室温条件下一至二小时。 Capacitor should be stored for 1 to 2 hrs. at room condition. 电容应放在火焰中15秒钟，然后离开15秒种，如此重复5次。 The capacitor should be subjected to applied flame for 15 sec. and then removed for 15 sec. until 5 cycles are completed. 图4 表3. Table 3. 周期 Cycle 1~4 5 时间(秒) Time (sec) 30 60 a=76mm b=38mm c=127mm Fig. 4 20° b 14 耐湿负荷 Humidity Loading APP c 12 试验方法 Testing methods 标准 Specifications 试验项目 Item a 序 No. Gas Burner 单个电容器应用纱布全部包住至少一层，但不多于两层。电容应承受放电20次，每次放电间隔 5秒钟。AC电源应维持两分钟，最后放电。 The capacitor should be individually wrapped in at least one but not more than two complete layers of cheese-cloth. The capacitor should be subjected to 20 discharges. The interval between successive discharges should be 5 sec. The UAC should be maintained for 2 min. after the last discharge. 15 自燃性 Active Flammability L1 F S1 S2 纱布不着火 The cheese-cloth should not be on fire. Uac R L2 C1 C2 C3 Ct Ut Cx Tr C1, C2: C3: Ct: Cx: F: R: Uac: Ut: L1 TO L4: L3 1µF±10% 0.033µF±5% 10kV 3µF±5% 10kV Capacitor under test Fuse, rated 10A 100Ω ±5% Rated voltage ±5% Voltage applied to Ct. 1.5mH±20% 16A Rod core choke Oscilloscope L4 图5 Fig. 5 Ux 5KV time 阻燃性 Passive Flammability 燃烧时间不超过30秒，棉纸不被点燃。 The burning time should not exceed 30 sec. The tissue paper should not ignite. 图6 Fig. 6 45° 200±5mm 16 About 8mm 电容器在下面试验中，火焰在适当的位置被最大燃烧，各个试验样品应只承受一次燃烧，燃烧 时间：30秒钟。 The capacitor under test should be held in the flame in the position which best promotes burning. Each specimen should only be exposed once to the flame. Time of exposure to flame: 30 sec. Test specimen Tissue About 10mm thick board DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 6 Length of flame: 12±1mm Gas burner : Length 35mm min. Inside dia. 0.5±0.1mm Outside dia. 0.9mm max. Gas : Butane gas purity 95% min. 德信立业，创新开拓 安规陶瓷电容器 SAFETY RECOGNIZED CERAMIC CAPACITORS 标准与试验方法 SPECIFICATIONS AND TESTING METHODS 序 No. 试验方法 Testing methods 标准 Specifications 试验项目 Item 电容器必须按照表4中的每一步骤进行测量。 The capacitance measurement should be made at each step specified in table 4. 表4. Table 4. 17 温度特性 Temperature characteristics APP 温度循环 Temperature cycle 标志 MARKING tanδ 1 2 3 4 5 温度 Temperature (±2°C) +20°C -25°C +20°C +85°C +20°C Y5P: ±10% Y5U: +22%/-56% Y5V: +22%/-82% 在温度特性试验过程中，测量电容量时应注意电容器达到热稳定后方可进行。 In the temperature characteristics of the test process, capacitance measurements shall be made at each of the temperatures specified above, after the capacitor has reached thermal stability. 在不小于5分钟的时间间隔所取得的两次电容量的读数之差不大于认为由测量仪表所引起的误差 时，才可判定为达到了热稳定状态。 The condition of thermal stability is judged as having been reached when two readings of capacitance taken at an interval of not less than 5 min do not differ by an amount greater than that which can be attributed to the measuring apparatus. 在测量期间必须注意防止电容器表面上凝露或结霜。 Care must be taken during measurements to avoid condensation or frost on the surface of the capacitors. 没有可见损伤 No marked defect 电容器应承受五次温度循环。 The capacitor should be subjected to 5 temperature cycles. Y5P: ±10% ΔC/C Y5U, Y5V: ±15% 18 步骤 Step 表5. 温度循环 Table 5. Temperature cycle 步骤 Step 温度 Temperature 时间 Time 3 000MΩ WV 如第6项 Per Item 6 1 3 2 室温 Room temp. 30 min 3 min 4 室温 Room temp. 30 min 3 min 预处理 Pre-treatment: 电容器必须先贮存在85°C±2°C条件下1小时，然后在室温下存放24±2小时，再进行初始测量。 Capacitor should be stored at 85°C±2°C for 1 hr., then placed at room condition for 24±2 hrs. 试验后处理 Post-treatment: 电容必须贮存在室温条件下24±2小时。 Capacitor should be stored for 24±2 hrs. at room condition. 产品标志内容如下图所示： The contents of the product marking are as shown below: Dersonic Trademark Capacitance tolerance J: ±5%; K: ±10%; M: ±20% ZNRC Nominal capacitance Manufacturer's type Ex: 220: 22pF, 331: 330pF, 472: 4700pF, 103: 10000pF (0.1µF) CD: Y1 CS: Y2 (CD/CS: Use only on the marking) Recognized approval mark Climatic category and Passive flammability category Safety class and rated voltage Y1: 250/400/500V~ Y2: 250/300/400/500V~ DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 7 德信立业，创新开拓 陶瓷电容器 CERAMIC CAPACITORS 包装 PACKAGING ■ 散件包装 Bulk packing 散件包装最小包装为PE袋，其包装数量如下表所示；一定数量的最小包装装入内盒中，最后4个小盒或10个小盒， 装入大箱中，具体由产品规格确定。 The minimum packing of bulk packaging is PE bag, the packing quantity is shown in the following table; a certain number of minimum packaging into the inner box, the last 4 inner boxes or 10 inner boxes, loaded into the outer box, specifically determined by the product specifications. 额定电压 Rated voltage 脚长 Lead length 产品直径 Body diameter 最小包装数量 Minimum packaging quantity ≤16mm All 1 000 ≤8.5mm 1 000 >8.5mm 500 All 500 ≤8.5mm 1 000 >8.5mm 500 All 500 ≤8.5mm 1 000 >8.5mm 500 16mm ≤16mm 4kVdc (Y2) >16mm ≤16mm >4kVdc (Y1) >16mm ■ 编带包装 Taping packing 编带尺寸规格见下一页，其包装盒或卷盘尺寸，及最小包装数量如下表所示 The taping specifications are shown on the next page, the dimensions of the ammo or reel, and minimum packaging quantity are shown in the following table 包装方式 Packaging format 折叠包装 Ammo packaging 30±1mm 尺寸(mm)与图示 Dimensions (mm) and drawing 83±3mm 360mm max 卷盘包装 Reel packaging B A C A 43±2mm C B 256±5mm 335±5mm 60mm max 包装数量(pcs) Quantity (pcs) 500~2 500 per reel 500~2000 per ammo 卷盘包装一盘装四盒，每盒二盘；折叠包装一盒装十盒。 Reel packaging 4 boxes per carton, 2 reels per boxed; Ammo packaging 10 boxes per carton. DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 8 德信立业，创新开拓 陶瓷电容器 CERAMIC CAPACITORS 编带规格 TAPING SPECIFICATIONS 方式1 Method 1 孔距(P0)与元件间距离(P)均为12.7mm 或者，孔距(P0)与元件间距离(P)均为15.0mm 12.7mm by feed hole pitch (P0) and components pitch (P) or, 15.0mm by feed hole pitch (P0) and components pitch (P) 如下图所示： As shown in the following figure: 直脚 Straight lead P ΔS 外弯脚 Outside kink lead 内弯脚 Inside kink lead 平行脚 Vertical kink lead ΔH P2 C K H1 ød W2 H W1 K H0 D0 H0 H0 L W0 W 载体纸带 Carrier tape 胶带 Hold-down tape P1 t2 t1 F P0 孔距(P0)为12.7mm，元件间距离(P)为24.4mm Feed hole pitch (P0) with 12.7mm and components pitch (P) with 25.4mm 方式2 Method 2 如下图所示： As shown in the following figure: 外弯脚 Outside kink lead P ΔS C 内弯脚 Inside kink lead ød K W2 H W1 ΔH 直脚 Straight lead K H1 平行脚 Vertical kink lead H0 L D0 H0 H0 W0 W 载体纸带 Carrier tape 胶带 Hold-down tape F P1 t2 t1 P0 尺寸规格(mm) Dimensions (mm) Lead wire diameter F P P0 P1 P2 5.0 12.7 12.7 3.85 6.35 7.5 15.0 15.0 3.75 7.5 7.5 25.4 12.7 8.95 10.0 25.4 12.7 7.7 ±0.8 ±1.0 ±0.3 ±0.7 ±1.3 导 线 直 径 ød ΔS Δh W W0 W1 W2 H H0 H1 D0 t1 t2 L C K 0.55 1.3 2.0 18.0 7.0 9.0 3.0 18.0 16.0 40.0* 4.0 0.9 1.5 11.0 3.0** 5.0 ±0.1 max max +1.0 -0.5 min +0.75 -0.5 max +2.0 -0 ±0.5 max ±0.3 max max max max max *: 根据产品直径大小会所变化。 It varies according to the diameter of the product. **：酚醛包封产品其最大值为1.5mm，CC、CY等环氧包封产品其最大值为2.0mm。 Phenolic coating product are 1.5mm max., epoxy coating product of CC, CY type are 2.0mm max. DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 9 德信立业，创新开拓 陶瓷电容器 CERAMIC CAPACITORS 测量和使用注意事项 MEASURING AND APPLICATION NOTICE 1. 测量 Measurement 请在以下条件下测量。 Please measure under the following conditions. 1.1.标准大气条件 Standard atmospheric conditions 除非另有规定，所有试验和测量应按在IEC 60068-1的5.3规定的试验用标准大气条件下进行: Unless otherwise specified, all tests and measurements shall be made under standard atmospheric conditions for testing as given in IEC 60068-1, 5.3: 表1. 标准大气条件 Table 1. Standard atmospheric conditions 温度 Temperature 相对湿度 Relative humidity 气压 Air pressure 15°C~35°C 25%~75% 86kpa~106kpa 在进行测量之前，电容器应在测量温度下存放足够时间，以使整个电容器都达到这一温度。为此目的，规定与 试验后恢复时间同样的时间，通常是足够的。 Before the measurements are made, the capacitor shall be stored at the measuring temperature for a time sufficient to allow the entire capacitor to reach this temperature. The period as prescribed for recovery at the end of a test is normally sufficient for this purpose. 在标准大气条件下进行测量，其测量结果存在争议时应采用仲裁温度（见1.3）重复测量。 Test and measurement shall be made under standard atmospheric conditions for testing, in the event of a dispute, the measurements shall be repeated using one of the referee temperatures (as given in 1.3). 当按某一顺序进行试验时，一个试验的最后测量可以作为下一试验的初始测量。 When tests are conducted in a sequence, the final measurements of one test may be taken as the initial measurements for the succeeding test. 在测量期间，不应使电容器受到气流、阳光直射或可能引起误差的其他影响。 During measurements the capacitor shall not be exposed to draughts, direct sunlight or other influences likely to cause error. 1.2.恢复条件 Recovery conditions 除非另有规定，恢复应在试验用标准大气条件（见1.1）下进行。 Unless otherwise specified recovery shall take place under the standard atmospheric conditions for testing (1.1). 如果恢复必须在严格控制的条件下进行，应采用IEC 60068-1中5.4.1的控制条件。 If recovery under closely controlled conditions is necessary, the controlled recovery conditions of 5.4.1 of IEC 60068-1 shall be used. 除非有关规范另有规定，恢复时间应为1h～2h。 Unless otherwise specified in the relevant specification, a duration of 1 h to 2 h shall be used. 1.3.仲裁条件 Referee conditions 在仲裁情况下，应选用IEC 60068-1中5.2中规定的仲裁试验用标准大气条件。 For referee purposes, one of the standard atmospheric conditions for referee tests taken from 5.2 of IEC 60068-1, as given in table 1 below, shall be selected: 表2. 仲裁条件 Table 2. Referee conditions 温度 Temperature 相对湿度 Relative humidity 气压 Air pressure 24°C~26°C 48%~52% 86kpa~106kpa 2. 工作电压 Operating voltage 在交流电路或纹波电路中使用直流额定电压电容器时，请务必将外加电压的Vp-p值或包含直流偏置电压的Vo-p值维 持在额定电压范围内。 When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range. 10 DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 德信立业，创新开拓 陶瓷电容器 CERAMIC CAPACITORS 测量和使用注意事项 MEASURING AND APPLICATION NOTICE 若向电路施加电压，开始或停止时可能会因谐振或切换产生暂时的异常电压。请务必使用额定电压范围包含这些 异常电压的电容器。 When the voltage is applied to the circuit, starting or stopping may generate irregular voltage for a transit period because of resonance or switching. Be sure to use a capacitor with a rated voltage range that includes these irregular voltages. 表3. 工作电压Vp-p Table 3. Vp-p of operating voltage 电压 Voltage 直流+交流电压 DC+AC Voltage 脉冲电压 Pulse Voltage 交流电压 AC Voltage Vp-p Vp-p Vp-p Vo-p Vo-p 测量位置 Positional measurement 直流电压 DC Voltage 3. 工作温度与自生热 Operating temperature and self-generated heat 适用于Hi-k类电容器 Apply to Hi-k type ceramic capacitors 电容器的表面温度应保持在其额定工作温度范围的上限以下，务必考虑到电容器的自生热。 Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. 电容器在高频电流、脉冲电流等中使用时可能会因介电损耗发出自生热，所施加之正弦波电压的频率应低于 300kHz。 When the capacitor is used in a high frequency current, pulse current or similar current, it may self-generate heat due to dielectric loss. The frequency of the applied sine wave voltage should be less than 300kHz. 外加电压应使自生热等负荷在25℃周围温度条件下不超过20℃范围。 The applied voltage load should be such that the capacitor's self-generated heat is within 20°C in an atmosphere temperature of 25°C. 测量时应使用ø0.1mm小热容量的(K)的热电偶，而且电容器不应受到其它元件的散热或周围温度波动影响(切勿在 冷却风扇运转时进行测量。否则无法确保测量数据的精确性)。 When measuring, use a thermocouple of small thermal capacity-K of ø0.1mm in conditions where the capacitor is not affected by radiant heat from other components or surrounding ambient fluctuations (Never attempt to perform measurement with the cooling fan running. Otherwise, accurate measurement cannot be ensured.). 过热可能会导致电容器特性及可靠性下降。 Excessive heat may lead to deterioration of the capacitor's characteristics and reliability. 使用低损耗电容器之前，一定要仔细阅读第4项的说明。 Before using the low loss type ceramic capacitors, be sure to read the instructions in item 4. 4. 在施加高频和高电压过程中的负荷降低与自生热 Load reduction and self-generated heat during application of high-frequency and high-voltage 由于低损耗电容器所具有的低自生热特性，此类电容器的允许电功率一般均高于Y5P特性电容器。但是，在峰间 幅值等于电容器额定电压的高频电压条件下，当自热温度达到20℃时，电容器的功率消耗会超过其允许电功率。 Due to the low self-heating characteristics of low loss type ceramic capacitors, the allowable electric power of these capacitors is generally much higher than that of Y5P characteristic capacitors. However, in case the self-heating temperature is 20°C under a high -frequency voltage whose peak-to-peak value equals the capacitor's rated voltage, the capacitor's power consumption may exceed its allowable electric power. 因此，在将SL特性/低损耗系列电容器用在频率为1kHz或以上的高频高压电路中时，应确保包括直流偏压在内的 Vp-p值不超过表4所规定之施加电压值。同时，还应确保25℃周围温度条件下的自生热温度(电容器表面温度与电 容器周围温度之间的温度差)不超过表4所规定的温度值。 Therefore, when using the SL characteristic / low loss series in a high-frequency and high-voltage circuit with a frequency of 1kHz or higher, make sure that the Vp-p values including the DC bias, do not exceed the applied voltage value specified in Table 4. Also make sure that the self-heating temperature (the difference between the capacitor's surface temperature and the capacitor's ambient temperature) at an ambient temperature of 25°C does not exceed the value specified in Table 4. DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 11 德信立业，创新开拓 陶瓷电容器 CERAMIC CAPACITORS 测量和使用注意事项 MEASURING AND APPLICATION NOTICE 表4. 高频状态下的允许条件 Table 4. Allowable Conditions at High frequency 系列 Series 温度特性 Temperature characteristic 直流额定电压 DC rated voltage 1kV Hi-k Y5R 2kV SL 外加电压(最大) Applied voltage (max) 自生热温度(周围温度25°C) Self-heating temp. (25°C ambient temp.) 800Vp-p 20°C max 1000Vp-p 5°C max 1400Vp-p 20°C max 2000Vp-p 5°C max 1600Vp-p 20°C max 3150Vp-p 5°C max 1kV 1000Vp-p 5°C max 2kV 2000Vp-p 5°C max 3.15kV 3150Vp-p 5°C max 6.3kV 6300Vp-p 5°C max 3.15kV TC 高频时允许条件 High-freq. allowable conditions 电容器周围温度 Capacitor's ambient Temp. -25°C~+85°C (如果周围温度在85至125°C之 间，则应进一步降低所施加的 电压。 When the ambient temperature is 85 to 125°C, the applied voltage needs to be further reduced.) 由于受谐波影响，当外加电压为矩形或脉冲波电压（非正弦波电压）时，电容器的自生热会高于以相同的基础频 率施加之正弦波电压所获得的温度值。 Because of the influence of harmonics, when the applied voltage is a rectangular wave or pulse wave voltage (instead of a sine wave voltage), the heat generated by the capacitor is higher than the value obtained by application of the sine wave with the same fundamental frequency. 为了参考作粗略计算，矩形波或脉冲波的容许电压大致等于基础频率的2倍正弦波允许电压。但是，该允许电压 随电压和电流波形的不同而有所变化。 Roughly calculated for reference, the allowable voltage for a rectangular wave or pulse wave corresponds approximately to the allowable voltage for a sine wave whose fundamental frequency is twice as large as that of the rectangular wave or pulse wave. This allowable voltage, however, varies depending on the voltage and current waveforms. 因此，您一定要确保自生热温度不高于表4所规定的温度值。 Therefore, you are requested to make sure that the selfheating temperature is not higher than the value specified in Table 4. 5. 耐电压的测试条件 Test condition for withstanding voltage 5.1.测试设备 Test equipment 交流耐压的测试设备应具有能够产生类似于50/60Hz正弦波的性能。如果施加变形的正弦波或超过规定电压值的 过载电压后，则可能会导致故障。 Test equipment for AC withstanding voltage should be used with the performance of the wave similar to 50/60Hz sine wave. If the distorted sine wave or overload exceeding the specified voltage value is applied, a defect may be caused. 5.2.电压外加方法 Voltage applied method 使用耐电压时，电容器的引线或端子应对耐电压测试设备的输出端连接牢固；然后再将电压从近零增加到测试 电压。 When the withstanding voltage is applied, capacitor's lead or terminal should be firmly connected to the output of the withstanding voltage test equipment, and then the voltage should be raised from near zero to the test voltage. 如果测试电压不从近零逐渐提高而是直接施加在电容器上，则施加时应包含过零点。测试结束时，测试电压应 降到近零；然后再将电容器引线或端子从耐电压测试设备的输出端取下。 If the test voltage without the raise from near zero voltage would be applied directly to capacitor, test voltage should be applied with the zero cross. At the end of the test time, the test voltage should be reduced to near zero, and then capacitor's lead or terminal should be taken off the output of the withstanding voltage test equipment. 电压正弦波 如果测试电压不从近零逐渐提高而是直接施加在电容器上，则可能会出现浪涌电 Voltage sine wave 压，从而导致故障。 If the test voltage without the raise from near zero voltage would be applied directly to capacitor, the surge voltage may arise, and therefore, a defect may be caused. 0V 过零点是指电压正弦通过0V的位置。参见右图。 过零点 ZERO CROSS is the point where voltage sine wave passes 0V. See figure at right. Zero cross DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 12 德信立业，创新开拓 陶瓷电容器 CERAMIC CAPACITORS 测量和使用注意事项 MEASURING AND APPLICATION NOTICE 6. 失效安全性 Fail-safe 电容器损坏时，失效可能会导致短路。为了避免在短路时引起触电、冒烟、火灾等危险情况，请在电路中使用熔 丝等元件来设置自动防故障功能。 When capacitor would be broken, failure may result in a short circuit. Be sure to provide an appropriate fail-safe function like a fuse on your product if failure would result in an electric shock, fire or fuming. 7. 电容器容量变化 Capacitance change of capacitors 电容量可能会因环境温度或外加电压而发生轻微变化。若要将其用于严格的时间常数电路，请与我公司联系。 Capacitance might change a little depending on a surrounding temperature or an applied voltage. Please contact us if you use for the strict constant time circuit. Hi-k类电容器具有老化特性；因此，电容器若长时间使用，其电容量会逐渐降低。而且，电容量还可能会因环境 温度或外加电压而发生巨大变化。所以不适合用于时间常数电路。 Hi-k type ceramic capacitors have an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor is left on for a long time. Moreover, capacitance might change greatly depending on the surrounding temperature or an applied voltage. So, it is not likely to be suitable for use in a constant time circuit. 若需详情，请与我公司联系。 Please contact us if you need detailed information. 8. 使用设备进行性能检查 Performance check by equipment 使用电容器之前，请先检查设备的性能和特性没有问题。 Before using a capacitor, check that there is no problem in the equipment's performance and the specifications. 一般而言，Hi-k类电容器的电容量具有电压相关特性和温度相关特性。所以，其电容值可能会随设备的工作条件 而发生变化。因此，一定要确认仪器接收性能对电容器的静电容量值变化的影响，如漏电流和静噪特性。 Generally speaking, Hi-k type ceramic capacitors have voltage dependence characteristics and temperature dependence characteristics in capacitance. So, the capacitance value may change depending on the operating condition in the equipment. Therefore, be sure to confirm the apparatus performance of receiving influence in the capacitance value change of a capacitor, such as leakage current and noise suppression characteristic. 此外，必要时还要检查电容器在设备中的防电涌性能，因为通过电路的感应，浪涌电压可能会超过规定值。 Moreover, check the surge-proof ability of a capacitor in the equipment, if needed, because the surge voltage may exceed specific value by the inductance of the circuit. 贮存条件 STORAGE ENVIRONMENT 电容器绝缘包封层不是完美的密封形式，因此，请勿将电容器存放在腐蚀性气体中，尤其是存在氯气、硫气、酸、 碱、盐等场所，同时应防潮。 The insulating coating of capacitors does not form a perfect seal; therefore, do not use or store capacitors in a corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are present. And avoid exposure to moisture. 电容器应存放在温度及相对湿度分别不超出-10°C～40°C及15%～70%范围的场所。请在6个月内使用电容器。 Store the capacitors where the temperature and relative humidity do not exceed -10 to 40 degrees centigrade and 15% to 70%. Use capacitors within 6 months after delivered. 长时间保管（6个月以上）时，使用时请确认电容器的电容量及可焊性。 Before using the capacitors that has been stored for a long period (6 months or longer), confirm the capacitance and solderability. DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 13 德信立业，创新开拓 陶瓷电容器 CERAMIC CAPACITORS 焊锡和安装 SOLDERING AND MOUNTING 在对本产品进行清洗、焊接或成型前，请先在指定设备上测试经清洗、焊接或成型的产品的性能，以确定上述过程 不会影响产品质量。 Before cleaning, bonding, or molding this product, verify that these processes do not affect product quality by testing the performance of a cleaned, bonded or molded product in the intended equipment. 使用时请勿使电容器或引线受到过度冲击或振荡；过度冲击或振荡对安装在电路板上的引线造成疲劳破坏。请采取 措施，使用粘合剂、封膜树脂或其他涂层将电容器固定在电路板上；使用指定设备进行固定时，请确认固定措施对 产品不会造成影响。 Do not expose a capacitor or its lead wires to excessive shock or vibration during use. Excessive shock or vibration may cause fatigue destruction of lead wires mounted on the circuit board. Please take measures to hold a capacitor on the circuit boards by adhesive, molding resin or another coating. Please confirm there is no influence of holding measures on the product with the intended equipment. 1. 焊锡 Soldering 当在PCB/PWB焊锡这个产品时，不要超过电容器的 焊锡耐热性标准。过度的热量会使电容器内部焊 锡熔化，可能导致热冲击而使陶瓷介质出现暗裂。 When soldering this product to a PCB/PWB, do not exceed the solder heat resistance specifications of the capacitor. Subjecting this product to excessive heating could melt the internal junction solder and may result in thermal shocks that can crack the ceramic element. 当使用烙铁进行手工焊锡时，应该遵照下列条件： When soldering capacitor with a soldering iron, it should be performed in the following conditions. 焊锡温度：320°C最大 Temperature of iron-tip: 320°C. max. 烙铁头：不超过40W Soldering iron wattage: 40W max. 焊锡时间：不超过3.0秒 Soldering time: 3.0 sec. max. 温度 Temperature (°C) 焊接 Soldering 预热 Preheating 温度 : 常温到130°C Temperature: Room temperature to 130°C 时间 : 120秒以内 Time : 120 sec max 冷却 Cooling 徐徐冷却 Gradual cooling 260°C以内、小于5秒 260°C max, 5 sec max 时间 Time (sec) 图：波峰焊接推荐条件 Fig.: Wave-soldering temperature-time profile to recommend 2. 压焊、树脂涂层与包封 Bonding, resin molding and coating 在压焊、树脂涂层和封膜之前，请先使用指定设备确认对产品没有影响，然后再进行使用。 Before bonding, molding or coating this product, verify that these processes do not affect the quality of capacitor by testing the performance of the bonded, molded or coated product in the intended equipment. 在粘合、树脂涂层、封膜的干燥、硬化条件使用到有机溶剂（乙酸乙酯、甲基乙酮、甲苯等），可能会破坏电容 器的包封树脂，而造成短路不良。 In case the amount of applications, dryness / hardening conditions of adhesives and molding resins containing organic solvents (ethyl acetate, methyl ethyl ketone, toluene, etc.) are unsuitable, the outer coating resin of a capacitor is damaged by the organic solvents and it may result, worst case, in a short circuit. 粘合、树脂涂层、封膜厚度的偏差可能会在冷却与加热过程中使电容器的包封树脂和/或陶瓷介质破裂。 The variation in thickness of adhesive, molding resin or coating may cause outer coating resin cracking and/or ceramic element cracking of a capacitor in a temperature cycling. 3. 清洗（超声波清洗） Cleaning (ultrasonic cleaning) 要进行超声波清洗，应遵守下列条件。 To perform ultrasonic cleaning, observe the following conditions. 清洗槽容量：每升输出功率20瓦特或以下。 Rinse bath capacity: Output of 20 watts per liter or less. 清洗时间：最多5分钟。 Rinsing time: 5 min. maximum. 不得直接振动 PCB/PWB。 Do not vibrate the PCB/PWB directly. 过度的超声波清洗会导致导线的过载损坏。 Excessive ultrasonic cleaning may lead to fatigue destruction of the lead wires. DONGGUAN CITY DERSONIC ELECTRONIC CO., LTD. 14 德信立业，创新开拓
