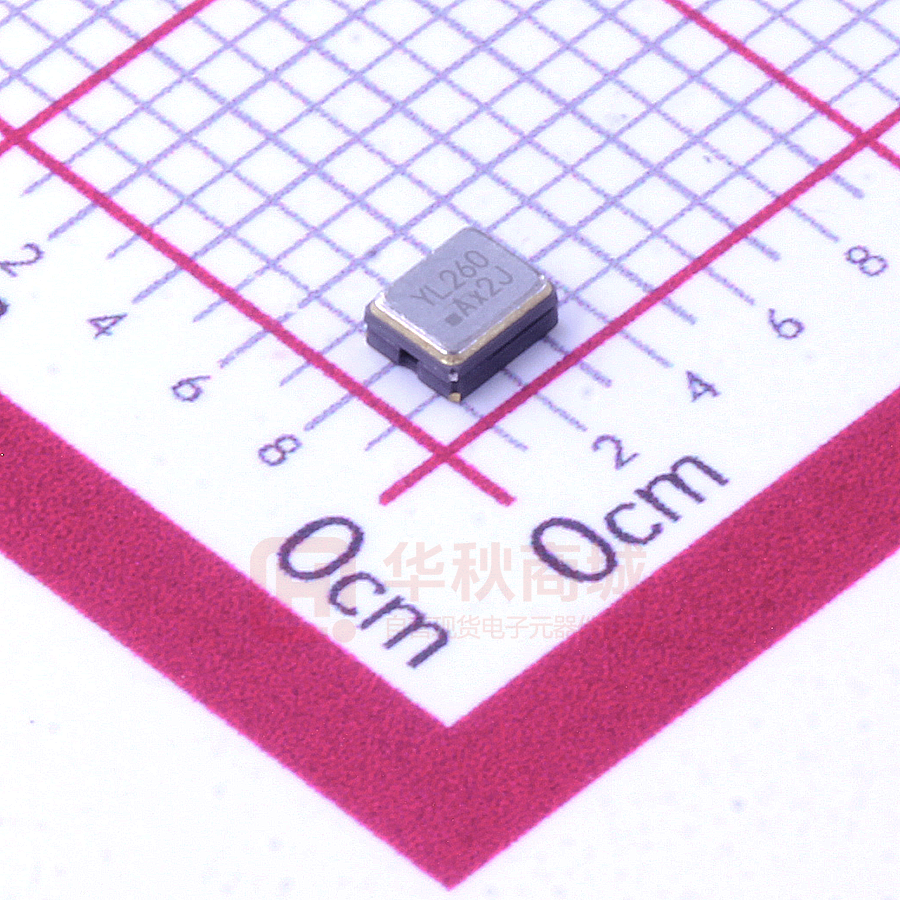

SMD TCXO 2.5 x 2.0
PN:
2TG2600001
Ver.
S3
2. Electrical Specifications
2.1 Operation conditions
#
Parameters
1
Nominal frequency
2
Supply voltage (Vcc)
3
Current consumption
4
Operating temperature range
5
Storage temperature range
2.2 Output characteristics
#
Parameters
1
Output type
2
3
4
5
Standard output Load
Output level
Duty cycle
Harmonics
6
7
Min.
Max.
1.68
-40
-40
Typ.
26.000000
2.8
-
Remark
3.63
1.5
+85
+85
Unit
MHz
V
mA
°C
°C
Min.
Typ.
Max.
Unit
Remark
Decoupling capacitor is
required in external
circuit
Clipped sine wave
-
10 KΩ//10 pF
0.8
-
-
45
50
55
-
-
-5
Vpp
%
dBc
Start-up time vs. frequency
-
-
2.0
ms
Within ±0.5 ppm
Start-up time vs. output level
-
-
2.0
ms
≥90% of Vpp
Min.
Typ.
26.000000
Max.
Unit
MHz
2.3 Frequency characteristics
#
Parameters
C
Nominal frequency
Ground level
Remark
2
Frequency tolerance after reflow
-2.0
-
+2.0
ppm
At 25±2℃ after 2 times
reflow, refer to nominal
frequency
3
Frequency stability vs. temperature 1
-3.0
-
+3.0
ppm
Within -40 to -30°C, refer
to frequency at 25°C
4
Frequency stability vs. temperature 2
-0.5
-
+0.5
ppm
Within -30 to +85°C, refer
to frequency at 25°C
5
6
7
8
9
10
11
12
Frequency slope vs. temperature 1
Frequency slope vs. temperature 2
Frequency slope vs. temperature 3
Frequency stability vs. supply voltage
Frequency stability vs. load variation
Aging over 1st year
ESD
MSL
-0.05
-0.1
-0.35
-0.2
-0.2
-1.0
HBM>2000V
Level 1
+0.05
+0.1
+0.35
+0.2
+0.2
+1.0
ppm/℃
ppm/℃
ppm/℃
ppm
ppm
ppm/yr
-
FAITH LONG CRYSTAL Proprietary and Confidential Information
From -20 to -65℃.
From -30 to +85℃.
From -40 to +30℃.
±5% Vcc variation
±10% load variation
At room temperature
JESD22-A114-B
IPC/JEDEC J-STD-033C
Page 1 of 2
SMD TCXO 2.5 x 2.0
PN:
2TG2600001
Ver.
S3
2. Electrical Specifications (Cont.)
2.4 Phase noise characteristics
#
Parameters
1
Phase noise at 1kHz offset
Min.
-
FAITH LONG CRYSTAL Proprietary and Confidential Information
Typ.
-130
Max.
-
Unit
dBc/Hz
Remark
Page 2 of 2
