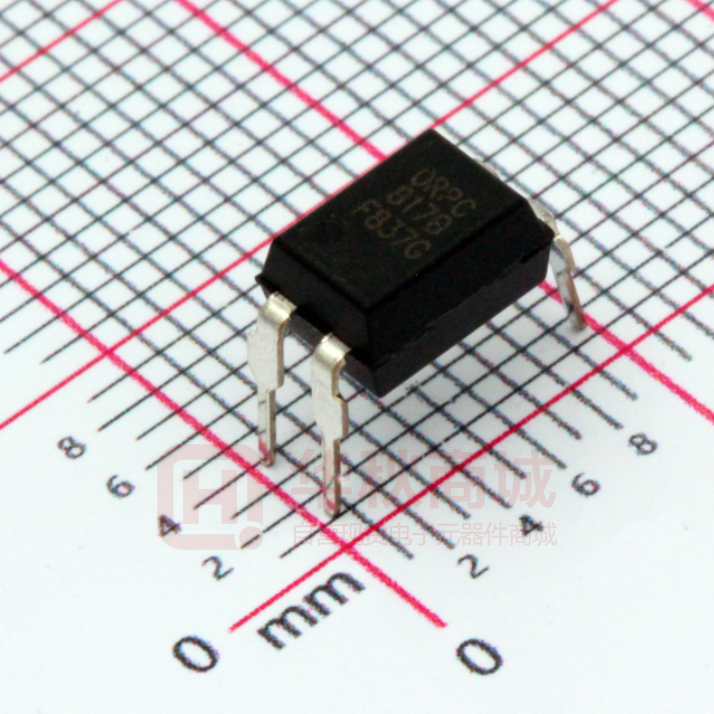

ORPC-817B

SHENZHEN ORIENT TECHNOLOGY CO., LTD Specification PRODUCT NAME: Photocoupler PART NO.: ORPC-817 ●Feature: 1. Current conversion ratio (Min 50% Working condition IF=5mA, VCE=5V) 2. Insulation Voltage=5,000Vrms 3. Response Time (tr: TYP. 4μs ，Operating condition：VCE=2V, IC=2mA, RL=100 Ω) ●Instruction 1. ORPC-817S photocoupler consist of one piece of GaAs emitter and one piece of NPN transistor 2. Bin width of ORPC-817 is 2.54mm ●Application Range 1.Computer 2.Instrument application, measurement machine 3.Imbursement equipments, duplicating machine, automat. 4.Family-use electric equipments, such as fans 5.Signal transforming systems ●Max Absolute rated Value(Normal Temperature=25 Temperature=25℃ Parameter Symbol IF VR P VCEO VECO IC PC Ptot Viso VIOTM VIORM Topr Tstg Tsol Forward Current Input Reverse Voltage Consume Power Collector and emitter Voltage Emitter and Collector Voltage Output Collector Current Consume Power Total Consume Power Insulation Voltage Max Insulation Voltage Rated Impulse Insulation Voltage Working Temperature Deposit Temperature Soldering Temperature *1. AC Test,1 minute, humidity=40~60 % Insulation test method as below: (1) Short circuit both terminals of photocoupler (2) No Current when testing insulation voltage Tel :86-755-27477119 Rated Value Unit 50 6 70 35 6 50 150 200 5,000 6,000 630 -30 to + 100 -55 to + 125 260 mA V mW www.orient-opto.com Fax:86-755-29980030 Web Web:www.orient-opto.com V mA mW mW Vrms V V ℃ SHENZHEN ORIENT TECHNOLOGY CO., LTD (3) Adding sine wave voltage when testing *2. soldering time is 10 seconds ●Opto-electronic Characteristics Parameter Input Output Transforming Characteristics Symbol Condition Min Min.. Midiu Max Unit m Forward Current VF IF=20mA --- 1.2 1.4 V Reverse Voltage IR VR=4V --- --- 10 μA Collector capacitance Ct V=0, f=1KHz --- 30 250 pF Collector to emitter Current ICEO VCE=20V, IF=0 --- --- 100 nA 35 --- --- V 6 --- --- V 2.5 --- 30 mA 50 --- 600 % --- 0.1 0.2 V DC500V 5×1010 1×1011 --40~60%R.H. Ω IC=0.1m Collector and Emitter attenuation Voltage BVCEO A Emitter and Collector attenuation Voltage BVECO Collector Current Ic Current conversion ratio CTR Collector and Emitter Saturation Voltage VCE(sat) Insulation Impedance Riso capacitance Cf V=0, f=1MHz --- 0.6 1 pF fc VCE=5V, IC=2mA RL=100Ω, -3dB --- 80 --- kHz --- 4 18 μs --- 3 18 μs Transforming Frequency IF=0 Rise Time tr Descend Time tf IE=10μA IF=0 IF=5mA VCE=5V IF=20mA IC= 1mA VCE=2V, IC=2mA RL=100Ω *1 Current Conversion= IC / IF × 100% ●Grades of Current conversion ratio Tel :86-755-27477119 www.orient-opto.com Fax:86-755-29980030 Web Web:www.orient-opto.com SHENZHEN ORIENT TECHNOLOGY CO., LTD Gr a d e Si ggn n Mi n (% ) Ma x (%) (% ) L 50 10 0 A 80 16 0 B 13 0 26 0 C 20 0 40 0 D 30 0 60 0 50 60 0 L or A or B or C or D Note:Working condition: IF=5mA, VCE=5V, Ta=25℃. ●Outer Dimension 4.60 4 3 pin No. and Internal connection diagram ORIENT *1 817 6.40 P/N *2 Anode *3 1 Anode 2 Cathode 3 Emitter 4 Collector 1 4.60±0.05 2 6.40±0.05 1.64 3.48 3.48±0.05 1.25 0.50 1.60 3.30±0.25 2.80±0.25 6.50±0.05 2.54±0.25 0.50 9.01±0.15 Note Note：*1. Company name *2. Bin *3. Production period Tel :86-755-27477119 www.orient-opto.com Fax:86-755-29980030 Web Web:www.orient-opto.com SHENZHEN ORIENT TECHNOLOGY CO., LTD ●Characteristics Curve Tel :86-755-27477119 www.orient-opto.com Fax:86-755-29980030 Web Web:www.orient-opto.com SHENZHEN ORIENT TECHNOLOGY CO., LTD ●Characteristics Curve Tel :86-755-27477119 www.orient-opto.com Fax:86-755-29980030 Web Web:www.orient-opto.com
