BS0060N-2C
Order Code: BS0060N-2C
Version: A3 2021-02-02
Thyristor Surge Suppresser

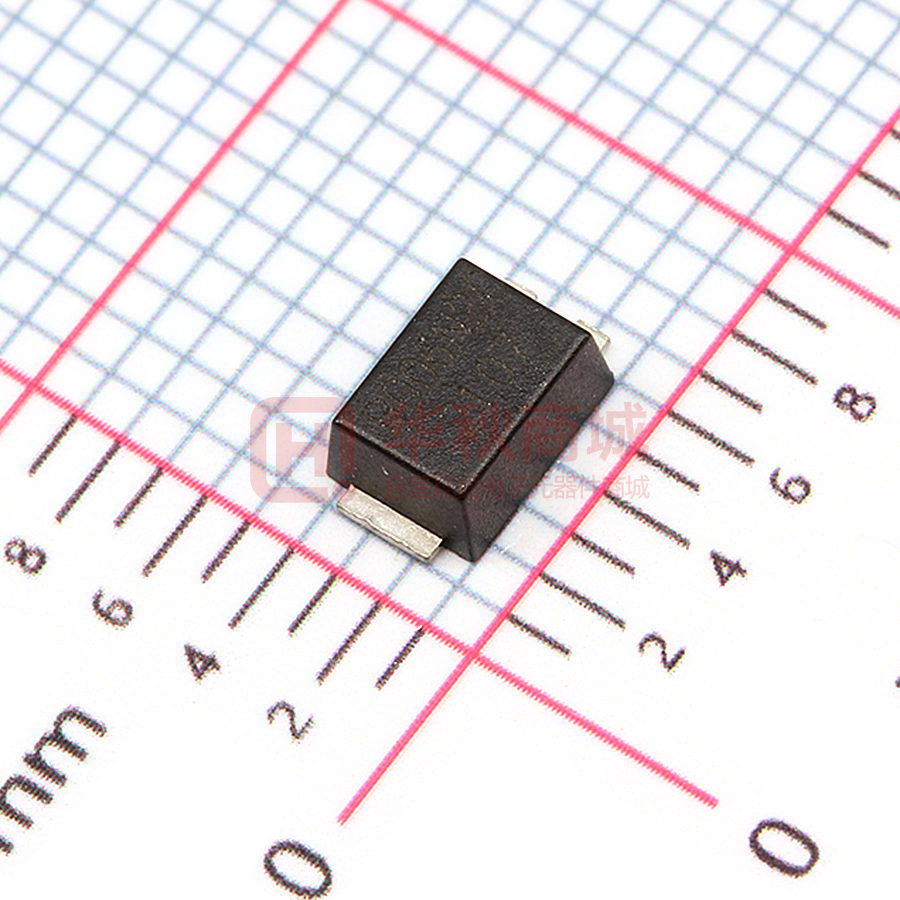

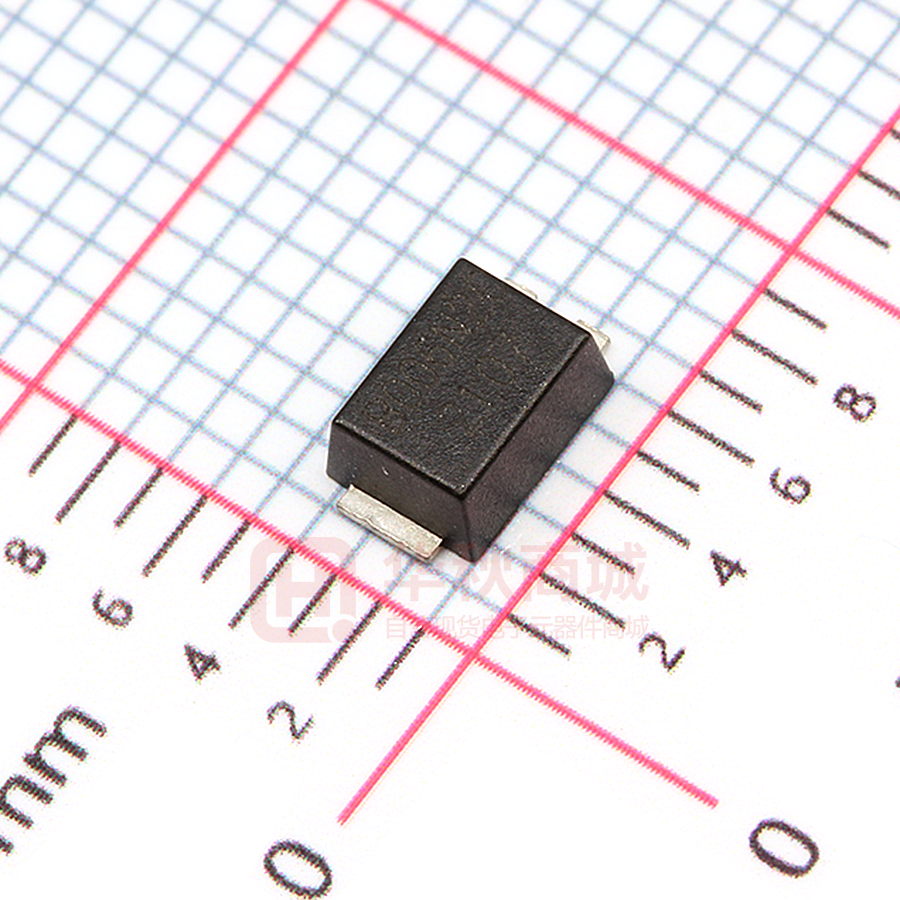

Exterior
Features
Excellent capability of absorbing transient surge
Quick response to surge voltage (nS Level)
Eliminates overvoltage caused by fast rising transients
Moisture sensitivity level: level 1
Weight: 88mg
Non degenerative
SMB-T
Application Information
rmation
Package (Top View)
Video
` RS485/232/422
B006N2C
1309
2
1
3
d
Agency Approvals
Icon
Schematic Symbol
Description
Compliance with 2011/65/EU
Compliance with IEC61249-2-21:2003
Part Number and Electrical Parameter
IDRM@ VDRM
Part Number
VS①@ IS
µA
V
V
MAX
Pin1,3-2
Pin1,3-2
5
6
25
BS0060N-2C
mA
VT@ IT
V
A
MAX
800
4
2.2
IH
CO ②
mA
pF
MIN
MAX
15
120
Absolute maximum ratings measured at TA= 25ºC RH = 45%-75% (unless otherwise noted).
① Vs is measured at 100KV/S
② Off-state Capacitance is measured at VDC=2V, VRMS=1V, f=1MHz
1/5
www.bencent.com.cn
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BS0060N-2C
Order Code: BS0060N-2C
Version: A3 2021-02-02
Thyristor Surge Suppresser
Part Numbering System
Mark
BS
0060
N
2
C
(1)
(2)
(3)
(4)
(5)
B006N2C
1309
(1) Bencent Semiconductor Surge Arrester
(2) Off state voltage,e.g:0060=6×10 =6V.
0
(3) Package: SMB-T
B006N2C: Part Number
(4) 2 Lines Protection
1309: September, 2013
(5) Rating Surge Voltage: 6KV (10/700μS)
V-I Curve
Parameters
Definition
VDRM
Peak Off-stateVoltage
IDRM
Off-state Current
VS
Switching Voltage
IS
Switching Current
IH
Holding Current
VT
On-state Voltage
IT
On-state Current
CO
Off-state Capacitance
+I
IT
IS
IH
IDRM
-V
+V
VT
VDRM
VS
-I
Surge Ratings
Current Waveform
2/10μs
8/20μs
10/160μs
5/320μs*
10/1000μs
Voltage Waveform
2/10μs
1.2/50μs
10/160μs
10/700μs*
10/1000μs
Ipp
500A
400A
200A
150A
100A
-Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product;
-Bencent only makes the test for 5/320μs@150A* (10/700μs@6KV), but for other IPP value derived from experience is just
for reference only. Bencent will not take any obligation for these parameters, so before applying our parts, please make sure
to verify the parameters listed in the above table.
Thermal Considerations
Symbol
TJ
TS
2/5
Parameter
Operating Junction
Temperature Range
Storage Temperature
Range
www.bencent.com.cn
Product Characteristics
Characteristics
Value
Unit
-40 to +150
℃
Body Material
-60 to +150
℃
Terminal Finish
Lead Material
Copper Alloy
UL recognized epoxy meeting
flammability classification 94V-0
100% Matte-Tin Plated
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BS0060N-2C
Order Code: BS0060N-2C
Thyristor Surge Suppresser
Version: A3 2021-02-02
Typical Characteristics
3/5
www.bencent.com.cn
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BS0060N-2C
Order Code: BS0060N-2C
Version: A3 2021-02-02
Thyristor Surge Suppresser
Environmental Characteristics
Testing Items
Technical Standards
High Temperature Reverse Bias Test
Temperature: 150±3℃, Bias=80%VDRM
Time: 168H
High Temperature Life Test
Temperature: 150℃
Time: 168H
High-low Temperature Cycle Test
Temperature: From -40℃ to125℃
Dwell time: 30min, 10-100 cycles
High Temperature &High Humidity Test
Temperature: 85℃ Humidity: 85%
Test time: 168H
Pressure Cooker Test
Temperature: 121℃, 2atm. Humidity: 100%
Test time: 24H to 168H
Resistance of Soldering Heat
Temperature: 260±5℃
Time of dip soldering: 10s, 3times
Note: The above testing items can be specified by customers by contacting Bencent service
Product Dimensions
J
Bottom view
H
I
Side view
REF
mm
inch
A
5.4±0.3
0.213±0.012
B
3.3±0.3
0.130±0.012
C
0.7±0.1
0.028±0.004
D
2.0±0.2
0.079±0.008
E
0.9±0.2
0.035±0.008
F
0.85±0.3
0.033±0.012
G
0.9±0.3
0.035±0.012
H
2±0.1
0.079±0.004
I
0.25±0.05
0.010±0.002
J
4.4±0.2
0.173±0.008
REF
mm
inch
A
3.4
0.134
B
2.5
0.098
C
1.6
0.059
D
1.8
0.059
E
0.9
0.035
F
0.8
0.032
Recommended Soldering Pad
4/5
www.bencent.com.cn
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BS0060N-2C
Order Code: BS0060N-2C
Version: A3 2021-02-02
Thyristor Surge Suppresser
Reflow Profile
Reflow Condition
Temperature Min.
+150°C
Temperature Max.
+200°C
Time (Min to Max)
60 – 180 secs.
Average ramp up rate (Liquidus Temp
(TL) to peak)
TS(max) to TL - Ramp-up Rate
3°C/sec. Max.
(Liquidus)
- Temperature (TL)
Peak Temp (TP)
+217°C
60 – 150 secs.
TL
TS(max)
Ramp-down
Preheat
TS(min)
TS
+(260+0/-5 )°C
Time within 5°C of actual Peak Temp
(TP)
Critical Zone
TL to TP
Ramp-up
TL
3°C/sec. Max.
- Temperature (TL)
Reflow
TP
TP
Temperature
Pre Heat
Pb-Free Assembly
TL
8 – 15 secs.
25
Ramp-down Rate
6°C/sec. Max.
Time 25°C to peak Temp (TP)
8 min. Max.
Do not exceed
+260°C
Time
time to peak temperature
Package Reel Information
5/5
REF
mm
inch
A
3.65+/-0.3
0.144+/-0.012
B
5.69+/-0.3
0.244+/0-.012
d
1.5+/-0.1
0.059+/-0.004
D
330.0
13.0
D1
100+/-3
3.937+/-0.118
D2
13+/-0.3
0.512+/-0.012
E
1.5+/-0.2
0.059+/-0.008
F
5.65+/-0.2
0.222+/-0.008
P
8.0+/-0.2
0.315+/-0.008
P0
4.0+/-0.2
0.157+/-0.008
P1
2.0+/-0.2
0.079+/-0.008
W
12.0+/-0.2
0.472+/-0.008
W1
16.8+/-2.0
0.661+/-0.079
Outline
Reel
(pcs)
Per Carton
(pcs)
Reel Diameters
(mm)
Taping
3,000
48,000
330
www.bencent.com.cn
Carton Size(mm)
L
W
H
360
360
385
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
