TVS Diodes
5.0SMDJ Series
Description
The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by
lightning and other transient voltage events. For surface mounted applications in order to optimize board space.
Features
Halogen free and RoHS compliant
Low profile package
Built-in strain relief design
Low inductance
Excellent clamping capability
5000W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical IR less than 2μA above 22V devices
Peak 260℃ high temperature Reflow Soldering withstanding
Meet MSL level1, per J-STD-020
IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
Unit Weight: 0.30g
Applications
TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in telecom,
computer, Industrial and consumer electronic applications.
Maximum Ratings and Characteristics (TA=25℃)
Rating
Symbol
Value
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
PPPM
5000W
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
IPPM
See Table(A)
PM(AV)
6.5W
Maximum Instantaneous Forward Voltage at 100A for Unidirectional Only
VF
3.5V/5.0V
Peak forward surge current, 8.3ms single half sine-wave superimposed on
rated load, (JEDEC Method) (Note3, Fig.6)
IFSM
300A
TJ,TSTG
-55℃ to +150℃
Typical thermal resistance junction to lead
RθJL
15℃/W
Typical thermal resistance junction to ambient
RθJA
75℃/W
Steady state power dissipation at TA=50℃ (Fig.5)
Operating junction and Storage Temperature Ranges
Notes:1. Non-repetitive current pulse, per Fig.3 and derating above TA=25℃ per Fig.2.
2. Each terminal is surface Mounted on the 8.0mm×8.0mm copper pads.
3. 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minutes maximum.
4. VF < 3.5V for single die parts and VF< 5.0V for stacked-die parts.
www.liownsemi.com
掌握芯技术Core Technology
(V3)
TVS Diodes
5.0SMDJ Series
Electrical Characteristics (TA=25℃)
Device
Marking
Code
Part Number
Reverse
Stand-Off
Voltage
Breakdown
Voltage
@IT
Test
Current
Maximum
Clamping
Voltage
@IPP
Peak
Pulse
Current
Reverse
Leakage
@VR
Uni.
Bi.
Uni.
Bi.
VR(V)
VB MIn.(V)
VB Max.(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
5.0SMDJ11A
5.0SMDJ11CA
5PEN
5BEN
11.0
12.20
13.50
10
18.2
275.0
800
5.0SMDJ12A
5.0SMDJ12CA
5PEP
5BEP
12.0
13.30
14.70
10
19.9
252.0
800
5.0SMDJ13A
5.0SMDJ13CA
5PEQ
5BEQ
13.0
14.40
15.90
10
21.5
233.0
500
5.0SMDJ14A
5.0SMDJ14CA
5PER
5BER
14.0
15.60
17.20
10
23.2
216.0
200
5.0SMDJ15A
5.0SMDJ15CA
5PES
5BES
15.0
16.70
18.50
1
24.4
205.0
100
5.0SMDJ16A
5.0SMDJ16CA
5PET
5BET
16.0
17.80
19.70
1
26.0
193.0
50
5.0SMDJ17A
5.0SMDJ17CA
5PEU
5BEU
17.0
18.90
20.90
1
27.6
181.0
20
5.0SMDJ18A
5.0SMDJ18CA
5PEV
5BEV
18.0
20.00
22.10
1
29.2
172.0
10
5.0SMDJ20A
5.0SMDJ20CA
5PEW
5BEW
20.0
22.20
24.50
1
32.4
155.0
5
5.0SMDJ22A
5.0SMDJ22CA
5PEX
5BEX
22.0
24.40
26.90
1
35.5
141.0
5
5.0SMDJ24A
5.0SMDJ24CA
5PEZ
5BEZ
24.0
26.70
29.50
1
38.9
129.0
2
5.0SMDJ26A
5.0SMDJ26CA
5PFE
5BFE
26.0
28.90
31.90
1
42.1
119.0
2
5.0SMDJ28A
5.0SMDJ28CA
5PFG
5BFG
28.0
31.10
34.40
1
45.4
110.0
2
5.0SMDJ30A
5.0SMDJ30CA
5PFK
5BFK
30.0
33.30
36.80
1
48.4
103.0
2
5.0SMDJ33A
5.0SMDJ33CA
5PFM
5BFM
33.0
36.7
40.6
1
53.3
93.9
2
5.0SMDJ36A
5.0SMDJ36CA
5PFP
5BFP
36.0
40.0
44.2
1
58.1
86.1
2
5.0SMDJ40A
5.0SMDJ40CA
5PFR
5BFR
40.0
44.4
49.1
1
64.5
77.6
2
5.0SMDJ43A
5.0SMDJ43CA
5PFT
5BFT
43.0
47.8
52.8
1
69.4
72.1
2
5.0SMDJ45A
5.0SMDJ45CA
5PFV
5BFV
45.0
50.0
55.3
1
72.7
68.8
2
5.0SMDJ48A
5.0SMDJ48CA
5PFX
5BFX
48.0
53.3
58.9
1
77.4
64.7
2
5.0SMDJ51A
5.0SMDJ51CA
5PFZ
5BFZ
51.0
56.7
62.7
1
82.4
60.7
2
5.0SMDJ54A
5.0SMDJ54CA
5PGE
5BGE
54.0
60.0
66.3
1
87.1
57.5
2
5.0SMDJ58A
5.0SMDJ58CA
5PGG
5BGG
58.0
64.4
71.2
1
93.6
53.5
2
5.0SMDJ60A
5.0SMDJ60CA
5PGK
5BGK
60.0
66.7
73.7
1
96.8
51.7
2
5.0SMDJ64A
5.0SMDJ64CA
5PGM
5BGM
64.0
71.1
78.6
1
103.0
48.6
2
www.liownsemi.com
掌握芯技术Core Technology
(V3)
TVS Diodes
5.0SMDJ Series
Electrical Characteristics (TA=25℃)
Device
Marking
Code
Part Number
Reverse
Stand-Off
Voltage
Breakdown
Voltage
@IT
Test
Current
Maximum
Clamping
Voltage
@IPP
Peak
Pulse
Current
Reverse
Leakage
@VR
Uni.
Bi.
Uni.
Bi.
VR(V)
VB MIn.(V)
VB Max.(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
5.0SMDJ70A
5.0SMDJ70CA
5PGP
5BGP
70.0
77.8
86.0
1
113.0
44.3
2
5.0SMDJ75A
5.0SMDJ75CA
5PGR
5BGR
75.0
83.3
92.1
1
121.0
41.4
2
5.0SMDJ78A
5.0SMDJ78CA
5PGT
5BGT
78.0
86.7
95.8
1
126.0
39.7
2
5.0SMDJ85A
5.0SMDJ85CA
5PGV
5BGV
85.0
94.4
104.0
1
137.0
36.5
2
5.0SMDJ90A
5.0SMDJ90CA
5PGX
5BGX
90.0
100.0
111.0
1
146.0
34.3
2
5.0SMDJ100A
5.0SMDJ100CA
5PGZ
5BGZ
100.0
111.0
123.0
1
162.0
30.9
2
5.0SMDJ110A
5.0SMDJ110CA
5PHE
5BHE
110.0
122.0
135.0
1
177.0
28.3
2
5.0SMDJ120A
5.0SMDJ120CA
5PHG
5BHG
120.0
133.0
147.0
1
193.0
26.0
2
5.0SMDJ130A
5.0SMDJ130CA
5PHK
5BHK
130.0
144.0
159.0
1
209.0
24.0
2
5.0SMDJ150A
5.0SMDJ150CA
5PHM
5BHM
150.0
167.0
185.0
1
243.0
20.6
2
5.0SMDJ160A
5.0SMDJ160CA
5PHP
5BHP
160.0
178.0
197.0
1
259.0
19.3
2

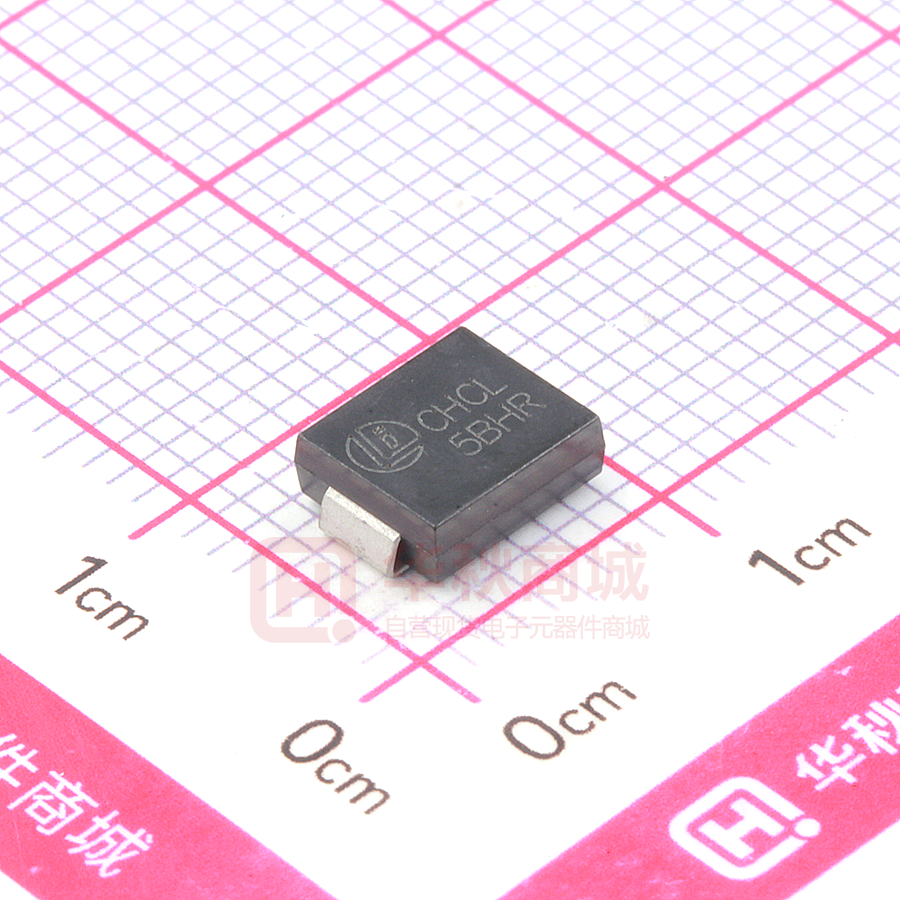

5.0SMDJ170A
5.0SMDJ170CA
5PHR
5BHR
170.0
189.0
209.0
1
275.0
18.2
2
www.liownsemi.com
掌握芯技术Core Technology
(V3)
TVS Diodes
5.0SMDJ Series
Ratings and Characteristic Curves (TA=25℃)
Figure 2. Pulse Derating Curve
PPPM - Peak Pulse Power (kW)
Figure 1. Peak Pulse Power Rating Curve
Figure 3. Pulse Waveform
Figure 4. Typical Junction Capacitance
100000
Uni-directional
Cj (pF)
10000
1000
Bi-directional
100
10
1
Figure 5. Steady State Power Dissipation Derating
Curve
www.liownsemi.com
Measured at
1MHz, 100mV, 0V bias
1
10
100
VRWM-Reverse Stand-Off Voltage (V)
1000
Figure 6. Maximum Non-Repetitive Forward Surge
Current Uni-Directional Only
掌握芯技术Core Technology
(V3)
TVS Diodes
5.0SMDJ Series
Soldering Parameters
Reflow Soldering
Profile Feature
Pb-Free Assembly
Average ramp-up rate (TL to TP)
3℃/second max.
Preheat
-Temperature Min (TS min)
-Temperature Max (TS max)
-Time (min to max) ( tS)
150℃
200℃
60-180 seconds
TS max to TL
-Ramp-up Rate
3℃/second max.
Time maintained above:
-Temperature (TL)
-Time (tL)
217℃
60-150 seconds
Peak Temperature (TP)
260℃
Time within 5℃ of actual Peak Temperature (tP)
Ramp-down Rate
6℃/second max.
Time 25℃ to Peak Temperature
www.liownsemi.com
20-40 seconds
8 minutes max.
掌握芯技术Core Technology
(V3)
TVS Diodes
5.0SMDJ Series
Part Number Code and Marking Code
Dimensions (SMC/DO-214AB)
Symbol
www.liownsemi.com
Millimeters
Inches
Min.
Max.
Min.
Max.
A
2.900
3.200
0.114
0.126
B
6.600
7.110
0.260
0.280
C
5.590
6.220
0.220
0.245
D
2.060
2.620
0.079
0.103
E
0.760
1.520
0.030
0.060
F
-
0.203
-
0.008
G
7.750
8.130
0.305
0.320
H
0.152
0.305
0.006
0.012
I
3.300
-
0.129
-
J
2.400
-
0.094
-
K
-
4.200
-
0.165
掌握芯技术Core Technology
(V3)
TVS Diodes
5.0SMDJ Series
Packaging Specification
Tape
For Uni-Devices
13 Inches Reel
Quantity:3000pcs/reel
www.liownsemi.com
掌握芯技术Core Technology
(V3)
