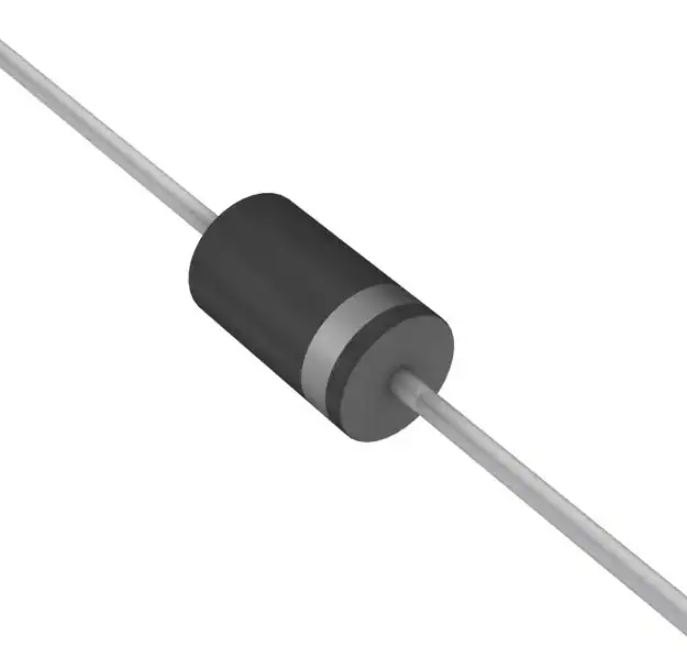

P6KE39A

TVS Diodes P6KE Series Description The P6KE series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Features            Halogen free and RoHS compliant Low incremental surge resistance Excellent clamping capability 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Fast response time Typical IR less than 1μA above 12V devices High Temperature soldering guaranteed: 265℃/10 seconds/.375″, (9.5mm) lead length, 5lbs (2.3kg) tension Plastic package has underwriters laboratory flammability 94V-0 Meet MSL level1, per J-STD-020 IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact) Unit Weight: 0.42g Applications TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in telecom, computer, Industrial and consumer electronic applications. Maximum Ratings and Characteristics (TA=25℃) Rating Symbol Value Peak pulse power dissipation at 10/1000μs waveform (Note1, Fig.1) PPPM 600W Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table(A) PM(AV) 5.0W Maximum Instantaneous Forward Voltage at 50A for Unidirectional Only VF 3.5V/5.0V Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note2, Fig.6) IFSM 100A TJ,TSTG -55℃ to +150℃ Typical thermal resistance junction to lead RθJL 20℃/W Typical thermal resistance junction to ambient RθJA 75℃/W Steady state power dissipation at TL=75℃ (Fig.5) Operating junction and Storage Temperature Ranges Notes:1. Non-repetitive current pulse, per Fig.3 and derating above TA=25℃ per Fig.2. 2. 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minutes maximum. 3. VF < 3.5V for single die parts and VF< 5.0V for stacked-die parts. www.liownsemi.com 掌握芯技术Core Technology （V3） TVS Diodes P6KE Series Electrical Characteristics (TA=25℃) Reverse Stand-Off Voltage Part Number Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VR Uni. Bi. VR(V) VB MIn.(V) VB Max.(V) IT(mA) VC(V) IPP(A) IR(μA) P6KE6.8A P6KE6.8CA 5.80 6.45 7.14 10 10.5 58.1 1000 P6KE7.5A P6KE7.5CA 6.40 7.13 7.88 10 11.3 54.0 500 P6KE8.2A P6KE8.2CA 7.02 7.79 8.61 10 12.1 50.4 200 P6KE9.1A P6KE9.1CA 7.78 8.65 9.55 1 13.4 45.5 50 P6KE10A P6KE10CA 8.55 9.50 10.50 1 14.5 42.1 10 P6KE11A P6KE11CA 9.40 10.50 11.60 1 15.6 39.1 5 P6KE12A P6KE12CA 10.20 11.40 12.60 1 16.7 36.5 5 P6KE13A P6KE13CA 11.10 12.40 13.70 1 18.2 33.5 1 P6KE15A P6KE15CA 12.80 14.30 15.80 1 21.2 28.8 1 P6KE16A P6KE16CA 13.60 15.20 16.80 1 22.5 27.1 1 P6KE18A P6KE18CA 15.30 17.10 18.90 1 25.2 24.2 1 P6KE20A P6KE20CA 17.10 19.00 21.00 1 27.7 22.0 1 P6KE22A P6KE22CA 18.80 20.90 23.10 1 30.6 19.9 1 P6KE24A P6KE24CA 20.50 22.80 25.20 1 33.2 18.4 1 P6KE27A P6KE27CA 23.10 25.70 28.40 1 37.5 16.3 1 P6KE30A P6KE30CA 25.60 28.50 31.50 1 41.4 14.7 1 P6KE33A P6KE33CA 28.20 31.40 34.70 1 45.7 13.3 1 P6KE36A P6KE36CA 30.80 34.20 37.80 1 49.9 12.2 1 P6KE39A P6KE39CA 33.30 37.10 41.00 1 53.9 11.3 1 P6KE43A P6KE43CA 36.80 40.90 45.20 1 59.3 10.3 1 P6KE47A P6KE47CA 40.20 44.70 49.40 1 64.8 9.4 1 P6KE51A P6KE51CA 43.60 48.50 53.60 1 70.1 8.7 1 P6KE56A P6KE56CA 47.80 53.20 58.80 1 77.0 7.9 1 P6KE62A P6KE62CA 53.00 58.90 65.10 1 85.0 7.2 1 P6KE68A P6KE68CA 58.10 64.60 71.40 1 92.0 6.6 1 www.liownsemi.com 掌握芯技术Core Technology （V3） TVS Diodes P6KE Series Electrical Characteristics (TA=25℃) Reverse Stand-Off Voltage Part Number Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VR Uni. Bi. VR(V) VB MIn.(V) VB Max.(V) IT(mA) VC(V) IPP(A) IR(μA) P6KE75A P6KE75CA 64.10 71.30 78.80 1 103.0 5.9 1 P6KE82A P6KE82CA 70.10 77.90 86.10 1 113.0 5.4 1 P6KE91A P6KE91CA 77.80 86.50 95.50 1 125.0 4.9 1 P6KE100A P6KE100CA 85.50 95.00 105.0 1 137.0 4.5 1 P6KE110A P6KE110CA 94.00 105.0 116.0 1 152.0 4.0 1 P6KE120A P6KE120CA 102.0 114.0 126.0 1 165.0 3.7 1 P6KE130A P6KE130CA 111.0 124.0 137.0 1 179.0 3.4 1 P6KE150A P6KE150CA 128.0 143.0 158.0 1 207.0 2.9 1 P6KE160A P6KE160CA 136.0 152.0 168.0 1 219.0 2.8 1 P6KE170A P6KE170CA 145.0 162.0 179.0 1 234.0 2.6 1 P6KE180A P6KE180CA 154.0 171.0 189.0 1 246.0 2.5 1 P6KE200A P6KE200CA 171.0 190.0 210.0 1 274.0 2.2 1 P6KE220A P6KE220CA 185.0 209.0 231.0 1 328.0 1.9 1 P6KE250A P6KE250CA 214.0 237.0 263.0 1 344.0 1.8 1 P6KE300A P6KE300CA 256.0 285.0 315.0 1 414.0 1.5 1 P6KE350A P6KE350CA 300.0 332.0 368.0 1 482.0 1.3 1 P6KE400A P6KE400CA 342.0 380.0 420.0 1 548.0 1.1 1 P6KE440A P6KE440CA 376.0 418.0 462.0 1 602.0 1.0 1 P6KE480A P6KE480CA 408.0 456.0 504.0 1 658.0 0.9 1 P6KE510A P6KE510CA 434.0 485.0 535.0 1 698.0 0.9 1 P6KE530A P6KE530CA 450.0 503.5 556.5 1 725.0 0.8 1 P6KE540A P6KE540CA 459.0 513.0 567.0 1 740.0 0.8 1 P6KE550A P6KE550CA 467.0 522.5 577.5 1 760.0 0.8 1 P6KE600A P6KE600CA 510.0 575.2 628.4 1 828.0 0.75 1 www.liownsemi.com 掌握芯技术Core Technology （V3） TVS Diodes P6KE Series Ratings and Characteristic Curves (TA=25℃) Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve Figure 3. Pulse Waveform Figure 4. Typical Junction Capacitance 150 tr=10µs TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM Peak Value IPPM 100 Half Value IPPM (IPPM/2) 50 0 10/1000µs Waveform as defined by R.E.A td 0 1.0 2.0 3.0 4.0 Time (ms) Figure 5. Steady State Power Dissipation Derating Curve www.liownsemi.com Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only 掌握芯技术Core Technology （V3） TVS Diodes P6KE Series Wave Soldering 300 Preheating Maximum Wave 265℃ Soldering Cooling 250 200 150 100 Peak Temperature: 265℃ Dipping Time: 10 seconds (max.) Soldering: 1 time 50 0 0 0.5 1 1.5 2 2.5 3 3.5 4 Time (minutes) Part Number Code and Marking Code Dimensions (DO-204AC/DO-15) Symbol www.liownsemi.com Millimeters Inches Min. Max. Min. Max. A 25.40 - 1.000 - B 5.80 7.60 0.230 0.300 C 2.60 3.60 0.104 0.140 d 0.71 0.86 0.028 0.034 掌握芯技术Core Technology （V3） TVS Diodes P6KE Series Packaging Specification Tape Box Quantity: 2000pcs/box Reel Quantity：4000pcs/reel www.liownsemi.com 掌握芯技术Core Technology （V3）
