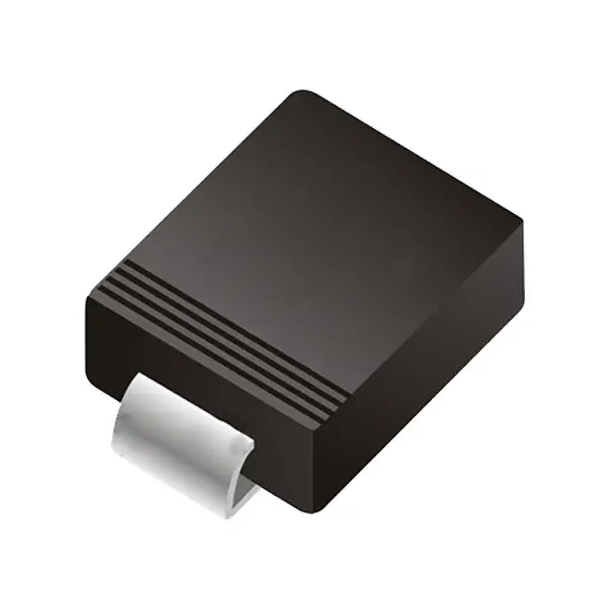

山东晶导微电子股份有限公司 S10AC THRU S10MC Jingdao Microelectronics co.LTD Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 10 A PINNING PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.22g / 0.0077oz Top View Marking Code: S10A~S10M Simplified outline SMC and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols S10AC S10BC S10DC S10GC S10JC S10KC S10MC Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current I F(AV) 10 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 200 A Maximum Instantaneous Forward Voltage at 10A VF 1.0 V IR 5 100 μA Cj 100 pF RθJA 10 °C/W T j , T stg -55 ~ +150 °C Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.01 SMC-A-S10AC~S10MC-10A1KV Page 1 of 3 山东晶导微电子股份有限公司 S10AC THRU S10MC Jingdao Microelectronics co.LTD Fig.1 Forward Current Derating Curve Average Forward Current (A) 14 12 10 8.0 6.0 4.0 2.0 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Fig.2 Typical Reverse Characteristics 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 10 Junction Capacitance ( pF) Instaneous Forward Current (A) 20 percent of Rated Peak Reverse Voltage (%) 1.0 T J =25°C 100 10 T J =25°C 0.1 0.4 1 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.6 Maximum Non-Repetitive Peak Forward Surage Current 240 200 160 120 80 40 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2017.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 S10AC THRU S10MC Jingdao Microelectronics co.LTD PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) Type number Marking code S10AC S10A S10BC S10B S10DC S10D S10GC S10G S10JC S10J S10KC S10K S10MC S10M mm Unit ： (mil) 2017.01 JD703211B50 Page 3 of 3
