RCLAMP0521P-N

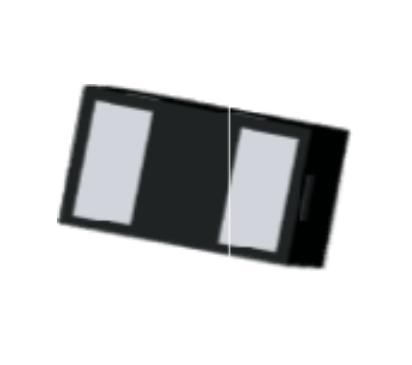

RCLAMP0521P-N Ultra Low Capacitance ESD Protection Diode DESCRIPTION FEATURES RCLAMP0521P-N a low- capacitance Transient  Transient protection for high-speed high data lines IEC 61000-4-2 (ESD) ±15kV (Air) ±8kV (Contact) IEC 61000-4-4 4 (EFT) 40A (5/50 ns) Cable Discharge Event (CDE)  Package optimized for high-speed high lines Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection fo for high-speed speed data interfaces. With typical capacitance of 0.5pF RCLAMP0521P-N designed to protect parasitic-sensitive sensitive systems against over-voltage and over-current current transient events. It complies with IEC 61000-4-2 2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. package. 0402 RCLAMP0521P-N ultra-small Each RCLAMP0521P-N device can protect one high-speed speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultra-small small size and high ESD robustness make RCLAMP0521P-N ideal for high-speed data port and high-frequency frequency line applications, such as cellular phones and HD visual devices.  Ultra-small package (1.0 0mm0.6mm0.5mm)  Protects one data, control line  Low capacitance: 0.5pF pF (Typical) (  Low leakage current  Low clamping voltage MACHANICAL DATA  Flammability Rating: UL 94V-0 94V  Packaging: Tape and Reel  High temperature soldering guaranteed: guarante 260℃/10s  Reel size: 7 inch ORDERING INFORMATION APPLICATIONS  Package: 0402  Marking: N  Material: Halogen free  Packing: Tape & Reel  Quantity per reel: 10,000pcs  Serial ATA  Desktops, Servers and Notebooks  Cellular Phones  MDDI Ports  USB Data Line Protection  Display Ports  Digital Visual Interfaces (DVI) PIN CONFIGURATION PACKAGE OUTLINE 1/4 RCLAMP0521P-N Ultra Low Capacitance ESD Protection Diode ABSOLUTE MAXIMUM RATING Symbol Parameter Value Units VESD ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) ±20 ±20 kV PPP Peak Pulse Power (8/20μs) 100 W TOPT Operating Temperature -55~125 C TSTG Storage Temperature -55~150 C ELECTRICAL CHARACTERISTICS (Tamb=25C) Symbol Parameter VRWM Reverse Working Voltage VBR Reverse Breakdown Voltage IT = 1mA IR Reverse Leakage Current VRWM = 5V 100 nA IPP = 1A, tp = 8/20μs 13 V IPP = 4A, tp = 8/20μs 25 V VC CJ Test Condition Min Typ Max Units 5.0 V 6.0 V Clamping Voltage Junction Capacitance VR = 0V, f = 1MHz 2/4 0.5 pF RCLAMP0521P-N Ultra Low Capacitance ESD Protection Diode ELECTRICAL CHARACTERISTICS CURVE 3/4 RCLAMP0521P-N Ultra Low Capacitance ESD Protection Diode 0402 PACKAGE OUTLINE DIMENSIONS NOTE:ALL DIMENSIONS IN MM MIN NOM MAX D 0.55 0.60 0.65 E 0.95 1.00 1.05 L1 0.20 0.25 0.30 L2 0.20 0.25 0.30 A 0.45 0.50 0.55 b 0.45 0.50 0.55 e 0.64BSC 4/4
