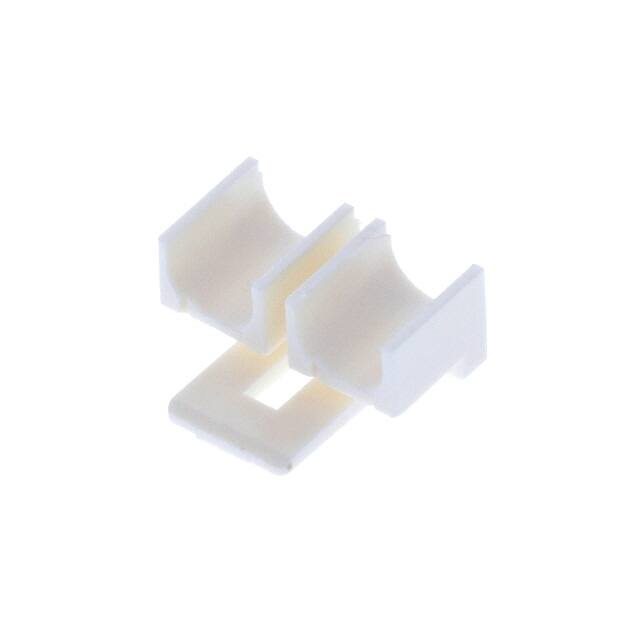

VLS-02V

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO J.S.T. AND SHALL NOT BE USED OR SHOWN WITHOUT WRITTEN PERMISSION. 4 ITEM 3 CONNECTOR PART NO. 2 IPI CHECK DESCRIPTION 1 SVF-61T-P2.0 VL CONNECTOR - FEMALE CONTACT 2 UL1015, 14 AWG BLACK 1 EOR CHECK Applicable Tooling APPLICATOR Applicable Housings NO. OF CIRCUITS 1 2 3 4 4 6 8 12 D HOUSING PART NO. INNER LOCKS VLP-01V VLP-02V VLP-03V VLP-04V VLP-06V VLP-08V VLP-12V HOUSING PART NO. OUTER LOCKS VLP-01V-1 VLP-02V-1 VLP-03V-1 VLP-04V-1 VLP-04VN-1 VLP-06V-1 VLP-08V-1 VLP-12V-1 D (84.2 +/- 5.0) C C 50.8 +/- 5.0 1 1 2 B B SCALE CUSTOMER NAME CUSTOMER PART NO. 1: 1 DIMENSIONS DESCRIPTION All dimensions are in MM with a tolerance of +/- 3.0 unless otherwise specified. A DRAWN BY 6.2 mm Pitch VL Series Standard Leads - 2" Inside Length DOUBLE-END LEADS, F-F ASSEMBLY PART NO. STEVEN PILKINGTON REV. DESCRIPTION 4 DATE 3 BY CHECK ED BY ASVFSVF14K51 DRAWING NO. & REVISION JUSTIN BAKER 2 REVISED GAM-097 3/10/2016 1 A
