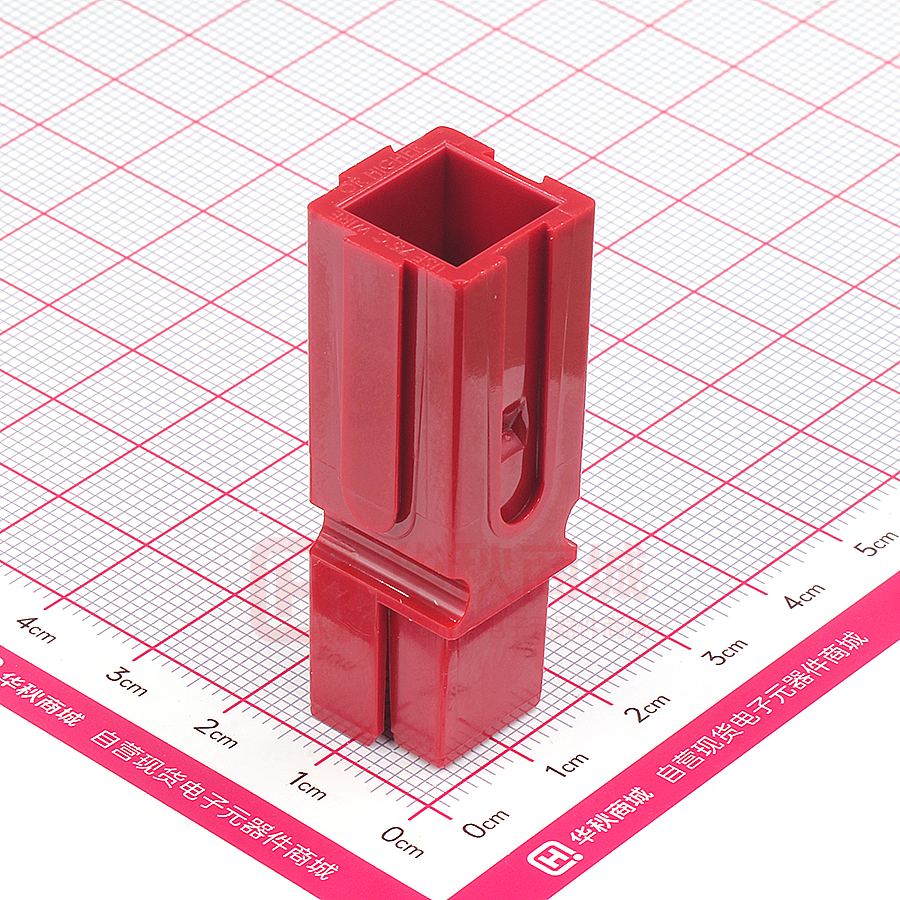

Powerpole® Connectors - PP75: up to 120 Amps PP75 with Mounting Wings PP75 series Powerpole® housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications. Wire sizes from #16 AWG (1.3 mm²) to #6 (13.3 mm²) offer power capabilities up to 120 amps per pole. Locking housings offer the capability to secure Powerpole® housings to each other and to mounting pads. Housings made from chemical resistant (CR) resin withstand industrial solvents better than standard housings. • Large Wire Range Accommodates up to #6 (10mm²) Wire Reducing bushings allow as small as #16 (1.5 mm²) wire to be used SECTION 2 Powerpole® PP75 • Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs • Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side | PP75 ORDERING INFORMATION | PP75 Standard Housings The second smallest Powerpole® housing can be used with wire contacts up to 6 AWG [10mm²] as well as PCB and busbar contacts. Description ------- Part Numbers -------- Minimum Quantity ... 1,000 100 ...... Red 5916G7-BK 5916G7 Green 5916G6-BK 5916G6 Black 5916G4-BK 5916G4 White 5916G5-BK 5916G5 Blue 5916-BK 5916 Yellow 5916G15-BK 5916G15 Orange 5916G14-BK 5916G14 Gray 5916G16-BK 5916G16 [ 15.9 ] 0.62 [ 47.9 ] 1.88 [ 15.9 ] 0.62 [ 17.0 ] 0.67 [ 81.3 ] 3.20 Front View Mated Length PP75 Chemical Resistant (CR) Housings Has the same form and dimensions of the standard PP75 housing in a chemical resistant PBT/ PC blend housing. Suitable for use to -40°C. Material ID Located Here V0 = Standard P = Chemical Resistant Description - Part Numbers Minimum Quantity ... 1,000 ....... Red P5916G7-BK Black P5916G4-BK White P5916G5-BK Blue P5916-BK PP75 Locking Dovetail Housings Offers dovetails for stacking housings that have a locking feature to prevent housings separating. Can mate to standard and chemical resistant housings, but cannot be stacked with them. Description ---------- Part Numbers ----------Minimum Quantity .... 1,000 100 ..... Red 75LOKRED-BK 75LOKRED Green 75LOKGRN-BK 75LOKGRN Black 75LOKBLK-BK 75LOKBLK White 75LOKWHT-BK 75LOKWHT Blue 75LOKBLU-BK 75LOKBLU Gray 75LOKGRA-BK 75LOKGRA [ 47.9 ] 1.88 © 2018 Anderson Power Products, Inc. All rights reserved. APP®, Anderson Power Products®, A®, Powerpole®, SPEC Pak® and the APP Logo are registered trademarks of Anderson Power Products, Inc. - 32 - www.andersonpower.com All Data Subject To Change Without Notice PP75 Premate Ground Housings Offers a first-mate, last-break connection when stacked together with PP75 housings. Stacks together with PP75 standard and chemical resistant housings. Housings are mechanically keyed to prevent cross mating with power positions. Description ------- Part Numbers ------- Minimum Quantity.... 1,000 100 ... Green 5927G6-BK 5927G6 Mated Length [ 83.1 ] 3.20 PP75 Silver Plated Wire Contacts [ 11.1 ] 0.44 SECTION 2 Dimensions Mating Loose Piece - A AWG mm² Force -- Part Numbers -- inches mm Minimum Quantity ........................ 1,000 100 ........................ 6 13.3 Low 1307-BK 1307 0.22 5.59 6 13.3 High 5900-BK 5900 0.22 5.59 8 8.4 High 5952-BK 5952 0.19 4.83 12 to 10 3.3 to 5.3 Low 5953-BK 5953 0.14 3.56 12 to 10 3.3 to 5.3 High 5915-BK 5915 0.14 3.56 Powerpole® PP75 Silver plated contacts offer the best electrical performance and durability up to 10,000 mating cycles. See reducing bushings in accessory section for smaller wires. [ 30.0 ] 1.18 A [ 7.2 ] 0.28 [ 7.1 ] 0.28 PP75 Premate Ground Wire Contacts Silver plated contacts for use with the PP75 Premate Ground Housing. Rated to 10,000 mating cycles. Loose Piece Type AWG mm² ----- Part Numbers ----- Minimum Quantity ........................ 1,000 100 Individual 6 13.3 1875G1-BK 1875G1 Individual 8 8.4 1875G2-BK 1875G2 Individual 12 to 10 3.3 to 5.3 1875G3-BK 1875G3 Dimensions - A inches mm ........................ 0.22 5.59 0.19 4.83 0.14 3.56 [ 32.0 ] 1.26 "A" [ 11.9 ] 0.47 [ 7.2 ] Ø 0.28 [ 7.1 ] 0.28 PP75 Silver Plated Busbar Contacts Provide a quick disconnect input or output busbar connection. Busbar contacts are for mating with wire contacts only. Part number 75BBS includes lock nuts. Locknuts must be ordered separately for B01915P1. Mating Type Thread Force ------------- Part Numbers -------------Minimum Quantity ................. 1,000 20 10 ... Busbar #10-24 High B01915P1 - 75BBS Lock Nut #10-24 - H1216P8 110G54 - See Busbar contact drawing on website for further detail. [ 17.1 ] 0.68 [ 2.0 ] 0.08 [ 69.1 ] 2.72 55A Right Angle Standard Powerclaw PCB Contacts Standard Powerclaw contacts are for use inside a PP75 housing and provide a color coded right angle connection to the PCB. Description --- Loose Piece Part Numbers -Minimum Quantity .. 500 100 ........ Tin Plated PC5930T-BK PC5930T Silver Plated PC5930S-BK PC5930S [ 5.2 ] 0.20 PP75 Housing [ 17.0 ] 0.67 [ 22.2 ] 0.87 See PCB contact drawing on website for further detail. [ 48.0 ] 1.89 [ 66.0 ] 2.60 Second housing and contact in two pole version only. All Data Subject To Change Without Notice [ 32.8 ] 1.29 www.andersonpower.com Standard Powerclaw Contact - 33 - 55A Right Angle Mini Powerclaw PCB Contacts Right angle Mini Powerclaw contacts can be used on the PCB edge without a PP75 housing on the PCB side. A self polarizing design only allow PP75 wire housings to mate to PCB contacts one way. [ 58.4 ] 2.30 [ 8.1 ] 0.32 [ 15.6 ] 0.61 Loose Piece Description -------- Part Numbers -------Minimum Quantity ... 1,000 100 ...... Tin Plated PC5934T-BK PC5934T Silver Plated PC5934S-BK PC5934S [ 7.6 ] 0.30 [ 2.42 ] 0.095 [ 6.10 ] 0.240 55A Vertical Mini Powerclaw PCB Contacts [ 25.4 ] 1.00 [ 1.27 ] 0.050 [ 6.25 ] 0.246 [ 24.3 ] 0.96 [ 9.7 ] 0.38 Loose Piece Description --------- Part Numbers ------Minimum Quantity ... 1,500 100 ...... Tin Plated PC5933T-BK PC5933T Silver Plated PC5933S-BK PC5933S Powerpole® PP75 [ 17.5 ] 0.69 [ 12.2 ] 0.48 Vertical Mini Powerclaw contacts save space by not requiring a PP75 housing on the PCB side. The guide housing is required for 2 pole applications to provide a polarized connection. (See PP75 accessories). SECTION 2 [ 12.19 ] 0.480 [ 24.6 ] 0.97 [2.32] 0.091 [ 1.27 ] 0.050 [ 4.98 ] 0.196 [ 10.29 ] 0.405 See PCB contact drawing on website for further detail. | PP75 TEMPERATURE CHARTS | Temperature rise charts are based on a 25°C ambient temperature. Current - Temperature Derating per IEC 60512-5-2 Test 5B PP75 Singlepole Derating vs. Ambient Temperature 75 50 0 20 40 60 80 100 120 100 75 50 25 0 10 20 30 40 50 60 70 80 90 100 100 75 50 25 Amperes Applied 6 AWG 8 AWG 10 AWG 12 AWG Amperes Applied 6 AWG 8 AWG 10 AWG 12 AWG Mini Powerclaw Derating vs. Ambient Temperature 125 Ambient Temperature (°C) 100 25 PP75 Multipole Derating vs. Ambient Temperature 125 Ambient Temperature (°C) Ambient Temperature (°C) 125 0 10 20 30 40 50 60 70 80 90 100110 Amperes Applied Singlepole 2-Pole For Temperature Rise Above 60°C, Consult the Extended Temperature Rise Charts in the Appropriate Product Section on the Website. PP75 Singlepole Loose Piece Contact Temperature Rise at Constant Current 40 30 20 10 0 50 50 40 30 20 10 0 10 20 30 40 50 60 70 80 90 100 110 120 Amperes Applied 6 AWG 8 AWG 10 AWG 12 AWG 0 Mini Powerclaw Temperature Rise at Constant Current 60 Temperature Rise Above Ambient (°C) 50 PP75 Multipole Loose Piece Contact Temperature Rise at Constant Current 60 Temperature Rise Above Ambient (°C) Temperature Rise Above Ambient (°C) 60 0 10 20 30 40 50 60 70 80 90 Amperes Applied 6 AWG 8 AWG 10 AWG 12 AWG 40 30 20 10 0 0 10 20 30 40 50 60 70 80 90 Amperes Applied Singlepole 2-Pole NOTE: Powerclaw charts are based on #8 AWG equivalent copper foil on board side, mated to #6 AWG conductor on wire side. - 34 - www.andersonpower.com All Data Subject To Change Without Notice | PP75 SPECIFICATIONS | Electrical Mechanical Current Rating Amperes ¹ UL 1977 CSA Wire to Wire (6 AWG) 120 70 Wire to PCB (6-AWG) 55 50 Wire to Busbar (6 AWG) 75 Wire Size Range Wire Contacts with Bushings AWG mm² 16 to 6 1.3 to 13.3 Max. Wire Insulation Diameter in. 0.437 11.100 mm Voltage Rating AC/DC UL 1977 Operating Temperature ² °F °C Standard & Ground -4° to 221° -20° to 105° PCB Connector Recommended Voltage 3 -40 to 221° -40° to 105° 600 Chemical Resistant* Mini Vert. Contact Adjacent Poles 220 Mini Horiz. Contact Adjacent Poles 200 Mating Cycles No Load by Plating Standard Contact Adjacent Poles 635 Wire and PCB Contacts Silver (Ag) Tin (Sn) 10,000 1,500 SECTION 2 *Chemical resistant material not available for PCB guide housings Powerpole® PP75 per IEC 60950-1 Table 2L Pollution Degree 2 Dielectric Withstanding Voltage Avg. Mating / Unmating Force Lbf. N Wire to Wire Low Force Contacts 5 22 Wire to Wire High Force Contacts 7 31 Avg. Mated Contact Resistance Milliohms ¹ Standard Powerclaw to Wire 7 31 Wire Contact with 1 1/4” of #6 AWG Mini Powerclaw to Wire 4 17 Volts AC 2,200 PCB Contact to Contact 0.200 0.500 PCB Specifications UL Hot Plug Current Rating Amperes - 250 cycles at 120V DC 6 Wire- wire 50A PCB- wire (Vertical Mini Powerclaw) 40A Mounting Style Plated Through Hole Max PCB Thickness- in. [mm] Standard: 0.15 [0.381] Mini: Recommended Traces UL Ground Short Time Current Test - 75A Premate Ground 1530 Amps, #6 AWG Wire 6 Seconds Min. Contact / Spring Retention Force Wire Housing Housing Standard Plastic Resin Polycarbonate Chem. Resistant Resin Polycarbonate / PBT blend Contact Retention Spring Stainless Steel N 50 222 Min. Creepage / Clearance Distance PCB in. mm Standard Powerclaw Adjacent Poles 0.260 6.6 Mini Vert. Powerclaw Adjacent Poles 0.087 2.2 Mini Horz. Powerclaw Adjacent Poles 0.079 2.0 213 Condition A 50g’s 204 Condition A 10g’s Mechanical Shock 5 Housing Flammability Rating Glow Wire Lbf. Materials UL94 0.25 [0.635] #8 AWG Cross Section V-0 960°C (GWFI) / 800°C (GWIT) MIL-STD-202 Vibration High Frequency 5 MIL-STD-202 Contact Base Copper Alloy Wire Plating Silver PCB Plating Sn or Ag over Ni Contact Termination Methods Crimp 4 Wire Contacts Hand Solder Wire and PCB Contacts Solder Dip* PCB Contacts Wave Solder* PCB Contacts Wrench / Socket Busbar Contacts NOTE 1: See IEC 60664-1 for working voltage. NOTE 2: Amp ratings are stated per position and based on all positions being fully loaded. ¹ Based on: 105°C rated or better cable of the largest size, Properly calibrated APP recommended tooling, and a 25°C ambient temperature. UL rating not to exceed the maximum operating temperature. CSA rating below a 30°C temperature rise. ² Limited by the thermal properties of the connector plastic housing. ³ Without use of spacers to increase creepage and clearance distances. 4 Use APP recommended tooling only. Alternate tools may adversely affect the performance of our connectors along with UL and CSA recognition. 5 Tested with contact part number 5900. 6 Based on 2 housings blocked together. All Data Subject To Change Without Notice www.andersonpower.com - 35 - | IEC INFORMATION | Connector Series Creepage / Clearance per IEC 60950-1 Configurations Single Pole PP75 Stacked Powerpole® Unmated 2.97 mm Mated 2.97 mm Unmated 2.97 mm Mated 2.97 mm Material Group IIIa SECTION 2 Powerpole® PP75 Attributes PP75 AMP Rating AC/DC 75 Voltage Rating AC/DC (Steady State) 250 V AC/DC ( Operational) Breaking Capacity -AMP Rating /Cycles 75 Amp / 10 Cycles Voltage Rating (Breaking Capacity) 220 VDC FINGER Safety - Mated only IEC 60529 - IP20 Wire Size tested 16 mm² Contact Series Tested 5900 Climatic Testing (Cold,Heat & MFG) IEC 60512 Test -11j, 11i & 11g, Cycle Life IEC 60512 Test 9a - 5000 Cycles Mechanical Strength Impact IEC 60512-5 @ 29.5 Inches - dropped 8 times Temperature Range -20 °C to 105 °C -4 °F to 221 °F Protection Touch Safety with Wire Contacts IEC 60529 IP10 NOTE 3: Refer to the Constructional Data form for additional information on our website., www.andersonpower.com - 36 - www.andersonpower.com All Data Subject To Change Without Notice | POWERPOLE® PP75 ACCESSORIES | Strain Relief Grommets Use for strain relief in the back side of a PP75 housing. Wire gauge given for reference only, use grommet ID and wire OD to determine suitability in the end application. Dimensions -ADescription - Part Numbers - inches mm Minimum Quantity ... 100 ....................... #6 AWG, Black 114411P2 0.35 8.89 #8 AWG, Black 114411P1 0.25 6.35 #10 - 12 AWG, Black 114411P3 0.17 4.32 A Mounting Wing for Standard or CR Housings [ 27.4 ] 1.08 [ 27.4 ] 1.08 [ 15.9 ] 0.63 Description ------- Part Numbers ------Minimum Quantity ... 1,000 100 ... Blue, Round Hole 1399G20-BK 1399G20 Blue, Oval Hole 1399G7-BK 1399G7 Mounting Wing for Locking Housings Mounting wings can be used to secure Powerpole® 75 series housings with locking dovetails by passing fasteners through the wings in either a horizontal or vertical orientation. Useful for sheet metal panels, printed circuit boards, and many other mounting surfaces. Fasteners not included. SECTION 2 [ 15.9 ] 0.63 Powerpole® PP75 Mounting wings can be used to secure dovetailed Powerpole® 75 series housings by passing fasteners through the wings in either a horizontal or vertical orientation. Useful for sheet metal panels, printed circuit boards, and many other mounting surfaces. Fasteners not included. [ 15.9 ] 0.63 [ 15.9 ] 0.63 [ 5.1 ] Ø 0.20 [ 2.6 ] R 0.10 [ 15.9 ] [ 6.9 ] 0.63 0.27 Oval Hole Round Hole [ 15.9 ] - Mounting Wing Top - Mounting Wing Top 0.63 Description --------------------- Part Numbers --------------------Minimum Quantity ... 1,000 100 ... Blue, Oval Hole 75LOKWNGBLU-BK 75LOKWNGBLU Blue, Round Hole 75LOKWNGBLU-R-BK 75LOKWNGBLU-R [ 5.1 ] Ø .20 Left Side View - Both Versions Right Side View - Both Versions [ 27.4 ] 1.08 Surface Mount for Locking Housings Use to secure Powerpole® 75 series housings with locking dovetails to a flat surface. Useful for sheet metal panels, printed circuit boards, and many other mounting surfaces. Fasteners not included. Description ----------------- Part Numbers ---------------- Minimum Quantity ... 1,000 Blue 75LOKSMTBLU-BK [ 2.8 ] 0.11 100 ... 75LOKSMTBLU [ 3.6 ] 0.14 [ 15.7 ] 0.62 [ 7.9 ] 0.31 Top View [ 43.2 ] 1.70 [ 4.9 ] 0.19 Side View Spacer Use to separate housings under high power to minimize power capability derating due to heat rise. They are recommended for squaring off a block of Powerpole® 75 housings to enable mounting accessories or retaining pins to be used. Combining long and short spacers opposite each other in a mated block adds keying features, or use two short spacers to avoid interference. Description ------------- Part Numbers ------------Minimum Quantity… 1000 100 .... Red, Short 1399G23-BK 1399G23 Red, Long 1399G21-BK 1399G21 All Data Subject To Change Without Notice [ 17.0 ] 0.67 [ 33.3] 1.31 [ 17.0 ] 0.67 [ 47.6 ] 1.87 Short Long www.andersonpower.com - 37 - Guide Housings for Vertical Mini Powerclaw Contacts Prevents polarity being reversed when a two pole PP75 block is mated to vertical mini Powerclaw contacts. Fastening hardware not included. Description ----------- Part Numbers -----------Minimum Quantity ... 1,000 100 ... Black Guide Housing PC-HSG-PP-BK PC-HSG-PP PP75 Connector Mini Vertical Powerclaw Contact Guide Housing PCB Mounting Clamp SECTION 2 Powerpole® PP75 Mounting clamps can be used for fastening a block of Powerpole® 75 series housings to a panel. Connector blocks must be a complete square for the clamps to work properly. Fastening hardware not included. Description - Part Numbers - Minimum Quantity ... 50 sets of 2 ... 2 or 4 Pole 1463G1 3 or 6 Pole 1463G2 Mounting Clamp Panel 2 Pole Retaining Pins 3 Pole Retaining pins are used to keep stacked Powerpole® 75 series housings from separating. Retaining pins are inserted in the circular opening between two housings stacked side by side. Dimension B is +/- 0.015 in or 0.38 mm. Dimensions - A - -BDescription ------ Part Numbers ------ inches mm inches mm Minimum Quantity ... 1,000 100 ................................................................................ 1 Block High 111812P7 110G19 0.196 / 0.207 4.98 / 5.26 0.560 14.220 2 Block High 111812P6 110G18 0.196 / 0.207 4.98 / 5.26 1.000 25.400 B PCB Mounting Staples A Reduce strain on solder joints during mating and unmating. Staples bend over the underside of the PCB board to lock the housings in place. Staples are an interference fit with housings. ---- Part Numbers ---- Minimum Quantity ..... PCSTAPLE-2 Number of Stacked Powerpoles® HxW 100 ...... 1 x 2 Staple Housings PCB Slide staple over housings and into the holes in the board. Fasten the staple by bending the leads on the bottom of the board. Reducing Bushings Use with contact part number 5900-BK or 1307-BK to allow a smaller wire to be used with the connector. Electrical capability is derated with smaller wire. Dimensions - ID - - Length - Contact Barrel Size Wire Size ------------------ Part Numbers ------------ inches mm Inches mm Minimum Quantity .................................................... 3,000 1,000 100 ........................................................ #6 AWG [13.3 mm²] #8 AWG [8.4 mm²] - 5912-BK 5912 0.18 4.57 0.45 11.43 #6 AWG [13.3 mm²] #12- 10 AWG [3.3- 5.3 mm²] 5910-BK - 5910 0.14 3.56 0.47 11.94 #6 AWG [13.3 mm²] #16- 14 AWG [1.3- 2.1 mm²] 5913-BK - 5913 0.09 2.29 0.47 11.94 Length ID Wire Entrance For environmentally sealed connector shells to hold Powerpole ® 15-180 connectors, see SPEC Pak ® product series on our website, www.andersonpower.com - 38 - www.andersonpower.com 2018-0054 DS-PP75 REV C6 All Data Subject To Change Without Notice Powerpole® - Tooling Information W ire Size AWG mm² Reeled Part Numbers Reeled Contact Crimp Tool Tin Plating APP Applicator Silver Plating APP Press PP15 / 45 Flat Wiping Power & Ground #16 / 20 1.3 / 0.52 262G1 #16 / 20 1.3 / 0.52 269G2 262G2 N/A #12 / 16 3.3 / 1.3 261G1 N/A #10 / 14 5.3 / 2.1 261G2 261G3 #12 / 16 3.3 / 1.3 269G1 N/A #10 / 14 5.3 / 2.1 269G3 N/A #10 / 14 5.3 / 2.1 200G1L 200G3L #10 / 14 5.3 / 2.1 201G1H N/A #10 / 14 5.3 / 2.1 1830G1 1830G2 TD0101 115V= TE0101 230V = TE0102 SECTION 2 Powerpole® Tooling TD0102 NOTE: Insertion / Extraction tool for PP15/45 contacts = 111038G2 * APP applicators are mechanical feed style and do not require an air feed kit. W ire Size AWG mm² Loose Piece Part Numbers Tin Plating L o o s e Piece C ontact C rimp Tool Pneumatic Hand Bench Tool or Tool + Silver Plating Number Die + Locator of Crimps PP15 / 45 Flat Wiping Power & Ground #16 / 20 1.3 / 0.52 N/A 1332 #12 / 16 3.3 / 1.3 N/A 1331 #16 / 20 1.3 / 0.52 262G1-LPBK 262G2-LPBK #16 / 20 1.3 / 0.52 269G2-LPBK N/A #12 / 16 3.3 / 1.3 261G1-LPBK N/A #10 / 14 5.3 / 2.1 261G2-LPBK 261G3-LPBK #12 / 16 3.3 / 1.3 269G1-LPBK N/A #10 / 14 5.3 / 2.1 269G3-LPBK N/A #10 / 14 5.3 / 2.1 200G1L-LPBK 200G3L-LPBK #10 / 14 5.3 / 2.1 201G1H-LPBK N/A 310 / 14 5.3 / 2.1 1830G1-LPBK 1830G2-LPBK 1309G2 or 1309G8 1309G3 or 1309G8 N/A N/A N/A Single 1309G6 or 1309G8 PP75 #6 13.3 #8 8.4 1307 1389G6 5900 1388G6 1389G21 1875G1 N/A #10 / 12 5.3 / 3.3 5952 1875G2 1309G4 1389G6 1387G1 1389G21 5953 5915 1388G7 Single 1389G6 1389G21 1875G3 PP120 1/0 53.5 1323G2 #1 42.4 1323G1 #2 33.6 N/A 1319 #4 21.2 1319G4 #6 13.3 1319G6 3/0 85 1328G2 2/0 53.5 1328G1 1388G3 1368 Series 1387G1 1389G4 Single 1388G4 PP180 1/0 53.5 #1 42.4 #2 33.6 1383 #4 21.1 1384 #6 13.3 1348 1303G12 1382 N/A 1347 1368 Series 1387G2 1303G13 1304G32 Double 1387G1 Single 1388G4 1389G3 1. NOTE: See website for the most current information. 2. NOTE: Insertion / Extraction fool for PP15/45 contacts = 111038G2 All Data Subject To Change Without Notice www.andersonpower.com - 47 -
