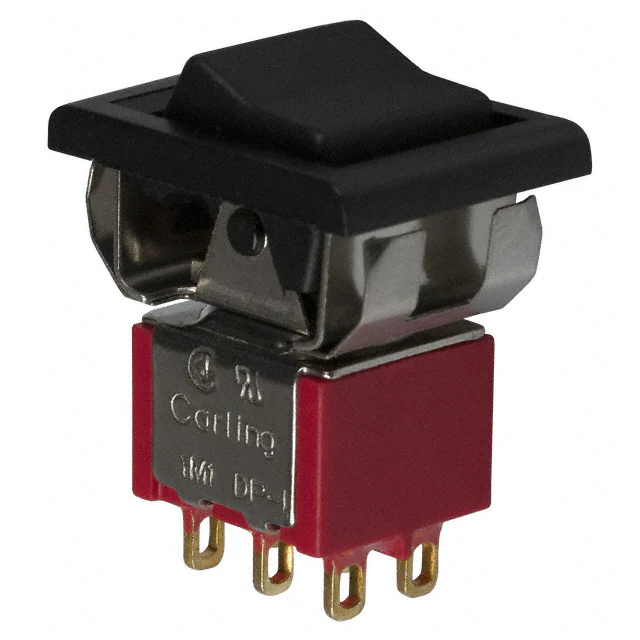

NOW PART OF 1M-Series Miniature Rockers & Paddles PROD UC T WE BP A GE request sample, configure part The 1M family of miniature rocker & paddle switches is composed of two switch series; the 1M1-Series miniature rocker and paddle switch, and the 1MS-Series sealed miniature rocker and paddle switch. Both products feature PC mounting and offer a variety of ratings, circuits, contact materials, terminal platings, rocker and paddle actuator styles and colors. 1-3 Poles .4-5 125, 250 Amps Typical Applications ∙ Instrumentation ∙ Test Equipment www.carlingtech.com ∙ Telecommunications ∙ Networking 860.793.9281 sales@carlingtech.com VAC 28 VDC ∙ Handheld Appliances ∙ Medical Equipment Tech Specs 1MS-Series 1M1-Series Sealed Miniature Rocker & Rocker Switch Electrical Material Contact Rating refer to ordering scheme Case 1MS-Series: Glass filled nylon 6/6,flame retardant, heat stabilized (UL 94V-0) 1M1-Series: Dially phthalate (DAP) (UL 94V-0) Electrical Life 1MS-Series: 30,000 make & break cycles @ full load 1M1-Series: 50,000 make & breakcycles @ full load Contact Resistance 10 mΩ max. initial @ 2-4 VDC 100mA for both silver & gold plated contacts Rocker/Paddle 1MS-Series: Nylon, black standard,internal o-ring sealed 1M1-Series: Nylon (UL 94V-0) Insulation Resistance 1000 MΩ min. Bushing Dielectric Strength 1500 Volts RMS @ sea level 1MS-Series: Glass filled nylon 6/6,flame retardant, heat stabilized (UL 94V-0) 1M1-Series: Brass, nickel plated Housing 1MS-Series: Spring Steel 1M1-Series: Stainless Steel Actuator Pivot & Mounting Bracket 1MS-Series: Nylon (UL 94V-0) 1M1-Series: Stainless Steel Actuator Pivot Retainer 1MS-Series: Stainless Steel Switch Support Brass, tin plated Terminal Seal Epoxy Physical 2. Miniature Rocker & Rocker Switch Operating Temperature -30°C to +85°C Index of Protection 1MS-Series: IP67 Solder Heat Resistance MIL-STD-202, Method 210 Actuator Travel 25° *Manufacturer reserves the right to change product specification without prior notice. Ordering Schemes Sample Part Number 1MS - SP 1 - R6 / 2 M6 G E 1 Selection 2 3 4 1. SERIES 1MS Single pole - uses terminals 1, 2 & 3 Double pole uses terminals 1,2, 3, 4, 5 & 6 Three pole uses terminals 1,2, 3, 4, 5, 6, 7, 8 & 9 3. CIRCUIT 2 3 Connected Terminals 2-1, 5-4, 8-7 NONE ON NONE (ON) OFF ON OFF (ON) OFF (ON) ON ON ON (ON) ON (ON) ON (ON) Contact Material G silver 1 5. ACTUATOR COLOR 2 Black 3 Red without Epoxy Seal Browse Standard Parts > 1M1 - SP 1 - R8 / 2 - 2 M6 Q E 1 2 3 4 2. POLES Single pole - uses terminals 1, 2 & 3 Double pole uses terminals 1,2, 3, 4, 5 & 6 Three pole uses terminals 1,2, 3, 4, 5, 6, 7, 8 & 9 Four pole uses terminals 1,2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 3. CIRCUIT 6 7 8 9 M1 Solder Lug VS3 PC Mount, U bracket M2 PCB VS4 PC Mount, U bracket M3 Quick Connect VS5 PC Mount, U bracket M51 Wire Wrap M61 Snap-In, U bracket, 90° horizontal M52 Wire Wrap M71 Snap-In, U bracket, 90° vertical M53 Wire Wrap VS21 Snap-In, U bracket M54 Wire Wrap VS31 Snap-In, U bracket M6 PC Mount, 90˚ horizontal VS41 Snap-In, U bracket M7 PC Mount, 90˚ vertical VS51 Snap-In, U bracket VS2 PC Mount, U bracket U4 Snap-In, U bracket, 3-Pole See dimensional specifications. ( ) - momentary Position: 1 2 2-3, 5-6, 8-9, 11-12 Connected Terminals 1 ON NONE 2 ON NONE 3 ON OFF 4 (ON) OFF 5 ON OFF 1 6 ON ON 7 1 (ON) ON 1 8 ON ON 9 2 NONE ON 4. ACTUATOR STYLE R6 R7 R8 R9 Standard Rocker Standard Paddle Medium Rocker Large Paddle Large rocker 2 Black 3 Red 3 2-1, 5-4, 8-7, 11-10 ON (ON) ON (ON) (ON) ON (ON) (ON) (ON) Rocker & frame Paddle & frame Rocker without frame Paddle without frame 5. ACTUATOR COLOR / 6 FRAME COLOR 0 No Frame* 1 White 5 7. TERMINATION 1M1 Miniature Rocker Switch 3. Approvals 0 Epoxy Seal Configure Complete Part Number > 1. SERIES R1 R2 R3 R4 R5 Rating Notes: Tin option not available with M1 and M3 terminals. 1 Movable contact and terminal platings: silver over copper alloy 2 Movable contact platings: gold over nickel over copper alloy 3 Terminal platings: gold over nickel over copper alloy 4 Terminal platings: tin over copper alloy 5 Terminal contact platings: gold over nickel alloy 6 Terminal contact platings: silver over nickel alloy Black is standard. Other colors available, consult factory. SP DP 3P 4P PC Mount, U bracket PC Mount, U bracket PC Mount, U bracket PC Mount, U bracket Snap-In, U bracket Snap-In, U bracket Snap-In, U bracket Snap-In, U bracket Vertical Mount, 3-Pole Snap-In, U bracket, 3-Pole gold over silver 5A 125VAC or 28VDC, , IP67 2A 250VAC 4 tin 0.4VA max 20V max (AC/DC) IP67 tin 4 5A 125VAC or 28VDC, , IP67 2A 250VAC gold 3 0.4VA max 20V max (AC/DC) IP67 8. EPOXY SEAL R5 Large Rocker R6 Small Rocker R7 Medium Paddle Standard Rocker Standard Paddle Medium Rocker Large Paddle Terminal Plating K gold 2,5 P silver 1,6 R gold 2 E 4. ACTUATOR STYLE Selection VS2 VS3 VS4 VS5 VS21 VS31 VS41 VS51 U2 U4 7. CONTACTS / TERMINALS *Center Position Connects 2-3, 5-4, 8-9 Sample Part Number 8 See dimensional specifications. ( ) - momentary Position: 1 2-3, 5-6, 8-9 1 ON 2 ON 3 ON 4 (ON) 5 ON 6 * ON 7 * (ON) 8 * ON 9 * OFF 1 White 7 M1 Solder Lug M2 PCB M3 Quick Connect M51 Wire Wrap M52 Wire Wrap M53 Wire Wrap M54 Wire Wrap M6 PC Mount, 90˚ horizontal M7 PC Mount, 90˚ vertical 2. POLES R1 R2 R3 R4 6 6. TERMINATION Sealed Miniature Rocker Switch SP DP 3P 5 Black is standard. Other colors available, consult factory. *Actuator style R8 or R9 only. 8. CONTACTS / TERMINALS Contact Material G silver 3 K gold 4,7 P silver 3,8 Q silver 3 R gold 4 Terminal Plating Rating Approvals gold over silver 5A 125VAC or 28VDC, , 2A 250VAC 6 tin 0.4VA max 20V max (AC/DC) N/A tin 6 5A 125VAC or 28VDC, , 2A 250VAC silver 3 5A 125VAC or 28VDC, , 2A 250VAC gold 5 0.4VA max 20V max (AC/DC) N/A 9. EPOXY SEAL E Epoxy Seal 0 without Epoxy Seal Notes: Tin option not available with M1 and M3 terminals. 1 Double-Pole and Four-Pole only. Center position connects 2-3, 5-4, 8-9, 11-10 2 Double-Pole only 3 Movable contact and terminal platings: silver over copper alloy 4 Movable contact platings: gold over nickel over copper alloy 5 Terminal platings: gold over nickel over copper alloy 6 Terminal platings: tin over copper alloy 7 Terminal contact platings: gold over nickel alloy 8 Terminal contact platings: silver over nickel alloy Configure Complete Part Number > Browse Standard Parts > Dimensional Specs inches [millimeters] Single Pole .370 [9.40] .079 [2.00] .095 [2.40] DIA .260 [6.60] EPOXY SEAL .030 [0.75] 3 1.158 [29.40] .937 [23.80] .500 [12.70] .185 [4.70] 2 1 .144 [3.65] .111 [2.83] .347 [8.80] .080 [2.03] Double Pole .079 [2.00] .449 [11.40] EPOXY SEAL .030 [0.75] .185 [4.70] .144 [3.65] 3 2 4 1 .080 [2.03] .111 [2.83] .370 [9.40] 6 .500 5 [12.70] .189 [4.80] Three Pole .079 [2.00] .095 [2.40] DIA .650 [16.50] EPOXY SEAL .030 [0.75] .937 [23.80] 1.158 [29.40] .500 [12.70] .185 [4.70] .148 [3.75] R1 .095 [2.40]DIA 5 7 1.158 [29.40] .370 [9.40] .319 [8.10] .095 [2.40]DIA .131 [3.33] .059 [1.50] .937 [23.80] .347 [8.80] .079 [2.00] .059 [1.50] 1.055 [26.80] 1.374 [34.90] .516 [13.10] 1 .059 [1.50] 1.634 [41.50] .630 [16.00] 3 .331R [8.40R] .366 [9.30] .079 [2.00] R3 4 2 .075 [1.90] 1.158 [29.40] .551 [14.00] .937 [23.80] 6 .190 [4.83] Actuator Options for Panel Rear Mount R2 .347 [8.80] 4. 9 .080 [2.03] .111 [2.83] .347 [8.80] 8 .417 [10.60] .118 [3.00]DIA .024 [0.60] .154 [3.90] .984 [25.0 ] .713 [18.10] .131 [3.33] Dimensional Specs inches [millimeters] Actuator Options for Panel Rear Mount R4 1.634 [41.50] .094 [2.40] 1.374 [34.90] .620 [15.75] .516 [13.10] 1.169 [29.70] .118 [3.00]DIA .154 [3.90] .024 [0.60] R5 1.634 [41.50] 1.347 [34.20] 1.374 [34.90] .620 [15.75] R6 .516 [13.10] .118 [3.00]DIA .457 [11.60] .095 [2.40]DIA .283 [7.20] .453 [11.50] .347 [8.80] .111 [2.83] .079 [2.00] .154 [3.90] .024 [0.60] R7 1.158 [29.40] .937 [23.80] .095 [2.40]DIA .587 [14.90] .937 [23.80] .457 [11.60] .347 [8.80] .059 [1.50] Actuator Options for PC Mount .551 [14.00] R1 .190 [4.83] R2 .319 [8.10] 1.055 [26.80] .630 [16.00] .906 [23.00] .315 [8.00] R4 .984 [25.0 ] .075 [1.90] .713 [18.10] .114 [2.90] .094 [2.40] 1.067 [27.10] .598 [15.20] .169 [4.30] .131 [3.33] .059 [1.50] .193 [4.90] R3 .634 [16.10] .079 [2.00] .331R [8.40R] .366 [9.30] .370 [9.40] .984 [25.0 ] .094 [2.40] 1.158 [29.40] .197 [5.00] 1.164 [29.56] .169 [4.30] R5 R6 1.346 [34.20] .472 [12.00] .620 [15.75] 5. 559 [14.20] .169 [4.30] .453 [11.50] .362 [9.20] .283 [7.20] .190 [4.83] Dimensional Specs inches [millimeters] Actuator Options for PC Mount .094 [2.40] R7 .516 [13.10] .620 [15.75] .024 [0.60] Termination Options M1 Standard Solder Lug M2 PC Thru-Hole EPOXY SEAL EPOXY SEAL .144 [3.65] .078 [1.98] M6 Single Pole .200 [5.08] .200 [5.08] .500 [12.70] M6 Three Pole .150 [3.81] .185 [4.70] 7 4 M7 Single Pole .150 [3.81] EPOXY SEAL 8 5 2 .030 [0.75] .500 [12.70] .200 [5.08] .150 [3.81] 9 6 3 .565 [14.35] .185 [4.70] .500 [12.70] .030 [0.75] .185 [4.70] .073 [1.85]DIA .200 [5.08] P.C.MOUNTING 3 .500 [12.70] .073 [1.85]DIA P.C.MOUNTING .500 [12.70] 1 .565 [14.35] .185 [4.70] .030 [0.75] .650 [16.50] .020 [0.50] P.C.MOUNTING .150 [3.81] EPOXY SEAL .200 [5.08] .386 [9.80] .449 [11.40] .050 [1.26] .050 [1.27] .924 [23.48] M5-3 .185 [4.70] .500 [12.70] EPOXY SEAL .016 [0.40] M5-2 P.C.MOUNTING .500 [12.70] .030 [0.75] .050 [1.26] .020 [1.26] .711 [18.05] .260 [6.60] .500 [12.70] M6 Double Pole DIM.'A' M5-1 M5-4 1.022 [25.97] THK .030 [0.75] EPOXY SEAL .020 [0.50] OPTION CODE .050 [1.26] THK .030 [0.75] .050 [1.26] .051 [1.30] EPOXY SEAL .191 [4.84] .062 [1.57] THK .030 [0.75] THK .030 [0.75] M5 Wire Wrap EPOXY SEAL .191 [4.84] .050 [1.26] .047 [1.20] .080 [2.03] M3 Quick Connect .150 [3.81] 2 1 .020 [0.50] 6. .200 [5.08] .050 [1.26] .215 [5.46] .500 [12.70] .150 [3.81] .050 [1.26] .500 [12.70] .073 [1.85]DIA Dimensional Specs inches [millimeters] Termination Options M7 Double Pole .030 [0.75] .020 [0.50] .200 [5.08] .050 [1.26] .215 [5.46] .150 [3.81] .500 [12.70] M7 Three Pole .020 [0.50] .200 [5.08] .050 [1.26] .215 [5.46] .150 [3.81] .565 [14.35] .190 [4.83] 6 3 .500 [12.70] 5 2 4 1 .150 [3.81] .500 [12.70] .050 [1.26] 8 9 5 7 6 4 2 .150 [3.81] 3 .190 [4.83] 1 .073 [1.85]DIA .050 [1.26] .190 [4.83] VS2-VS3Single Pole EPOXY SEAL .050 [1.26] .321 [8.15] .125 [3.18] .020 [0.50] 1 .185 [4.70] .030 [0.75] 3 2 .620 [15.75] OPTION CODE DIM.'A' VS2 .461 [11.70] VS3 .630 [16.00] VS2-VS3Double Pole .321 [8.15] .020 [0.50] 4 .185 [4.70] .125 [3.18] DIM.'A' VS2 .461 [11.70] 5 6 .030 [0.75] VS3 .630 [16.00] .620 [15.75] U2-VS3 Three Pole .189 [4.80] .050 [1.26] .321 [8.15] 7. .125 [3.18] .073 [1.85]DIA .185 [4.70] .620 [15.75] .073 [1.85]DIA .190 [4.83] P.C.MOUNTING .190 [4.83] 'A' .185 [4.70] .620 [15.75] .125 [3.18] OPTION CODE EPOXY SEAL .185 [4.70] .050 [1.26] .125 [3.18] P.C.MOUNTING .190 [4.83] 'A' .200 [5.08] P.C.MOUNTING .190 [4.83] .185 [4.70] .200 [5.08] P.C.MOUNTING .650 [16.50] .500 [12.70] .073 [1.85]DIA .190 [4.83] EPOXY SEAL .030 [0.75] P.C.MOUNTING .449 [11.40] EPOXY SEAL EPOXY SEAL .020 [0.50] .185 [4.70] 7 8 .620 [15.75] 9 .030 [0.75] OPTION CODE DIM.'A' U2 .551 [14.00] VS3 .630 [16.00] .125 [3.18] .620 [15.75] .185 [4.70] .073 [1.85]DIA .190 [4.83] Dimensional Specs inches [millimeters] Termination Options VS4-VS5 Single Pole P.C.MOUNTING .190 [4.83] 'A' EPOXY SEAL .185 [4.70] .050 [1.26] .362 [9.20] .020 [0.50] 1 .185 [4.70] .250 [6.35] 2 3 .030 [0.75] OPTION CODE DIM.'A' VS4 .461 [11.70] .250 [6.35] .630 [16.00] VS5 .073 [1.85]DIA .750 [19.05] VS4-VS5 Double Pole P.C.MOUNTING .190 [4.83] 'A' EPOXY SEAL .185 [4.70] .050 [1.26] .362 [9.20] .020 [0.50] .250 [6.35] .185 [4.70] 4 5 6 .030 [0.75] OPTION CODE DIM.'A' VS4 .461 [11.70] VS5 .630 [16.00] .750 [19.05] .250 [6.35] .073 [1.85]DIA .190 [4.83] P.C.MOUNTING .190 [4.83] 'A' EPOXY SEAL .020 [0.50] .189 [4.80] .362 [9.20] .185 [4.70] .250 [6.35] .030 [0.75] OPTION CODE DIM.'A' U4 .551 [14.00] VS5 .630 [16.00] .750 [19.05] .190 [4.83] .750 [19.05] .250 [6.35] VS21, VS31 .020 [0.50] .071 [1.80] .050 [1.26] .110 [2.80] .043 [1.10] .020 [0.50] VS41, VS51 .051 [1.30] .020 [0.50] .071 [1.80] .110 [2.80] .050 [1.26] .043 [1.10] .020 [0.50] * PC Mounting for M61, M71, VS21, VS31, VS41, VS51 refer to M6, M7, VS2, VS3, VS4, VS5 respectively. 8. .185 [4.70] .073 [1.85]DIA Snap-In Termination Options M61 .051 [1.30] .185 [4.70] .750 [19.05] U4-VS5 Three Pole .050 [1.26] .185 [4.70] .750 [19.05] Dimensional Specs inches [millimeters] Single Pole .095 [2.40]DIA .020 [0.50] Double Pole .260 [6.60] .374 [9.50] .020 [0.50] .095 [2.40]DIA .374 [9.50] .987 [23.80] 1.165 [29.60] .500 [12.70] .185 [4.70] .937 [23.80] .156 [3.95] .276 [7.00] .152 [3.85] .276 [7.00] Three Pole .095 [2.40]DIA .020 [0.50] .185 [4.70] .433 [11.00] Four Pole .652 [16.55] .059 [1.50] .185 [4.70] .156 [3.95] R1 .020 [0.50] .095 [2.40]DIA .437 [11.10] .500 [12.70] 9 7 5 6 4 2 3 1 .500 .185 [12.70] [4.70] .937 [23.80] 1.165 [29.60] .080 [2.03] .276 [7.00] .156 [3.95] .152 [3.85] .080 [2.03] Actuator Options for Panel Rear Mount R2 .152 [3.85] .020 [0.50] R3 .366 [9.30] .276 [7.00] R4 .906 [23.00] 1.378 [35.00] .512 [13.00] .630 [16.00] .724 [18.40] .331R [8.40R] 1.634 [41.50] .118 [3.00]DIA .075 [1.90] .937 [23.80] .095 [2.40]DIA .319 [8.10] .152 [3.85] .020 [0.50] .315 [8.00] .152 [3.85] .020 [0.50] .984 [25.0 ] 1.634 [41.50] .094 [2.40] 1.378 [35.00] .118 [3.00]DIA .512 [13.00] .899 [22.83] .598 [15.20] .020 [0.50] 9. .190 [4.83] .984 [25.0 ] 1.165 [29.60] .551 [14.00] .276 [7.00] .370 [9.40] 8 .190 [4.83] 1.165 [29.60] .850 [21.60] .059 [1.50] .030 [0.75] .152 [3.85] .937 [23.80] .095 [2.40]DIA .190 [4.83] .080 [2.03] .937 [23.80] .276 [7.00] .500 [12.70] .156 [3.95] .152 [3.85] .030 [0.75] 1.165 [29.60] .080 [2.03] .030 [0.75] .030 [0.75] 1.165 [29.60] .449 [11.40] .055 [1.40] 1.169 [29.70] .152 [3.85] Dimensional Specs inches [millimeters] Actuator Options for Panel Rear Mount R5 1.876 [47.65] 1.626 [41.30] .126 [3.20]DIA 1.346 [34.20] .472 [12.00] .620 [15.75] .504 [12.80] R6 .150 [3.80] .024 [0.60] Actuator Options for Snap-In Mount R6 WITHOUT FRAME .784 [19.90] .614 [15.60] PANEL THICKNESS .047 .125 [1.19] TO [3.18] .118 [3.00] .005R [0.13R] .728 [18.50] .016 [0.40] .095 [2.40] .441 [11.20] .295 [7.50] PANEL MOUNTING .472 [12.00] MAX. TYP. .500 [12.70] .600 * [15.24] .319 [8.10] * Increase thisdimension to .620/.625 [15.75/15.88] for .091/.125 [2.31/3.18] thk. panels. R7 .784 [19.90] .614 [15.60] R7 WITHOUT FRAME .095 [2.40] .728 [18.50] .453 [11.50] .095 [2.40] .295 [7.50] .047 TO .125 [3.18] [1.19] PANEL THICKNESS .005R [0.13R] .095 [2.40] PANEL MOUNTING .528 [13.40] .472 [12.00] MAX. TYP. .500 [12.70] .600 * [15.24] .319 [8.10] * Increase this dimension to .620/.625 [15.75/15.88] for .091/.125 [2.31/3.18] thk. panels. Actuator Options for PC Mount R1 .370 [9.40] R2 .551 [14.00] .366 [9.30] .319 [8.10] .163 [4.15] .984 [25.0 ] .075 [1.90] .724 [18.40] .331R [8.40R] .163 [4.15] R3 R4 .906 [23.00] .630 [16.00] .315 [8.00] .140 [3.55] .598 [15.20] .984 [25.0 ] .094 [2.40] .899 [22.83] 1.169 [29.70] .140 [3.55] 10. Dimensional Specs inches [millimeters] R5 Actuator Options for PC Mount R6 1.306 [33.18] .362 [9.20] 1.346 [34.20] .457 [11.60] .620 [15.75] .140 [3.55] .283 [7.20] .453 [11.50] .163 [4.15] .094 [2.40] R7 .648 [16.45] .457 [11.60] .163 [4.15] Termination Options M1 Standard Solder Lug M2 PC Thru-Hole .260 [6.60] .156 [3.95] .080 [2.02] .080 [2.03] M3 Quick Connect 'A' .062 [1.57] THK .030 [0.75] THK .030 [0.75] OPTION CODE .260 [6.60] .050 [1.26] .047 [1.20] M5 Wire Wrap .050 [1.26] THK .030 [0.75] THK .030 [0.75] .200 [5.08] .020 [0.50] .500 [12.70] .050 [1.26] 1.062 [26.97] .500 [12.70] .200 [5.08] .185 [4.70] P.C.MOUNTING .500 [12.70] .030 [0.75] .150 [3.81] .500 [12.70] .449 [11.40] .185 [4.70] .200 [5.08] .185 [4.70] .260 [6.60] .030 [0.75] P.C.MOUNTING .500 [12.70] .500 [12.70] .150 [3.81] .200 [5.08] .050 [1.26] .188 [4.78] .150 [3.81] .073 [1.85]DIA M7 Single Pole 11. .425 [10.80] M5-4 .073 [1.85]DIA .020 [0.50] .200 [5.08] .964 [24.48] M5-3 .200 [5.08] .050 [1.26] .020 [0.50] .750 [19.05] M5-2 .500 [12.70] M6 Double Pole .050 [1.26] M5-1 P.C.MOUNTING M6 Single Pole .051 [1.30] DIM.'A' .500 [12.70] .150 [3.81] .050 [1.26] .073 [1.85]DIA Dimensional Specs inches [millimeters] Termination Options P.C.MOUNTING M7 Double Pole .500 [12.70] .030 [0.75] .150 [3.81] .200 [5.08] .020 [0.50] .050 [1.26] .200 [5.08] .188 [4.78] .500 [12.70] .150 [3.81] .073 [1.85]DIA P.C.MOUNTING .652 [16.55] M7 Three Pole .030 [0.75] .020 [0.50] .565 [14.35] .050 [1.26] .565 [14.35] .188 [4.78] .073 [1.85]DIA P.C.MOUNTING .850 [21.60] .030 [0.75] .050 [1.26] .200 [5.08] .190 [4.83] .190 [4.83] .150 [3.81] M7 Four Pole .020 [0.50] .565 [14.35] .188 [4.78] .150 [3.81] .500 [12.70] .565 [14.35] 12 11 9 8 6 5 3 2 10 7 4 1 .190 [4.83] .190 [4.83] .073 [1.85]DIA P.C.MOUNTING .163 [4.15] 'A' .050 [1.26] .321 [8.15] .125 [5.08] .020 [0.50] .185 [4.70] .030 [0.75] OPTION CODE DIM.'A' VS2 .461 [11.70] VS3 .630 [16.00] 'A' .321 [8.15] 12. .125 [3.18] .620 [15.75] .185 [4.70] .073 [1.85]DIA P.C.MOUNTING .163 [4.15] .185 [4.70] .150 [3.81] .620 [15.75] VS2-VS3 Double Pole .050 [1.26] .150 [3.81] .200 [5.08] .050 [1.26] VS2-VS3Single Pole .185 [4.70] .150 [3.81] .500 [12.70] .200 [5.08] .050 [1.26] .200 [5.08] .190 [4.83] .020 [0.50] .185 [4.70] .030 [0.75] .620 [15.75] OPTION CODE DIM.'A' VS2 .461 [11.70] VS3 .630 [16.00] .150 [3.81] .620 [15.75] .190 [4.83] .185 [4.70] .073 [1.85]DIA Dimensional Specs inches [millimeters] Termination Options VS4-VS5 Single Pole .163 [4.15] DIM.'A' VS4 .461 [11.70] VS5 .630 [16.00] 'A' .185 [4.70] .050 [1.26] .030 [0.75] .020 [0.50] .250 [6.35] .185 [4.70] .362 [9.20] P.C.MOUNTING OPTION CODE .250 [6.35] .073 [1.85]DIA .750 [19.05] VS4-VS5 Double Pole .163 [4.15] .185 [4.70] .020 [0.50] .250 [6.35] .185 [4.70] .362 [9.20] .030 [0.75] P.C.MOUNTING OPTION CODE DIM.'A' VS4 .461 [11.70] VS5 .630 [16.00] 'A' .050 [1.26] .250 [6.35] .750 [19.05] EPOXY SEAL 'A' .185 [4.70] .185 [4.70] .362 [9.20] .030 [0.75] .750 [19.05] .020 [0.50] .250 [6.35] OPTION CODE DIM.'A' U4 .551 [14.00] VS5 .630 [16.00] .750 [19.05] .050 [1.26] .071 [1.80] .110 [2.80] .073 [1.85]DIA .043 [1.10] .020 [0.50] VS41, VS51 .110 [2.80] .020 [0.50] .043 [1.10] * PC Mounting for M61, VS21, VS31, VS41, VS51 refer to M6, VS2, VS3, VS4, VS5 respectively. .190 [4.83] .185 [4.70] VS21, VS31 .020 [0.50] .051 [1.30] 13. .073 [1.85]DIA Snap-In Termination Options M61 .050 [1.26] .185 [4.70] P.C.MOUNTING .190 [4.83] .250 [6.35] .750 [19.05] .190 [4.83] U4-VS5 Three Pole .050 [1.26] .185 [4.70] .750 [19.05] Authorized Sales Representatives and Distributors Click on a region of the map below to find your local representatives and distributors or visit www.carlingtech.com/findarep. CANADA EUROPE USA MIDDLE EAST MEXICO AFRICA ASIA-PACIFIC OCEANIA SOUTH AMERICA About Carling Founded in 1920, Carling Technologies is a leading manufacturer of electrical and electronic switches and assemblies, circuit breakers, electronic controls, power distribution units, and multiplexed power distribution systems. With six ISO9001 and IATF16949 registered manufacturing facilities and technical sales offices worldwide, Carling Technologies Sales, Service and Engineering teams do much more than manufacture electrical components, they engineer powerful solutions! To learn more about Carling please visit www.carlingtech.com/company-profile. To view all of Carling’s environmental, quality, health & safety certifications please visit www.carlingtech.com/environmental-certifications. 14. © Carling Technologies, Inc. Carling is a registered trademark of Carling Technologies, Inc. in the U.S. and other countries.
