IN-PI22TAT5R5G5B

IN-PI22TAT5R5G5B

  • 厂商:

    INOLUX

  • 封装:

    -

  • 描述:

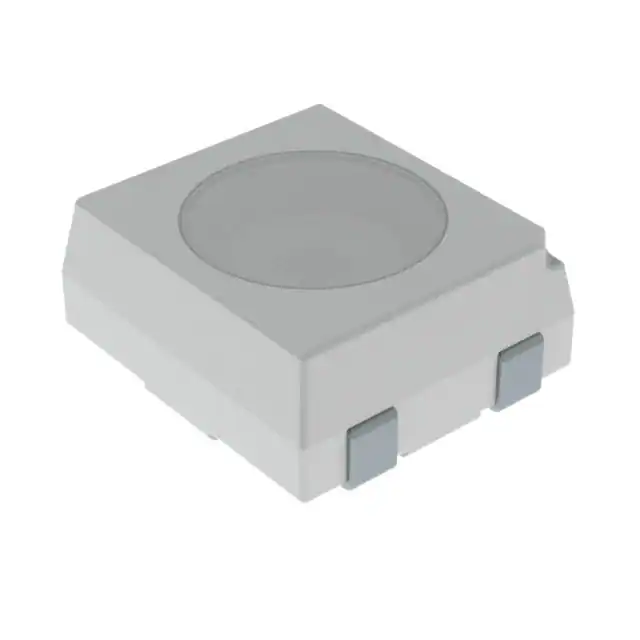

    IN-PI22TAT5R5G5B

  • 数据手册
  • 价格&库存
IN-PI22TAT5R5G5B 数据手册
IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Features • • • • • • • • • • Description 2427 with integrated high quality constant current IC and RGB LED chip. Built-in IC, with high precision of constant current and internal RGB chips spectral processing in advance. Single line data transmission (return to zero code). Specific Shaping Transmit Technology - number of LED stacked is not restricted. Cascading Enhancement Technology - any 2 LED spacing can be up to 10 meters Data transfer rate of 750 kbp/s at 30 frames per second. RGB output port PWM control can achieve 256 grey level adjustments. Upon powering up, IC performs self-inspection then lights connection on the pin B lamp. SA-I Anti-interference patent technology for single line data transmission. Built-in power supply reverse connect protection module, reversed power input will not damage the IC. The IN-PI22TAT5R5G5B is 2.4*2.7*1.1mm RGB LED with integrated IC. It is a SMD type LED which can be used in various applications. Applications • • • • • • • Full color LED string light LED full color module LED guardrail tube LED scene lighting LED point light LED pixel screen LED shaped screen Package Outline Dimensions & Pin Configuration Figure 1. IN-PI22TAT5R5G5B Package Outline Dimensions Inolux Corporation Proprietary & Confidential Page 1 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Pin Configuration Figure 2. IN- PI22TAT5R5G5B Pin Configuration Notes: 1. Dimension in millimeter, tolerance is ±0.1mm unless otherwise noted. Number Symbol Function Description 1 DOUT Control data signal output 2 VSS Ground 3 DIN Control data signal input 4 VDD Power supply LED Soldering Pad Size Pad Size Inolux Corporation Proprietary & Confidential Steel mesh size Page 2 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Absolute Maximum Rating (Ta = 25 ℃, VSS=0V) Parameter Symbol Range Unit Power supply voltage VDD +3.5~+5.5 V Logic input voltage VIN -0.5 ~VDD+0.5 V Working temperature TOPT −45 ~ +85 °C Storage temperature TSTG −50 ~ +150 °C ESD pressure(HBM) VESD 4K V ESD pressure(DM) VESD 200 V LED Characteristics (TA = 25°C) 5mA Color Inolux Corporation Proprietary & Confidential Wavelength(nm) Light Intensity(mcd) Red 620-630 100-200 Green 520-535 400-700 Blue 460-475 50-100 Page 3 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Recommended Operating Ranges (unless otherwise specified, TA=-20 ~ +70 ℃, VDD=4.5 ~ 5.5V,VSS=0V) Parameter Symbol Min. Typ. Max Unit Test conditions VDD - 5.2 - V - VDS, MAX - - 26 V - DOUT drive capability IDOH - 49 - mA DOUT connect ground, the maximum drive current DOUT drive capability IDOL - -50 - mA DOUT connect +, the largest current The signal input flip threshold VIH 3.4 - V VDD=5.0V The signal input flip threshold VIL - - 1.6 V VDD=5.0V FPWM - 1.2 - KHZ - IDD - 1 - mA - Supply voltage R/G/B port pressure The frequency of PWM Static power consumption Inolux Corporation Proprietary & Confidential Page 4 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Switching Characteristics (unless otherwise specified, Ta=25 ℃) Parameter The speed of data transmission Symbol Min. Typ. Max Unit Test conditions fDIN - 800 - KHZ The duty ratio of 67% (data 1) TPLH - - 500 ns DOUT transmission delay DIN→DOUT TPHL - - 500 ns Tr - 100 - ns Tf - 100 - ns IOUT Rise/Drop Time VDS=1.5 VIOUT=13mA Timing Waveforms 1. Input Code Inolux Corporation Proprietary & Confidential Page 5 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC 2. The data transmission time (TH+TL=1.25µs±600ns): Name Description Typ. value error T0H 0 code, high level time 0.3μs ±0.15μs T0L 0 code, low level time 0.9μs ±0.15μs T1H 1 code, high level time 0.9μs ±0.15μs T1L 1 code, low level time 0.3μs ±0.15μs Trst Reset code, low level time 80μs 3. Connection Mode 4. The method of data transmission Note: the D1 sends data for MCU, D2, D3, D4 for data forwarding automatic shaping cascade circuit. 5. 24-bit data format Note: high starting, in order to send data (G7 - G6 - ...... ..B0) Inolux Corporation Proprietary & Confidential Page 6 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Typical Application Circuit Product signal input and output must be connected in series with protection resistor R1. R1 depends on the size of the cascade amount, the greater the number of cascades, the smaller R1. The general recommended value is between 200-2KΩ, usually the recommended value is typical 500Ω. Inolux Corporation Proprietary & Confidential Page 7 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC LED Performance Graph Inolux Corporation Proprietary & Confidential Page 8 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Ordering Information Product Emission Color IV(mcd) R 100-200 G 400-700 B 50-100 IN-PI22TAT5R5G5B Orderable Part Number IN-PI22TAT5R5G5B Label Specifications Inolux P/N: I N PI - Product Inolux 22 T Package Die Qty. PI- Single trace IC A Variation 22TA = 24 x 27 x 1.1 mm PC- Clock Function IC T (X) R (X) G (X) B Orientation Current Color Current Color Current Color T = Top Mount P=12mA 5 = 5mA R = 624 nm P=12mA 5 = 5mA G= 520 nm P=12mA 5 = 5mA B= 470 nm - X X X Customized Stamp-off Lot No.: Z Internal Tracker Inolux Corporation Proprietary & Confidential 2 0 1 7 Year (2017, 2018, …..) Page 9 01 24 001 Month Date Serial July 30, 2019 www.inolux-corp.com X IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC Precautions Please read the following notes before using the product: 1. Storage 1.1 Do not open moisture proof bag before the products are ready to use. 1.2 Before opening the package, the LEDs should be kept at 30℃ or less and 80%RH or less. 1.3 The LEDs should be used within a year. 1.4 After opening the package, the remaining LEDs should be kept in a resealed bag. 1.5 The LEDs require mandatory baking before usage. Baking treatment listed below. 1.6 If the moisture adsorbent material has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. *Baking treatment: 60±5℃ for24 hours. Inolux Corporation Proprietary & Confidential Page 10 July 30, 2019 www.inolux-corp.com IN-PI22TAT5R5G5B 2427 RGB LED 4-Pin with Integrated IC 2. Soldering Condition Recommended soldering conditions: Profile Feature Lead-Free Solder Average Ramp-Up Rate (Ts max to Tp ) 3℃/second max. Preheat: Temperature Min (Ts min) 150℃ Preheat: Temperature Min (Ts max) 200℃ Preheat: Time ( ts min to ts max ) 60-180 seconds Time Maintained Above: Temperature (TL) 217 ℃ Time Maintained Above: Time (t L) 60-150 seconds Peak/Classification Temperature (T P) 240 ℃ Time Within 5℃ of Actual Peak Temperature ( tp)
