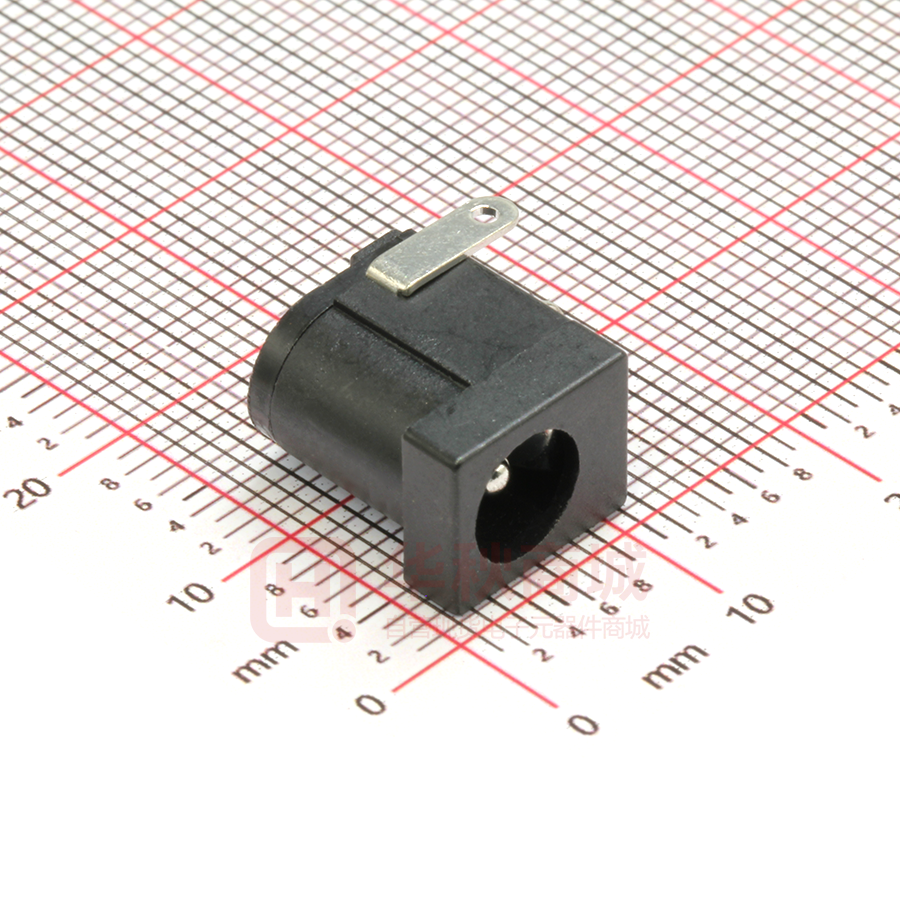

DCJ200-10-A-K1-K

H Specifications 规格 3.6 Electrical 电气规格 Voltage rating 电压额定值: 20 V DC Current Rating 电流额定值: 5 Amp Insulation Resistance 绝缘电阻值: 100 MΩ min. Dielectric Withstanding 耐电压: 500 V AC Contact Resistance 接触电阻值: 30 mΩ max. 4.8 1 G 2x1 1 7.4 2 E Housing PBT, UL94 V-0 1 2 Cover PBT, UL94 V-0, Black 1 1 3 Centre Pin 1 Brass, Cu-Sn/Nickel plating 1 +0 -0.05 4 Centre Pin Terminal 1 1 5 Tip Spring 2 Phosphor Bronze, T=0.30mm, Silver plating 1 6 Shunt Terminal 3 Brass, T=0.50mm, Silver plating 1 2 3 5 Mating Plug (Reference) Ø5 Ø2 .5 .0 A K K1 Circuit Diagram A = 2 Conductors/3 Contacts Insulator Colour K1 = Black (Standard) W1 = White (0100) B1 = Blue (0037) G1 = Grey (0292) G2 = Grey (0228) V1 = Green (0247) V2 = Green (0116) Y1 = Yellow (0039) 13.7 B 10 DCJ200 2.5±0.1 10.8 4.8 Brass, T=0.50mm, Silver plating Ordering Grid 4 7.4 2.5±0.1 3±0.1 Q'ty Material 1 Ø2.00 6.5±0.2 11 C Component Outline 0.2 .3± 6 Ø 6 Description No. (Tolerance:±0.05mm) 3.5 D Mechanical & Environmental 机械 & 环境 Operating Temperature 工作温度: -20°C to +70°C Durability 耐久性: 5,000 cycles min. Recommended PCB Layout 9 3.3±0.2 2x3.2 13.7 14.3 10.8 3 F 5 Request Samples and Quotation Packing K = Bag (500 per bag) Circuit Diagram 1 3 2 A Part Number Product Description DCJ200-10 DC Power Jack, Thru-Hole, Horizontal, w/Locating Pegs Ø2.00mm Pin mates with Ø2.05mm Plug Drawing Date 11th December 2015 By # Terminal Number Detail 1 2 3 4 Revision Date 5 AJO Drawing Release A 11/12/15 Tolerances (Except as Noted) Length Angle ± 0.3 ± 2° Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By AJO 8 Sheet No. 1/2 H Part Number Pcs/Bag Bags/Carton Cartons/Box Pcs/Carton DCJ200-10 500 4 4 8000 G 1 Carton =500pcs x 4 Bags =2000pcs 190 150 220 F 1 PE Bag = 500pcs 2 C a 0 16 E ns r to 235 PE Bag D 330 1 Box =2000pcs x 4 Cartons =8000pcs 2 Cartons C 340 255 B Part Number Product Description DCJ200-10 DC Power Jack, Thru-Hole, Horizontal, w/Locating Pegs Ø2.00mm Pin mates with Ø2.05mm Plug Drawing Date A 11th December 2015 By Detail 1 2 3 4 Revision Date 5 AJO Drawing Release A 11/12/15 Tolerances (Except as Noted) Length Angle ± 0.3 ± 2° Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By AJO 8 Sheet No. 2/2
