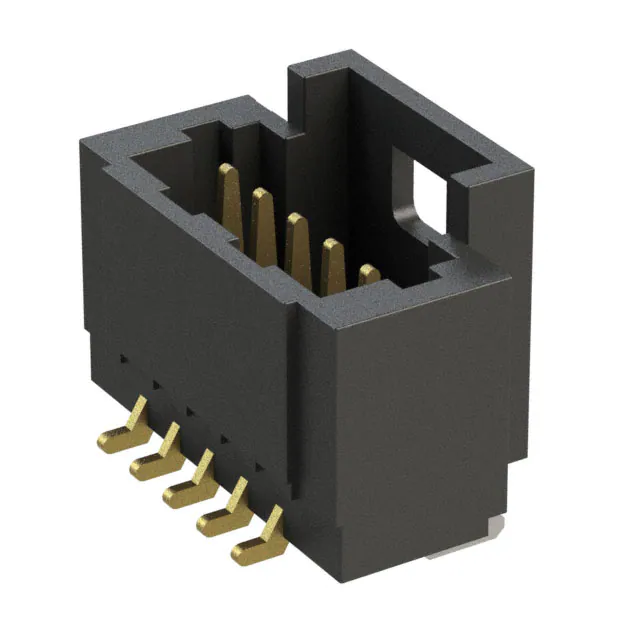

T1M-05-F-SV-L

TM MICRO (1.00 mm) .0394" PITCH • DISCRETE WIRE TERMINAL STRIP SERIES - T1M NO. OF POSITIONS - –02, –03, –05, –07, –10, –15, –20 PLATING OPTION - –F = 3 µ" (0.07 µm) Gold on contact, Matte Tin on tail - ROW OPTION - LATCH –SH (Required in callout) –SV = Positive Latch = Single Row Horizontal “X”R –K (Leave blank for Tape & Reel) –P = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) = (4.00 mm) .157" DIA Polyimide Film Pick & Place Pad (–SH only) –L = Single Row Vertical - OPTIONS –FR = Pick & Place Pad (–SV only) No. of positions x (1.00) .0394 + (2.40) .094 T1M-SH/SV (5.20) .205 Cable Mates: S1SS(T), S1SD(T) (4.25) .167 No. of positions x (1.00) .0394 + (2.40) .094 (5.50) .217 (4.60) .181 (4.45) .175 (5.10) .201 –SH (3.90) .154 –SV View complete specifications at: samtec.com?T1M SERIES - T1M NO. OF POSITIONS –02, –03, –04, –05, –10, –15, –20 - PLATING OPTION - ROW OPTION –GF –DH = 3 µ" (0.07 µm) Gold contact and tail = Double Row Horizontal –DV (Per Row) T1M-DH/DV Cable Mates: S1SS(T), S1SD(T) = Double Row Vertical - OPTION - “X”R –K (Leave blank for Tape & Reel) = (4.00 mm) .157" DIA Polyimide Film Pick & Place Pad (–DV only) No. of positions x (1.00) .03937 + (9.00) .354 –FR = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) No. of positions x (1.00) .03937 + (7.10) .280 (7.55) .297 (6.25) .246 (3.95) .156 (6.80) .268 (6.70) (3.95) .264 .156 No. of positions x (1.00) .03937 + (7.85) .309 Note: Some lengths, styles and options are non-standard, non-returnable. –DV –DH View complete specifications at: samtec.com?T1M samtec.com/MicroMate Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. F-221
