MEM2075-00-140-01-A

MEM2075-00-140-01-A

  • 厂商:

    GCT

  • 封装:

    CONN_15.05X14.75MM_SM

  • 描述:

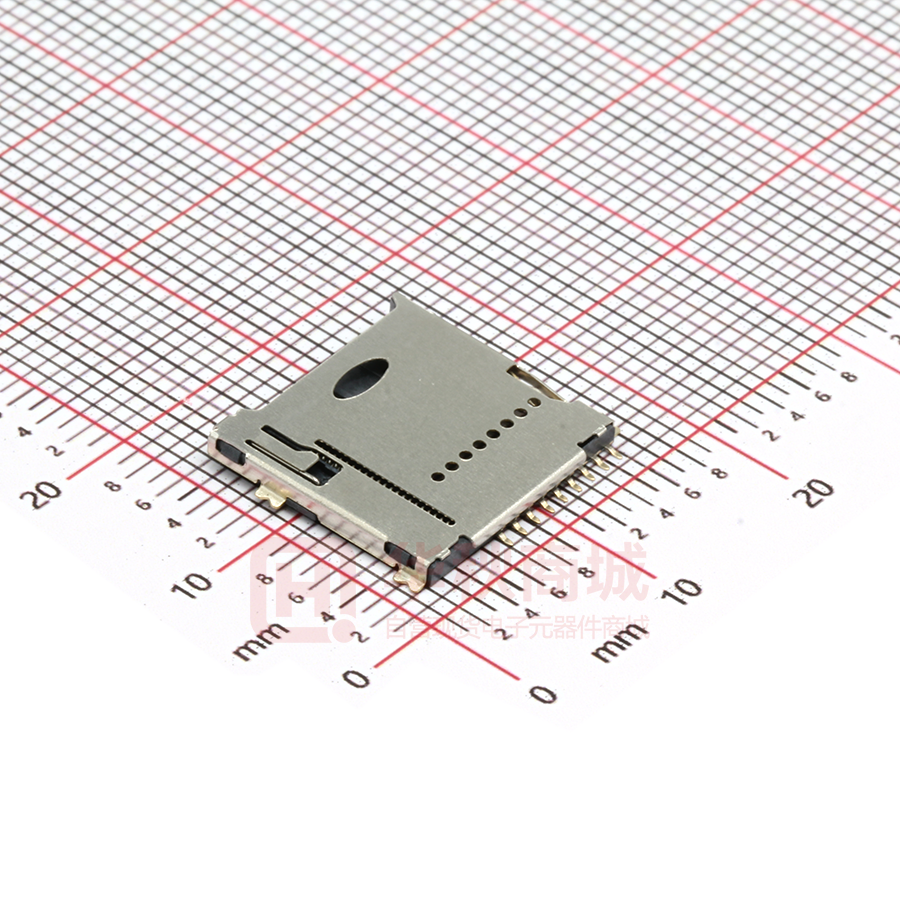

    9(8 + 1) 针位卡连接器 安全数字式 - microSD™ 表面贴装,直角 镀金 30V 0.5A

  • 数据手册
  • 价格&库存
MEM2075-00-140-01-A 数据手册
16.44 15.20 15.05 8.80 2.20 2.20 1.10 8x 1.10 1.38 8.80 1.10 0.32 Pin 8 Card Detect 6.12 P8 Card Detect 1.40±0.05 Pin 1 9x 0.62 P5 P4 2.00 G P7 P6 5.97 P3 P2 P1 4x 2.40 0.08 9x 1.40 H 0.81 10.20 0.42 2.82 Ø0 3.98 1.93 5.6 2.5 1.4 4.00 4.19 7.85 Ground 0.25 Micro SD Card -Lock 0.20 mm Space required 1.27 0.37 As viewed from component side Solder Area D 0.60 0.90 16.44 15.05 4.40 C Pin Name Type Description P1 DAT2 I/O/PP Data Line [Bit 2] P2 CD/DAT3 I/O/PP Card Detect/Data Line [Bit 3] P3 CMD PP Command/Response P4 VDD S Supply Voltage P5 CLK I Clock P6 Vss S Supply Voltage Ground P7 DAT0 I/O/PP Data Line [Bit 0] P8 DAT1 I/O/PP Data Line [Bit 1] General Tolerance: ±0.05 Keep Out Area Micro SD Card Pin Assignment 6.80 Component Outline Card Detect Switch Circuit Card Detect Without Card (Normally Open) Mechanical & Environmental Operating Temperature: -25°C to +85°C Durability: 5000 Cycles Lock/Release Force: 10N (1.02 kgF) max 00 15.00 140 A Request Samples and Quotation Packing Options A = Tape & Reel (1000 per Reel) Locating Post 01 = With Product Description MEM2075 Micro SD Memory Card Connector,1.40mm Profile SMT, Push-Push, with Normally open Switch Drawing Date 19th December 2017 Detail 11.00 4 01 Part Number By 3 Card Inserted Ordering Grid 1.53 2 Electrical Voltage Rating: 30V AC/DC Current Rating: 0.5A per pin. Contact Resistance: 100mΩ max. Insulating Resistance: 1000MΩ min. Dielectric Withstand Voltage: 500 V AC Ground Switch 00 = Normally Open Micro SD Card 1 Card Detect Ground MEM2075 B A Plating Contact Terminal&CD Pin: Under-plating: 50µ" min. Nickel all over Contact Area: 1u" Au min Soldering Area: Gold Flash Metallic Shell: Under-plating: 50µ" Nickel all over Soldering Area: Gold Flash Recommended PCB Layout ref. 0.45 Ø0.75 Ground 4x 1.10 4.60 6.80 16.15 Micro SD Card -Un Lock Material Housing: Hi-temp Thermoplastic,UL94V-0,Black Contact Terminal: Copper Alloy Metallic Shell: Stainless Steel Coil Spring: SWP Latch: Stainless Steel Slider: Hi-temp Thermoplastic,UL94V-0,Black CD Pin: Copper Alloy .95 Micro SD Card -Push E Specifications 9.00 14.75 14.50 2.90 F Ground 4.05 9.00 11.60 Ground Revision Date 5 CC Drawing Release A1 10/09/20 Tolerances (Except as Noted) Length Angle X.X ±0.25 X.XX ±0.15 X.XXX ±0.100 ±1° Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 1/2 24±0.3 H 2 Pull out direction Ø330 Ø100 G Pcs/Reel F Reels/Carton Pcs/Carton 1000 10 10000 Carton Dimensions 345 x 345 x 315mm E D .50 ±0 .0 20.00±0.10 2.00±0.10 5 0.30 24.00±0.20 C 12.00±0.10 4.00±0.10 Ø1 1.75±0.10 Quantity:1000 pcs/Reel B Note: All dimensions meet EIA-481-B requirements. Part Number Product Description MEM2075 Micro SD Memory Card Connector,1.40mm Profile SMT, Push-Push, with Normally open Switch Drawing Date A 19th December 2017 By Detail Revision Date 1 2 3 4 5 CC Drawing Release A1 10/09/20 Tolerances (Except as Noted) Length X.X ±0.38 X.XX ±0.25 X.XXX ±0.100 Angle Units: Metric (mm) ±1° C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 2/2
