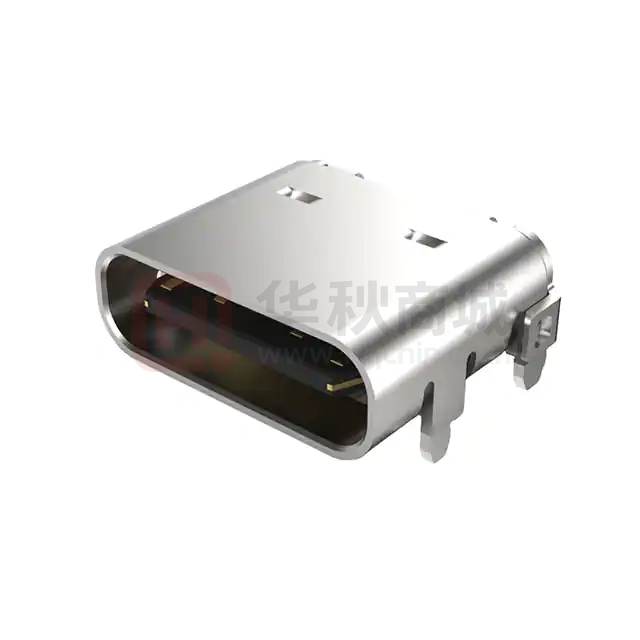

USB4105-GF-A

H 4x 0.60 8x 0.30 B8 A5 B7 A6 A7 B6 A8 B5 B4 A9 2x 2.60 2x 3.68 12x 4.18 G 2x Ø0.65 GCT 7.35 Pin Signal Mating Sequence Pin Signal Mating Sequence First A1 GND First B12 GND A4 VBUS First B9 VBUS First A5 CC1 Second B8 SBU2 Second A6 Dp1 Second B7 Dn2 Second A7 Dn1 Second B6 Dp2 Second A8 SBU1 Second B5 CC2 Second A9 VBUS First B4 VBUS First A12 GND First B1 GND B1 A12 2x 2.10 2x 1.70 A1 B12 A4 B9 12x 1.15 8.64 6.40 4.80 3.50 0.50 F 8.94 2x 1.40 2x 1.80 SHELL 4x 0.60 4x 1.00 5.78 PCB Edge Solder Area 8.34+0.06 -0.02 0.10 B1 4.18 C 5.00A collectively for VBUS pins 6.25A collectively for GND pins 1.25A for B5 pin 0.25A per pin for all other pins Voltage Rating: 20V DC Contact Resistance: 40mΩ max initial. 50mΩ max after test Dielectric Withstanding Voltage: 100V AC Insulation Resistance 100MΩ min 1.85 Min Plug 1.30 2.60 3.68 Electrical Current Rating: 1.10 6.5 Max. 0.80 S±0.15 5.78 8.64 2x Ø0.50 0.38 B Plating Contact: See Ordering Grid Solder Tails: Gold Flash Over Nickel Shell: Nickel 0.60 3.31 B12 (0.95mm stake shown) D Component Outline A12 2.56±0.04 A1 Mechanical & Environmental Operating Temperature: -40°C to +85°C Mating Force: 5 to 20 N. Unmated Force: 6 to 20 N after test Durability: 10,000 cycles Plug and Receptacle Mating View Ordering Grid A1 B12 A4 B9 B8 A5 B7 A6 A7 B6 A8 B5 B4 A9 B1 A12 16x 0.20 4x 0.45 2x 0.25 2x 0.75 2x 1.25 2x 1.75 2x 2.40 A USB4105 XX A XXX Contact Plating GF = Gold Flash (standard) 15 = 15µ" Gold Request Samples and Quotation Shell Stake Length "S" Blank = 0.95mm 060 = 0.60mm 120 = 1.20mm Packing Options A = Tape & Reel Part Number Product Description USB4105 USB Type C Receptacle for USB 2.0 SMT Type, PCB Top Mount Drawing Date 4th October 2019 By Detail 6.40 1 2 3 4 GND Material Insulator: LCP, UL 94V-0, Black Contact: Copper Alloy Shell: Stainless steel Mid Plate:Stainless Steel Tolerance:±0.05mm 1.73 E First SHELL Specifications Recommended PCB Layout As viewed from component side GND Revision Date 5 CC USB4105 B PCN B 29/04/21 Tolerances (Except as Noted) Length Angle X. ± 0.38 X.X ± 0.30 X.XX ± 0.15 X.XXX ± 0.10 X.±2° X.X±1° 6 Units: Metric (mm) C 3rd Angle Projection 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 1/2 H Unloaded Section 800 PCS Folder Paper Board Unloaded Section (20 Pockets) (20 Pockets) Paper Board G Direction of Unreeling Peeling Angle F 165°~180° Vacuum Bag Reel and Tape Ø330 E Carton Ø1 D 3 Label 320 W+0.5 Paper Board C 34 0 16.00 B Direction of Unreeling 1.75 24.0 4.00 2.00 Pcs / Reel 800 Product Description USB Type C Receptacle for USB 2.0 SMT Type, PCB Top Mount By Detail Revision Date 3 4 Total Quantity 8000 pcs USB4105 4th October 2019 2 Reels / Carton 10 Part Number Drawing Date A 1 0 34 5 CC USB4105 B PCN B 29/04/21 Tolerances (Except as Noted) Length Angle Units: Metric (mm) - - C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 2/2
