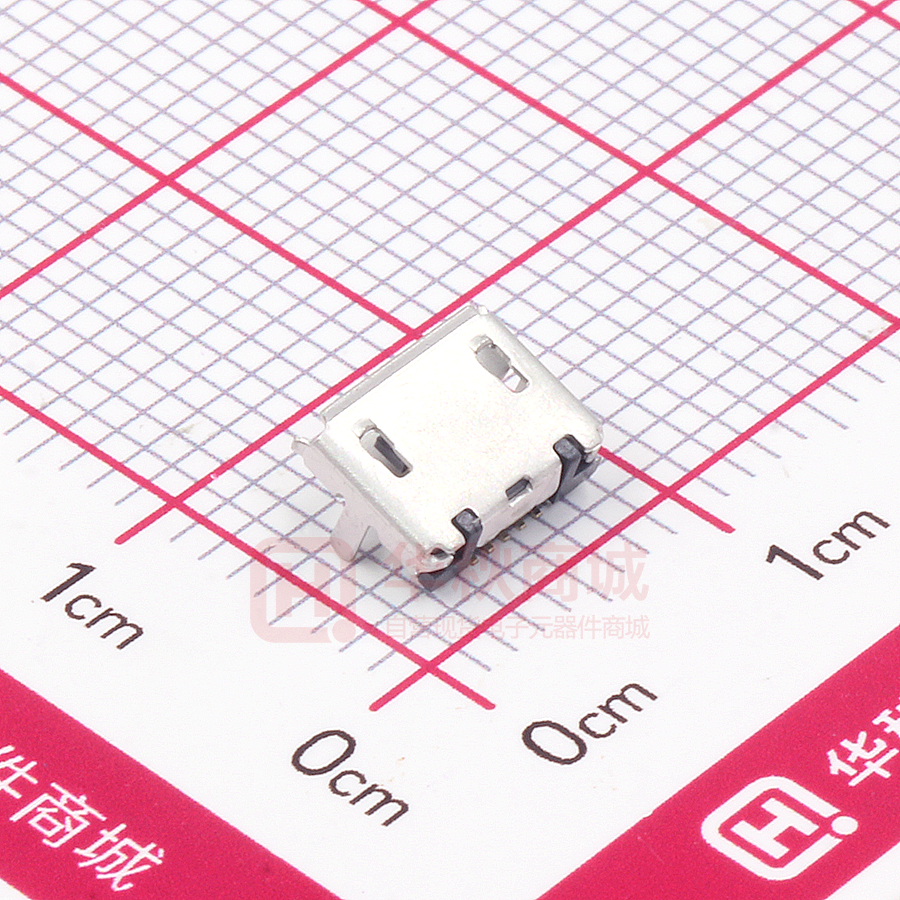

USB3075-30-A

7.15 H PCB Mount Orientation Designed to comply with physical, electrical and environmental requirements of Micro USB Standard (USB2.0). G 2.6 Pin 1 0.65 7.4 1.45 4.75 0.4 1.15 PCB Edge Specifications 规格 Materials 材料 Plastic Housing 塑胶外壳: LCP, UL94V-0, Black Contact Terminal 接触端子: Copper Alloy Metallic Shell 金属外壳: Stainless Steel, SUS304, T= 0.25mm Plating电镀 Underplating 底层电镀: 50µ" Nickel Contact Area 接触面积: 30µ" Gold Solder Tails 焊接末端: Gold Flash Metallic Shell 金属外壳: Matte Tin 1.45 0.8 1.9 4.69 5.55 0.59 2.23 F 3.35 1.4 0.25 Pin 5 1.02 0.5 E 0.45 4 6.20 1.05 7.15 7.8 REF. Recommended PCB Layout As viewed from component side Solder Area General Tolerance: ±0.05 Component Outline 0.31 Electrical 电气规格 Voltage Rating电压额定值: 30 V AC Current Rating电流额定值: Signal(Pins 2,3,4)信号:1.0 A. Power (Pins1,5)电源:1.8A. Operating Temperature 工作温度: -30°C to +85°C Contact Resistance接触电阻值: 30 mΩ max. Insulating Resistance绝缘电阻值: 1000 MΩ min. Dielectric Withstand Voltage耐电压: 500V AC/minute 1 2.7 1.85 2.35 6.9 D C Pin 1 Pin 5 0.90 2.80 2.15 Mechanical & Environmental 机械 & 环境 Mating Force插入力: 35N max. Unmating Force拨出力: Initial 10N min. Final 8N min after durability test. Durability耐久性: 10,000 Cycles 次插拨 0.48 B 0.77 Ordering Grid USB3075 30 A Request Samples and Quotation Packing Options A = Tape & Reel Contact Plating 30 = 30u" Gold (1.5K per Reel) 1.30 Product Description USB3075 Micro USB Receptacle, Type B, SMT, Horizontal, Bottom Mount (Standard), without Peg, with Outer Shell Stakes Drawing Date 0.02 2.6 A Part Number 4th February 2011 By Detail 1 2 3 4 Revision Date 5 CC USB3075 D PCN D3 14/02/17 Tolerances (Except as Noted) Length Angle X.X ± 0.2 X.XX ± 0.10 X.XXX ± 0.05 X.X° ± 2° X.XX° ± 1° X.XXX° ± 0.5° 6 Units: Metric (mm) C 3rd Angle Projection 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By SA 8 Sheet No. 1/2 H FIRST APPROXIMATELY 15PCS EMPTY CARRIER 4.0 FIRST APPROXIMATELY 15PCS EMPTY CARRIER 12.0 16.0 4.0 G PCS/Reel Reels/Carton PCS/Carton Products P/N I/O Direction 卷盘绕逆时针方向转动 F USB3075 10° Cover Tape 盖带 4 6000 Carrier Tape 载带 Notes注意: 1. Peeling off force of top tape: 0.1-1.3N 2. Part Conforms to EIA-481-C Standards产品符合EIA-481-C标准 3. All dimensions in millimeters 所有尺寸均是毫米 4. 10 sprocket hole pitch cumulative tolerance±0.2mm ° 120 Ø2 3 ø330 1500 Peel off Angle 剥离角度 Ø13.5 E 120° Detail F 6 PS D Cardboard 纸板 Detail F Reel 卷筒 Waterproof bag 防水袋 Label 标签 Carton 纸箱 Triangle Liner 三角形班轮 Protection Tape 保护胶带 160mm C 4 Reels 4 卷轴 1500 pieces/reel 1500 件/卷 35 0m m 700x600x0.08 B Part Number Product Description USB3075 Micro USB Receptacle, Type B, SMT, Horizontal, Bottom Mount (Standard), without Peg, with Outer Shell Stakes Drawing Date A 4th February 2011 By Detail 1 2 3 4 m 0m 35 Revision Date 5 CC USB3075 D PCN D3 14/02/17 Tolerances (Except as Noted) Length Angle Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By SA 8 Sheet No. 2/2
