EPIC® HA series
Compact screw-terminated inserts for medium power & control applications
Similar to the HBE series inserts but more compact, EPIC® HA series inserts are
used whenever space is limited. EPIC® HA 3/4 inserts and housings provide the
smallest possible footprint in a 10A power connector. HA 10 - 48 inserts are unique
because of their shortened ground straps, which still allow for a wire cross-section
up to 2.5 mm². HA 3 - 48 screw-terminated inserts fit into EPIC® HA series housings.
A modified EPIC® HB 48 housing can fit 64 contacts.
Technical data
Number of contacts: 3, 4, 10, 16, 32, 48, 64 (+PE)
Temperature range: -40°C to +100°C
- short-term: up to +125°C
Pollution level: 3
Dimensioning transient: 4 kV
Rated current:
- UL:
- EPIC® HA 3/4:
- EPIC® HA 10 - 64:
- CSA:
- EPIC® HA 3/4:
- EPIC® HA 10 - 64:
- IEC:
- EPIC® HA 3/4:
- EPIC® HA 10 -64:
- SEV:
10A
14A
10A
16A
23A
16A
Mating cycles: - per DIN EN 61984:2008
16A
Service Life Test: Tested to 100
cycles and passed
Wire size:
- per Contact Thermal Test: Useful
service up to 500 cycles is possible - EPIC® HA 3/4:
- solid or stranded wire
at rated voltage and current*
with ferrule: 20 - 14 AWG (0.5 - 2.5 mm²)**
- EPIC® HA 10 - 64:
Test voltage: 4 kV
- solid or stranded wire
with ferrule: 20 - 14 AWG (0.5 - 2.5 mm²)**
Rated voltage:
f
or stranded wire
600V
- UL:
without ferrule: 18 - 14 AWG (0.75 - 2.5 mm²)
- CSA: 600V
(requires insert with wire protection)
- IEC:
®
- EPIC HA 3/4: 400V
Contact material: silver-plated copper alloy
- EPIC® HA 10 - 64: 250V
- SEV: 250V
Contact resistance: 1.5 - 4 mΩ
* In dry, non-conductive, non-corrosive environments when protected in a housing rated at least IP54 and disconnected for cycling and maintenance only.
** May be limited, depending on the ferrule crimp profile.
EPIC® HA derating curves
16 AWG (1.5 mm²)
300
14 AWG (2.5 mm²)
for current information see: www.lappusa.com • www.lappcanada.com
EPIC®
UNCONTROLLED COPY
HA series
Rectangular connector inserts
EPIC® HA 3
screw termination: 600V, 10A
all dimensions are in mm
Termination
Plug
Receptacle
screw termination
10420000
10421000
Complete the installation
view from cable side
Compatible housing
Coding pin:
10451400
Approvals
HA 3/4
page 413
EPIC® HA 4
screw termination: 600V, 10A
all dimensions are in mm
Termination
Plug
Receptacle

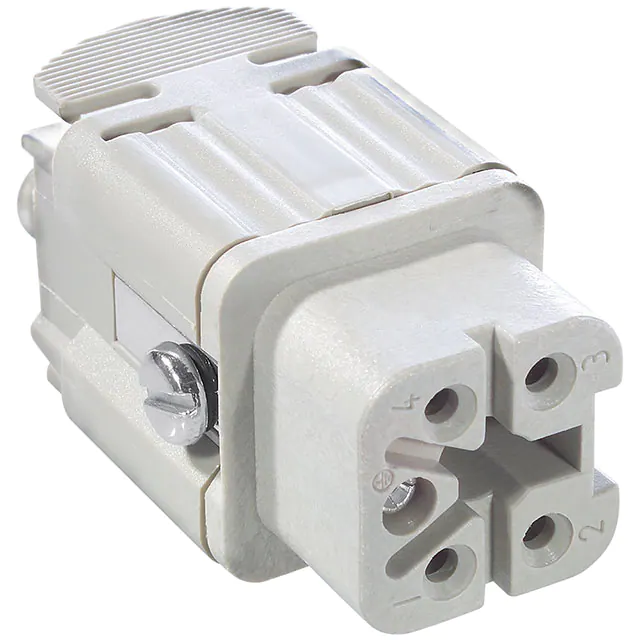

screw termination
10431000
10432000
Complete the installation
view from cable side
Compatible housing
Coding pin:
10451400
Approvals
HA 3/4
page 413
EPIC® HA 10
screw termination: 600V, 14A
all dimensions are in mm
Termination
Wire
protection
Plug
Receptacle
screw termination
screw termination
yes
no
10440100
10440000
10441100
10441000
view from cable side
Compatible housing
Approvals
HA 10
page 415
If not otherwise specified, all values relating to the product are nominal values.
Photographs are not to scale and are not true representations of the products in question.
for current information see: www.lappusa.com • www.lappcanada.com
301
EPIC®
UNCONTROLLED COPY
Rectangular connector inserts
HA series
EPIC® HA 16
screw termination: 600V, 14A
all dimensions are in mm
Termination
Wire
protection
Plug
Receptacle
screw termination
screw termination
yes
no
10530000
10532000
10531000
10533000
view from cable side
Compatible housing
Approvals
HA 16
page 417
EPIC® HA 32
screw termination: 600V, 14A
all dimensions are in mm
Termination
Wire
protection
screw termination
yes
screw termination
no
Contact
numbering
Plug
Receptacle
#1 - 16
#17 - 32
#1 - 16
#17 - 32
10530000
10540000
10532000
10542000
10531000
10541000
10533000
10543000
view from cable side
Compatible housing
Approvals
HA 32
page 419
If not otherwise specified, all values relating to the product are nominal values.
Photographs are not to scale and are not true representations of the products in question.
302
for current information see: www.lappusa.com • www.lappcanada.com
EPIC®
UNCONTROLLED COPY
HA series
Rectangular connector inserts
EPIC® HA 48
screw termination: 600V, 14A
all dimensions are in mm
Termination
Wire
protection
screw termination
yes
screw termination
no
Contact
numbering
Plug
Receptacle
#1 - 16
#17 - 32
#33 - 48
#1 - 16
#17 - 32
#33 - 48
10530000
10540000
10540100
10532000
10542000
10542100
10531000
10541000
10541100
10533000
10543000
10543100
Compatible housing
view from cable side
Approvals
HA 48
page 421
EPIC® HA 64
screw termination: 600V, 14A
all dimensions are in mm
Termination
Wire
protection
Contact
numbering
Plug
Receptacle
screw termination
yes
#1 - 16
#17 - 32
#33 - 48
#49 - 64
10530000
10540000
10540100
105300LE64
10531000
10541000
10541100
105310LE64
Compatible housing
view from cable side
Approvals
HA 64
page 422
If not otherwise specified, all values relating to the product are nominal values.
Photographs are not to scale and are not true representations of the products in question.
for current information see: www.lappusa.com • www.lappcanada.com
303
