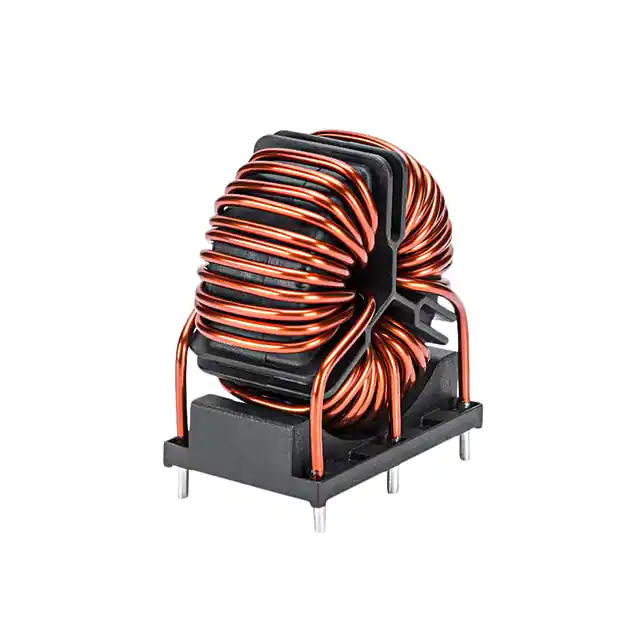

DATA SHEET Common Mode Chokes RT series Current-compensated Chokes Rated currents from 6 to 20 A Approvals & Compliances Up to 600 VAC and VDC 2- and 3-wire configurations Horizontal and vertical PCB mounting types Ruggedized saturation and thermal behavior Open construction for forced and convection cooling Straightforward pin-out for easy PCB design Performance indicators RT common-mode chokes are mainly used to filter EMI noise on AC power lines up to 600 VAC. EMI noise of electronic equipment can go to the power lines and disturb the proper function of other devices like communication devices or control logic of robotics. Thus noise generated by the equipment from switched power electronics or by high slew rates of controllers needs to be filtered. RT common-mode chokes are used to suppress EMI noise in PCB integrated filter designs with line bypass capacitors or in combination with single phase filters for extra low leakage filter designs. Features and Benefits Cost-effective PCB designs for up to 32 A with forced cooling * Compact size and light weight Low magnetic leakage flux Excellent winding insulation Standardized foot print Broad range of inductance ratings Custom-specific versions on request Typical Applications Technical Specifications AC and DC filtering for midsize power range drives, photovoltaic inverters, fast chargers, charging stations, UPS and switch mode power supplies Maximum continuous operating voltage 600 VAC (3-line) and 300 VAC/425 VDC (2-line) Operating frequency dc to 400 Hz High potential test voltage winding-towinding @ 25°C 2500 VAC, 60 sec, guaranteed, 2 sec factory test Temperature range (operation and storage) Filter with low leakage current noise or improved immunity against grid disturbances -40°C to +100°C (40/100/56) Flammability corresponding to UL 94 V-0 Electronic devices, automation and (industrial) LED lighting Cooling convection/forced cooling Communication devices MTBF @ 40°C/230 V (Mil-HB-217F) >5,000,000 hours Medical and laboratory Equipment Rated currents 6 to 20 A Converters Typical electrical schematic 2 Common Mode Chokes Schaffner Group DATA SHEET 15. Jun 2022 RT Series Selection table Buy convection *forced cooling Inductance **typ. Inductance Resistance Choke ***Ø Pin cooling nominal 3 m/s nominal Ln @ 25˚C Ls @ 25˚C R @ 25˚C current @ 60˚C current @ 60˚C 100kHz 100kHz [A] [A] [mH/path] [μH/path] Weight [mΩ/path] [size] ØP [mm] [g] ±0.1 RT8122-6-10M0 6 9.5 10 30 33 1 1.1 80 RT8122-8-8M0 8 12.5 8 24.8 21 1 1.3 80 RT8122-10-6M0 10 16 6 19.2 16 1 1.4 80 RT8122-12-5M0 12 19 5 20.5 14 2 1.5 100 RT8122-16-4M0 16 27 4 17.6 10 2 1.8 110 RT8122-20-3M0 20 32 3 13.5 7 3 2 160 RT8522-6-10M0 6 9.5 10 31.5 33 4 1.1 70 RT8522-8-8M0 8 12.5 8 24 21 4 1.3 80 RT8522-10-6M0 10 16 6 19.2 16 4 1.4 80 RT8522-12-5M0 12 19 5 23 14 5 1.5 90 RT8522-16-4M0 16 27 4 18.8 10 5 1.8 110 RT8522-20-3M0 20 32 3 13.5 7 6 2.0 150 RT8132-6-6M0 6 9.5 6 18 27 7 1.1 80 RT8132-8-4M8 8 12.5 4.8 14.9 17 7 1.3 90 RT8132-10-4M0 10 16 4 16 15 8 1.5 110 RT8132-12-3M6 12 19 3.6 14.4 12 8 1.6 120 RT8132-16-3M0 16 27 3 12 8 9 1.8 170 RT8132-20-2M5 20 32 2.5 10 7 9 2.1 190 RT8532-6-6M0 6 9.5 6 18 27 10 1.1 90 RT8532-8-4M8 8 12.5 4.8 13.9 17 10 1.3 90 RT8532-10-4M0 10 16 4 16 15 11 1.5 110 RT8532-12-3M6 12 19 3.6 15.1 12 11 1.6 120 RT8532-16-3M0 16 27 3 13.8 8 12 1.8 160 RT8532-20-2M5 20 32 2.5 10.8 7 12 2.1 190 Test conditions: Inductance tolerance: +50%, –30%; Resistance tolerance: +15% @ 25°C; Electrical characteristics @ 25°C: ±2°C * typical current for forced cooling with 3 m/s. Due to the possible turbulences and degradation of the air stream within an equipment please consider thermal validation. ** typical stray inductance, max is 0.1% of Ln *** Length of pin (Dimension P) is always 5.5 mm ± 1 Product selector Examples: RT8532-16-3M0: Vertical 3-line choke for 16 A, with 3 mH ; RT8122-20-3M0: Horizontal 2-line choke for 20 A, with 3 mH 3 Common Mode Chokes Schaffner Group Distribution Inventory Up-to-date inventory levels for global distributors is available at https://products.schaffner.com/stock Typical Choke Attenuation/Resonance Frequency Characteristics Per CISPR 17; 50 Ω/50 Ω asym RT 8122 RT 8132 RT 8522 RT 8532 DATA SHEET 15. Jun 2022 4 Common Mode Chokes Schaffner Group DATA SHEET 15. Jun 2022 Mechanical Data: Horizontal Chokes (2-line And 3-line) All dimensions in mm; 1 inch = 25.4 mm Tolerances according: ISO 2768-m/EN 22768-m Horizontal 2-line chokes (Size 1-3) Horizontal 3-line chokes (Size 7-9) Dimensions A B ØD (max) H (max) ØD1 ØD2 ØD3 ØE (±0.5) (±0.5) Size1 (RT8122-6-10M0, RT8122-8-8M0, RT8122-10-6M0) 21 25 45 34 42 1.5 2.5 36 SIze2 (RT8122-12-5M0, RT8122-16-4M0) 26 30 51 33 48 1.9 2.5 40 Size3 (RT8122-20-3M0) 32 36 57 37 54 2.1 2.5 43 ØD (max) H (max) ØD1 ØD2 ØA (±0.5) (±0.5) (±0.5) Size 7 (RT8132-6-6M0, RT8132-8-4M8) 38 - 46 34 43 1.4 2.5 35 Size 8 (RT8132-10-4M0,RT8132-12-3M6) 44 - 51 33 48 1.7 2.5 40 Size 9 (RT8132-16-3M0, RT8132-20-2M5) 49 - 57 37 54 2.3 2.5 44 Pin material: Copper (base), Sn (final plating typical thickness 0.15 mm; composition: Sn-1.2AG-4Cu or SN-3Cu-0.25Ni) Please visit www.schaffner.com to find more details on filter connections. 5 Common Mode Chokes Schaffner Group DATA SHEET 15. Jun 2022 Mechanical Data: Vertical Chokes (2-line And 3-line) All dimensions in mm; 1 inch = 25.4 mm Tolerances according: ISO 2768-m/EN 22768-m Vertical 2-line chokes (Size 4-6) Vertical 3-line chokes (Size 10-12) Dimensions A A1 B L W H L1 L2 L3 W1 W2 ØD2 ØD3 X Y (±0.5) (±0.5) (±0.5) (max) (max) (max) (±0.5) (±0.5) Size 4 (RT8522-6-10M0, RT8522-8-8M0, RT 8522-10-6M0) 16 - 20 43 32 44 32 26 - 27.8 22 1.5 2.5 3 2.9 SIze 5 (RT8522-12-5M0, RT8522-16-4M0) 16 - 22 50 32 52 39 33 - 27 23 1.9 2.5 3 2 Size 6 (RT8522-20-3M0) 16 - 22 56 32 57 42 35 - 31.2 25 2.1 2.5 3.5 3.1 Size 10 (RT8532-6-6M0, RT8532-8-4M8) 36 18 24 44 32 47 41 27 9 29 - 1.4 1.4 2.5 2.5 Size 11 (RT8532-10-4M0,RT8532-12-3M6) 38 19 24 49 34 53 46 28.5 9.5 31 - 1.7 1.7 4 Size 12 (RT8532-16-3M0, RT8532-20-2M5) 46 23 29 56 37 60 53 34.5 11.5 34 - 2.2 2.2 3.5 2.5 Pin material: Copper (base), Sn (final plating typical thickness 0.15 mm; composition: Sn-1.2AG-4Cu or SN-3Cu-0.25Ni) Please visit www.schaffner.com to find more details on filter connections. (±0.5) (±0.5) 3.5 6 Common Mode Chokes Headquarters, Global Innovation and Development Switzerland Schaffner Holding AG Industrie Nord Nordstrasse 11e 4542 Luterbach +41 32 681 66 26 info@schaffner.com Schaffner Group China Schaffner EMC Ltd. Shanghai T20-3 C, No 565 Chuangye Road,Pudong district 201201 Shanghai +86 2138139500 cschina@schaffner.com Spain Schaffner EMC España Calle Caléndula 93, Miniparc III, Edificio E El Soto de Moraleja, Alcobendas 28109 Madrid +34 917 912 900 spainsales@schaffner.com Finland Schaffner Oy Sauvonrinne 19 H 8500 Lohja +358 50 468 7284 finlandsales@schaffner.com Sweden Schaffner EMC AB Östermalmstrorg 1 114 42 Stockholm +46 8 5050 2425 swedensales@schaffner.com France Schaffner EMC S.A.S. 16-20 Rue Louis Rameau 95875 Bezons +33 1 34 34 30 60 francesales@schaffner.com Switzerland Schaffner EMV AG Industrie Nord Nordstrasse 11e 4542 Luterbach +41 32 681 66 26 switzerlandsales@schaffner.com India Schaffner India Pvt. Ltd Regus World Trade Centre WTC, 22nd Floor Unit No 2238, Brigade Gateway Campus, 26/1, Dr. Rajkumar Road Malleshwaram (W) 560055 Bangalore +91 8067935355 indiasales@schaffner.com © 2022 Schaffner Group The content of this document has been carefully checked and understood. However, neither Schaffner nor its subsidiaries assume any liability whatsoever for any errors or inaccuracies of this document and the consequences thereof. Published specifica-tions are subject to change without notice. Product suitability for any area of application must ultimately be determined by the customer. In all cases, products must never be operated outside their published specifications. Schaffner does not guarantee the availability of all published products. This disclaimer shall be governed by substantive Swiss law and resulting disputes shall be settled by the courts at the place of business of Schaffner Holding AG. Latest publications and a complete disclaimer can be downloa-ded from the Schaffner website. All trademarks recognized. 15. Jun 2022 Sales and Application Centers Germany Schaffner Deutschland GmbH Schoemperlenstrasse 12B 76185 Karlsruhe +49 721 56910 germanysales@schaffner.com To find your local partner within Schaffner‘s global network schaffner.com DATA SHEET Italy Schaffner EMC S.r.l. Via Ticino, 30 20900 Monza (MB) +39 039 21 41 070 italysales@schaffner.com Japan Schaffner EMC K.K. ISM Sangenjaya 7F 1-32-12 Kamiuma, Setagaya-ku 154-0011 Tokyo +81 3 5712 3650 japansales@schaffner.com Singapore Schaffner EMC Pte Ltd. Blk 3015A Ubi Road 1, #05-09, Kampong Ubi Industrial Estate 408705 Singapore +65 63773283 singaporesales@schaffner.com Taiwan Schaffner EMV Ltd. U-Town 20 Floor-2, No 97, Section 1, XinTai 5th Road, XiZhi District 22175 New Taipei City +886 226975500 taiwansales@schaffner.com Thailand Schaffner EMC Co. Ltd. Sathorn Square Tower Room 3780, 37FL, 98 North-Sathorn Rd, Silom, Bangrak 10500 Bangkok +66 621056397 thailandsales@schaffner.com United Kingdom Schaffner Ltd. 1, Oakmede Place Terrace Road RG42 4JF Binfield +44 118 9770070 uksales@schaffner.com United States Schaffner EMC Inc. 52 Mayfield Avenue Edison, New Jersey +1 732 225 9533 usasales@schaffner.com
