IN-S126ATG

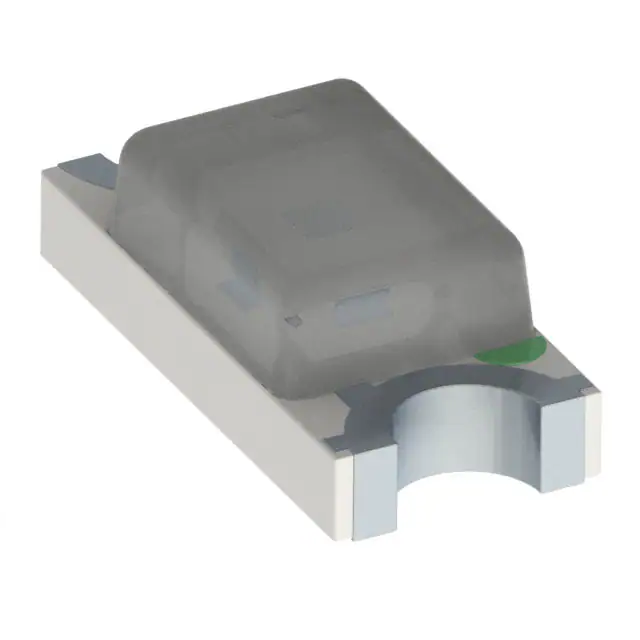

IN-S126AT series Top View SMD LED 1206 PCB Type Features • 1206 1.1mm SMD LED • High Brightness • AlInGaP / InGaN Technology • Small package • High reliability • Clear Lens Description The IN-S126AT series is a popular low profile 1206 package with versatile design capabilities. It is a PCB type molding style LED which can be used in various applications. Recommended Solder Pattern Applications • Consumer Electronics • Wearables • Automobile After Market • Industrial Equipment Figure 1. IN-S126AT Solder Pattern Package Dimensions in mm Figure 2. IN-S126AT Package Dimensions Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 1 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Absolute Maximum Rating at 25oC (Note 1) Product Emission Color IN-S126ATYG Yellow Green IN-S126ATY Yellow IN-S126ATA Amber IN-S126ATR Red IN-S126ATB Blue IN-S126ATG Green IN-S126AT5UW White Pd (mW) IF (mA) IFP* (mA) 75 25 70 75 25 VR (V) TOP (oC) 5 -30 C~+85 C o TST (oC) o o o -40 C~+90 C 100 Notes 1. Condition for IFP is pulse of 1/10 duty and 0.1msec width ESD Precaution ATTENTION: Electrostatic Discharge (ESD) protection The symbol above denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based chips is necessary even though they are relatively safe in the presence of low static-electric discharge. Parts built with AlInGaP, GaN, or/and InGaN based chips are STATIC SENSITIVE devices. ESD precaution must be taken during design and assembly. If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process. Please be advised that normal static precautions should be taken in the handling and assembly of this device to prevent damage or degradation which may be induced by electrostatic discharge (ESD). Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 2 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Electrical Characteristics T A = 25°C (Note 1) VF(V) Emission Color IF(mA) IN-S126ATYG Yellow Green IN-S126ATY Product Viewing λ(nm) Angel I*V(mcd) min. max λD λP △λ 2θ1/2 typ. 20 1.8 2.6 573 576 15 120 35 Yellow 20 1.8 2.6 591 594 15 120 120 IN-S126ATA Amber 20 1.8 2.6 605 610 17 120 140 IN-S126ATR Red 20 1.8 2.6 622 630 20 120 140 IN-S126ATB Blue 20 2.8 3.6 468 472 30 120 140 IN-S126ATG Green 20 2.8 3.6 520 526 35 120 560 IN-S126AT5UW White 5 2.8 3.6 X=0.29 Y=0.29 - - 120 180 Notes 1. Performance guaranteed only under conditions listed in above tables. Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 3 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Chromaticity Bin (for White only) Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 4 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 5 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Typical Characteristic Curves – YG, Y, A, R Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 6 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Typical Characteristic Curves – B, G, W Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 7 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Typical Characteristic Curves – Radiation Pattern Ordering Information Product IN-S126ATYG Yellow Green AllnGaP 20 35 2.0 IN-S126ATYG IN-S126ATY Yellow AllnGaP 20 120 2.0 IN-S126ATY IN-S126ATA Amber AllnGaP 20 140 2.0 IN-S126ATA IN-S126ATR Red AllnGaP 20 140 2.0 IN-S126ATR IN-S126ATB Blue InGaN 20 140 3.2 IN-S126ATB IN-S126ATG Green InGaN 20 560 3.2 IN-S126ATG IN-S126AT5UW White InGaN 5 180 3.0 IN-S126AT5UW Inolux Corporation Proprietary & Confidential Technolog Test Current y IF (mA) Forward Luminous Intensity Voltage IV (mcd) VF (V) (Typ.) (Typ.) Emission Color Orderable Part Number Feb. 07, 2017 Page 8 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Label Specifications Inolux P/N: I N - S 1 Material Inolux SMD S = PCB Type 2 6 Package A T Varia tion Orientation 126A = 3.2 x 1.6 x 1.1mm X T = Top Mount Current (Blank) = 20mA Lens Color (Blank) = Clear U = Diffused R=630nm A=610nm Y=594nm YG=576nm G=526nm B=472nm W=White 5=5mA - X X X X Customized Stamp-off Lot No.: Z Internal Tracker Inolux Corporation Proprietary & Confidential 2 0 1 7 Year (2017, 2018, …..) 01 24 001 Month Date Serial Feb. 07, 2017 Page 9 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Packaging Information: 3000pcs Per Reel Tape Dimension Reel Dimension Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 10 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Packing Dimension 5 boxes per carton are available depending on shipment quantity. Specification Material Quantity Carrier tape Per EIA 481-1A specs Conductive black tape 3000pcs per reel Reel Per EIA 481-1A specs Conductive black Label IN standard Paper Packing bag 220x240mm Aluminum laminated bag/ no-zipper One reel per bag Carton IN standard Paper Non-specified Others: Each immediate box consists of 5 reels. The 5 reels may not necessarily have the same lot number or the same bin combinations of Iv, λD and Vf. Each reel has a label identifying its specification; the immediate box consists of a product label as well. Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 11 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Dry Pack All SMD optical devices are MOISTURE SENSITIVE. Avoid exposure to moisture at all times during transportation or storage. Every reel is packaged in a moisture protected anti-static bag. Each bag is properly sealed prior to shipment. Upon request, a humidity indicator will be included in the moisture protected anti-static bag prior to shipment. The packaging sequence is as follows: Reflow Soldering • Recommended tin glue specifications: melting temperature in the range of 178~192 OC • The recommended reflow soldering profile is as follows (temperatures indicated are as measured on the surface of the LED resin): Lead-free Solder Profile Inolux Corporation Proprietary & Confidential Feb. 07, 2017 Page 12 www.inolux-corp.com IN-S126AT series Top View SMD LED 1206 PCB Type Precautions • • • • • • Avoid exposure to moisture at all times during transportation or storage. Anti-Static precaution must be taken when handling GaN, InGaN, and AlInGaP products. It is suggested to connect the unit with a current limiting resistor of the proper size. Avoid applying a reverse voltage. Avoid operation beyond the limits as specified by the absolute maximum ratings. Avoid direct contact with the surface through which the LED emits light. If possible, assemble the unit in a clean room or dust-free environment. Reworking • • • Rework should be completed within 5 seconds under 260 OC. The iron tip must not come in contact with the copper foil. Twin-head type is preferred. Cleaning Following are cleaning procedures after soldering: • An alcohol-based solvent such as isopropyl alcohol (IPA) is recommended. • Temperature x Time should be 50oC x 30sec. or
