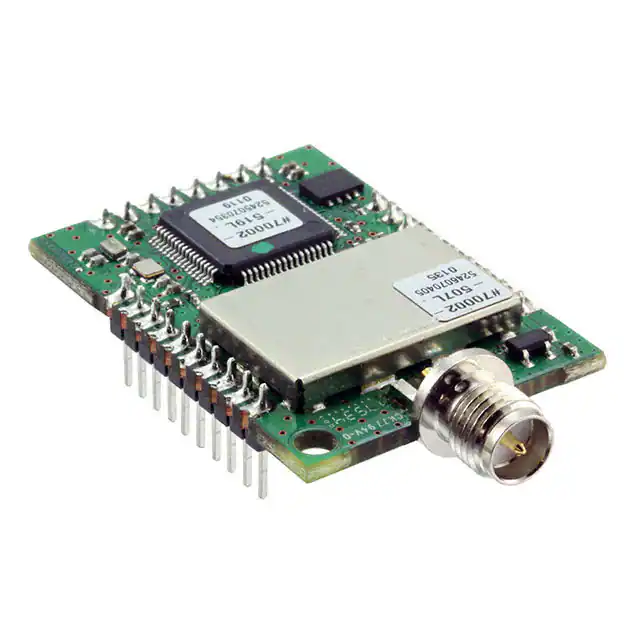

MTDOT-915-X1P-SMA-1

MultiTech mDot™ Long Range LoRa® Module MultiTech mDot™ is a secure, CE/FCC/RCM/GITEKI certified, BENEFITS Arm® Mbed™ programmable, low-power RF module, that provides • Range of miles • Deep in-building penetration long-range, low bit rate M2M data connectivity to sensors, • Developer friendly industrial equipment and remote appliances. • Runs for years on batteries The mDot is LoRaWAN® 1.0.2 compliant, providing bi-directional FEATURES data communication up to 10 miles / 15 km line-of-sight and 1-3 miles / 2 km into buildings**, using sub-GHz ISM bands in • FCC/CE/RCM/GITEKI certified for use in North America, Europe, Australia & Japan North America, Europe, Australia and Asia Pacific (AS923). • LoRaWAN Certified mDots bring intelligence, reduced complexity and a lower overall • Unicast & Multicast message support CM bill of material cost to the very edge of the network while • Multiple I/O interfaces for most any “Thing” supporting a variety of electronic interfaces to connect just • Data rates 293 bps20 Kbps+ LoRa® about any “Thing” for years on battery power. Your Remote Devices & Data Embedded mDots Insight + Action + Control Big Data Analytics Transportation Energy Financial / Retail Healthcare SPI UART I2C Analog Digital Key Management Servers Services ® LoRa Gateways Public or Private LoRaWAN® / Deployment Agriculture Cloud Data Platform www.multitech.com/mdot EDGE INTELLIGENCE DEVELOPER KIT As the first Arm® Mbed™ Platform listed on mbed.org that is industry certified and The MultiTech mDot (MTUDK2-ST-MDOT) Developer Kit deployment ready, applications can be written allows customers to plug in the MultiTech mDot module and compiled quickly online using developer and use it for testing, programming and evaluation. friendly libraries, downloaded and hosted within This kit is designed for use with mDot long range, RF the mDot. Decision making and control is modules. This developer kit includes an antennas, USB distributed to the edge, enabling data to be cable, RSMA cable and Quick Start Guide. more actionable without the heavy lift required to optimize RF performance, implement The MultiTech mDot (MTMDK-ST-MDOT) Micro Developer complex M2M middleware and security Kit is a micro developer and programming board. This kit protocols needed to deploy a low touch install. is available in the form of a USB dongle, allowing a developer to plug in a mDot or MultiTech mDot Box HIGHLIGHTS and start developing their own application. Applications Its portable design makes it ideal for • Manage and harvest sensor data connecting to a laptop and doing • Control and monitor remote assets and devices range testing of the LoRa network. • Mesh network replacement This developer kit includes Operating Modes a development board, • LoRaWAN 1.0.2 compliant LoRa antenna, • Developer friendly Arm Mbed libraries programming cable provides customization capability for and Quick Start Guide. specific applications • Onboard flash and RAM reduces overall Build of Material costs YOU MAY ALSO BE INTERESTED IN: MULTITECH CONDUIT® FAMILY MultiTech Conduit® family of products is the industry’s most configurable, manageable, and scalable cellular communications gateways for industrial IoT applications. Network engineers can remotely configure and optimize their Conduit performance through DeviceHQ®, the world’s first IoT Application Store and Device Management platform. The award-winning Conduit series comes in three variants designed to MultiTech Conduit IP67 Base Station ® MultiTech Conduit® Gateway address specific IoT gateway use cases: • MultiTech Conduit: Indoor industrial gateway, ideal for environments that require metal casing for protection against particles and debris and require an industrial temperature range. • MultiTech Conduit IP67 Base Station: Outdoor IP67-rated gateway ideal suited for performing in harsh environments such as rain, snow, extreme heat, and high winds. • MultiTech Conduit AP: Indoor access point ideal for commercial environments (e.g., hotels, offices, retail facilities) to deepen LoRa coverage in difficult to reach places where cell tower or rooftop deployments may not perform as well. MultiTech Conduit® AP Access Point SPECIFICATIONS Models Region/Country MTDOT-868 MTDOT-915 MTDOT-923 Europe North America / Australia Asia Pacific LoRaWAN 1.0.2 compliant, Class A and Class C Arm Mbed libraries or AT commands for radio control Communication Interfaces (pin functions are multiplexed) Up to 21 Digital I/O, Up to 11 Analog Inputs, SPI, I2C, UART (RX, TX, RTS, CTS) Physical Dimensions 1.0" x 1.47" (25.5 X 37.3 mm) Radio Frequency Modulation FSK, GFSK, MSK, GMSK, OOK, LoRa Digital Spread Spectrum Frequency 860-1020 MHz Performance CPU STM32F411RET Max Clock 100 MHz (configurable to power use) Flash Memory 512 KB (400 KB customer usable) RAM 128 KB Power Max Transmitter Power Output (TPO) 14 dBm 19 dBm Varies by Country -137 dBm -130 dBm Varies by Country 151 dB Point-to-Multipoint, 147 dB Point-to-Point 145 dB Point-to-Multipoint, 147 dB Point-to-Point Varies by Country Max Receive Sensitivity Link Budget* * Calculation assumes two 0 dBi antennas. North America: Greaterlink budget possible with higher gain antennas. Europe: This is the maximum link budget. Note: Point-to-Multipoint utilizing MultiTech gateway with MTAC-LORA accessory card. Max Effective Isotropic Radiated Power (EiRP) 10 dBm 36 dBm Input Voltage Varies by Country 3.3 - 5VDC ±5% Environmental Operating Temperature -40° C to +85° C (-40° F to +185° F) Storage Temperature -40° C to +85° C (-40° F to +185° F) Relative Humidity 20% to 90% RH noncondensing Certifications EMC Compliance US: FCC Part 15 Class B. EU: EN 55022 Class B, EN 55024. Canada: ICES-003 Radio Compliance FCC 15.247, IC RSS-210, EU EN 300 220 Safety Compliance UL/cUL 60950-1 2nd Ed., cUL 60950-1 2nd Ed., IEC 60950-1 2nd Ed., AS/NZS 60950.1 Quality MIL-STD-810G: High Temp, Low Temp, Random Vibration. SAE J1455: Transit Drop & Handling Drop, Random Vibration, Swept-Sine Vibration. IEC68-2-1: Cold Temp. IEC68-2-2: Dry Heat ** Actual performance speeds may be affected by a variety of attributes such as distance from gateway, data loads, packet sizes, etc. Note: AS923 models are for use in many Asia Pacific countries. At this time regulatory approvals are pending. Contact your MultiTech sales representative for more information. POWER DRAW Voltage 3.3V 5.0V Sleep Mode (Version 0.1.2 or newer) 40.0µA Idle Current Average (Amps) Packet Size (Bytes) 0.032 10 53 Average Current (Amps) at Low Transmit Power Setting (TXP 2) Average Current (Amps) at Default Transmit Power Setting (TXP 11) 0.028 Average Current (Amps) at Maximum Transmit Power Setting (TXP 20) 0.031 Total Inrush Charge Measured in Millicoulombs (mC) Total Inrush Charge Duration during Powerup (InRush Duration) 19 53 0.026 0.025 0.029 0.041 0.028 0.032 0.042 1.14 1.79 661µS 1.24mS ORDERING INFORMATION Services & Warranty MultiTech mDot™ European Models Model MTDOT-868-X1-SMA MTDOT-868-X1P-SMA MTDOT-868-X1-UFL MTDOT-868-M1-UFL MTDOT-868-M1-TRC Description 868 MHz X1 LoRa SMA 868 MHz X1 LoRa SMA w/Programming Header 868 MHz X1 LoRa UFL 868 MHz SMT LoRa UFL 868 MHz SMT LoRa RF Pad Region Euro Euro Euro Euro Euro MultiTech mDot™ North American Models Model MTDOT-915-X1-SMA MTDOT-915-X1P-SMA MTDOT-915-X1-UFL MTDOT-915-M1-UFL MTDOT-915-M1-TRC Description 915 MHz X1 LoRa SMA 915 MHz X1 LoRa SMA w/Programming Header 915 MHz X1 LoRa UFL 915 MHz SMT LoRa UFL 915 MHz SMT LoRa RF Pad Region NAM NAM NAM NAM NAM MultiTech mDot™ Australia/New Zealand Models Model MTDOT-915-AU-X1-SMA MTDOT-915-AU-X1P-SMA MTDOT-915-AU-X1-UFL MTDOT-915-AU-M1-UFL MTDOT-915-AU-M1-TRC Description AU915 MHz X1 LoRa SMA AU915 MHz X1 LoRa SMA w/Programming Header AU915 MHz X1 LoRa UFL AU915 MHz SMT LoRa UFL AU915 MHz SMT LoRa RF Pad Region AU/NZ AU/NZ AU/NZ AU/NZ AU/NZ MultiTech mDot™ Asia Pacific Models Model MTDOT-923-AS1-X1P-SMA MTDOT-923-AS1-X1-UFL MTDOT-923-AS1-M1-UFL MTDOT-923-JP1-X1P-SMA Description AS923 MHz X1 LoRa SMA w/Programming Header AS923 MHz X1 LoRa UFL AS923 MHz SMT LoRa UFL AS923 MHz X1 LoRa SMA w/Programming Header w/LBT Region APAC APAC APAC Japan Note: All mDots listed above available in single, 50 or 100-pack depending on model MultiTech mDot™ Developer Kits $ Accesssories Model MTUDK2-ST-MDOT Description Developer Kit, includes SMA antenna & USB cable, (mDots sold separately) MultiTech mDot Micro Developer Kit (mDots sold separately) 868-915 MHz RP-SMA Antenna, 8" (3.0dBi) Reverse SMA-to-UFL Coax RF Cable, 6" MTMDK-ST-MDOT AN868-915A-1HRA CARSMA-UFL Go to www.multitech.com for detailed product model numbers. The LoRa® name and associated logo are trademarks of Semtech Corporation or its subsidiaries. Region Global MultiTech’s comprehensive Support Services programs offer a full array of options to suit your specific needs.These services are aimed at protecting your investment, extending the life of your solution or product, and reducing total cost of ownership. Our seasoned technical experts, with an average tenure of more than 10 years, can walk you through smooth installations, troubleshoot issues and help you with configurations. Installation Support MultiTech’s Installation Support Service delivers priority service with the ability to work one-on-one with an experienced MultiTech technical support engineer, to guide you through the installation process for our products. Technical Support Services At MultiTech, we’re committed to providing you personalized attention and quality service while providing you a quick response to your product support needs. We have several options of support for you to choose from. For additional information on Support Services as well as other service offerings, please contact your MultiTech representative or visit www.multitech.com/support.go Global Global Global World Headquarters Multi-Tech Systems, Inc. 2205 Woodale Drive Mounds View, MN 55112 U.S.A. Tel: 763-785-3500 Toll-Free: 800-328-9717 Email: sales@multitech.com www.multitech.com EMEA Headquarters Multi-Tech Systems (EMEA) Strata House 264-270 Bath Road Harlington UB3 5JJ United Kingdom Tel: +(44) 118 959 7774 Email: sales@multitech.co.uk www.multitech.co.uk Produced in the U.S. of U.S. and non-U.S. components. Features and specifications are subject to change without notice. Trademarks and Registered Trademarks: MultiTech and the MultiTech logo, mDot, Conduit: Multi-Tech Systems, Inc. All other products and technologies are the trademarks or registered trademarks of their respective holders. 2019-09 • 86002171-NMC • © 2019 Multi-Tech Systems, Inc. All rights reserved.
