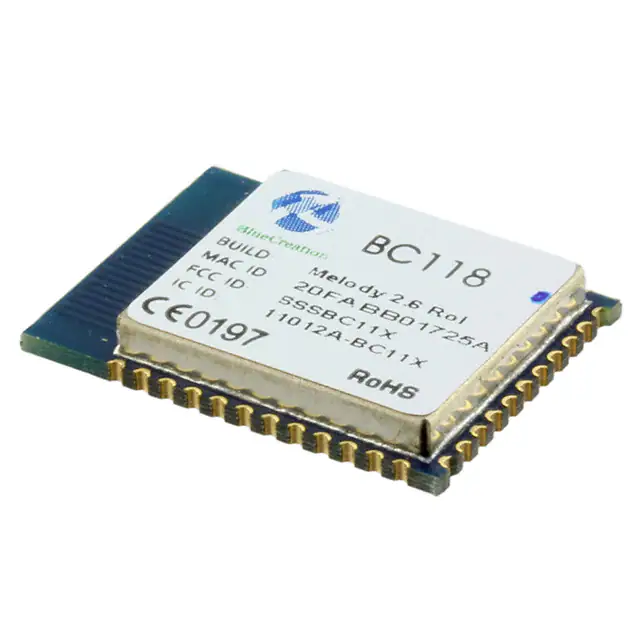

BC118_1103394

BC118 Datasheet Key Specifications  Bluetooth Certified 4.0 Audio module  Single Mode: Bluetooth Low Energy (BLE)  Embedded Bluetooth Protocol Stack  Supports GATT Profile, Audio, Proximity, and iBeacon  Supports I2C and UART transparent Data Modes  Simple UART and GPIO interface for command and control  Small form factor (14.4mm x 19.3mm x 2.2mm)  Bluetooth, FCC and CE certified Description Applications  Industrial Automation  Lighting  Automotive  Medical Devices  Wearable Devices  Sensors, Actuators BC118 is a highly flexible, ultra low power, small form factor Bluetooth Version 4.0 Certified module. It comes preloaded with BlueCreation Melody Smart software, and is ideal for developers who want to quickly and cost effectively integrate Bluetooth Low Energy functionality into their products or develop standalone sensors or accessories. BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0WS United Kingdom t. +44 (0)1223 420 252 e. info@bluecreation.com www.bluecreation.com 1 BC118 Datasheet General Specifications Specifications Description Bluetooth Standard Bluetooth 4.0 Interfaces UART, AIO, GPIO, USB, I2C Size 19.3mm x 14.4mm x 2.8mm Weight 0.9g RF Specifications Specifications Description Frequency Band 2,402 MHz to 2,480 MHz Modulation 8 DPSK, PI/4 DQPSK, GFSK Maximum Data Rate 270kbps (typical 60kbps) Operating Range 30m RF Sensitivity 0.1% BER at -92.5dBm Transmit Power 7.5dBm BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0WS United Kingdom t. +44 (0)1223 420 252 e. info@bluecreation.com www.bluecreation.com 2 BC118 Datasheet Audio Specifications Specifications Description ADC resolution 10 bits Digital PIOs 12 Analog PIOs 3 PWN modules 4 Electric Specifications Specifications Description Supply Voltage 3.3V to 4.7 V DC (Supports Li Ion battery voltage range) Typical Current Tx 16mA (Only on Tx/Rx) Typical Deep Sleep
