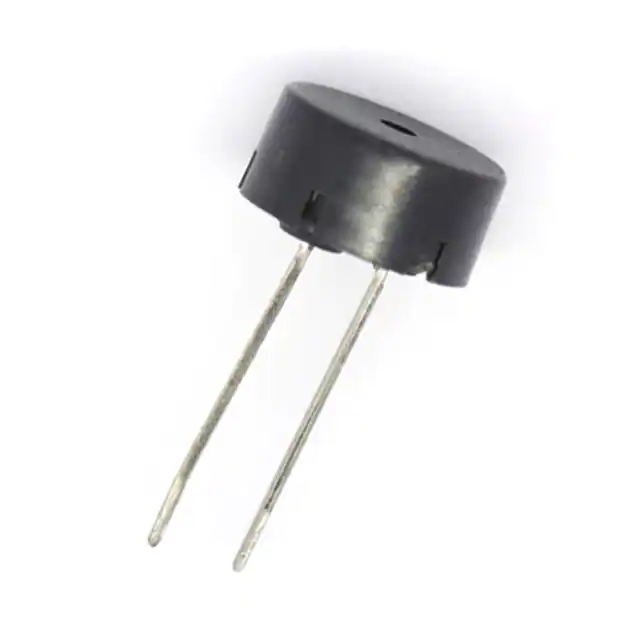

TP124005-2

4 3 2 1 Part Number: DRAWN TP124005-2 5/2/2019 CJ CHECKED 5/3/2019 C.H. Description: APPROVED Piezo Transducer 5/3/2019 C.E. D D This document contains data proprietary to DB Unlimited. Any use or reproduction, in any form, without prior written permission of DB Unlimited is prohibited. All terms and conditions can be found at www.dbunlimitedco.com Top View Bottom View Side View C C 17.5 12.4 6.0 0.3 2.0 B A 0.1 0.6 0.2 5.0 1.0 B Items Specifications Conditions Min. Sound Pressure Level 80 dB (@ 10cm) Resonant Frequency 2,000 Hz Rated Voltage 5 V Voltage Range 1 ~ 30 V Capacitance 8,000 pF Max. Rated Current 10 mA Storage Temperature -30 ~ +80 C Operating Temperature -20 ~ +70 C Connection Method PC Pins Mount Type Thru Hole Housing Material PBT Weight 2.5 4 REVISION HISTORY REV DESCRIPTION DATE APPROVED 10/21/2013 J.S. 1 Released from Engineering Updated drawing template, diameter, SPL, max current, weight, temp NOTES 5/3/2019 C.E. 1) All dimensions are in mm unless otherwise noted 2) All tolerances are 0.5 mm unless otherwise noted 3) All parts meet RoHS g 3 4) Subject to change or redrawn without notice 2 1 A
