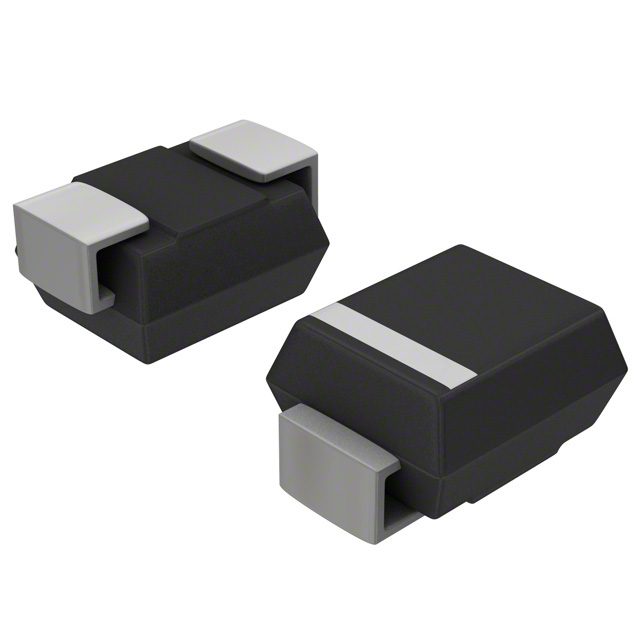

15MQ040N Technical Data Data Sheet N0021, Rev. B 15MQ040N SCHOTTKY RECTIFIER Features Small foot print, surface moutable Low forward voltage drop High frequency operation Guard ring for enhanced ruggedness and long term reliability This is a Pb − Free Device All SMC parts are traceable to the wafer lot Additional testing can be offered upon request        SMA Circuit Diagram Applications        Disk Drives Switching power supply Redundant power subsystems Converters Free-Wheeling diodes Reverse battery protection Battery Charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Forward Current Peak One Cycle Non-Repetitive Surge Current Symbol VRRM VRWM VR Condition - Max. Units 40 V IF(AV) 50% duty cycle @TL =105°C, rectangular wave form On PC board 9mm2 island 2.1 A IFSM 8.3 ms, half Sine pulse 60 A Electrical Characteristics: Characteristics Forward Voltage Drop* Symbol VF1 VF2 Reverse Current* IR1 IR2 Junction Capacitance CT Typical Series Inductance LS Voltage Rate of Change * Pulse width < 300 µs, duty cycle < 2% dv/dt Condition @ 1 A, Pulse, TJ = 25 °C @ 2 A, Pulse, TJ = 25 °C @ 1 A, Pulse, TJ = 100 °C @ 2 A, Pulse, TJ = 100 °C @VR = Rated VR, Pulse, TJ = 25 °C @VR = Rated VR, Pulse, TJ = 125 °C @VR = 10V, TC = 25 °C fSIG = 1MHz Measured lead to lead 5 mm from package body - Typ. 0.38 0.42 - Max. 0.42 0.49 0.34 0.43 Units 0.03 1.0 mA - 20 mA 95 134 PF 2.0 - nH - 10,000 V/s  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  V V 15MQ040N Technical Data Data Sheet N0021, Rev. B Thermal-Mechanical Specifications: Characteristics Junction Temperature Storage Temperature Typical Thermal Resistance Junction to Ambient Approximate Weight Case Style Symbol TJ Tstg Condition - RJA - wt - Specification -55 to +150 -55 to +150 SMA Ratings and Characteristics Curves  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  Units C C 80 C/W 0.06 g 15MQ040N Technical Data Data Sheet N0021, Rev. B Mechanical Dimensions SMA SYMBOL Ordering Information Device 15MQ040N Package SMA (Pb-Free) Millimeters Inches Min. Max. Min. Max. A 2.40 2.84 0.094 0.112 B 3.99 4.75 0.157 0.187 C 1.05 1.70 0.041 0.067 D 0.15 0.51 0.006 0.020 E 4.80 5.66 0.189 0.223 F 1.90 2.95 0.075 0.116 G 0.05 0.203 0.002 0.008 H 0.76 1.52 0.030 0.600 Marking Diagram Where XXXXX is YYWWL Shipping S D 15 F YY WW L 5000pcs / reel For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging specification. = Device Type = Package Type = Forward Current (1.5A) = Reverse Voltage (40V) = Year = Week = Lot Number Cautions：Molding resin Epoxy resin UL:94V-0 Carrier Tape & Reel Specification SMA SYMBOL A B C d E F P P0 P1 T W Millimeters Min. Max. 2.97 5.70 2.32 1.40 1.40 5.60 3.90 3.90 1.90 0.25 3.17 5.90 2.52 1.60 1.60 5.70 4.10 4.10 2.10 0.35 11.80 12.20  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  15MQ040N Technical Data Data Sheet N0021, Rev. B DISCLAIMER: 1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of the datasheet(s). 2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’ fail-safe precautions or other arrangement . 3- In no event shall SMC Diode Solutions be liable for any damages that may result from an accident or any other cause during operation of the user’s units according to the datasheet(s). SMC Diode Solution assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC Diode Solutions. 6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC Diode Solutions. 7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations.  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com 
