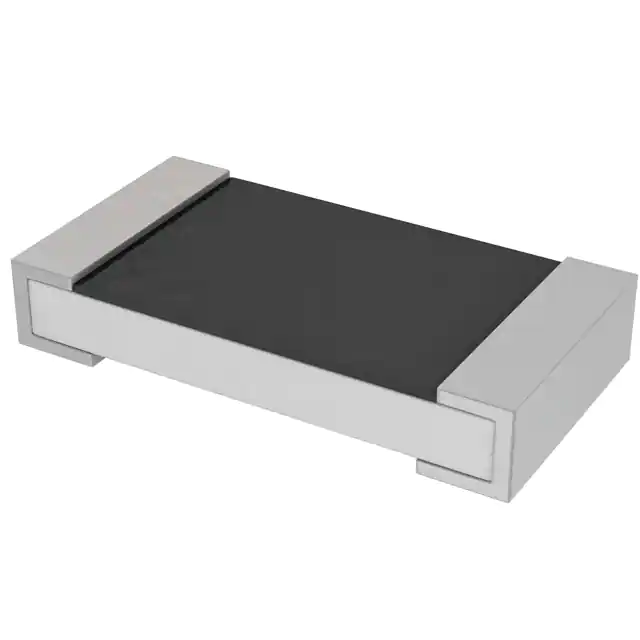

PT1206FR-7W0R33L

DATA SHEET CURRENT SENSOR - LOW TCR PT series 5%, 2%, 1% sizes 0402/0603/0805/1206/2010/2512 Product specification – May 24, 2018 V.2 RoHS compliant & Halogen free Product specification Chip Resistor Surface Mount PT SCOPE ORDERING INFORMATION - GLOBAL PART NUMBER This specification describes PT series current sensor - low TCR and high power with lead-free terminations made by thick film process. Part numbers is identified by the series, size, tolerance, packing type, temperature coefficient, taping reel and resistance value. YAGEO BRAND ordering code GLOBAL PART NUMBER (PREFERRED ) APPLICATIONS  Converters 2 9 0402/0603/0805/1206/2010/2512 SERIES PT XXXX X X X XX XXXX L (1) (2) (3) (4) (5) (6) (7) (1) SIZE 0402 / 0603 / 0805 / 1206 / 2010 / 2512  Printer equipment  Server board  Telecom F = ± 1%  Consumer electronics G = ± 2%  Car electronics J = ± 5% (2) TOLERANCE “-“ = jumper ordering FEATURES  AEC-Q200 qualified (3) PACKAGING TYPE R = Paper taping reel  Halogen Free Epoxy  RoHS compliant  Reduce environmentally  High component and equipment reliability  Non-forbidden material used in products/production 07 = 7 inch dia. Reel and standard power  Low resistances applied to current sensing 7W = 7 inch dia. reel and 2 x standard power  Moisture sensitivity level: MSL 1 7T = 7 inch dia. reel and 3 x standard power K = Embossed taping reel (4) TEMPERATURE COEFFICIENT OF RESISTANCE – = Based on spec. (5) TAPING REEL 13 = 13 inch dia. Reel and standard power 3W = 13 inch dia. reel and 2 x standard power (6) RESISTANCE VALUE There are 3~5 digits indicated the resistor value. Letter R is decimal point. Detailed coding rules of resistance are shown in the table of “Resistance rule of global part number”. (7) DEFAULT CODE Letter L is system default code for order only (Note) Resistance rule of global part number Resistance code rule Example 0RXXX (25 to 910 mΩ) 0R025 = 25 mΩ 0R1 = 100 mΩ 0R91 = 910 mΩ O RDERING EXAMPLE The ordering code of a PT0603 chip resistor, 1/5W, value 0.56 with ±1% tolerance, supplied in 7-inch tape reel is: PT0603FR-7W0R56L. N OTE 1. All our Rchip products meet RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process" 2. On customized label, "LFP" or specific symbol printed and the optional "L" at the end of GLOBAL PART NUMBER / 12NC can be added (both are on customer request) www.yageo.com May. 24, 2018 V.2 Product specification Chip Resistor Surface Mount PT SERIES 0402/0603/0805/1206/2010/2512 3 9 MARKING PT0402 No marking Fig. 4 PT0603 E-24 series / Non-E series (R= 250/400/500 mΩ): 3 digits Fig. 2 Value = 220 mΩ The “R” is used as a decimal point; the other 2 digits are significant. PT0805 / PT1206 / PT2010 / PT2512 20 Fig. 3 Value = 220 mΩ E-24 series / Non-E series (R= 250/400/500 mΩ): 4 digits The “R” is used as a decimal point; the other 3 digits are significant. For further marking information, please refer to data sheet “Chip resistors marking”. CONSTRUCTION The resistors are constructed out of a high-grade ceramic body. Internal metal electrodes are added at each end and connected by a resistive paste. The composition of the paste is adjusted to give the approximately required resistance and laser cutting of this resistive layer that achieves tolerance trims the value. The resistive layer is covered with a protective coat and printed with the resistance value. Finally, the three external terminations (Cu/Ni/matte tin) are added, as shown in Fig.5. OUTLINES Fig. 5 Chip resistor outlines www.yageo.com May. 24, 2018 V.2 Product specification Chip Resistor Surface Mount PT SERIES 0402/0603/0805/1206/2010/2512 4 9 DIMENSIONS Table 1 TYPE L (mm) W (mm) H (mm) I1 (mm) I2 (mm) PT0402 1.00 ± 0.10 0.50 ± 0.05 0.35 ± 0.05 0.20 ± 0.10 0.25 ± 0.10 PT0603 1.60 ± 0.10 0.80 ± 0.10 0.45 ± 0.10 0.25 ± 0.15 0.25 ± 0.15 PT0805 2.00 ± 0.10 1.25 ± 0.10 0.55 ± 0.10 0.35 ± 0.20 0.35 ± 0.20 PT1206 3.10 ± 0.10 1.60 ± 0.10 0.55 ± 0.10 0.45 ± 0.20 0.45 ± 0.20 PT1206(Note) 3.10 ± 0.10 1.60 ± 0.10 0.55 ± 0.10 0.75 ± 0.20 0.45 ± 0.20 PT2010 5.00 ± 0.10 2.50 ± 0.15 0.55 ± 0.10 0.60 ± 0.20 0.50 ± 0.20 PT2512 6.35 ± 0.10 3.20 ± 0.15 0.55 ± 0.10 0.60 ± 0.20 0.50 ± 0.20 Note: For resistance range: 75mΩ ≦ R < 91mΩ For dimensions, please refer to Table 1 20 Fig. 6 Chip resistor dimensions www.yageo.com May. 24, 2018 V.2 Product specification Chip Resistor Surface Mount PT SERIES 5 9 0402/0603/0805/1206/2010/2512 ELECTRICAL CHARACTERISTICS Table 2 Type PT0402 Power Operating Temp. range Max working voltage Tolerance 1/16W 1/8 W 1/10W PT0603 1/5 W 1/3 W 1/8 W PT0805 1/4 W 1/4 W PT1206 1/2 W PT2010 PT2512 -55°C to +155°C (PxR)^1/2 Temperature Coefficient of Resistance 50mΩ ≦ R＜68mΩ 68mΩ ≦ R＜100mΩ 100mΩ ≦ R＜1Ω ±600ppm/°C ±300ppm/°C ±200ppm/°C 50mΩ 50mΩ ＜R＜68mΩ 68mΩ ≦ R＜100mΩ 100mΩ ≦ R＜1Ω 0/+400ppm/°C 0/+350ppm/°C 0/+300ppm/°C ±200ppm/°C 50mΩ 50mΩ ＜R＜68mΩ 68mΩ 0/+400ppm/°C 0/+350ppm/°C 0/+300ppm/°C 50mΩ 50mΩ ＜R＜68mΩ 68mΩ ≦ R＜100mΩ 100mΩ ≦ R＜1Ω 0/+350ppm/°C 0/+300ppm/°C 0/+250ppm/°C ±100ppm/°C 50mΩ ≦ R < 75mΩ 75mΩ ≦ R≦ 100mΩ 100mΩ ＜R＜1Ω ±350ppm/°C ±100ppm/°C ±75ppm/°C E24 ±2%, ±5% E24/E96 ±1% 3/4 W 1W 1W 2W Jumper criteria Max. resistance 10mΩ Rated current 3A -Max. resistance Rated current 8mΩ 5A -- -- Max. resistance Rated current 5mΩ 6A -- Max. resistance Rated current 5mΩ 10A --- 100 mΩ 100 mΩ < R < 1 Ω ±100 ppm/°C ±75 ppm/°C ---- www.yageo.com May. 24, 2018 V.2 Product specification Chip Resistor Surface Mount PT 6 9 0402/0603/0805/1206/2010/2512 SERIES FOOTPRINT AND SOLDERING PROFILES Recommended footprint and soldering profiles, please refer to data sheet “Chip resistors mounting”. PACKING STYLE AND PACKAGING QUANTITY Table 3 Packing style and packaging quantity PACKING STYLE Paper taping reel (R) Embossed taping reel (K) REEL DIMENSION PT0402 PT0603 PT0805 PT1206 PT2010 PT2512 7" (178 mm) 10,000 5,000 5,000 5,000 --- --- 13" (330 mm) 50,000 20,000 20,000 20,000 --- --- 7" (178 mm) --- --- --- --- 4,000 4,000 NOTE 1. For paper/embossed tape and reel specification/dimensions, please refer to data sheet “Chip resistors packing”. FUNCTIONAL DESCRIPTION OPERATING TEMPERATURE RANGE Range: –55 °C to +155 °C POWER RATING Each type rated power at 70 °C: PT0402=1/16W, 1/8W PT0603=1/10W, 1/5W, 1/3W PT0805=1/8W, 1/4W PT1206=1/4W, 1/2W PT2010=3/4W, 1W PT2512=1W, 2W R ATED VOLTAGE The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: Fig. 7 Maximum dissipation (P max ) in percentage of rated power as a function of the operating ambient temperature (T amb) V = √(P X R) Where V = Continuous rated DC or AC (rms) working voltage (V) P = Rated power (W) R = Resistance value (Ω) www.yageo.com May. 24, 2018 V.2 Product specification Chip Resistor Surface Mount PT SERIES 7 9 0402/0603/0805/1206/2010/2512 TESTS AND REQUIREMENTS Table 4 Test condition, procedure and requirements TEST TEST METHOD PROCEDURE Temperature Coefficient of Resistance (T.C.R.) MIL-STD-202 Method 304 At +25/+125 °C REQUIREMENTS Refer to table 2 Formula: R2–R1 T.C.R= ------------------------- × 106 (ppm/°C) R1(t2–t1) Where t1=+25 °C or specified room temperature t2=+125 °C test temperature R1=resistance at reference temperature in ohms R2=resistance at test temperature in ohms Life/ Endurance MIL-STD-202 Method 108A High Temperature Exposure MIL-STD-202 Method 108A IEC 60115-1 4.25.1 IEC 60068-2-2 1,000 hours at 70± 2 °C applied RCWV 1.5 hours on, 0.5 hour off, still air required ± (1.0%+0.0005 Ω) 1,000 hours at maximum operating temperature depending on specification, unpowered ± (1.0%+0.0005 Ω) No direct impingement of forced air to the parts Tolerances: 155± 3 °C Moisture Resistance MIL-STD-202 Method 106 Each temperature / humidity cycle is defined at 8 hours (method 106F), 3 cycles / 24 hours for 10d with 25 °C / 65 °C 95% R.H, without steps 7a & 7b, unpowered ± (0.5%+0.0005 Ω) Parts mounted on test-boards, without condensation on parts Measurement at 24± 2 hours after test conclusion Thermal Shock MIL-STD-202 Method 107 -55/+125 °C ± (1.0%+0.0005 Ω) Number of cycles required is 300. Maximum Devices mounted: transfer time is 20 seconds. Dwell time is 15 minutes. Air – Air www.yageo.com May. 24, 2018 V.2 Product specification Chip Resistor Surface Mount TEST Short Time Overload TEST METHOD IEC60115-1 4.13 PT SERIES PROCEDURE PT standard power: 2.5 times rated voltage for 5 sec at room temperature 8 9 0402/0603/0805/1206/2010/2512 REQUIREMENTS ± (1.0%+0.0005 Ω) No visible damage PT high power: 5 times rated power for 5 sec at room temperature PT jumper: 2.5 times rated current for 5 sec at room temperature Board Flex/ Bending IEC 60115-1 4.33 Device mounted on PCB test board as described, only 1 board bending required ± (1.0%+0.0005 Ω) No visible damage Bending for 0402: 5 mm 0603/0805: 3 mm 1206 and above: 2 mm Holding time: minimum 60± 1 seconds Ohmic value checked during bending Solderability - Wetting J-STD-002 test B Electrical Test not required Magnification 50X Well tinned (≥95% covered) No visible damage SMD conditions: 1st step: method B, aging 4 hours at 155 °C dry heat 2nd step: leadfree solder bath at 245± 3 °C Dipping time: 3± 0.5 seconds - Leaching J-STD-002 test D Leadfree solder, 260 °C, 30 seconds immersion time No visible damage - Resistance to Soldering Heat IEC 60115-1 4.18 Condition B, no pre-heat of samples. ± (0.5%+0.0005 Ω) Leadfree solder, 260± 5 °C, 10± 1 seconds immersion time No visible damage Procedure 2 for SMD: devices fluxed and cleaned with isopropanol www.yageo.com May. 24, 2018 V.2 Product specification Chip Resistor Surface Mount PT SERIES 9 9 0402/0603/0805/1206/2010/2512 REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 2 May 24, 2018 - - Update PT0603 7T coding Version 1 Jul. 02, 2015 - - Extend resistor value Version 0 Aug. 21, 2014 - - New datasheet for current sensor - low TCR PT series sizes of 0402/0603/0805/1206/2010/2512, 1%, 2%, 5% with lead-free termination “ Yageo reserves all the rights for revising the content of this datasheet without further notification, as long as the products itself are unchanged. Any product change will be announced by PCN.” www.yageo.com May. 24, 2018 V.2
