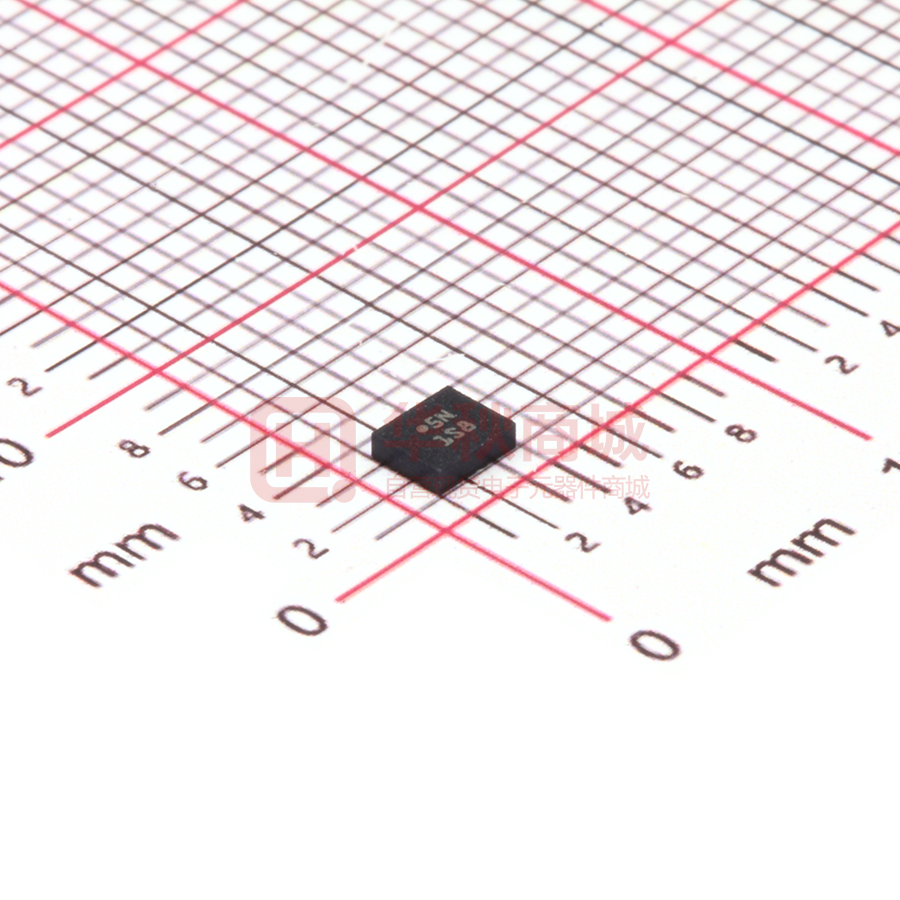

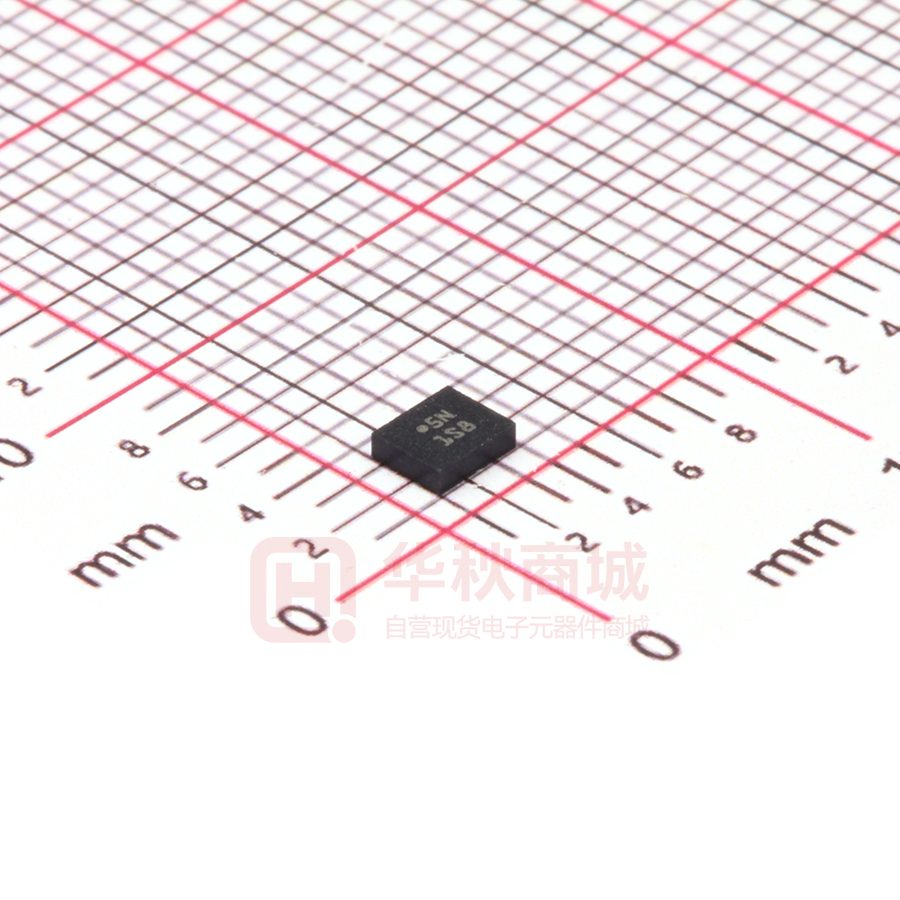

BMI270

BMI270 6-axis, smart, low-power Inertial Measurement Unit for high-performance applications BMI270 – Data sheet Document revision 1.0 Document release date May 2019 Document number BST-BMI270-DS000-02 Technical reference code 0 273 017 008 Notes Data and descriptions in this document are subject to change without notice. Product photos and pictures are for illustration purposes only and may differ from the real product appearance 2 | 170 Bosch Sensortec | BMI270 Data sheet Basic Description BMI270 The device is a highly integrated, low power inertial measurement unit (IMU) that combines precise acceleration and angular rate (gyroscopic) measurement with intelligent on-chip motion-triggered interrupt features. BMI270 is an Ultra-low power IMU optimized for wearable applications. The device integrates:  16-bit digital, triaxial accelerometer with ±2g/±4g/±8g/±16g range  16-bit digital, triaxial gyroscope with ±125dps/±250dps/±500dps/±1000dps/±2000dps range Key features          Compact standard size LGA mold package, 14 pins, footprint 2.5x3.0mm² height 0.83mm Primary digital interface with 10 MHz slave SPI (4-wire, 3-wire) and up to 1MHz I²C (Fm+) Output data rates (ODR): 25 Hz … 6.4 kHz (gyroscope) and 0.78 Hz … 1.6 kHz (accelerometer) Programmable low-pass filter (accelerometer ∣ gyroscope): bandwidth ca. 5 ∣ 3 … 680 ∣ 890 Hz Wide power supply range: Analog VDD 1.71V … 3.6V and independent VDDIO 1.2V…3.6V Ultra-low current consumption: typ. 685 µA (in full ODR and aliasing-free operation) Performance mode for gyroscope to minimize noise level: typ. < 8 mdps /√Hz. Built-in power management unit (PMU) for advanced power management and low power modes Rapid startup time: 2 ms for gyroscope (in fast start mode) and 2 ms for accelerometer  Freely configurable secondary digital interface  400 kHz I²C (Fm) master interface hub for 1 I2C AUX sensor (e.g. ext. magnetometer, pressure) o data synchronized to IMU  10 MHz slave SPI (4-wire, 3-wire) for high speed, calibration free OIS / Dual OIS (SPI) applications o up to 6.4 kHz ODR, control register access and max. 676 µs group delay  2 KB on-chip FIFO buffer for accelerometer, gyroscope, timestamps, and AUX sensor data   Fast offset error compensation for accelerometer and gyroscope Fast sensitivity error compensation for gyroscope (CRT, max. sensitivity error < 1%)     HW synchronization of accelerometer, gyroscope, and AUX sensor (< 1 µs) Sensortime stamps for accurate system (host) and sensor (IMU) time synchronization (=1.62V, IOL
