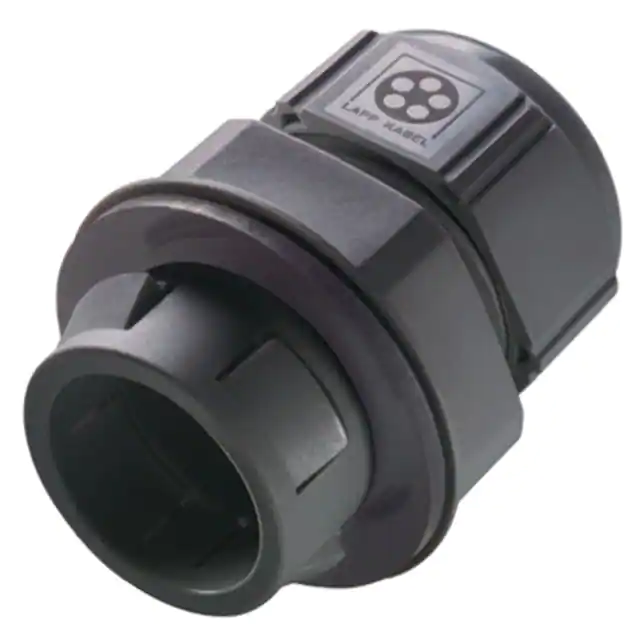

SKINTOP® UNCONTROLLED COPY Strain relief cable glands Non-metallic cable glands SKINTOP® CLICK/CLICK-R Strain relief with quick ”click” insertion system Complete the installation SKINTOP® DIX bushing Plugs page 522 page 545 Removal tool SKINTOP® CLICK is an innovative cable insertion system that provides fast, highly flexible assembly. Easy snap-in-place installation results in fixed, centered, strain relief with maximum protection in seconds. Mounting hole is based on metric thread. SKINTOP® CLICK-R includes reducer bushing. Recommended applications Application advantage •U  p to 70% installation time savings due to innovative CLICK system • Ideal for hard-to-reach dual wall enclosures and limited access spaces • Reduced inventory as no locknuts are required Applications where locknut installation is difficult to reach or to secure, such as dual wall enclosures and temperature controlled assemblies where insulation is used • T he heavy duty SKINTOP® design provides great pullout strength and very reliable strain relief • Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection Accessories Approvals 1 removal tool included per pack. Additional tools are available; see table for part numbers. Technical data Material: - body: special polyamide - seal: special elastomer Color: black (RAL 9005), UV resistant gray (RAL 7001) Part number* black Mounting hole size UL status gray Standard 53112923 53112921 53112882 53112876 53112883 53112877 53112884 53112878 53112924 53112922 Reducer bushing 53112929 53112927 53112885 53112879 53112886 53112880 53112887 53112881 53112931 53112928 Temperature range: - static: -40°C to +100°C - dynamic: -20°C to +100°C Protection: - M12: IP68, 4 bar - M16 - M25: IP68, 5 bar - M32: IP68, 1 bar in mm in Overall length (C) in Clamping range (øF) Wrenching flats (SW1/SW2) Thread length (D) in Hole (øM) Pack size Removal tool in M12 M16 M20 M25 M32 Recognized Recognized Listed Listed Listed 0.177–0.276 0.197–0.394 0.276–0.512 0.354–0.669 0.433–0.787 4.5–7 5–9 7–13 9–17 11–20 0.591/0.709 0.748/0.866 0.985/1.063 1.182/1.339 1.417/1.576 1.576 1.654 1.792 1.910 2.167 0.315 0.315 0.315 0.315 0.315 0.484 (-.008) 0.642 (-.008) 0.799 (-.008) 0.996 (-.008) 1.272 (-.008) 50 50 25 25 25 53112696 53112697 53112698 53112699 53112797 M12 M16 M20 M25 M32 Recognized Recognized Listed Listed Listed 0.1385–0.197 0.157–0.276 0.197–0.394 0.236–0.512 0.276–0.591 3.5–5 4–7 5–10 6–13 7–15 0.591/0.709 0.748/0.866 0.985/1.063 1.182/1.339 1.417/1.576 1.576 1.654 1.792 1.910 2.167 0.315 0.315 0.315 0.315 0.315 0.484 (-.008) 0.642 (-.008) 0.799 (-.008) 0.996 (-.008) 1.272 (-.008) 50 50 25 25 25 53112696 53112697 53112698 53112699 53112797 * Suitable for wall thickness of 1 - 4 mm (0.039 - 0.157 in) If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. 500 for current information see: www.lappusa.com • www.lappcanada.com
