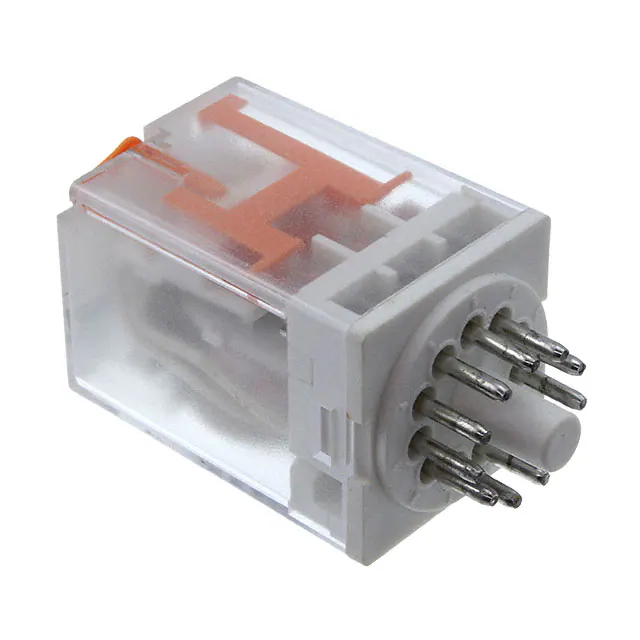

Industrial Relay Type RCI Monostable l l l l l l l l l l l 8 or 11- pin socket mounting 2 or 3 change over contacts 10A maximum switching current 250 VAC/VDC maximum switching voltage AC coils 12 ~ 240 VAC DC coils 12 ~ 110VDC Electrical life of 100,000 cycles Mechanical life of 10,000,000 cycles DIN sockets with two terminal layout options Standard indicating LED, push arm and test flag UL, CSA, CE, ROHS approvals Product Description Ordering Key The RCI is an industrial relay available in 2 or 3 change that can be used in a wide over contacts configurations. range of applications. It is Type Contact Code Coil Type Coil Voltage Product Selection Type Selection C US RCI 003 A 24V Type Contact Code Coil Type Coil Voltage RCI 002 - DPDT A - AC 12V, 24V, 48V, 120V, 240V AC 003 - 3PDT D - DC 5V, 6V, 12V, 24V, 48V, 110V DC Product Selection Part Number RCI002A12V RCI002A24V RCI002A48V RCI002A120V RCI002A240V RCI002D5V RCI002D6V RCI002D12V RCI002D24V RCI002D48V RCI002D110V Contact Code DPDT 2 change over contacts, 8-pins Coil voltage 12 VAC 24 VAC 48 VAC 120 VAC 240 VAC 5 VDC 6 VDC 12 VDC 24 VDC 48VDC 110 VDC Stock Code D A D A A A D A A D D Part Number RCI003A12V RCI003A24V RCI003A48V RCI003A120V RCI003A240V RCI003D5V RCI003D6V RCI003D12V RCI003D24V RCI003D48V RCI003D110V Contact Code 3PDT 3 change over contacts, 11-pins Coil voltage 12 VAC 24 VAC 48 VAC 120 VAC 240 VAC 5 VDC 6 VDC 12 VDC 24 VDC 48VDC 110 VDC Stock Code D A D A A A D A A D D Contact Characteristics Arrangement: DPDT, 3PDT Material : AgSnO2 Contact Rating: 10A 250VAC/30VDC Contact Resistance: ≤ 100 mOhms (at 6 VDC 1A) Hp rating at 240VAC 1/3 Hp Reaction Time to Close: ≤ 20ms Maximum Switching Voltage: 250VAC / 30VDC Reaction Time to Open: ≤ 20ms Minimum Switching Current: 100mA 5VDC Electrical Life: 100,000 cycles (1800 per hour) Mechanical Life 10,000,000 cycles (18,000 per hour) Specifications are subject to change without notice ­— December 2019 1 Electrical Relay Industrial Type RCI Monostable Coil Characteristics AC Coil Coil Code 12V 24V 48V 120V 240V Nominal Voltage VAC 12V 24V 48V 110/120V 220/240V DC Coil Pick-up Drop-out at +23°C ≥ VAC ≤ VAC 80% 30% Coil Resistance Ω ±10% 18 72 288 1650 6800 Coil Power VA aprox. 2.8 Coil Code 5V 6V 12V 24V 48V 110V AC Coil Nominal Voltage VAC 5V 6V 12V 24V 48V Pick-up Drop-out at +23°C ≥ VAC ≤ VAC 80% 10% 110V Coil Resistance Ω ±10% 15.6 22.5 90 360 1440 Coil Power VA aprox. 1.6 7000 Minimum and Maximum Coil Voltage vs Ambient Temperature DC Coil 1- Maximum coil voltage vs. temperature 2- Minimum coil voltage vs. temperature Insulation Environmental Specifications Between Open Contacts (1mA leakage) ≥ 1000 VAC for 1 minute Operational Temperature -40°C ~ +55°C ≥ 1200 VAC for 1 second Operational Humidity Between Contact and Coil and ≥ 1500 VAC for 1 minute 35% ~ 85% Contact to Contact (1mA leakage) ≥ 1700 VAC for 1 second Storage Temperature -40°C ~ +55°C 20% ~ 85% Storage Humidity Dimensions RCI002 RCI003 RCI002 RCI003 Diagram Specifications are subject to change without notice ­— December 2019 2 Electrical Relay Industrial Type RCI Monostable Accessories Part Number Description Stock Code ZCI08 DIN Socket for RCI002 relay without holding spring A ZCI11 DIN Socket for RCI003 relay without holding spring A ZCIK53 Metal holding spring for for ZCI08 and ZCI11 sockets A Socket Specifications Arrangement: 8-PIN, 11-PIN DIN-rail standard 35 mm Insertion and extraction force 30-130 N (8-PIN), 40-150 N (11-PIN) Load capacity Max screw torque 0.8Nm (7.1 lb-inch) 400VAC, 10A Operational temp. range Dialectric strength > 2000V -40°C ~ +85°C Wire size range 20-14 AWG / 0.5-2.5 mm2 ZCI08 ZCI11 Agency Approvals C E489542 E489543 US 269657 Specifications are subject to change without notice ­— December 2019 3
