PRT-10474

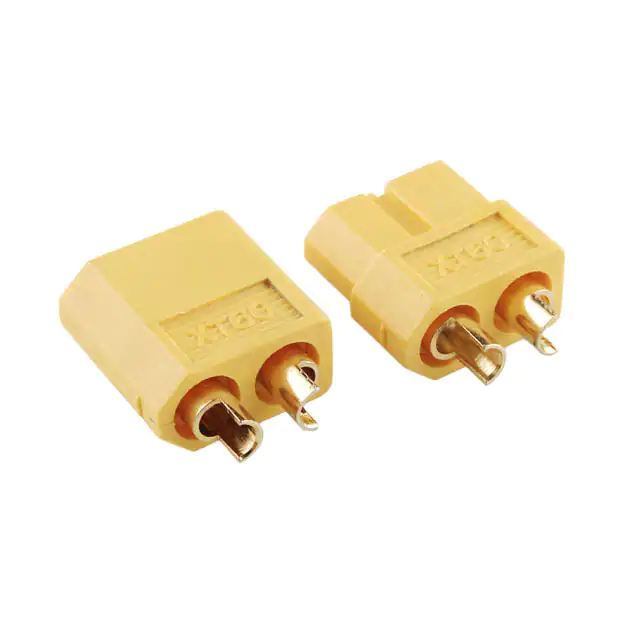

4 3 1 2 .6250 [15,875] .6250 [15,875] D .6195 [15,735] .5640 [14,326] .3200 [8,128] C .6195 [15,735] .6250 [15,875] D .6195 [15,735] .3200 [8,128] C .7865 [19,977] .8300 [21,082] B B SCALE 5.000 These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in. The shape of the XT60 prevents reverse polarity, and when plugged in the connection is super-solid. Perfect for applications up to and beyond 65A continuous draw. Sold in pairs of 1 male and 1 female connector. A MATERIAL: Nylon + Metal XT60 Connectors - Male/Female Pair PRT-10474 PAGE SIZE C DESCRIPTION: Paul Smith 10 July 2013 2 22 x 17 INCH DRAWN BY: SCALE: 5.00 DATE: UNITS: inch [mm] VER: 1.0 CAD APLICATION: Creo Parametric 2.0 3 https://www.sparkfun.com/products/10474 A NOTES: 4 XT60 Connector MODEL NAME: SHEET 1 / 1 1
