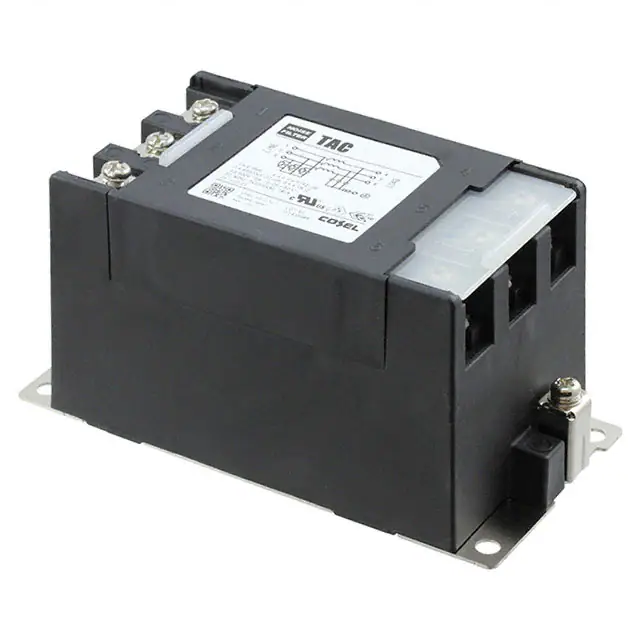

TAC-20-683

Ordering information Three phase input type (1-Stage filter) TAC/TAH series (4-30A) TAC -10 -683 1 2 -O 3 4 1 Series Name 2 Rated Current 3 Line to ground capacitor code: Refer to table 1.1. R table1.1 Line to ground capacitor code Line to ground Leakage Current capacitor (Input 250/500V 60Hz) (nominal value) 0.5mA/1.0mA max 10,000pF 1.0mA/2.0mA max 22,000pF 2.5mA/5.0mA max 68,000pF Code 103 223 683 * When the line to ground capacitor code is different, the attenuation characteristic is different. 4 Option D :DIN rail installation type * The dimensions change when the option is set. Refer to External view. The terminal cover is retracted inside the unit DIN rail installation type is option Features of TAC/TAH series -Three phase rated voltage 500VAC (voltage range:528V max) (1-Stage filter) -Selectable leakage current value - Quick and easy push-down terminal Just connect the wires, push-down and tighten the screws with a screwdriver. TAC : High-attenuation type from 150kHz to 1MHz TAH : Ultra high-attenuation type from 9kHz to 1MHz Specifications No. 1 Items Rated Voltage[V] TAC-04-683 TAC-06-683 TAC-10-683 TAC-20-683 TAC-30-683 TAH-04-683 TAH-06-683 TAH-10-683 TAH-20-683 TAH-30-683 20 30 AC Three Phase 500 (voltage range:528 max) 50/60Hz 2 Rated Current[A] 4 3 Test Voltage (Terminal-Mounting Plate) 2,000 VAC (Cutoff Current = 100mA), 1minute at room temperature and humidity 6 10 4 Isolation Resistance (Terminal-Mounting Plate) 500 VDC 100MW min at room temperature and humidity 5 Leakage current Refer to table 1.1 6 Voltage drop 1.5V max 7 Safety agency approval temperatures -25 to +85C (Refer to Derating Curve) 8 Operating temperature -40 to +85C (Refer to Derating Curve) 9 Operating humidity 20 to 95%RH (Non condensing) 10 Storage temperature/humidity -40 to +85C/20 to 95%RH (Non condensing) 11 Vibration 10 to 55Hz, 19.6m/s2(2G), 3min. Period, 1hour each X, Y and Z axis 12 Impact 196.1m/s2(20G), 11ms Once each X, Y and Z axis 13 Safety agency approvals UL1283, CSA C22.2 No.8 (C-UL) , DIN EN60939 VDE0565 Teil3-1, ENEC 14 Case size (without projection) /Weight 63X64X128 mm [2.48X2.52X5.04 inches] (WXHXD) / 620g max (Option : -D refer to external view) Circuit Diagram 1.0V max Derating Curve Case LOAD 1 4 2 5 3 6 TA-1 80 60 40 20 0 -40 CY CY CY : Line to ground capacitor 100 Load Factor [%] LINE -30 -20 40 50 60 70 Ambient Temperature [C] : Mounting Plate September 16, 2021 80 90 TAC/TAH series(4-30A) External view This product is shipped in the following condition, because it is equipped with push-down terminals. 1The terminal cover is retracted inside the unit. 2The screws for connecting the terminals are held in the up right position. Standard Type Mounting Plate 128 [5.04] 118 ±0.5 Protection Earth [4.65] Input Terminal (2.5) 50 [0.1] [1.97] 83.5 [1.97] Output Terminal Terminal cover 7-M4 [2.48] 50 ±0.5 12 Output Terminal 63 Name Plate [0.47] 19 [0.75] Output Terminal Input Terminal Terminal cover 20 [0.79] [3.29] 4-f5.5 Mounting Hole (2) 64 ¶ Tolerance : ±1 [±0.04] ¶ Weight : 620g max ¶ Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04] ¶ Case : PBT ¶ Dimensions in mm, [ ]=inches ¶ Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max [2.52] ¶ Closed the terminal cover [0.08] [0.22] DIN rail installation Type (2.5) [0.1] Protection Earth [3.29] 50 [1.97] 20 [0.79] [2.48] 63 Output Terminal 12 Name Plate [0.47] Output Terminal Input Terminal Output Terminal ¶ Tolerance : ±1 [±0.04] ¶ Weight : 620g max ¶ Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04] ¶ Case : PBT ¶ Dimensions in mm, [ ]=inches ¶ Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max 7 DIN rail [0.28] (9) [0.35] 64 [2.52] ¶ Closed the terminal cover [0.08] Terminal cover 7-M4 (2) Terminal cover Mounting Plate [0.39] [0.43] 83.5 [0.75] 19 10 (11) 108 [4.25] Input Terminal ¡Note when installing the EMI/EMC Filter on a DIN rail. DIN rail When the EMI/EMC Filter is grounded through the DIN rail, the proper noise attenuation may not be achieved. Be sure to connect the protection earth (PE) of the EMI/EMC Filter body to the earth. Name Plate September 16, 2021 TA-2
