INL-3AX30

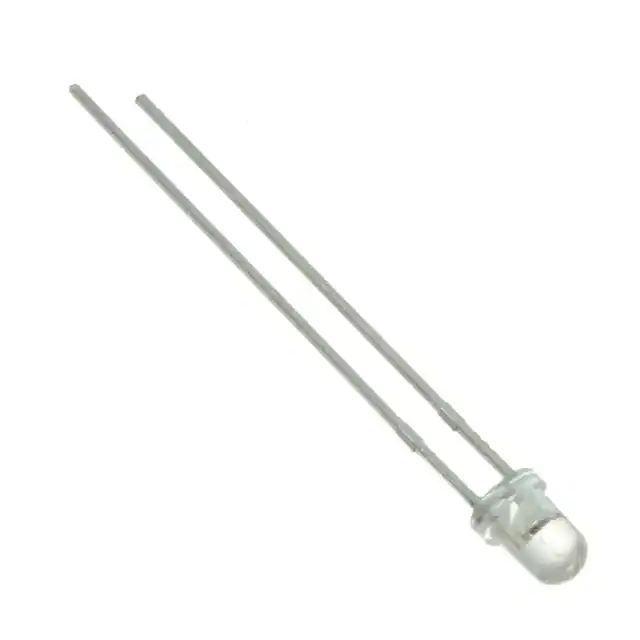

3 mm Through Hole Lamp
Features
Description
•
3mm Through hole, 5.08mm lens height
•
High Brightness
The INL-3AX30 is high brightness 30 degrees
•
Water Clear lens
through-hole lamp. It is a 3mm epoxy type LED which
•
InGaN / AlInGaP Technology
can be used in various applications.
•
Special packaging available upon request
•
High reliability
Applications
•
Consumer Electronics
•
Variable Message Signs (VMS)
•
Automobile After Market
•
Industrial Equipment
•
Advertising Signs
Package Dimensions in mm
Inolux Corporation
Proprietary & Confidential
Figure 1. INL-3AX30 Package Dimensions
July 10, 2017
Page 1
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Absolute Maximum Rating at 25oC (Note 1)
Product
Emission
Color
INL-3AYG30
Yellow Green
INL3AY30
Yellow
INL3AA30
Amber
INL3AR30
Red
INL3AB30
Blue
INL3AG30
Green
INL3AW30
White
Pd (mW)
IF (mA)
IFP* (mA)
65
25
100
95
25
VR (V)
TOP (oC)
5
-40 C~+85 C
o
TST (oC)
o
o
o
-40 C~+100 C
100
Notes
1. Condition for IFP is pulse of 1/10 duty and 0.1msec width
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 2
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Electrical Characteristics T
A
= 25°C (Note 1)
VF(V)
Emission
Color
IF(mA)
INL-3AYG30
Yellow
Green
INL3AY30
Product
Viewing
Angle
λ(nm)
I*V(mcd)
min
max
λD
λP
△λ
2θ1/2
min
typ.
20
1.6
2.6
573
575
20
30
160
270
Yellow
20
1.6
2.6
592
590
15
30
270
460
INL3AA30
Amber
20
1.6
2.6
610
605
35
30
270
460
INL3AR30
Red
20
1.6
2.6
632
624
20
30
460
780
INL3AB30
Blue
20
2.6
3.8
470
468
25
30
3800
5000
INL3AG30
Green
20
2.8
3.8
525
520
35
30
11000 18000
INL3AW30
White
20
2.8
3.8
30
5000
X = 0.28
Y = 0.28
8500
Notes
1. Performance guaranteed only under conditions listed in above tables.
ESD Precaution
ATTENTION: Electrostatic Discharge (ESD) protection
The symbol above denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based chips is necessary even
though they are relatively safe in the presence of low static-electric discharge. Parts built with AlInGaP, GaN, or/and InGaN based
chips are STATIC SENSITIVE devices. ESD precaution must be taken during design and assembly.
If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process.
Please be advised that normal static precautions should be taken in the handling and assembly of this device to prevent damage or degradation which
may be induced by electrostatic discharge (ESD).
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 3
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Chromaticity Bin ( For White Only)
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 4
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 5
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Typical Characteristic Curves – YG, Y, A, R
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 6
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Typical Characteristic Curves – B, G, W
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 7
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Typical Characteristic Curves – Radiation Pattern
Ordering Information
Product
Emission
Test Current
Technology
Color
IF (mA)
Luminous Intensity
IV (mcd)
(Typ.)
Forward
Voltage
VF (V)
(Typ.)
Orderable
Part Number
INL-3AYG30
Yellow
Green
AlInGaP
20
270
2.0
INL-3AYG30
INL3AY30
Yellow
AlInGaP
20
460
2.0
INL3AY30
INL3AA30
Amber
AlInGaP
20
460
2.0
INL3AA30
INL3AR30
Red
AlInGaP
20
780
2.0
INL3AR30
INL3AB30
Blue
InGaN
20
5000
3.2
INL3AB30
INL3AG30
Green
InGaN
20
18000
3.2
INL3AG30
INL3AW30
White
InGaN
20
8500
3.1
INL3AW30
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 8
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Label Specifications
Inolux P/N:
I
N
L
-
3
A
Material
Inolux
Through Hole
Lamp
3A = 3mm
with flange,
5.08 height
Y
3
0
-
Customized
Stamp-off
Lens
Color
View Angle
(Blank)
=
Clear
Lens
R=636nm
A=609nm
Y=593nm
YG=574nm
G=530nm
B=468nm
W=White
30 = 30 deg.
X
X
X
X
Lot No.:
Z
Internal
Tracker
2
0
1
7
Year (2017, 2018, …..)
Inolux Corporation
Proprietary & Confidential
01
24
001
Month
Date
Serial
July 10, 2017
Page 9
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Soldering
Recommended soldering conditions:
Soldering Iron
Basic Spec is Max 3 sec. @ 300°C. Lamps without stopper must leave a min. of 3mm clearance
from base of the lens to the soldering point.
Rework
Caution is advised when rework is performed. Rework should be completed within 4 second under 245°C using
a double-headed soldering iron.
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 10
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Reliability
Item
Precondition
Frequency/ lots/ samples/
failures
For all reliability
monitoring tests according
to JEDEC Level 2
1Q/ 1/ 22/ 0
Solderability
Standards
Reference
J-STD-020
CNS-554
1.) Baking at 85°C for 24hrs
2.) Moisture storage at 85°C/ 60% R.H. for
168hrs
Accelerated aging 155°C/ 24hrs
Tinning speed: 2.5+0.5cm/s
Tinning: A: 215°C/ 3+1s or B: 260°C/ 10+1s
Dipping soldering terminal only
Soldering bath temperature
A: 260+/-5°C; 10+/-1s
B: 350+/-10°C; 3+/-0.5s
1.) Precondition: 85°C baking for 24hrs
85°C/ 60%R.H. for 168hrs
2.) Tamb25°C; IF=20mA; duration 1000hrs
Tamb: 85°C
Humidity: 85% R.H., IF=5mA
Duration: 1000hrs
Tamb: 55°C
IF=20mA
Duration: 1000hrs
Tamb25°C, If=20mA,, Ip=100mA, Duty
cycle=0.125 (tp=125μs,T=1sec)
Duration 500hrs)
A cycle: -40 degree C 15min; +85 degree C
15min
Thermal steady within 5 min..
300 cycles
2 chamber/ Air-to-air type
60+3°C
90+5/-10% R.H. for 500hrs
100+10°C for 500hrs
CNS-6118
-40+5°C for 500hrs
JESD22-B102-B
And CNS-5068
CNS-5067
Resistance to
soldering heat
1Q/ 1/ 40/ 0
CNS-11829
Operating life test
High humidity,
1Q/ 1/ 45/ 0
high temperature
bias
1Q/ 1/ 20
High temperature
bias
JESD-A101-B
IN specs.
1Q/ 1/ 40/ 0
Pulse life test
1Q/ 1/ 76/ 0
Temperature
cycle
High humidity
1Q/ 1/ 40/ 0
storage test
High temperature 1Q/ 1/ 40/ 0
storage test
Low temperature 1Q/ 1/ 40/ 0
storage test
JESD-A104-A
IEC 68-2-14, Nb
CNS-6117
Inolux Corporation
Proprietary & Confidential
Conditions
July 10, 2017
Page 11
www.inolux-corp.com
INL-3AX30
3 mm Through Hole Lamp
Revision History
Changes since last revision
Initial Release
Page
Version No.
1.0
Revision Date
07-10-2017
DISCLAIMER
INOLUX reserves the right to make changes without further notice to any products herein to improve reliability, function or design. INOLUX does not
assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent
rights, nor the rights of others.
LIFE SUPPORT POLICY
INOLUX’s products are not authorized for use as critical components in life support devices or systems without the express written approval of the
President of INOLUX or INOLUX CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life,
and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to
result in a significant injury of the user.
2. A critical component in any component of a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or system, or to affect its safety or effectiveness.
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 12
www.inolux-corp.com
