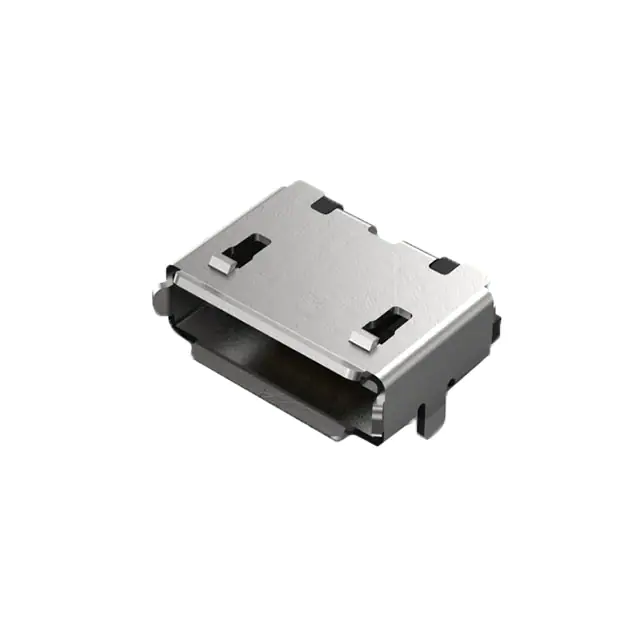

USB3090-30-A

1.00 7.15 H Designed to comply with physical, electrical and environmental requirements of Micro USB Standard (USB2.0), A/B types support USB On-The-GO (OTG) interface. PCB Mount Orientation 2.60 G 1.30 2.60 1.40 0.25±0.05 0.40 1.30 1.05 0.45 F 5 4.00 Specifications 规格: 1.45 5.5±0.2 0.49 1 PCB Edge Materials 材料: Plastic Housing 塑胶外壳: LCP, UL94V-0, Black Contact Terminal 接触端子: Copper Alloy Metallic Shell 金属外壳: Stainless Steel SUS 304 T = 0.25mm 7.15 6.20 0.60±0.04 Plating电镀: Underplating 底层电镀: 50µ" Nickel Finish表面处理:Contact Area 接触面积: 30µ" Gold plating Solder Tails 焊接末端: Gold Flash Metallic Shell 金属外壳: Matte Tin Recommended PCB Layout General Tolerance: ±0.05 as viewed from component side 6.90+0.04 -0.02 Solder Area 2.60 Component Outline 0.05±0.05 2.35 2.7 5 C 1.85+0.04 -0.02 1.30 1 2.00 4.30 4.75 D 1.25 E 1.85 0.50 Electrical 电气规格: Voltage Rating电压额定值: 30V AC Current Rating电流额定值: Signal(Pins 2,3,4): 1.0 A Power (Pins1,5): 1.8A   Operating Temperature 工作温度: -30°C to +85°C Contact Resistance接触电阻值: 30 mΩ max. Insulating Resistance绝缘电阻值: 1000 MΩ min. Dielectric Withstand Voltage耐电压: 500 V AC/Minute 0.90 3.50 2.15 B 2.85 Mechanical 机械性规格: Mating Force插入力: 35N max. Unmating Force拨出力: Initial 10N min. Final 8N min after durability test. Durability耐久性: 10,000 Cycles Ordering Grid USB3090 30 A Contact Plating 30 = 30u" Gold Request Samples and Quotation Packing Options A = Tape & Reel Part Number Product Description (1.5K per Reel) USB3090 Micro USB Receptacle, Type AB SMT, R/A, Bottom Mount, w/out Peg, w/outer shell stakes Drawing Date A 4th April 2011 By Detail 7.40 1 2 3 4 Revision Date 5 CC Tolerances (Except as Noted) USB3090 E PCN E2 17/02/17 X.X° ± 2° X.X ± 0.3 X.XX ± 0.20 X.XX° ± 1° X.XXX ± 0.10 X.XXX° ± 0.5° Length Angle 6 Units: Metric (mm) C 3rd Angle Projection 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By SA 8 Sheet No. 1/2 FIRST APPROXIMATELY 15PCS EMPTY CARRIER H 4.0 FIRST APPROXIMATELY 15PCS EMPTY CARRIER 12.0 16.0 4.0 G I/O Direction 卷盘绕逆时针方向转动 F Peel off Angle 剥离角度 Products P/N PCS/Reel Reels/Carton PCS/Carton USB3090-30-A 1500 4 6000 10° Cover Tape 盖带 Carrier Tape 载带 ø330 3 ° 120 Ø2 Notes注意: 1. Peeling off force of top tape: 0.1-1.3N 2. Part Conforms to EIA-481-C Standards产品符合EIA-481-C标准 3. All dimensions in millimeters 所有尺寸均是毫米 4. 10 sprocket hole pitch cumulative tolerance±0.2mm Ø13.5 E 120° Detail F 6 PS Cardboard 纸板 Detail F Reel 卷筒 D Waterproof bag 防水袋 Label 标签 Carton 纸箱 Triangle Liner 三角形班轮 Protection Tape 保护胶带 160mm C 4 Reels 4 卷轴 1500 pieces/reel 1500 件/卷 35 0m m 700x600x0.08 B Part Number Product Description USB3090 Micro USB Receptacle, Type AB SMT, R/A, Bottom Mount, w/out Peg, w/outer shell stakes Drawing Date A 4th April 2011 By Detail 1 2 3 4 m 0m 35 Revision Date 5 CC USB3090 E PCN E2 17/02/17 Tolerances (Except as Noted) Length Angle Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By SA 8 Sheet No. 2/2
