Ordering information
Single phase input type (1-Stage filter)

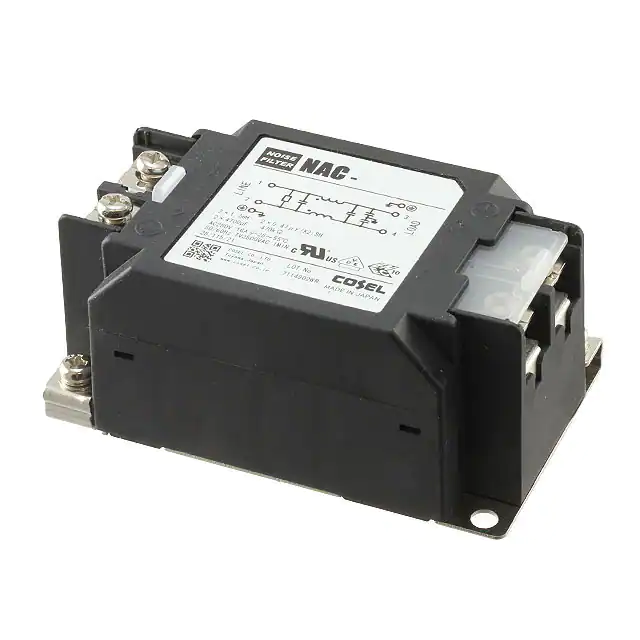

NAC/NAM/NAH/NAP series(4-30A)
NAC -10 -472
1
2
3
-O
4
1 Series Name
2 Rated Current
3 Line to ground capacitor code: Refer to table 1.1.
R
Code
000
101
221
331
471
681
102
222
332
472
NAP
NAH
NAM
NAC
table1.1 Line to ground capacitor code
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Line to ground
Leakage Current
capacitor
(Input 125/250V 60Hz) (nominal value)
A / 10 A max Not Provided
● 5
100pF
● 12.5 A / 25 A max
A / 50 A max
220pF
● 25
330pF
● 37.5 A / 75 A max
A / 100 A max
470pF
● 50
680pF
● 75.5 A / 150 A max
● 0.13 mA / 0.25mA max 1,000pF
● 0.25 mA / 0.5 mA max 2,200pF
● 0.38 mA / 0.75mA max 3,300pF
● 0.5 mA / 1.0 mA max 4,700pF
*When the line to ground capacitor code is
different, the attenuation characteristic is
different.
4 Option
D :DIN rail installation type
The terminal cover is retracted inside the unit
DIN rail installation type is option
* The dimensions change when the option is set.
Refer to External view.
Features of NAC/NAM/NAH/NAP series
-Single Phase 250VAC (1-Stage filter)
Quick and easy push-down terminal
-
Just connect the wires, push-down and tighten the screws with a screwdriver
NAC : High-attenuation type from 150kHz to 1MHz
NAH : Ultra high-attenuation type from 9kHz to 1MHz
NAM : Low leakage current type
NAP : Outside impulse high-attenuation type
Specifications
No.
Items
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Rated Voltage[V]
Rated Current[A]
Test Voltage (Terminal-Mounting Plate)
Isolation Resistance (Terminal-Mounting Plate)
Leakage current
Voltage drop
Safety agency approval temperatures
Operating temperature
Operating humidity
Storage temperature/humidity
Vibration
Impact
Safety agency approvals
Case size (without projection) /Weight
NAC-04-472
NAC-06-472
NAC-10-472
NAC-16-472
NAC-20-472
NAC-30-472
NAM-04-000
NAM-06-000
NAM-10-000
NAM-16-000
NAM-20-000
NAM-30-000
NAH-06-472
NAH-10-472
NAH-16-472
NAH-20-472
NAH-30-472
NAP-04-472
NAP-06-472
NAP-10-472
NAP-16-472
NAP-20-472
NAP-30-472
AC 1f 250 / DC250
4
6
10
16
20
30
2,500 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
500 VDC 100MW min at room temperature and humidity
Refer to table 1.1
1.0V max
-25 to +85C (Refer to Derating Curve)
-40 to +85C (Refer to Derating Curve)
20 to 95%RH (Non condensing)
-40 to +85C/20 to 95%RH (Non condensing)
10 to 55Hz, 19.6m/s2 (2G), 3min. Period, 1hour each X, Y and Z axis
196.1m/s2 (20G), 11ms Once each X, Y and Z axis
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
53X41X92 mm [2.09X1.61X3.62 inches] (WXHXD) /300g max (Option : -D refer to external view)
Circuit Diagram
Derating Curve
Case
1
CY
LINE
CY
2
3
LOAD
4
Load Factor [%]
100
80
60
40
20
0
-40
CY : Line to ground capacitor
NA-1
-30
-20
40
50 55 60
Ambient Temperature [C]
: Mounting Plate
September 16, 2021
70
80
90
NAC/NAM/NAH/NAP series(4-30A)
External view
This product is shipped in the following condition, because it is equipped with push-down terminals.
1The terminal cover is retracted inside the unit.
2The screws for connecting the terminals are held in the up right position.
Standard Type
92
[3.62]
(2.5)
82 ±0.5
[3.23]
2-f4.8
77
[0.19]
Mounting Hole
27
[1.06]
[0.1]
2-Protection Earth
8
[0.31]
[3.03]
[0.47]
53
[2.09]
[1.77]
45 ±0.5
Output
Terminal
Name Plate
[0.59]
Output
Terminal
12
15
Input
Terminal
Input
Terminal
6-M4
Mounting Plate
(2)
¶ Closed the terminal cover
[0.08]
Terminal cover
Terminal cover
¶ Tolerance : ±1 [±0.04]
¶ Weight : 300g max
41
[1.61]
¶ Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04]
¶ Case : PBT
¶ Dimensions in mm, [
]=inches
¶ Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max
DIN rail installation Type
92
(11)
[3.62]
[0.43]
77
[3.03]
(2.5)
2-Protection Earth
27
[0.1]
[1.06]
8
[0.31]
[0.47]
53
[2.09]
Output
Terminal
Name Plate
[0.59]
12
Output
Terminal
Input
Terminal
6-M4
Terminal cover
Mounting Plate
(2)
Terminal cover
¶ Closed the terminal cover
[0.08]
15
Input
Terminal
41
[1.61]
¶ Tolerance : ±1 [±0.04]
¶ Weight : 300g max
¶ Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04]
¶ Dimensions in mm, [
[0.35]
]=inches
¶ Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max
7
DIN rail
[0.28]
(9)
¶ Case : PBT
¡Note when installing the EMI/EMC
Filter on a DIN rail.
When the EMI/EMC Filter is grounded through
the DIN rail, the proper noise attenuation may not
be achieved.
Be sure to connect the protection earth (PE) of
the EMI/EMC Filter body to the earth.
At least one PE connection is required.
DIN rail
Name Plate
September 16, 2021
NA-2
Ordering information
Single phase input type (1-stage filter)
NAC/NAM/NAH/NAP series (40,50,60A)
NAC -50 -472
1
2
3
-O
4
1 Series Name
2 Rated Current
3 Line to ground capacitor code:Refer to table 1.1 and table 1.2.
4 Option
F:High input voltage (500VAC/600VDC)
R
table1.1 Line to ground capacitor code (Standard)
000
471
222
472
223
683
224
155
The terminal cover is retracted inside the unit
NAP ● ● ● ● ● ●
NAH ● ● ● ● ● ●
NAM ● ●
● ● ● ● ● ●
NAC
Code
Leakage Current
(Input 125/250V 60Hz)
5
A/ 10 A max
50
A/ 100 A max
0.25 mA/ 0.5 mA max
0.5 mA/ 1.0 mA max
1.25 mA/ 2.5 mA max
1.75 mA/ 3.5 mA max
6.0 mA/ 12.0 mA max
27.5 mA/ 55.0 mA max
Line to ground
capacitor
(nominal value)
Not Provided
470pF
2,200pF
4,700pF
0.022 F
0.068 F
0.22 F
1.5 F
DIN rail installation type is option
table1.2 Line to ground capacitor code (Option: F)
103
223
683
NAP ● ● ●
NAH ● ● ●
NAM
NAC ● ● ●
Code
Line to ground
capacitor
(nominal value)
0.5 mA/ 1.0 mA max
0.01 F
1.0 mA/ 2.0 mA max
0.022 F
2.5 mA/ 5.0 mA max
0.068 F
Leakage Current
(Input 250/500V 60Hz)
* When the line to ground capacitor code is
different, the attenuation characteristic is
different.
Features of NAC/NAM/NAH/NAP series
- Single Phase 277VAC/300VDC (1-stage filter)
This product is available 277VAC equipment in factory switchboards and building equipment
- Withstand voltage 4,000 VAC (Line to ground capacitor code -000 to -472)
NAC : High-attenuation type from 150kHz to 1MHz
NAH : Ultra high-attenuation type from 9kHz to 1MHz
NAM : Low leakage current type
NAP : Outside impulse high-attenuation type
Specifications
No.
Items
NAC-40-472
NAC-50-472
NAC-60-472
NAM-40-000
NAM-50-000
NAM-60-000
NAH-40-472
NAH-50-472
NAH-60-472
NAP-40-472
NAP-50-472
NAP-60-472
[VAC]
277 (voltage range : 305 max) 1f 50/60Hz [Option : F 500 (voltage range : 528 max) 1f 50/60Hz]
[VDC]
300 (voltage range:400 max) [Option : F 600]
1
Rated Voltage
2
Rated Current[A]
40
3
Test Voltage (Terminal-Mounting Plate)
4,000 VAC (Cutoff Current = 25mA), 1minute at room temperature and humidity *1 *2
4
Isolation Resistance (Terminal-Mounting Plate)
500 VDC 100MW min at room temperature and humidity *3
5
Leakage current
Refer to table 1.1 and table 1.2
6
DC resistance
10mΩ max
7
Safety agency approval temperatures
-25 to +85C (Refer to Derating Curve)
8
Operating temperature
-40 to +85C (Refer to Derating Curve)
9
Operating humidity
20 to 95%RH (Non condensing)
10
Storage temperature/humidity
-40 to +85C/20 to 95%RH (Non condensing)
11
Vibration
10 to 55Hz, 19.6m/s2 (2G), 3min. Period, 1hour each X, Y and Z axis
12
Impact
13
Safety agency approvals
196.1m/s2 (20G), 11ms Once each X, Y and Z axis
UL60939 [Overvoltage Category : Ⅲ Altitude:3000m], CSA C22.2 No.8 (C-UL)
EN60939 (DEMKO) [Overvoltage Category: Ⅲ Altitude:3000m] , ENEC
14
Case size (without projection) /Weight
50
6.0mΩ max
60
4.5mΩ max
65×54×153mm [2.56×2.13×6.02 inches] (W×H×D) / 750g max
*1 "NAO-OO-OOO-F" : 2,500 VAC (Cutoff Current = 100mA) , 1 minute at room temperature and humidity.
*2 Capacitor code “223”,“683”,“224” and “155” of "NAO-OO-OOO" : 2,800VDC (Cutoff Current = 10mA) , 1 minute at room temperature and humidity.
*3 Capacitor code “224” and “155” : isolation resistance specification is deleted.
NA-9
September 16, 2021
NAC/NAM/NAH/NAP series (40,50,60A)
Circuit Diagram
Derating Curve
(1) Line to ground capacitor code :000,471,222,472,223
100
(2) Line to ground capacitor code :683
Case
1
3
LOAD
LINE
2
4
1
3
LINE
2
LOAD
4
CY
CY
CY : Line to ground capacitor
Load Factor [%]
Case
80
70
60
40
20
10
0
-40
-30
CY : Line to ground capacitor
: Mounting Plate
-20
40
50 55 60
70 75 80
90
Ambient Temperature [C]
CY
＊Keep free ventilation holes for cooling.
: Mounting Plate
(4) Line to ground capacitor code :103,223,683
Option : F
(3) Line to ground capacitor code :224,155
Case
Case
1
3
LINE
2
LOAD
4
1
3
LINE
2
LOAD
4
CY
CY
CY
CY : Line to ground capacitor
: Mounting Plate
CY : Line to ground capacitor
: Mounting Plate
External view
153
2-f5.5×7 [0.22×0.28]
Mounting Hole
[6.02]
M4
Protective
Earthing
109.6
41.1
[4.31]
[1.62]
2-M5
Input
Terminal
2-M5
Output
Terminal
[2.17]
55±0.5
13.5
[0.53]
36
[1.42]
Mounting Plate
2-f5.5 [0.22]
Mounting Hole
M4
Protective
Earthing
Terminal Cover
140±0.5
11.5
11.5
[0.04]
[2.13]
[0.45]
54 -1
+3
1 -0.5
+1.5
[5.51]
[0.45]
+2
65 -1
[2.56]
Name Plate
¶ Dimensions in mm, [ ]=inches
¶ Tolerance:�1 [�0.04]
¶ Weight:750g max
¶ Mounting Plate:Hot-dip Galvanized Steel board t =1.0 [0.04]
¶ Case Material:PBT
¶ Terminal block screw tightening torque M5:3.0N·m max
¶ Protective Earthing (PE) screw tightening torque M4 :1.6N·m max
¶ Can not be mounted upside-down. (mounted the top surface)
¶ Keep free ventilation holes for cooling.
¶ Can be mounted using the 2 corner mounting holes.
September 16, 2021
NA-10
