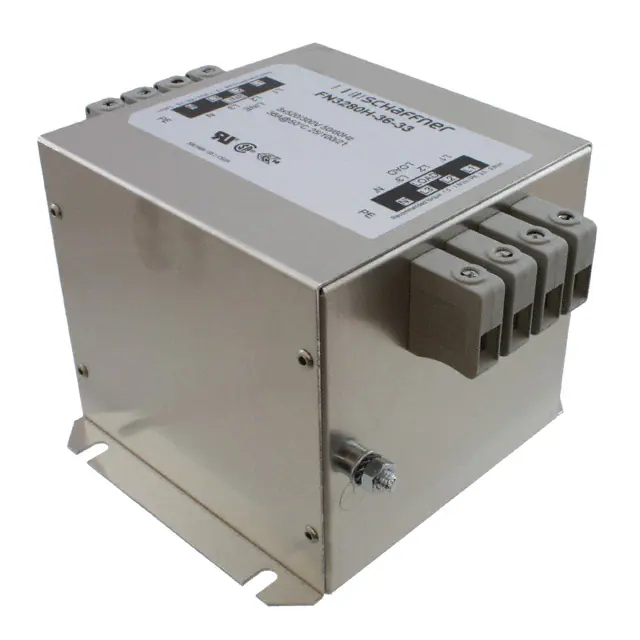

DATA SHEET 3-Phase Filters with Neutral FN3280 High-end Line Filter for Machinery/Equipment Now available up to 600 A Approvals & Compliances Compact, space-saving design, optimized for industrial machinery Combines exceptional attenuation with low leakage current Suitable for machines in mixed/domestic environments (Class A/B) Increases also the immunity if operated directly on the mains input Features and Benefits A compact and light weight filter design with a „cubic“ shape, requiring minimum mounting space and thus taking the constructional conditions on the mains input of machinery into account Performance indicators Simple and time-saving installation with good accessibility for automatic and hand tools Solid, touch-safe terminal blocks (8 to 200 A types) offering sufficient contacting cross section according to the EN 60204-1 installation standard, which is very common in industrial applications As a mains input filter for three phases and neutral line, FN 3280 provides enough performance to ensure EMC compliance of machinery in mixed (Class A) or even domestic (Class B) environments. Further, its use will also increase the immunity of the entire installation significantly FN 3280 provides the attenuation performance needed to meet the requirements of various machine tools with up to 12 driving axes and ~10 to 20 m of motor cable each Technical Specifications Maximum continuous operating voltage 3x 520/300 VAC (480 VAC + 10% possible) Operating frequency DC to 60 Hz Rated currents 8 to 600 A @ 50°C High potential test voltage P/N –> E 2750 VDC for 2 sec P –> P 2250 VDC for 2 sec P -> N 1300 VDC for 2 sec Protection category IP 20 (8 to 200 A types) IP 00 (300 to 600 A types) Overload capability 4x rated current at switch on, 1.5x rated current for 1 minute, once per hour Temperature range (operation and storage) -25°C to +100°C (25/100/21) Flammability corresponding to UL 94 V-2 or better Design corresponding to UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 MTBF @ 50°C/400 V (Mil-HB-217F) >360,000 hours For easy selection and application, the filter current ratings are aligned with common fuse values R69 option for easy compliance to IEC 60204-1 (DIN VDE 0113): Suitable for complex machines, where the overall insulation resistance needs to be higher than 1 MOhm. Typical Applications Mainly industrial equipment, machinery, machine tools and diverse process auto- mation systems with three-phase and neutral electricity supply. Due to the outstanding attenuation performance, FN 3280 is also the first choice for noisy power supplies, renewable energy applications, highpower office equipment and further threephase and neutral devices. Because of the relatively low leakage current, FN 3280 may even be used for some medical devices. Typical electrical schematic 2 3-Phase Filters with Neutral Schaffner Group DATA SHEET 15. Jun 2022 Filter Selection Table Filter Buy FN3280H-8-29 Rated current Leakage current* Power loss Resistance** Resistance** Input/Output @ 50ºC (40ºC) @ 520 VAC/50 Hz @ 25ºC/50 Hz R R1 connections [A] [mA] [W] [kOhm] [kOhm] Weight [kg] 8 (8.8) 10.7 2.7 1500 660 -29 0.8 FN3280H-16-29 16 (17.5) 10.7 6.0 1500 660 -29 0.8 FN3280H-25-33 25 (27) 10.7 11.6 820 660 -33 1.3 FN3280H-36-33 36 (39) 10.7 14.8 820 660 -33 1.6 FN3280H-64-34 64 (70) 10.7 18.4 820 660 -34 2.7 FN3280H-80-35 80 (88) 10.7 18.9 1000 660 -35 4.1 FN3280H-120-35 120 (131) 10.7 28.5 1000 660 -35 5.9 FN3280H-160-40 160 (175) 10.7 30.7 1000 660 -40 7.9 FN3280H-200-40 200 (219) 10.7 46.8 1000 660 -40 8.5 FN3280H-300-99 300 (328) 42.1 20.3 1000 680 -99 10.0 FN3280H-400-99 400 (438) 42.1 36.0 1000 680 -99 10.0 FN3280H-600-99 600 (657) 42.1 64.8 1000 680 -99 11.0 8 (8.8) 10.7 2.7 1500 10000 -29 0.8 FN3280H-16-29-R69 16 (17.5) 10.7 6.0 1500 10000 -29 0.8 FN3280H-25-33-R69 25 (27) 10.7 11.6 1500 10000 -33 1.3 FN3280H-36-33-R69 36 (39) 10.7 14.8 1500 10000 -33 1.6 FN3280H-64-34-R69 64 (70) 10.7 18.4 1500 10000 -34 2.7 FN3280H-80-35-R69 80 (88) 10.7 18.9 1500 10000 -35 4.1 FN3280H-120-35-R69 120 (131) 10.7 28.5 1500 10000 -35 5.9 FN3280H-160-40-R69 160 (175) 10.7 30.7 1500 10000 -40 7.9 FN3280H-200-40-R69 200 (219) 10.7 46.8 1500 10000 -40 FN3280H-300-99-R69 300 (328) 42.1 20.3 1500 10000 -99 10.0 FN3280H-400-99-R69 400 (438) 42.1 36.0 1500 10000 -99 10.0 FN3280H-600-99-R69 600 (657) 42.1 64.8 1500 10000 -99 11.0 FN3280H-8-29-R69 * Standardized calculated leakage current acc. IEC60939 under normal operating conditions. ** Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10% Typical Filter Attenuation Per CISPR 17; A=50 Ω/50 Ω sym; B=50 Ω/50 Ω asym; C=0.1 Ω/100 Ω sym; D=100 Ω/0.1 Ω sym 8 to 36 A types 300 to 600 A types 64 and 80 A types Check distribution inventory 120 A types 160 A types 8.5 3 3-Phase Filters with Neutral Schaffner Group DATA SHEET 15. Jun 2022 Mechanical Data 8 to 200 A types 300 to 600 A types W Z V X G Dimensions 8A 16 A 25 A 36 A 64 A 80 A 120 A 160 A 200 A 300 A 400 A 600 A A 120 120 130 130 160 230 250 280 280 325 325 325 B 143 143 153 153 153 163 170 170 170 220 220 220 C 80 80 115 115 125 125 140 170 170 150 150 150 D 115 115 125 125 125 135 140 140 140 170 170 170 E 80 80 90 90 100 120 200 230 230 120 120 120 F 127.5 127.5 137.5 137.5 137.5 147.5 153.5 153.5 153.5 195 195 195 G 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 12 12 12 H 1 1 1 1 1.5 1.5 1.5 1.5 1.5 2 2 2 I 10.9 10.9 25 25 39 45 45 51 51 58 58 58 J M6 M6 M6 M6 M10 M10 M10 M10 M10 M12 M12 M12 K 12 12 12 12 18 18 17.5 17.5 17.5 20 20 20 L 33 33 50 50 55 45 55 55 55 125 125 125 25 25 25 V W 6 6 8 X 15 15 15 Z Ø10.5 Ø10.5 Ø10.5 All dimensions in mm; 1 inch = 25.4 mm Tolerances according: ISO 2768-m/EN 22768-m Filter Input/Output Connector Cross Sections -29 -33 -34 -35 -40 Solid wire 6 mm2 16 mm2 35 mm2 50 mm2 95 mm2 Flex wire 4 mm2 10 mm2 25 mm2 50 mm2 95 mm2 AWG 10 AWG 6 AWG 2 AWG 1/0 AWG 4/0 0.6-0.8 Nm 1.5-1.8 Nm 4.0-4.5 Nm 7-8 Nm 17-20 Nm AWG type wire Recommended torque 4 3-Phase Filters with Neutral Headquarters, Global Innovation and Development Switzerland Schaffner Holding AG Industrie Nord Nordstrasse 11e 4542 Luterbach +41 32 681 66 26 info@schaffner.com Schaffner Group China Schaffner EMC Ltd. Shanghai T20-3 C, No 565 Chuangye Road,Pudong district 201201 Shanghai +86 2138139500 cschina@schaffner.com Spain Schaffner EMC España Calle Caléndula 93, Miniparc III, Edificio E El Soto de Moraleja, Alcobendas 28109 Madrid +34 917 912 900 spainsales@schaffner.com Finland Schaffner Oy Sauvonrinne 19 H 8500 Lohja +358 50 468 7284 finlandsales@schaffner.com Sweden Schaffner EMC AB Östermalmstrorg 1 114 42 Stockholm +46 8 5050 2425 swedensales@schaffner.com France Schaffner EMC S.A.S. 16-20 Rue Louis Rameau 95875 Bezons +33 1 34 34 30 60 francesales@schaffner.com Switzerland Schaffner EMV AG Industrie Nord Nordstrasse 11e 4542 Luterbach +41 32 681 66 26 switzerlandsales@schaffner.com India Schaffner India Pvt. Ltd Regus World Trade Centre WTC, 22nd Floor Unit No 2238, Brigade Gateway Campus, 26/1, Dr. Rajkumar Road Malleshwaram (W) 560055 Bangalore +91 8067935355 indiasales@schaffner.com © 2022 Schaffner Group The content of this document has been carefully checked and understood. However, neither Schaffner nor its subsidiaries assume any liability whatsoever for any errors or inaccuracies of this document and the consequences thereof. Published specifica-tions are subject to change without notice. Product suitability for any area of application must ultimately be determined by the customer. In all cases, products must never be operated outside their published specifications. Schaffner does not guarantee the availability of all published products. This disclaimer shall be governed by substantive Swiss law and resulting disputes shall be settled by the courts at the place of business of Schaffner Holding AG. Latest publications and a complete disclaimer can be downloa-ded from the Schaffner website. All trademarks recognized. 15. Jun 2022 Sales and Application Centers Germany Schaffner Deutschland GmbH Schoemperlenstrasse 12B 76185 Karlsruhe +49 721 56910 germanysales@schaffner.com To find your local partner within Schaffner‘s global network schaffner.com DATA SHEET Italy Schaffner EMC S.r.l. Via Ticino, 30 20900 Monza (MB) +39 039 21 41 070 italysales@schaffner.com Japan Schaffner EMC K.K. ISM Sangenjaya 7F 1-32-12 Kamiuma, Setagaya-ku 154-0011 Tokyo +81 3 5712 3650 japansales@schaffner.com Singapore Schaffner EMC Pte Ltd. Blk 3015A Ubi Road 1, #05-09, Kampong Ubi Industrial Estate 408705 Singapore +65 63773283 singaporesales@schaffner.com Taiwan Schaffner EMV Ltd. U-Town 20 Floor-2, No 97, Section 1, XinTai 5th Road, XiZhi District 22175 New Taipei City +886 226975500 taiwansales@schaffner.com Thailand Schaffner EMC Co. Ltd. Sathorn Square Tower Room 3780, 37FL, 98 North-Sathorn Rd, Silom, Bangrak 10500 Bangkok +66 621056397 thailandsales@schaffner.com United Kingdom Schaffner Ltd. 1, Oakmede Place Terrace Road RG42 4JF Binfield +44 118 9770070 uksales@schaffner.com United States Schaffner EMC Inc. 52 Mayfield Avenue Edison, New Jersey +1 732 225 9533 usasales@schaffner.com
